Nano-400A
  • Nano-400A

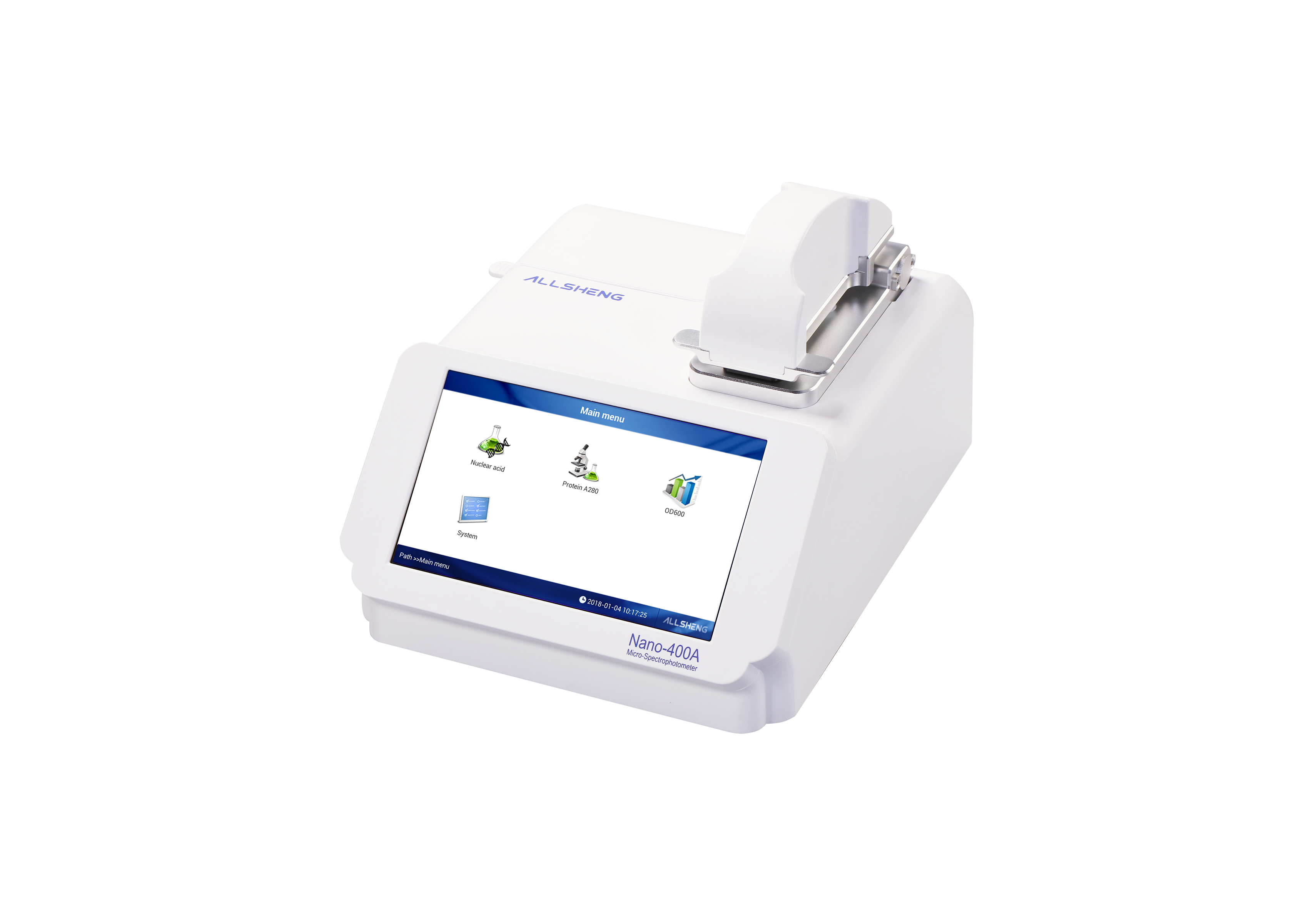

Micro-Spectrophotometer — Nano-400A

Nano-400A ultra-micro nucleic acid analyzer is an instrument used to detect the concentration and purity of DNA and RNA. The sample size required for each measurement is only 1 to 2 μl. User can directly add the sample point to the template without colorizing cup or capillary accessories. After the measurement, you can choose to wipe the sample directly or use a pipettor to recover the sample. All steps are simple and fast.

Inquiry More
  • ALLSHENG ALLSHENG
    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG
    Order information

•Nano-400A is a basic micro-volume UV spectrophotometer designed (only 3 types of wavelength: 260 nm, 280 nm and 365 nm) for the measurement of nucleic acids and proteins

•Android system operation, 7 inch touch screen no computer, APP software, simple interface, easy to use

•LED light source long-life components

•To detect the concentration of bacteria and microorganism are more convenient with the OD600 function

•Measures nucleic acid concentration at 260 nm and purity using the ratio 260/280

•Measure purified protein concentration at 280 nm

•The data can be printed with built-in printer, the data can output via SD-RAM card and USB memory


  • Model
    Nano-400A
  • Wavelength range
    260 nm, 280 nm
  • Minimum sample size
    1-2.0 μl
  • Path length
    0.5 mm
  • Light source
    LED
  • Detector type
    UV-sillion photocell
  • Spectral resolution
    ≤8 nm
  • Absorbance precision
    0.005Abs
  • Absorbance accuracy
    2 %（7.332Abs at 260 nm)
  • Absorbance range
    0.2 - 50 A
  • Detects nucleic acid up to
    10-2500 ng/μl（dsDNA）
  • Measurement time
    <6 S
  • Data output
    USB
  • Sample pedestal material
    Aluminum alloy and Quartz fiber
  • Operating voltage
    DC 24 V 2 A
  • Operating power
    25 W
  • Standby power
    5 W
  • Dimension (W×D×H) mm
    208×280×186
  • Weight
    3.6 kg
  • Software compatibility
    Android system
  • OD600nm measurement
  • Light source
    LED
  • Wavelength range
    600±8 nm
  • Abosorbance range
    0-4 A
  • Code
    Description
  • AS-11050-00
    Nano-400A micro-spectrophotometer, DC24V 5W
  • AS-11021-01
    Cuvette for Nano-300, Nano-400A and Nano-500
