Dry Bath Incubator — IB-20HL

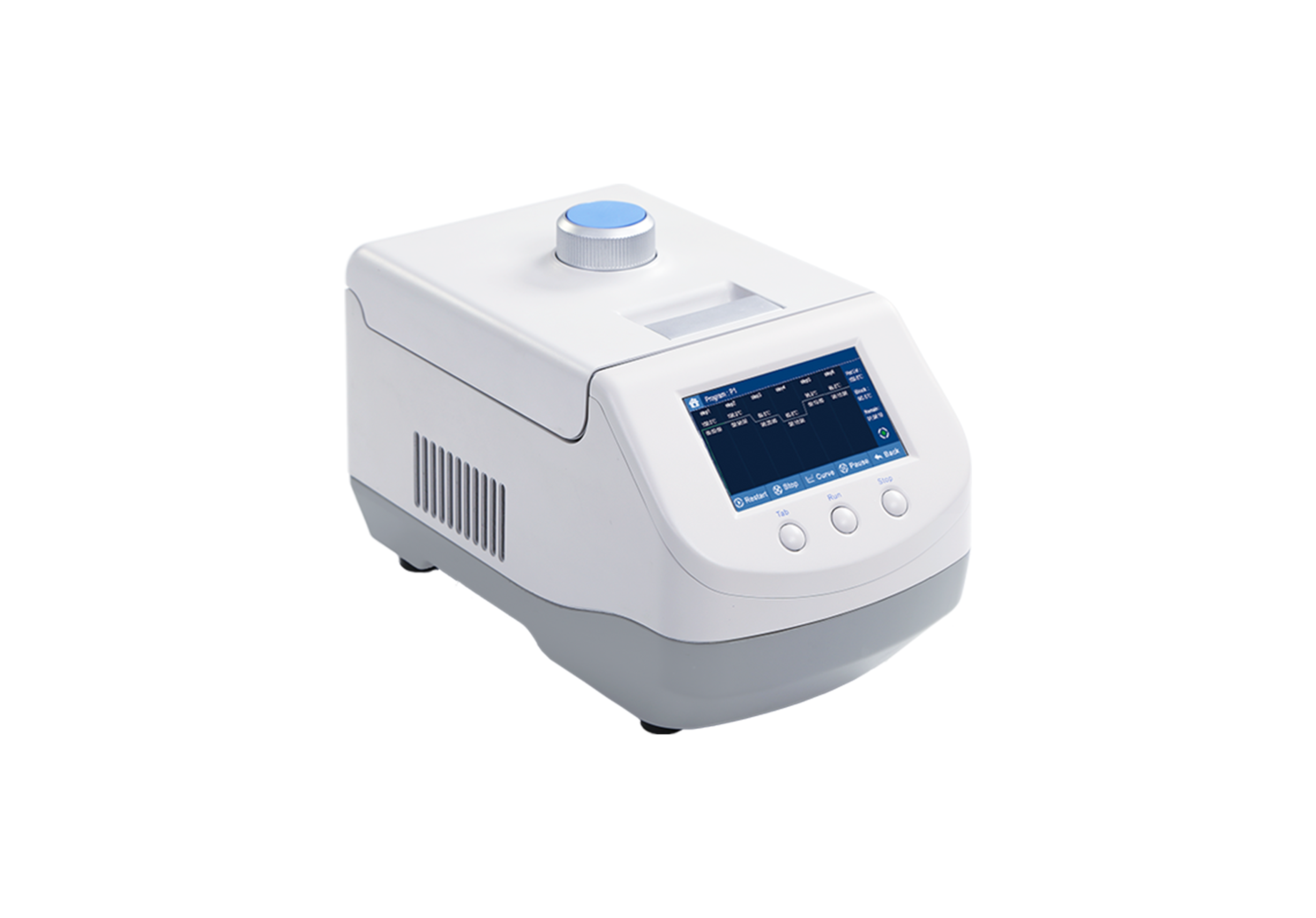

IB-20HL thermal cycle thermo lid dry bath incubator uses semiconductor technology (Peltier-Based) and microcomputer control to run PCR reaction programs. It adopts innovative replaceable blocks and stepless adjustable thermo lid design to fit 0.2 ml, 0.5 ml, 1.5 ml, 2.0 ml centrifuge tubes. Thermo lid dry bath incubator can be widely used in PCR, LAMP, NASBA, RPA, sample storage and reaction, DNA amplification and pre-denaturation for electrophoresis, serum coagulation, nucleic acid and protein denaturation, etc. The IB-20HL thermal cycler thermo lid dry bath incubator has a unique feature: dry bath incubator can run PCR reaction programs.


  • ALLSHENG ALLSHENG
    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG

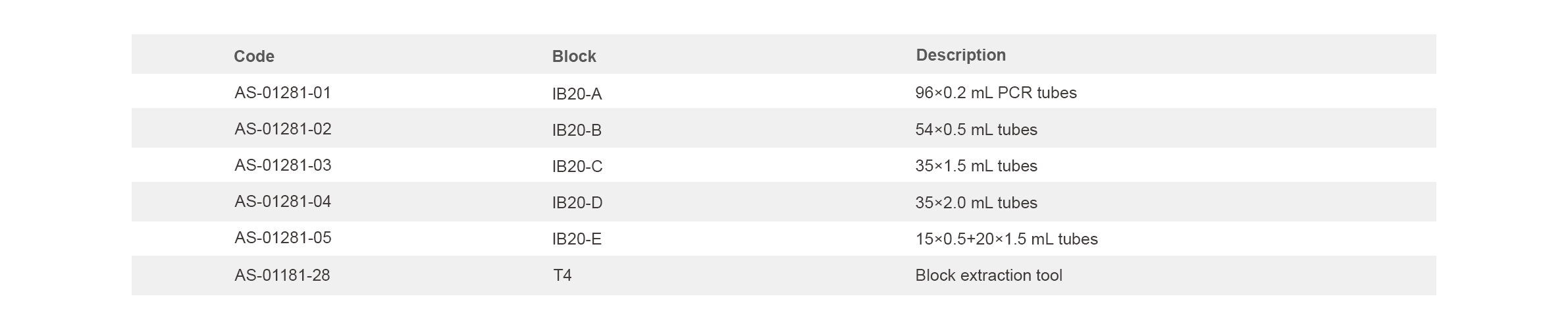

    Accessories consumables
  • ALLSHENG ALLSHENG
    Order information

Adopt innovative replaceable aluminum alloy block design; block automatic identification function

Stepless adjustable thermo lid design, suitable for 0.2 ml, 0.5 ml, 1.5 ml, 2.0 ml centrifuge tubes, effectively preventing cap explosion and evaporation

Customize the thermo lid switch status. Can turn on or off the thermo lid heating function according to needs

Special handle tool for easy replacement of metal blocks and easy cleaning

•Reserve wifi function, suitable for future APP software

•IB-20HL has powerful software function (software function of PCR instrument)

  - Can independently set/display block temperature, constant temperature time, thermo lid temperature (thermo lid temperature can be closed)

  - 4 programs can be preset, 9 programs can run in cycles, the number of cycles is 99

  - Connection function, 99 cycles

•IB-20HL has a unique feature: dry bath incubator can run PCR reaction programs

  • Model
    IB-20HL
  • Temperature control range
    -5 ℃~105 ℃ (If ambient temperature≤20 °C)
  • Temperature control range
    0 °C~105 °C (If ambient temperature≤25 °C)
  • Temperature control range
    4 °C~105 °C (If ambient temperature≤30 °C)
  • Lid's temperature range
    RT.+5 °C~110 °C
  • Timer range
    0~99 h59 min/0~99 min59 sec
  • Temp. accuracy for blocks
    ±0.5 ℃
  • Temp. accuracy for lid
    ±1 ℃
  • Uniformity within the block
    ±0.5 ℃
  • Display accuracy
    0.1 ℃
  • Heating time (RT 25 ℃)
    Heating speed: (37 °C-100 °C)≥6 °C/min
  • Cooling time
    Cooling speed: (100 °C-37 °C)≥6 °C/min
  • Dimension (W×D×H) mm
    313×168×196 mm
  • Weight
    3.0 kg


  • Code
    Description
  • AS-01280-00
    IB-20HL, AC100~240 V, 50/60 Hz, 120 W
