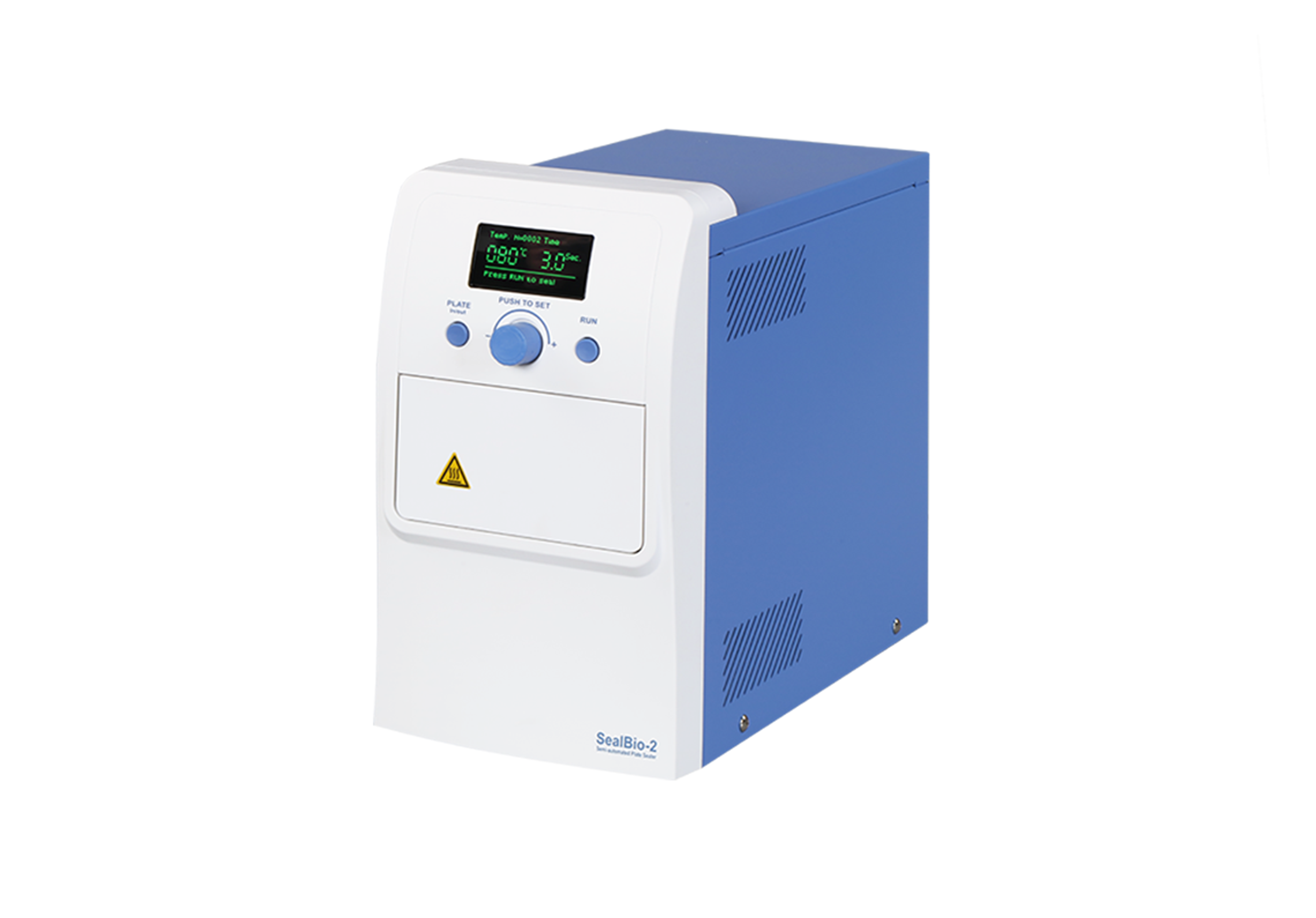

Semi Automated Plate Sealer — SealBio-2

SealBio-2 plate sealer is a semi-automatic thermal sealer which is ideal for the low to medium throughput laboratory that requires uniform and consistent sealing of micro-plates. Unlike manual plate sealer, the SealBio-2 produces repeatable plate seals. With variable temperature and time settings, sealing conditions are easily optimised to guarantee consistent result, eliminating sample loss. The SealBio-2 can be applied in product quality control of many manufacture enterprises such as plastic film, food, medical, inspection institute, scholastic scientific research and teaching experiment. Offering complete versatility, the SealBio-2 will accept a full range of plates for PCR, assay or storage applications.

Inquiry More

•Rapid heating (up to 170 °C within 300 seconds), precise temperature control

•Adjustable sealing plate temperature: 80~200 °C, real-time temperature display

•Easy to operate, suitable for various microplates

•Adjustable temperature, time, and pressure to ensure stability

•Full view full brightness OLED display screen, bright display in dark environments

•Small footprint: only 370mm deep × 178mm wide

•Power supply: AC120V or AC220V

•Security

1.If a hand or objects stuck in the drawer when it's moving, the drawer motor will automatically reverse. This feature prevents injury to the user and the unit
2.Special and smart design on the drawer, it can be detached from the main device. So user can maintain or clean the heating element easily

•Controls

Sealing time and temperature can be set by using the control knob, OLED display screen, high light and no visual angle limit.
1.Sealing time and temperature
2.Sealing pressure can be adjustable
3.Automatic counting function

•Energy Saving Functions

1.When the SealBio-2 is left idle more than 60 min, it will automatically switch into stand-by mode during when the temperature of the heating element is reduced to 60 °C to save energy
2.When the SealBio-2 is left idle more than 120 min, it will switch off automatically for safe. It will switch off the display and the heating element. Then, the user can awaken the machine by pushing any button

Model

SealBio-2
Display

OLED
Sealing temperature

80 ~ 200 ℃ (increment of 1.0 ℃)
Temperature accuracy

±1.0 ℃
Temperature uniformity

±1.0 ℃
Sealing time

0.5 ~ 10 seconds (increment of 0.1 s)
Seal plate heights

9 to 48 mm
Input power

300 W
Dimension (DxWxH) mm

370×178×330
Weight

9.6 kg
Compatible plate materials

PP (Polypropylene), PS (Polystyrene), PE (Polyethylene)
Compatible plate types

SBS standard plates, deep-well plates, PCR plates (skirted, semi-skirted and no-skirted formats)
Heating sealing films & foils

Foil-polyproylene laminate, clear polyester-polypropylene laminate, clear polymer, thin clear polymer

Code

Description
AS-15020-00

Sealbio-2 AC220 V or AC120 V, 50/60 Hz,300 W
AS-15021-01

SBA-1 Standard plate adapter
AS-15021-02

SBA-2 96-well PCR plate adapter
AS-15021-03

SBA-3 Weighted sealing platen
