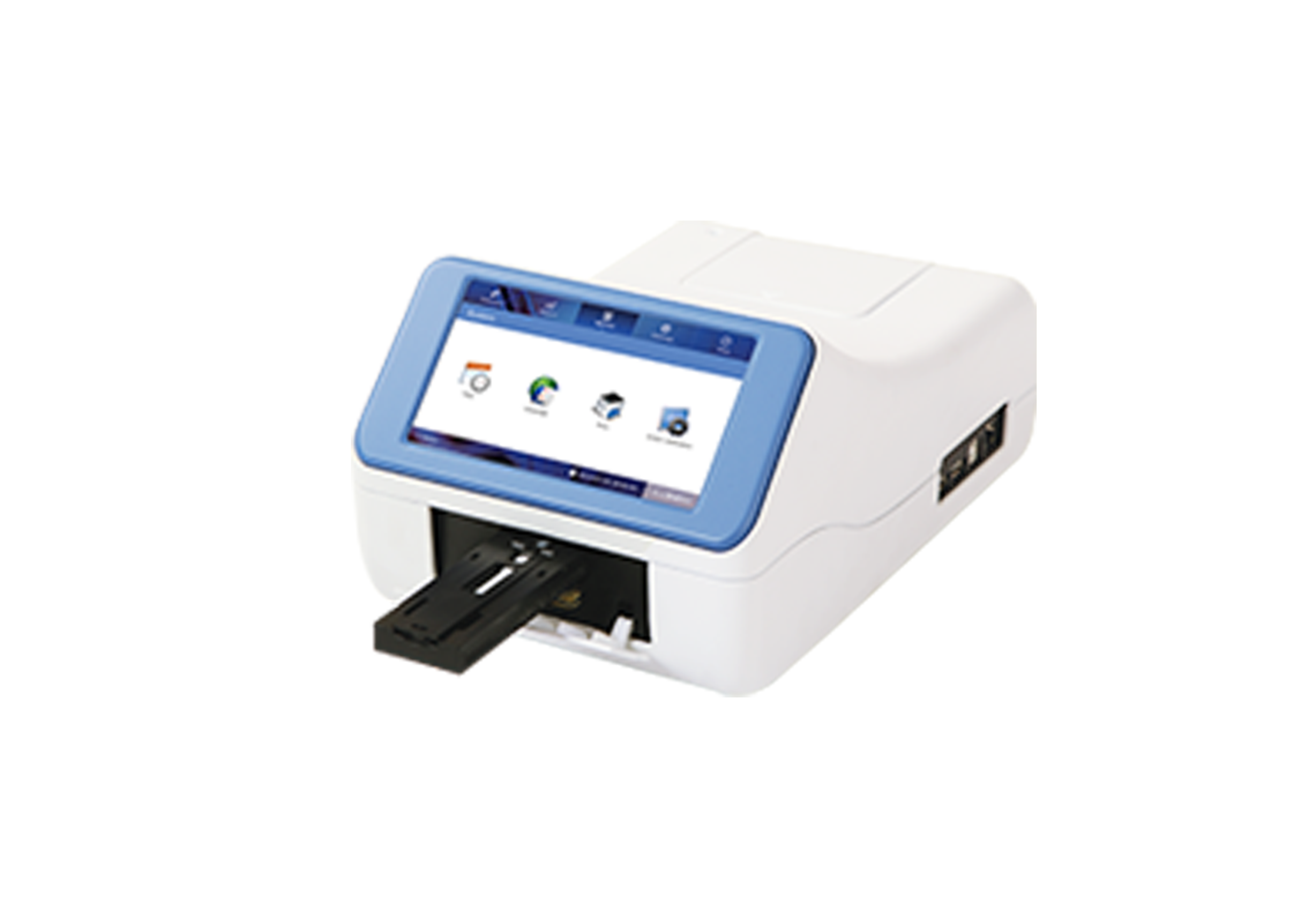

Test Strip Reader — TSR-100A

TSR-100A test strip reader is a highly sensitive, rapid, and effective optical measurement system for immunochromatographic reagent kits. By using modern photoelectric technology and photo-diode to detect the intensity of the reflected light, the reader can detect the color of the strip, then calculate the quanting or concentration. It can be widely used in customs inspection and quarantine, environmental monitoring, food safety, clinical diagnosis, drug screening, major disease diagnosis and drug testing.

Inquiry More

•6.2 inch touch screen and smart operation system for easy use

•High-sensitivity measurement with high repeatability

•Support a wide range of reagents as well as reagent development

•Compatible with different reagent housing configurations

•Colorimetric detection: colloidal gold, colored latex beads, carbon etc.

•OEM service is available according to different reagent kits or fluorescence detection

•Internet, wireless internet function extendable

•Strict calibration system for stable results

•Automatically identify CT line position, error correction range ±3mm

•Accurately identify one or more( up to 4) T lines value and CT ratio

•Large built-in memory can save 4000 records

•Build-in thermal printer

•Powerful software, build-in 2 systems software (one for the end-user, another one for the reagent manufacturer)

•Fast and accurate test reduce human errors, automatic calculate concentration and judgment. Can automatically calculate the detection concentration and judge whether the sample to be tested is qualified or not

•Strict calibration mechanism, the result is more stable, the position of CT line can be customized and identified, it supports the setting of line width and line spacing, and supports real-time display of the detection curve

Model

TSR-100A
Wavelength

525±30 nm (based on the requirement of customer)
Detector type

Photodiode
Test item

Immunochromatographic test cards or wide 3~6 mm test strips
Parameter of test item

According to the requirement of test strips
Detection result

Multi-algorithm, quantitative, selected results,save and print results
Test speed

240 strips each hour
Repeatability

CV<2 %
Stability

Drift value≤3 % in 2 hours
Data analysis

Qualitative, quantitative, semi-quantitative, multi-algorithm
Display

6.2 inch touch screen
Connection

2xUSB, Ethernet port
Number of T-line

4 lines
Printer

Built-in Printer
Save type

Built-in SD card (2GB)
Power adapter

DC12 V 4 A
Power

20 W
Dimension (WxDxH) mm

320×195×156 mm
Weight

6 kg
Software operation

ARM

Code

Description
AS-12010-00

TSR-100A Test Strip Reader DC24 V, 2 A
AS-12011-01

Adapter C-100 for TSR-100
