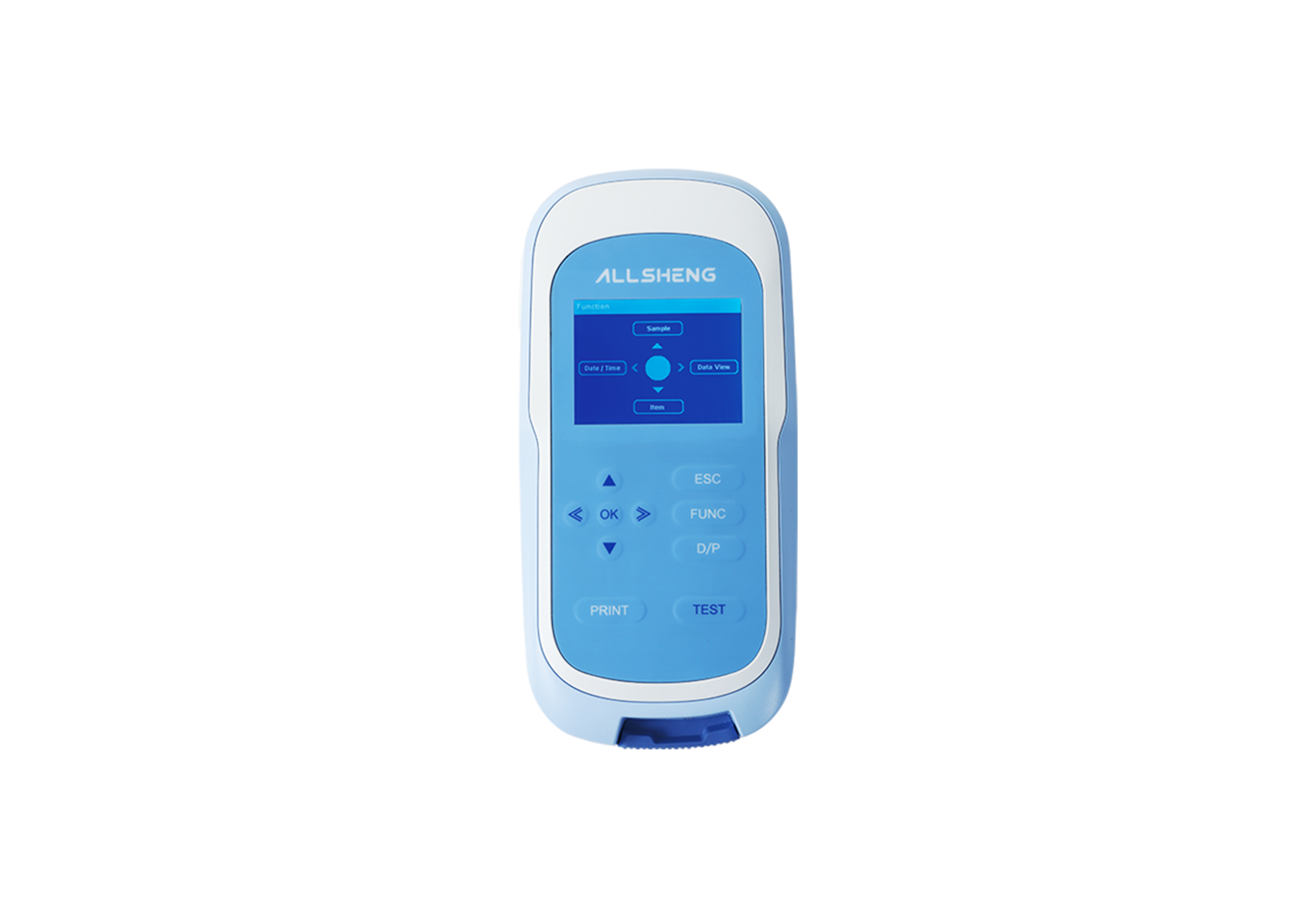

Test Strip Reader — TSR-200

TSR-200 test strip reader is a handheld rapid test reader, designed to scan and provide objective digital read-out results for membrane-based lateral flow immunochromatographic assays.
TSR-200 can make rapid, high sensitivity--in qualitative, semi-quantitative, fully quantitative measurements for immunochromato-graphic reagent kits. It can be widely used in customs inspection and quarantine, environmental monitoring, food safety, clinical diagnosis, drug screening, major disease diagnosis and drug testing.

Inquiry More

•A portable reader customized to your needs

•Adaptable to most test cassette and strip formats

•Supports a wide range of reagents as well as reagent development

•High-sensitivity measurement with high repeatability

•Colorimetric detection: colloidal gold, colored latex beads, carbon etc.

•OEM service is available according to different reagent kits or fluorescence detection

•Small size and light weight for easy carrying

•Simply operation with 1~3 steps quantitative detection

•Semi-automatic detection with high speed, test time only 5s except prepare sample time

•Automatically identify CT line position, error correction range ±3mm

•Accurately identify one or more( up to 4) T lines value and CT ratio

•Large built-in memory can save 10000 records

•External thermal printer for printing reports

•Powerful software, build-in 2 systems software (one for the end-user, another one for the reagent manufacturer)

•The position of CT line can be identified by self-definition, support line width and line spacing setting, support real-time display of detection curve

•Expandable wireless network function to realize data network management

Model

TSR-200
Wavelength

525±30 nm (based on the requirement of customer)
Detector type

Photodiode
Test item

Immunochromatographic test cards or wide 3~6 mm test strips
Parameter of test item

According to the requirement of test strips
Detection result

Multi-algorithm, quantitative, selected results,save and print results
Test speed

240 strips each hour
Repeatability

CV<2 %
Stability

Drift value≤3 % in 2 hours
Data analysis

Qualitative, quantitative, semi-quantitative, multi-algorithm
Display

3.2 inch LCD
Connection

2xUSB
Number of T-line

4 lines
Printer

External printer
Save type

Built-in SD card (4GB)
Power adapter

DC9 V 1.5 A
Power

9 W
Dimension (WxDxH) mm

225×109×46 mm
Weight

0.5 kg
Software operation

ARM

Code

Description
AS-12020-00

TSR-200 Portable Test Strip Reader, DC9 V 1.5 A (Standard: Adapter S-200)
AS-12021-01

Adapter C-200 for TSR-200
