＞Product＞Life Science Detection Products＞QPCR＞Product Details
Esan-Gene 164
  • Esan-Gene 164
Real-time PCR System — Esan-Gene 164

Esan-Gene 162/164 real-time PCR system, with 2-channel/4-channel, 16-well, portable and convenient for on-site rapid inspection and quarantine, disease prevention and control, food safety, agriculture, forestry and biochemistry and other occasions, is a real-time detection portable QPCR.

Inquiry More
  • ALLSHENG ALLSHENG

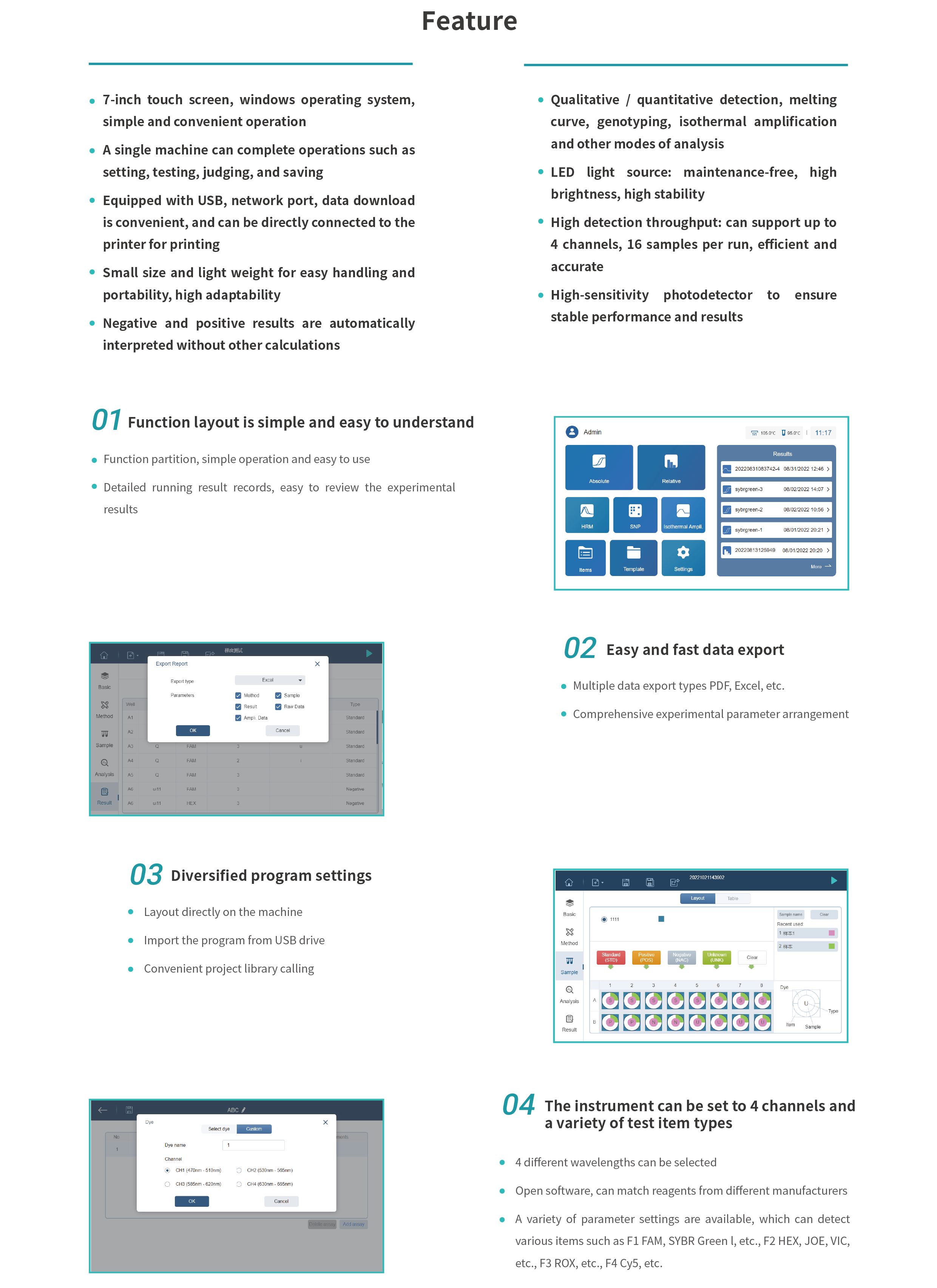

    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG
    Order information

Esan-Gene 162164 -03 产品详情修改2025.03.28.png

  • Model
    Esan-Gene 164
  • Detection throughput
    16-well
  • Sample volume
    15-100 μL
  • Consumable
    0.2 mL thin wall transparent 8-strip tube
  • Consumable
    0.2 mL thin wall transparent single tube
  • Dynamic range
    1-10^10 Copies
  • Linearity
    |r| ≥ 0.999
  • Number of channels
    4 channels
  • Number of channels
    Channel 1 (470 nm-510 nm) Channel 2 (530 nm-565 nm)
  • Number of channels
    Channel 3 (585 nm-620 nm) Channel 4 (630 nm-665 nm)
  • Excitation light source
    LED (maintenance free)
  • Detection element
    PD
  • Channel parameters (by instrument model)
    F1: FAM, SYBR Greenl etc.
  • Channel parameters (by instrument model)
    F2: HEX, JOE, VIC etc.
  • Channel parameters (by instrument model)
    F3: ROX etc.
  • Channel parameters (by instrument model)
    F4: Cy5 etc.
  • Temperature control mode
    Block
  • Temperature range
    4~99.9 °C
  • Temperature control method
    Semiconductor chilling plate
  • Temperature accuracy
    ±0.15 °C
  • Temperature control precision
    0.1 °C
  • Temperature uniformity
    ±0.2 °C @95 °C
  • Maximum heat-up rate
    6 °C/s
  • Maximum cooling rate
    6 °C/s
  • Average heat-up rate
    4 °C/s
  • Average cooling rate
    4 °C/s
  • Melting temperature
    Minimum difference 0.1 °C
  • Thermo lid temperature
    30~110 °C
  • Input power
    100-240 V AC 50-60 Hz
  • Maximum power
    200 W
  • Security protection and alarm
    Support short circuit, open circuit and over temperature protection and alarm
  • Dimension (W×D×H)
    200×297×148 mm
  • Weight
    5.9 kg
  • Code
    Description
  • AS-30020-00
    Esan-Gene 164
