Nano-500
  • Nano-500

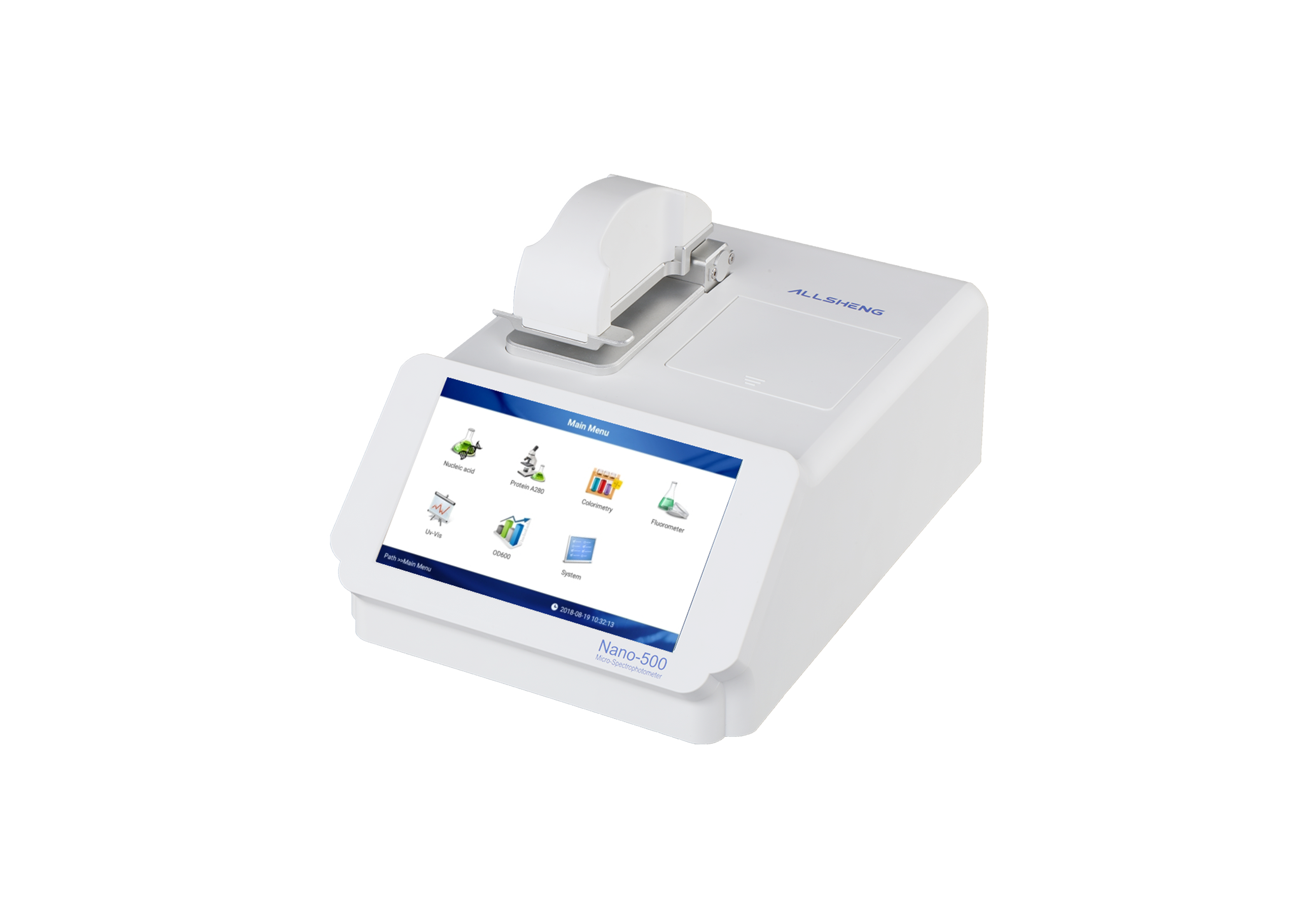

Micro-Spectrophotometer — Nano-500

Nano-500 is an advanced model of micro UV VIS spectrophotometer based on Nano-300, with full range of wavelength (200-800 nm). It is with an added new function of bacterium cell concentration measurement (OD600) in a cuvette. The Nano-500 only requires 0.5-2 μl sample to measure nucleic acids, proteins as quickly as Nano-300. Nano-500 come with a 7 inch touch screen and integrated Android operating system, with no computer required. It is an ideal equipment for a biology laboratory to make life science research more efficient.

Inquiry More
  • ALLSHENG ALLSHENG

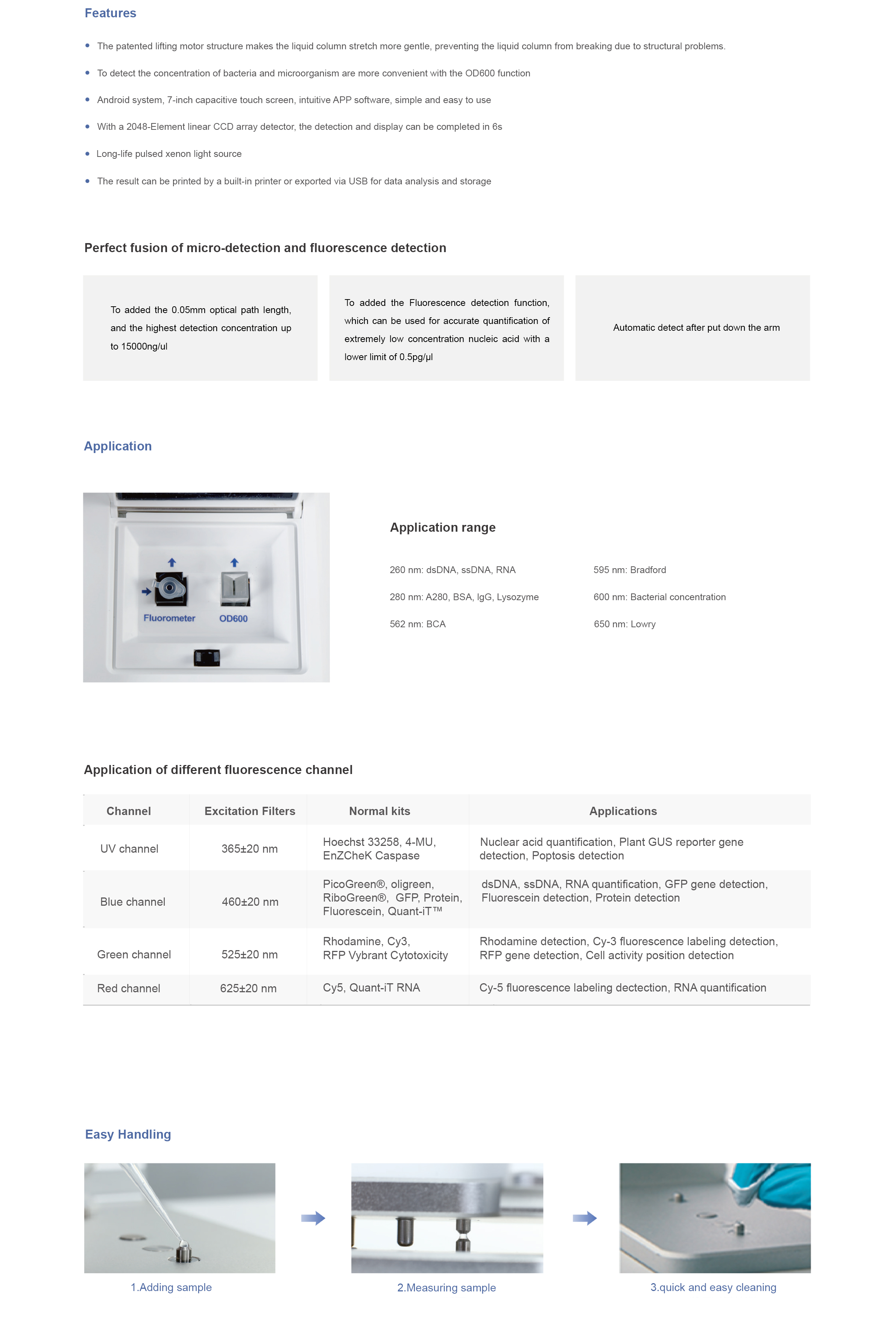

    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG
    Order information


  • Model
    Nano-500
  • Wavelength range
    200-800 nm
  • Minimum sample size
    0.5-2.0 μl
  • Path length
    0.05 mm, 0.2 mm, 1.0 mm
  • Light source
    Xenon flash lamp
  • Detector type
    2048-Linear CCD array
  • Wavelength accuracy
    1 nm
  • Spectral resolution
    ≤3 nm
  • Absorbance precision
    0.003Abs
  • Absorbance accuracy
    1 % (7.332Abs at 260 nm)
  • Absorbance range
    0.04 - 300A
  • Detects nucleic acid up to
    2-15000 ng/μl (dsDNA)
  • Measurement time
    <6 S
  • Data output
    USB
  • Sample pedestal materia
    Aluminum alloy and Quartz fiber
  • Operating voltage
    DC 24 V 2 A
  • Operating power
    25 W
  • Standby power
    5 W
  • Dimension (WxDxH)mm
    208×320×186
  • Weight
    3.6kg
  • Software compatibility
    Android system
  • OD600nm measurement
  • Light source
    LED
  • Wavelength range
    600±8 nm
  • Absorbance range
    0-4 A
  • Fluorescent detection
  • Sensitivity
    dsDNA：0.5 pg/μl
  • Linear dynamic range
    R²≥0.995
  • Repeatability
    ≤1.5 %
  • Code
    Description
  • AS-11060-00
    Nano-500 micro-spectrophotometer, DC24 V 5 W
  • AS-11070-00
    Nano-500U micro-spectrophotometer, DC24 V 5 W
  • AS-11080-00
    Nano-500G micro-spectrophotometer, DC24 V 5 W
  • AS-11090-00
    Nano-500R micro-spectrophotometer, DC24 V 5 W
  • AS-11021-01
    Cuvette for Nano-300, Nano-400A and Nano-500
