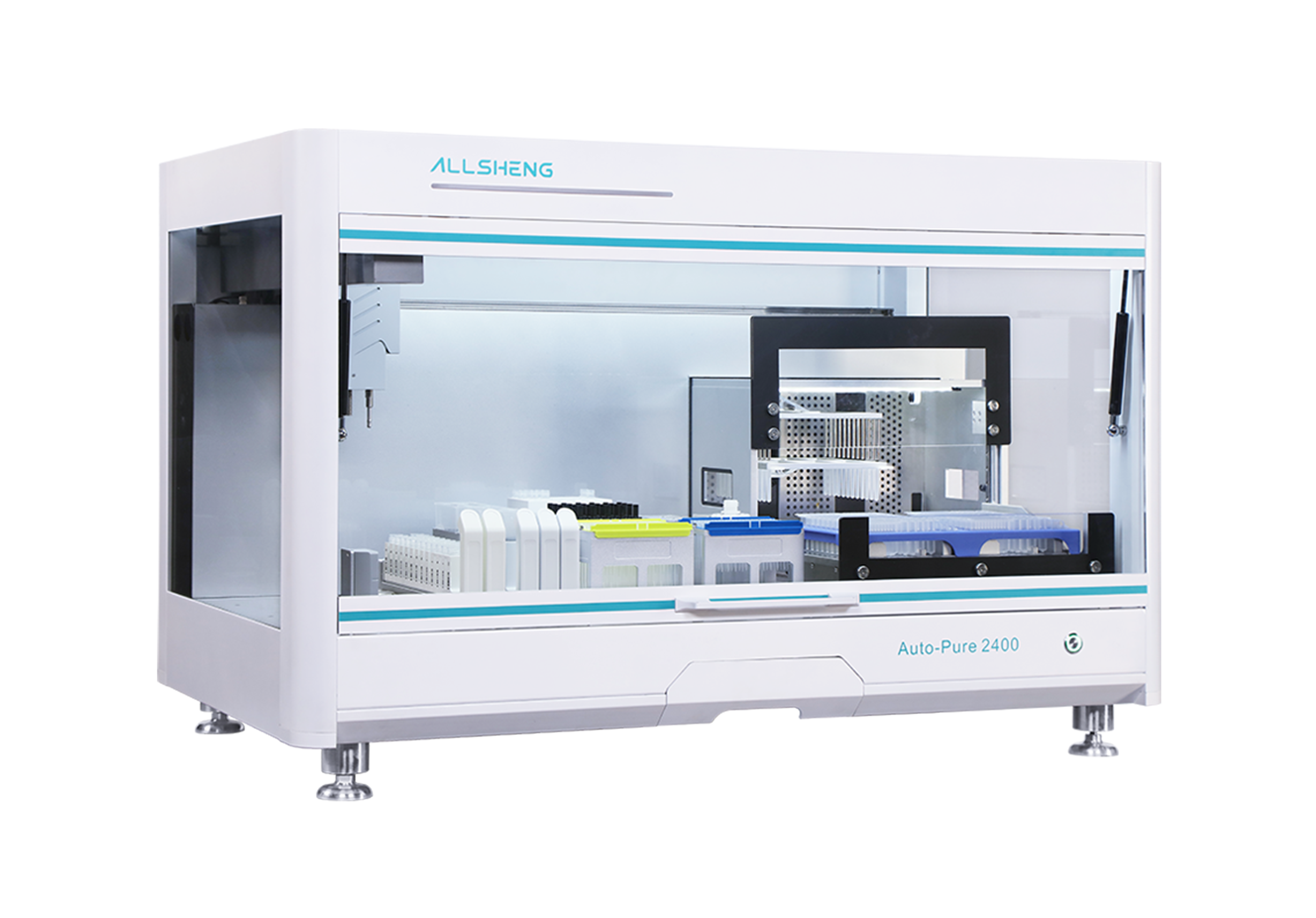

Auto-Pure 2400
  • Auto-Pure 2400
Nucleic Acid Purification System — Auto-Pure 2400

Auto-Pure series is a high-throughput automatic nucleic acid extraction equipment, based on the magnetic bead method to extract nucleic acid. During the purification process, the steps of pipetting, lysis, washing, elution, and PCR system set-up can be done automatically in the workstation. One-stop operation, without manual intervention, can extract 24×10 mL samples at the same time, which is more efficient and convenient than manual and semi-automatic extraction. At the same time, standardized and automated operating steps avoid human error, the experimental results are more reliable and repeatable.

Inquiry More
  • ALLSHENG ALLSHENG

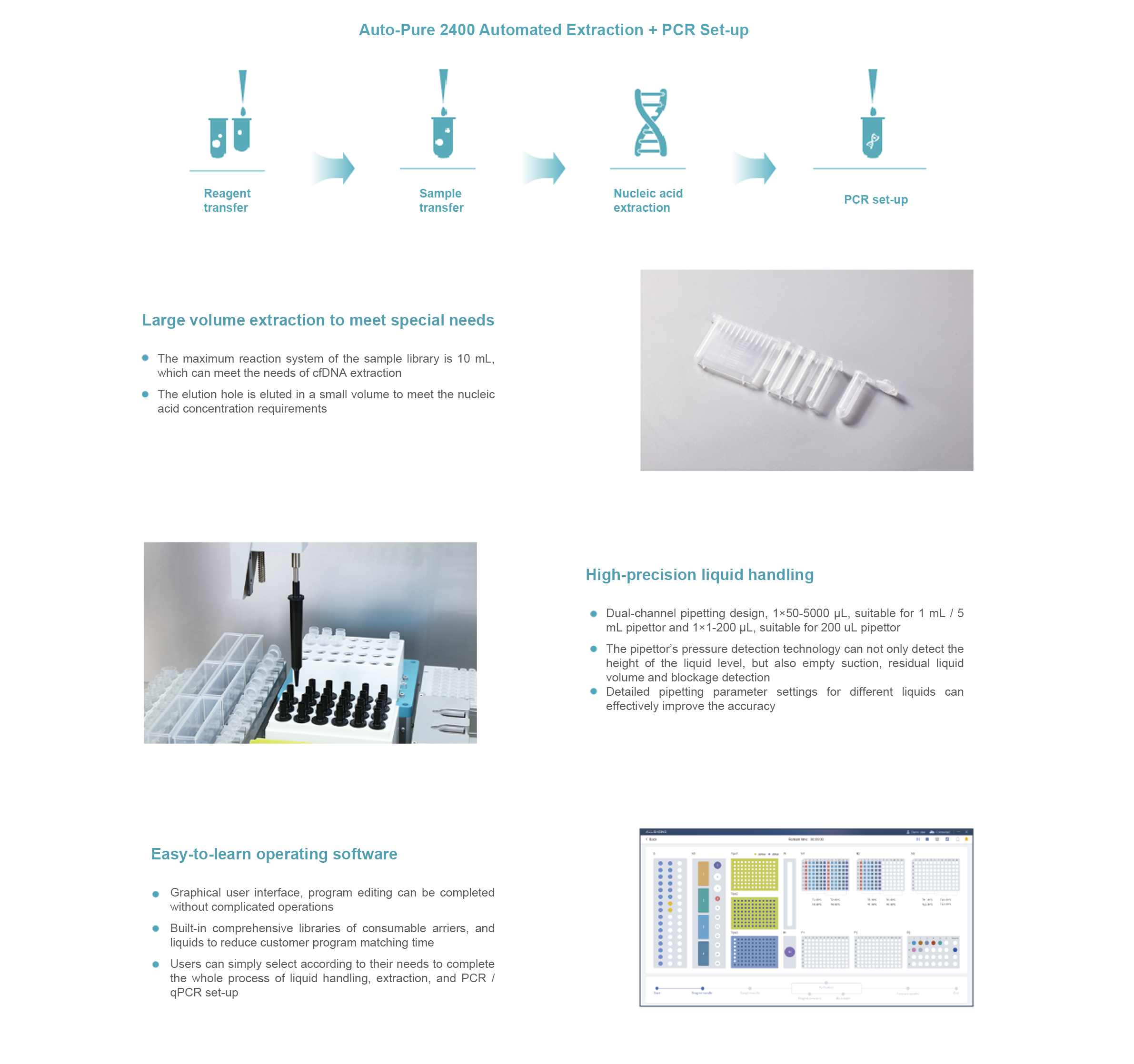

    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG

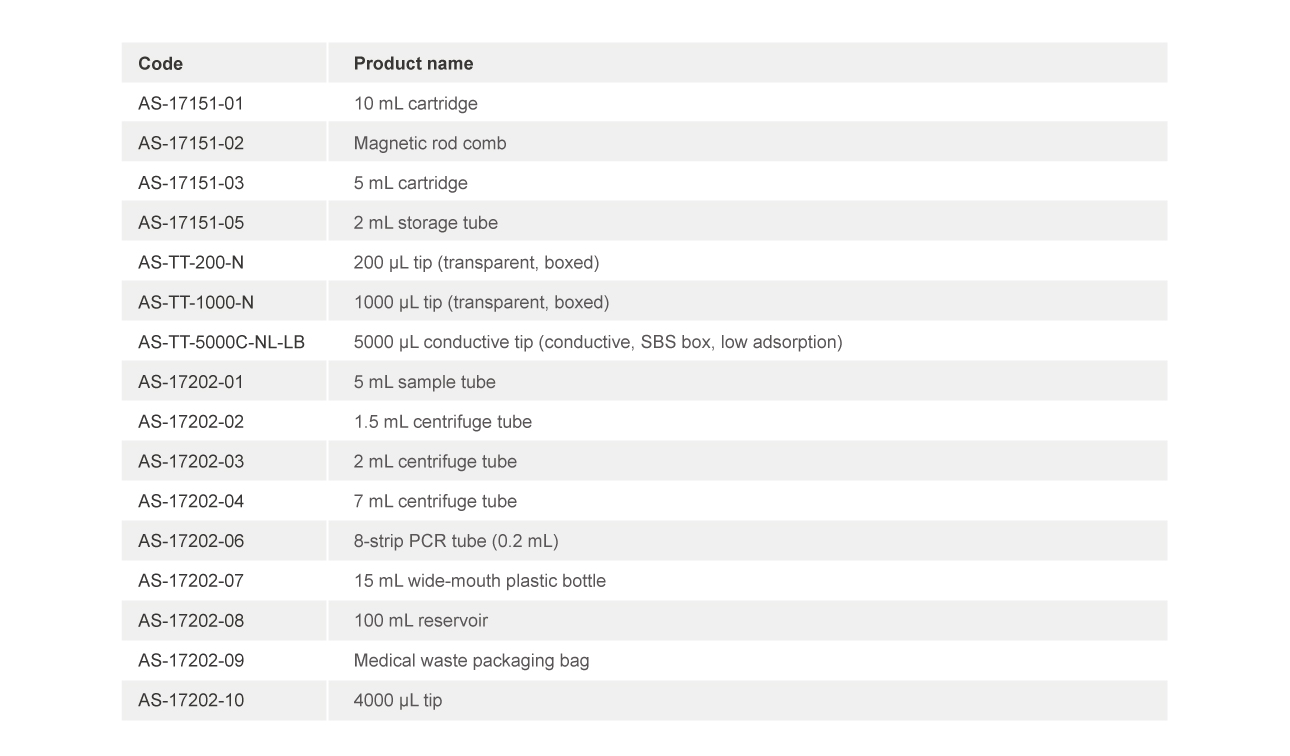

    Accessories consumables
  • ALLSHENG ALLSHENG
    Order information

Auto-Pure 2400.jpg

  • Model
    Auto-Pure 2400
  • Function
    Automatic pipette samples and reagents, extract nucleic acid and set-up PCR systems
  • Information management
    Support external USB scanner, barcode scanning function, automatic scanning function
  • Pipetting principle
    Air displacement pipetting technology
  • Pipettor
    One 5000 μL pipettor, one 200 μL pipettor
  • Pipetting range (μL)
    1-5000 μL
  • Tips
    Allsheng tips, and other tips compatible with this instrument
  • Liquid detection
    Pressure detection: liquid level detection, tip clogging detection and residual liquid detection
  • Samples per run
    1-24
  • Extraction processing volume
    50-10000 μL
  • Extraction uniformity
    CV≤5 %
  • Single sample consumable
    Support
  • Extraction temperature control
    Elution, lysis temperature control: RT~ 120 ℃
  • UV sterilization
    Separate UV lamp: extraction area, pipetting area and waste container area
  • Filter
    Equipped with three HEPA filters
  • Instrument port
    USB port
  • Power supply
    220 V, 8 A, 50/60 Hz
  • Power
    Standby 30 W, maximum 600 W
  • Noise
    ≤60 dB
  • Net weight
    130 kg


  • Code
    Model
  • AS-17200-00
    Auto-Pure 2400
