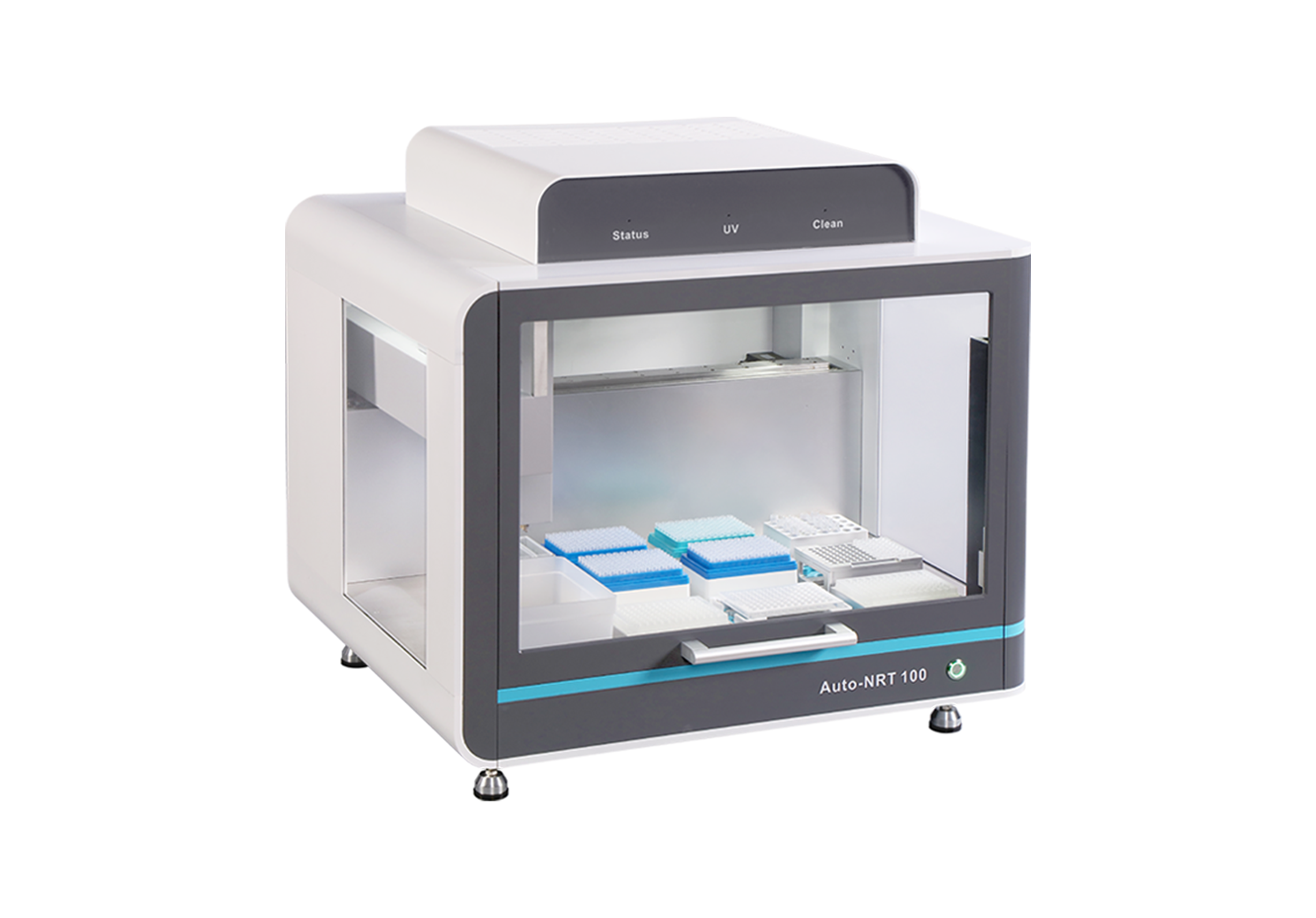

Automated PCR Setup System — Auto-NRT 100

Auto-NRT 100 automated PCR setup system is a pipetting workstation specially designed for the automatic construction of PCR system, which can meet the various set-up requirements of PCR systems such as PCR and qPCR. 9 standard plate positions are designed, and the PCR system can be automatically constructed for up to 384 regular samples per run. The fully automatic sample processing is fast and reliable, effectively reducing various results deviations caused by manual pipetting steps, and ensuring the reproducible results required by the experiment. The open software design supports reagent transfer of various centrifuge tubes and 96/384-well PCR plates. Auto-NRT 100 helps you achieve simple, fast and precise PCR system set-up.

Inquiry More

PDF Download

Auto-NRT 100版位.jpg Auto-NRT 100.jpg

Model

Auto-NRT 100
Throughput

1-384

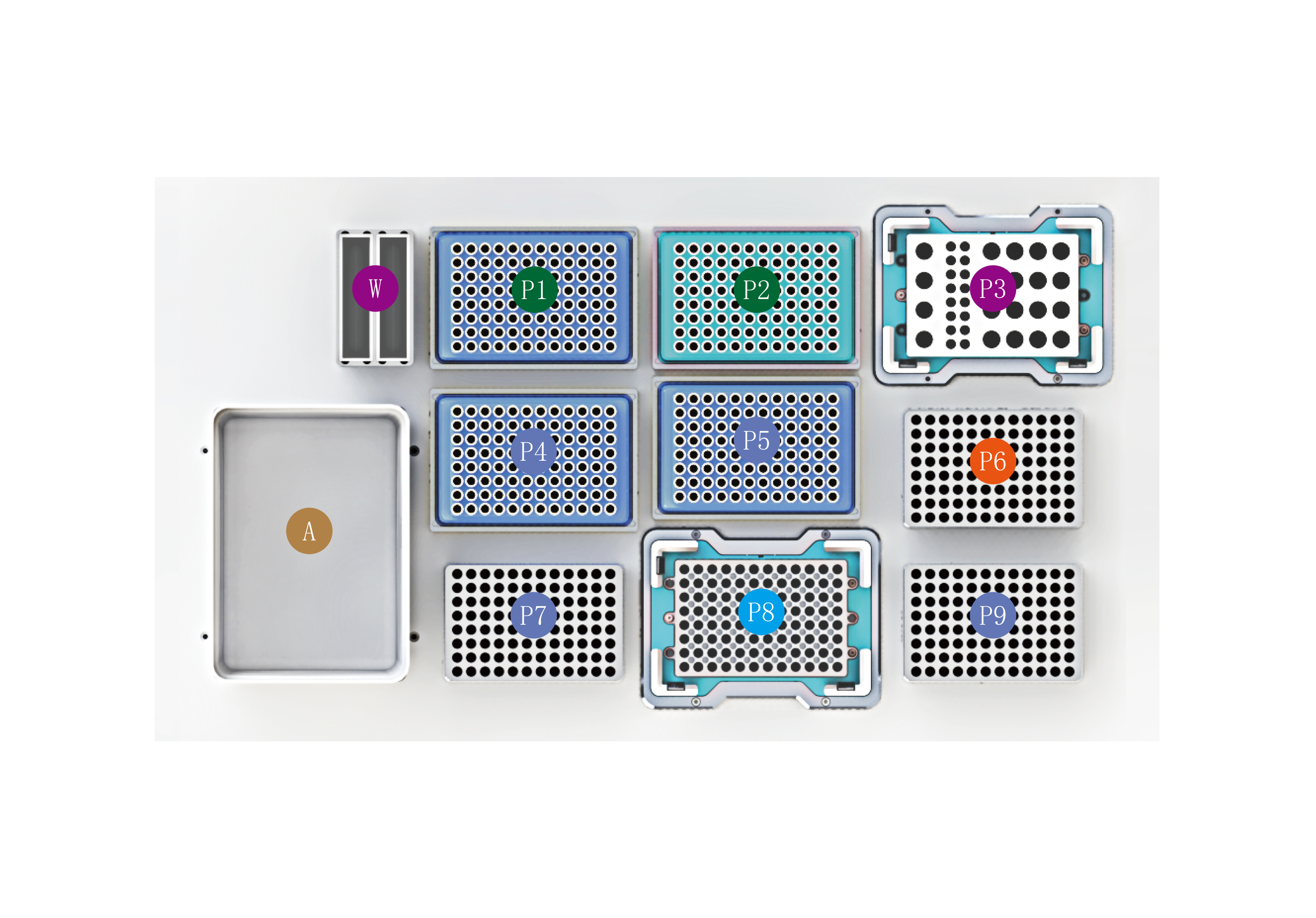

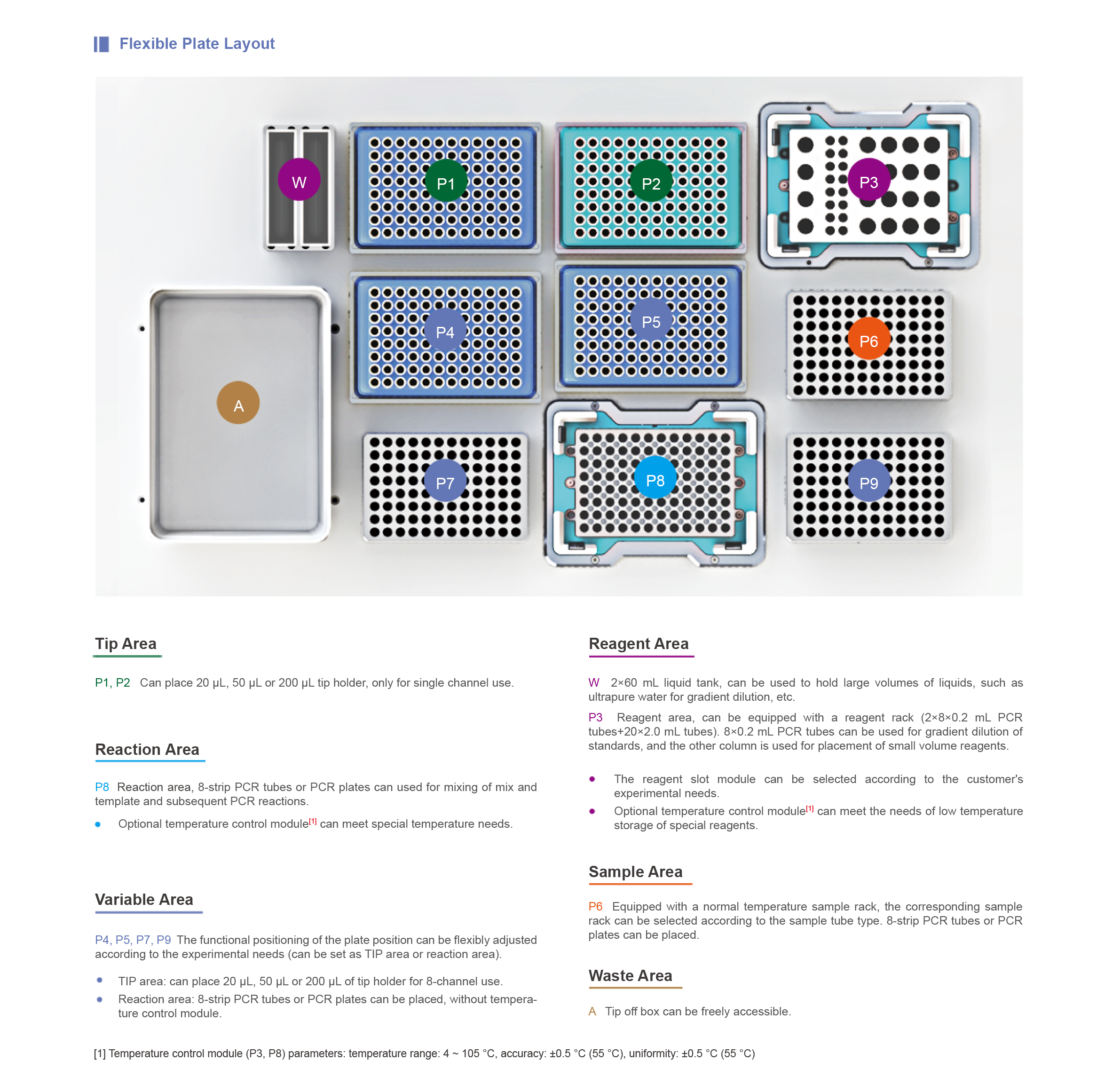

Plate number

9 standard plates+(TIP off box+waste liquid area)
Available well plate

SBS standard 24/96/384 deep and shallow well plates
UV sterilization

Equipped with UV sterilization lamp, HEPA filter device
Consumable

Matching Allsheng TIP
Temp. control block

Equipped with 2 temperature control blocks; temperature control range: 4~105 °C; temperature accuracy: 0.5 °C, @55 °C; temperature uniformity: 0.5 °C, @55 °C
UV sterilization

Equipped with UV sterilization lamp, high-efficiency purification filter device
Instrument port

USB port, CAN communication
IoT

Expandable
Size (W×D×H)

740×630×670 mm
Temperature requirement

10~40 °C
Relative humidity

≤80 %
Power input

100-240 V, 50/60 Hz, rated power 550 W
Precision (CV)

1 μL: ≤5 %; 2 μL: ≤5 %; 5 μL: ≤4 %; 20 μL: ≤2 %; 100 μL: ≤1 %; 200 μL: ≤1 %
Accuracy (A)

1 μL: ±12 %; 2 μL: ±12 %; 5 μL: ±8 %; 20 μL: ±2 %; 100 μL: ±1 %; 200 μL: ±1 %

Auto-NRT 100.jpg

Code

Description
AS-26010-00

Auto-NRT 100 automated PCR setup system, 100-24 VAC, 550 W
AS-27021-01

TIP off box (recommended to store less than 700)
AS-27021-02

Standard tray (can place SBS standard consumables without special requirements, such as Allsheng TIPs)
AS-27021-03

Heightened tray (can place SBS standard consumables that need to be heightened , such as Allsheng TIPs)
AS-27021-04

PCR tube holder (place 8-strip PCR centrifuge tube, non-skirted 96-well PCR plate)
AS-27021-05

Reagent rack (places 60 mL reservoir and 12×2 mL/1.5 mL centrifuge tubes)
AS-24030-00

Au-Cooler dry baths for workstation (heating/cooling), 24 VDC, 160 W, with CAN
