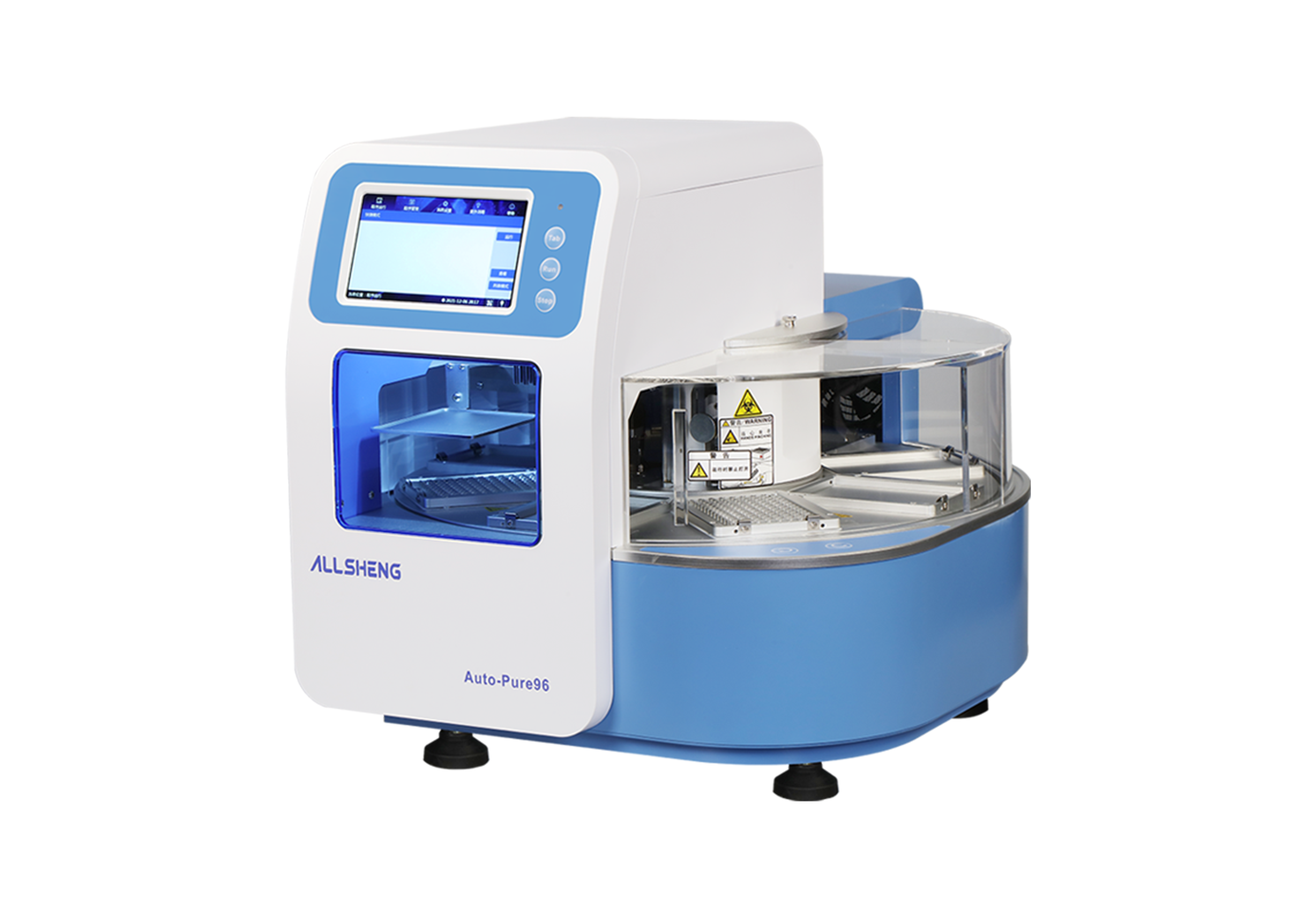

Nucleic Acid Purification System — Auto-Pure 96/48/24

Auto-Pure 96/Auto-Pure 48/Auto-Pure 24 nucleic acid purification system adopts magnetic bead separation technology, using 96 deep-well plates, 96 magnetic rod comb (1,000 µL reaction system); 3 mL kit, 48 magnetic rod comb (3,000 µL reaction system); 10 mL kit, 24 magnetic rod comb (10,000 µL reaction system) with different types of magnetic bead nucleic acid extraction kits. It can operate 1-96 samples, 1-48 samples or 1-24 samples in one run. It only takes 30~60 minutes to quickly extract DNA and RNA from the samples.

Inquiry More

Auto-Pure 96、48、24-03英文.png

Model

Auto-Pure 96/Auto-Pure 48/Auto-Pure 24
Throughput

1~96 (Auto-Pure 96); 1~48 (Auto-Pure 48); 1~24 (Auto-Pure 24)
Process volume

50~1000 µL (Auto-Pure 96); 50~3000 µL (1~48); 50~10000 µL (Auto-Pure 24)
Consumable

96 deep well plate + 96 magnetic rod comb (Auto-Pure 96); 3 mL kit + magnetic rod comb (Auto-Pure 48); 10 mL kit + magnetic rod comb (Auto-Pure 24)
Principle/working mode

Magnetic bead method, magnetic rod type/circular rotary table type
Purification accuracy

100 copy sample positive rate>95 %
Stability

CV<5 %
Collection efficiency

>95 %
Heating for lysis tube

Ambient temperature~120 °C
Heating for elution tube

Ambient temperature~120 °C
Operation

7-inch touch screen, 3 shortcut keys, external mouse
Internal program

Preset 8 programs, max store 100 programs
Protocol management

Create, edit, delete, protocol mode
Extension interface

4 standard USB port, Ethernet port, wifi, built-in SD card
Lighting

Yes
Pollution control

UV sterilization
Exhaust

Fan
Power supply

300 W
Dimension

560×620×500 mm
Weight

54 kg

Code

Description
AS-17060-00

Auto-Pure 96 nucleic acid purification system
AS-17061-01

Magnetic tip comb for Auto-Pure 96
AS-17061-02

96-Deepwell plate for Auto-Pure 96
AS-17080-00

Auto-Pure 48 nucleic acid purification system
AS-17081-01

Magnetic tip comb for Auto-Pure 48
AS-17081-02

48x5ml plate for Auto-Pure 48
AS-17070-00

Auto-Pure 24 nucleic acid purification system
AS-17071-01

Magnetic tip comb for Auto-Pure 24
AS-17071-02

24x14.6ml plate for Auto-Pure 24
AS-17100-00

FCM-1 Film cutting machine
AS-15020-00

Sealbio-2 AC220 V or AC120 V, 50/60 Hz,300 W
AS-15021-03

SBA-3 Weighted sealing platen
AS-15021-11

Seal-150 Peelable clear seal
AS-15021-12

Seal-200 Peelable seal for storage
AS-15021-13

Seal-300 Pierce aluminum heating sealing film
