Auto-Pure Mini
  • Auto-Pure Mini

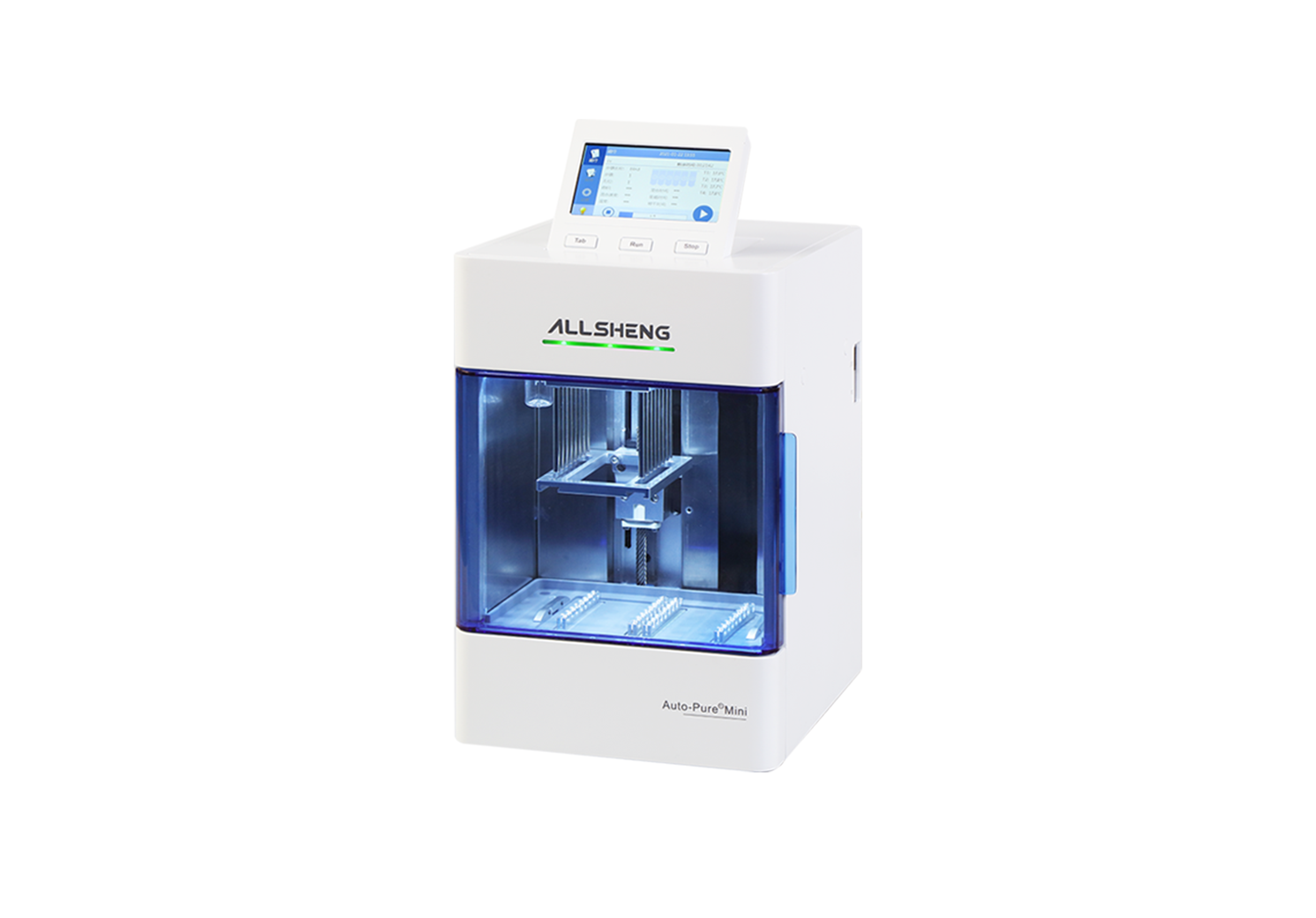

Nucleic Acid Purification System — Auto-Pure Mini

Auto-Pure Mini automatic nucleic acid purification system is a product that is further miniaturized on the basis of the existing nucleic acid extractor. The overall volume of the instrument is only about one-fourth of the common nucleic acid extractor on the market. Although the size of the instrument has been reduced, it has not shrunk in performance, meeting the extraction requirements of common nucleic acid extraction reagents. Moreover, the instrument has the function of unlimited data transmission. With the mobile phone APP, it can realize the remote editing and transmission of the instrument's program and real-time view of the running log.


Inquiry More
  • ALLSHENG ALLSHENG

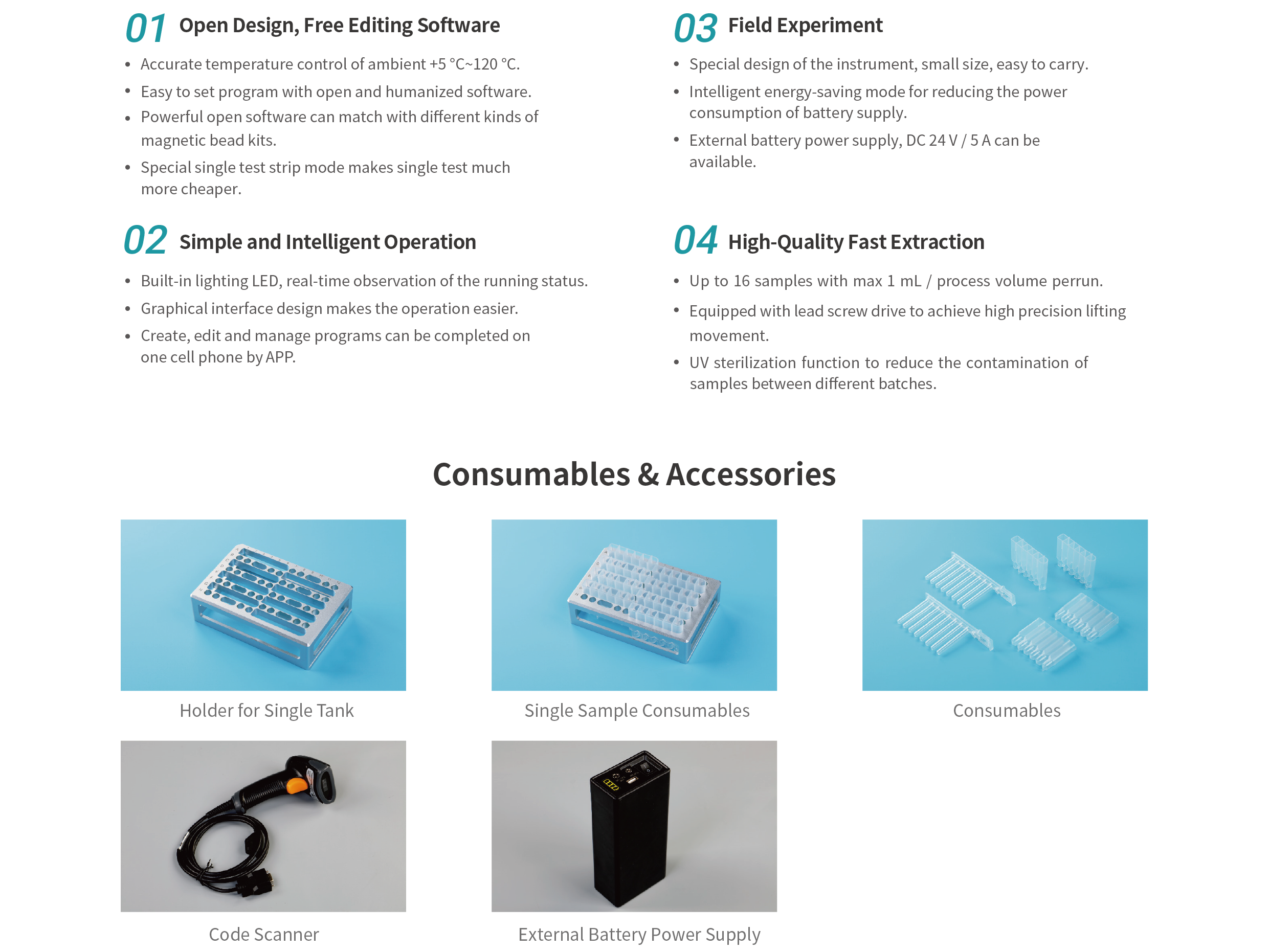

    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG
    Order information

Auto-Pure mini-03英文.png


  • Model
    Auto-Pure Mini
  • Throughput
    1~16
  • Process volume
    20~1000 µL
  • Consumable
    8-tip comb, 96 deepwell plate/single test strip
  • Principle/working mode
    Magnetic bead method, magnetic rod method / up and down mixing
  • Stability
    CV≤3 %
  • Collection efficiency
    >95 %
  • Heating for lysis tube
    Ambient temperature~120 °C
  • Heating for elution tube
    Ambient temperature~120 °C
  • Operation
    4.3-inch touch screen, 3 shortcut keys, external mouse
  • Storage capacity
    Preset 6 programs, max store 100 programs
  • Protocol management
    Create, edit, delete, protocol mode
  • Extension interface
    Standard USB, Ethernet port, wifi
  • Lighting
    Yes
  • Pollution control
    Fan exhaustion, UV sterilization
  • Dimension
    200×260×300 mm
  • Weight
    7 kg
  • Code
    Description
  • AS-17170-00
    Auto-Pure Mini nucleic acid purification system
  • AS-17031-02
    Magnetic rod comb for Auto-Pure S32 / 32A / 16A / Mini
  • AS-17061-02
    96-Deepwell plate for Auto-Pure 96 / Mini / S32
  • AS-17171-01
    Single tank for Auto-Pure Mini
  • AS-17171-02
    Holder for single tank
  • AS-17171-03
    Code scanner
