DFR-100
  • DFR-100

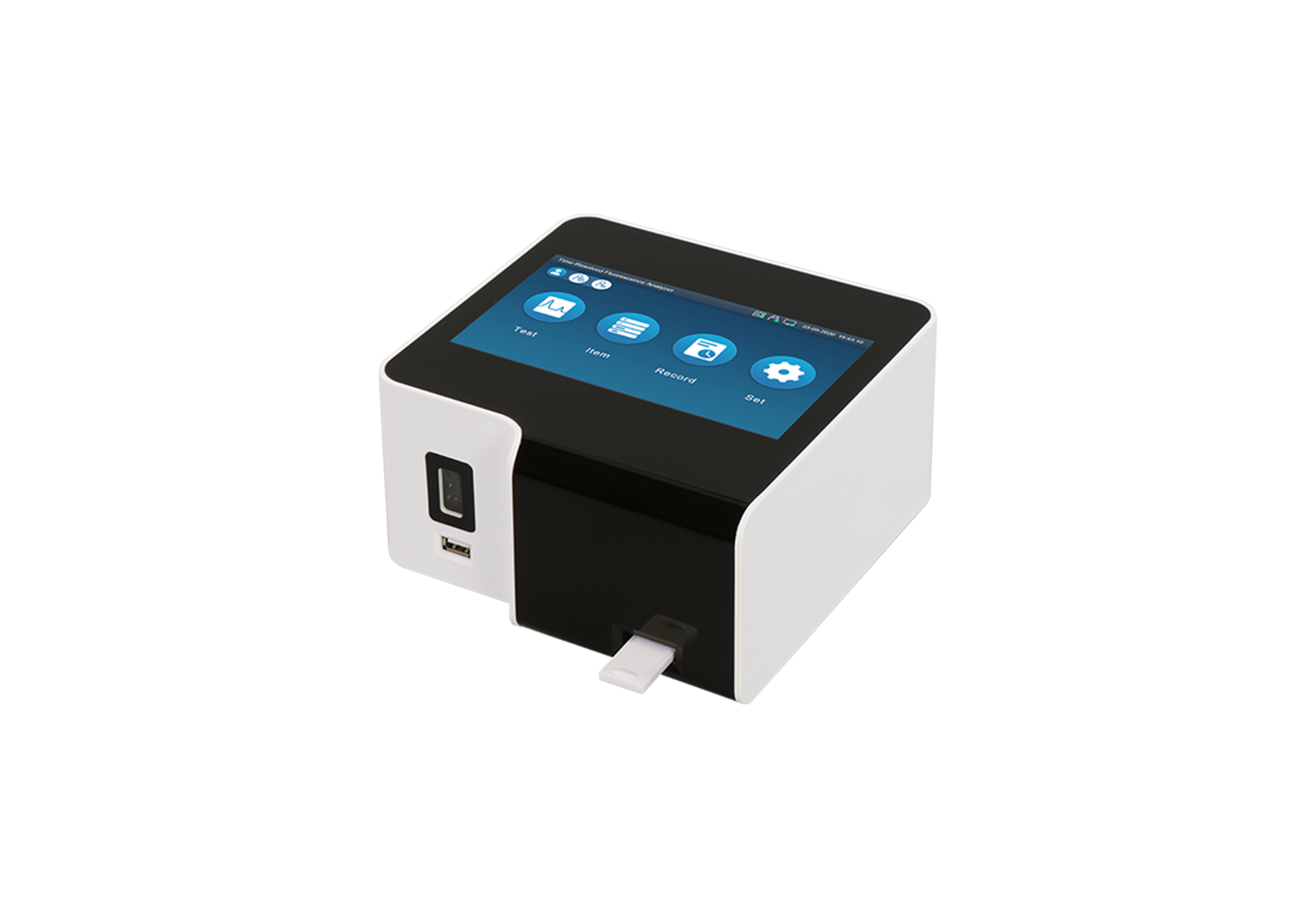

Fluorescence Immuno Analyzer — DFR-100

DFR-100 is suitable for the detection of fluorescence immunochromatography test strip samples. The collected fluorescent signal is converted into an electrical signal by the photoelectric sensor, so as to calculate the content or concentration of the sample to be tested. While inheriting the advantages of fast, specific and simple immunochromatography technology, DFR-100 also effectively improves the sensitivity and accuracy of detection.

Inquiry More
ALLSHENG PDF Download
  • ALLSHENG ALLSHENG
    Features
  • ALLSHENG ALLSHENG
    Technical parameter

•DFR-100 has a high-resolution 7-inch touch screen, Chinese and English interface, simple software design, simple and intuitive operation

•Patented optical path design and multi-algorithm data fitting, combined with multiple quality controls, ensure the repeatability and accuracy of instrument detection

• Ultra-fast detection speed, the whole card detection is less than 10 s

•Built-in scan code function, easy to scan, the sample information is automatically transferred to the system

•Built-in printer can output results report in real time

•Equipped with large-capacity memory, a single machine can store 10,000 test results, and has the function of result query

•According to customer needs, cooperate with customers to provide medical device registration materials

• Expandable network port, 4G, WIFI, Bluetooth function, realize data network management

  • Model
    DFR-100
  • Excitation wavelength
    365 nm
  • Emission wavelength
    613 nm
  • Detector
    PD
  • Excitation light source
    LED
  • Detection speed
    <10 s/card
  • Repeatability
    T/C ratio: >0.2 CV≤1 %; ≤0.2 CV≤2 %
  • Stability
    T/C ratio: >0.2 CV≤3 %; ≤0.2 CV≤5 %
  • Data storage
    10000
  • Data interface
    Standard: A-USB*2, B-USB Optional: Ethernet port, 4G, WIFI
  • Printer
    Built-in, thermal roll paper 57 mm
  • Scan code function
    Built-in, one-dimensional code
  • Standard curve import
    ID chip card import
  • Touch screen
    7-inch capacitive screen
  • Software system
    Linux+QT
  • Input power
    AC100～240 V，50～60 Hz
  • Rated voltage
    12 V，≥2.5 A
