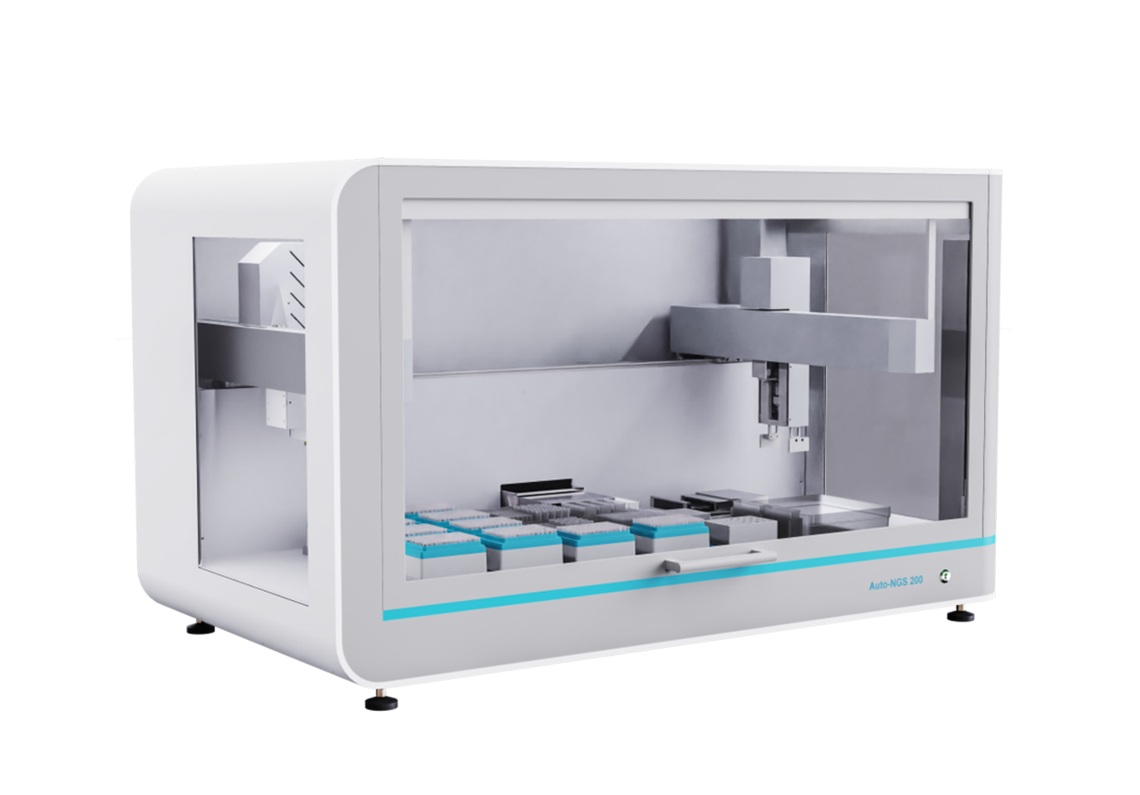

Automated NGS Library Preparation Workstation — Auto-NGS 200

Auto-NGS 200 is a one-stop library preparation workstation for library preparation, quantification, multiplex targeting, and hybridization capture. With a built-in 24-well fluorometer and PCR amplification block, it truly achieves convenient operation of sample-to-library, without manual intervention throughout the whole process. The 27-plate design with gripper and plate stacking allows for relatively simple library preparation for 96 samples, as well as fully automated library preparation and hybridization capture for a simplified type of 48 samples.

View 3D Model

Inquiry More


Model

Auto-NGS 200
Throughput

1~96
Tiles number

27
Pipettor

200 μL; 24-channel (can be used as a single channel)
Pipettor

Minimum detection volume: 20 μL
Pipetting range

1~200 μL
Pipetting precision (CV)

1μL≤8%；2μL≤5%；5μL≤4%；20μL≤1%；100μL≤1%；200μL≤1%
Pipetting accuracy (A)

1μL≤±10%；2μL≤±8%；5μL≤±4%；20μL≤±2%；100μL≤±1%；200μL≤±1%
Temperature control block

Including 2 temperature control blocks
Temperature control block

Temperature control range: 4~105 °C
Temperature control block

Temperature control accuracy: ≤1 °C
Temperature control block

Temperature control uniformity: ≤1 °C @55 °C
Thermal cycling block

Temperature control range: thermo lid: 30 °C~120 °C; block: 4 °C~99 °C
Thermal cycling block

Uniformity: ≤0.7 °C
Thermal cycling block

Accuracy: ≤±0.3 °C
Fluorescence detection throughput

24
Fluorescence detection range

0.4 ng~100 ng
Heating mixing block

Yes
Magnetic plate

96-well annular magnetic plate
Gripper

Yes
Consumable stacking mode

Stack plate lifting block
UV sterilization

Equipped with UV sterilization lamp, HEPA device
Instrument port

USB port
Information management

External scanner for entering sample / reagent information
Information management

Expandable LIS system connection
Information management

Expandable cloud database connection
Operating environment

Temperature requirement: 20±5 °C Relative humidity: ≤80 %
Power supply

100~240 V, 50 / 60 Hz, rated power 1200 W

Code

Description
AS-27040-00

Auto-NGS 200 automated NGS library preparation workstation
AS-27041-01

TIP off box (recommended to store less than 1000 pcs)
AS-27041-02

Reagent rack (place 3×120 mL reservoir)
AS-27041-03

Magnetic plate for workstation (fixed, 96 PCR plate)
AS-27021-02

Standard tray (standard height plate for SBS consumables, such as ALLSHENG boxed TIPs)
AS-27021-03

Heightened tray (higher than the standard tray for SBS consumables, such as ALLSHENG boxed TIPs)
AS-27021-04

PCR tube holder (8-strip PCR tube, non-skirted 96-well PCR plate)
AS-23010-00

Au-Cooler dry bath incubator for workstation (heating and cooling), 24 V DC, 160 W, with CAN
AS-23160-00

Au-Shaker 3020TL automatic locking thermo shaker incubator for workstation (heating), 24 V DC, 120 W, with CAN
