Au-Shaker 5012L/3020L
  • Au-Shaker 5012L/3020L

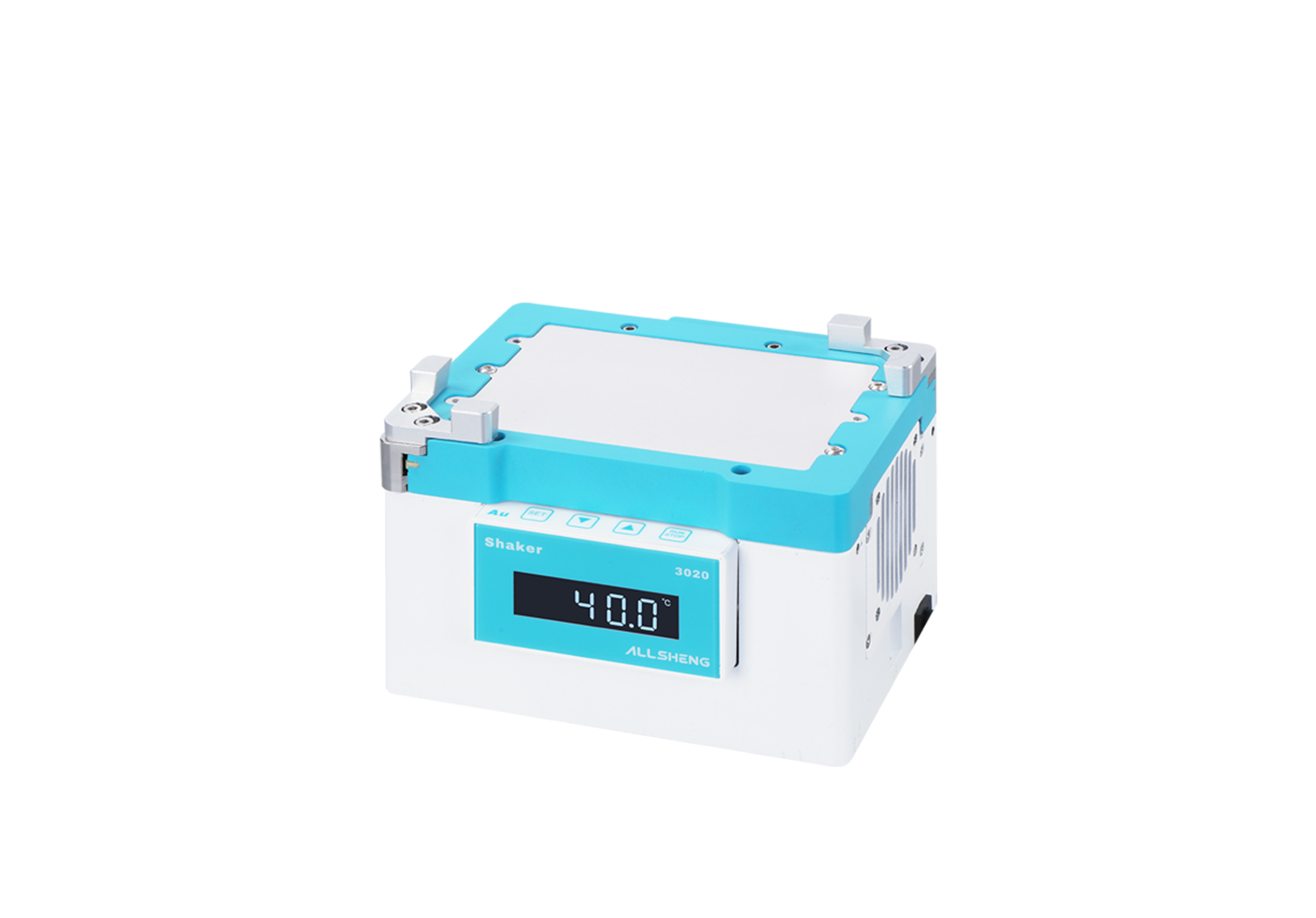

Automatic Locking Shaker for Workstation — Au-Shaker 5012L/3020L

Au-Shaker 5012L/3020L automatic locking shaker. The manipulator can easily grab and place the microplate; the instrument locks the microplate and shakes it evenly.

Using for: 96-well, 384-well  and 1536-well  microplates, 0.5-2.5 mL deepwell plates, PCR plates and other working blocks.

Inquiry More
  • ALLSHENG ALLSHENG
    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG

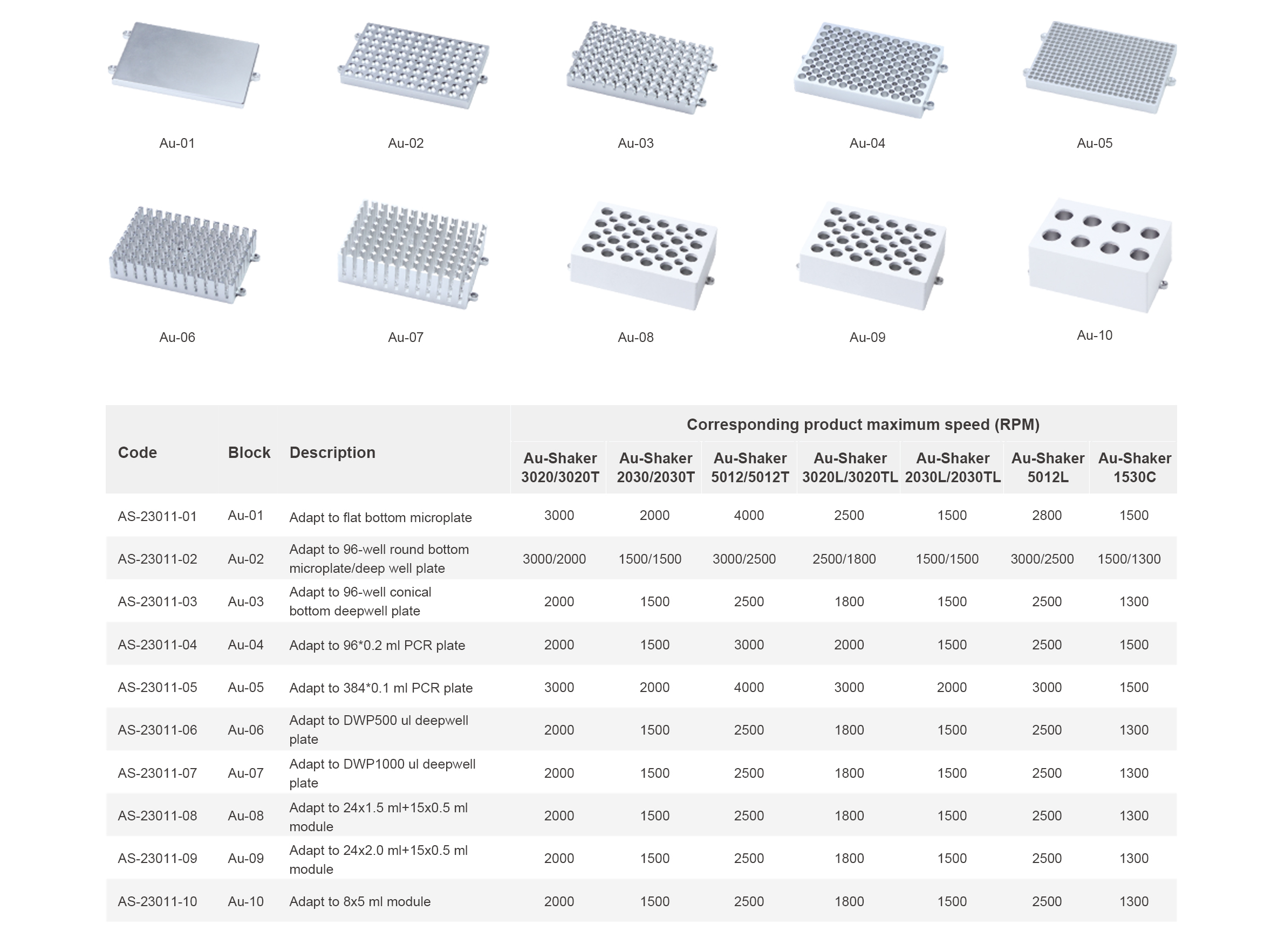

    Accessories consumables
  • ALLSHENG ALLSHENG
    Order information

 •Anti-vibration technology, 2D motion control

•High-precision zero positioning function (automatic centering and homing function)

•The microplate automatic edge locking and clamping function is convenient for the manipulator to hold the microplate

•Mixing orbit 2 mm and 1.2 mm is optional, corresponding max speed is 3000 rpm and 4000 rpm

  ·Au-Shaker 5012L is suitable for 384&1536 microplates, etc.

  ·Au-Shaker 3020L is suitable for 96&384 microplates, 0.5-2.5ml deepwell plate, PCR plate, etc.

•The shaker has its own display screen, which is easy to read programmed or measured parameters and can be used alone

•Can be fixedly installed on workstation, and the use is more stable

•Blocks can be customized according to different applications

  • Model
    Au-Shaker 5012L/3020L
  • Speed/rpm
    200-4000/200-3000
  • Mixing orbit/mm
    1.2/2.0
  • Time setting
    99 h59 min or 99 min59 s
  • Speed accuracy
    ±25 rpm
  • Acceleration time
    1~10 sec
  • Block locking method
    Edge lock
  • Zero positioning
    Zero automatic positioning function
  • Zero positioning time
    1~10 sec
  • Zero positioning accuracy
    ±0.1 mm
  • Automatic locking
    Automatic locking for easy gripping by manipulator
  • Locking positioning accuracy
    ±0.1 mm
  • Workstation use
    Au series supports workstation use, DB9 port, CAN communication, and stand-alone use; Be series can only be used stand-alone, without CAN communication
  • Input power
    24V DC,48 W
  • Signal line
    Au series shaker, 2 m cable, DB9 port, controlled by workstation
  • Size/mm
    142×105×94


  • Code
    Description
  • AS-23090-00
    Au-Shaker 3020L automatic locking shaker for workstation, 24V DC 48 W, with CAN communication
  • AS-23110-00
    Au-Shaker 5012L automatic locking shaker for workstation, 24V DC 48 W, with CAN communication
