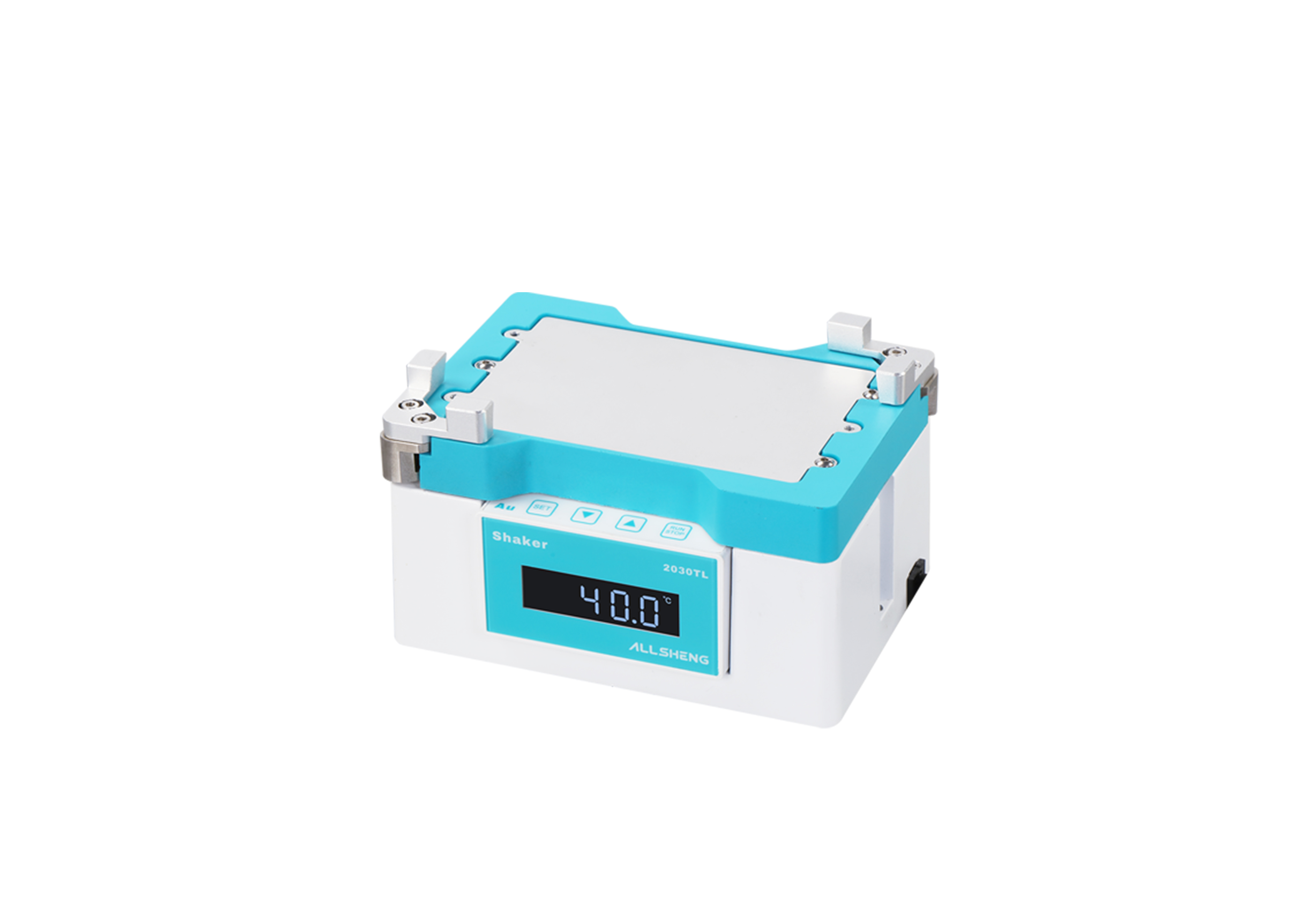

Au-Shaker 3020TL
  • Au-Shaker 3020TL
Automatic Locking Thermo Shaker Incubator for Workstation (Heating) — Au-Shaker 3020TL

Au-Shaker 3020TL automatic locking thermo shaker incubator for workstation(heating). The manipulator can easily grab and place the microplate; the instrument locks the microplate and shakes it evenly.

Using for: 96-well, 384-well  and 1536-well  microplates, 0.5-2.5 mL deepwell plates, PCR plates and other working blocks.


Inquiry More
  • ALLSHENG ALLSHENG
    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG

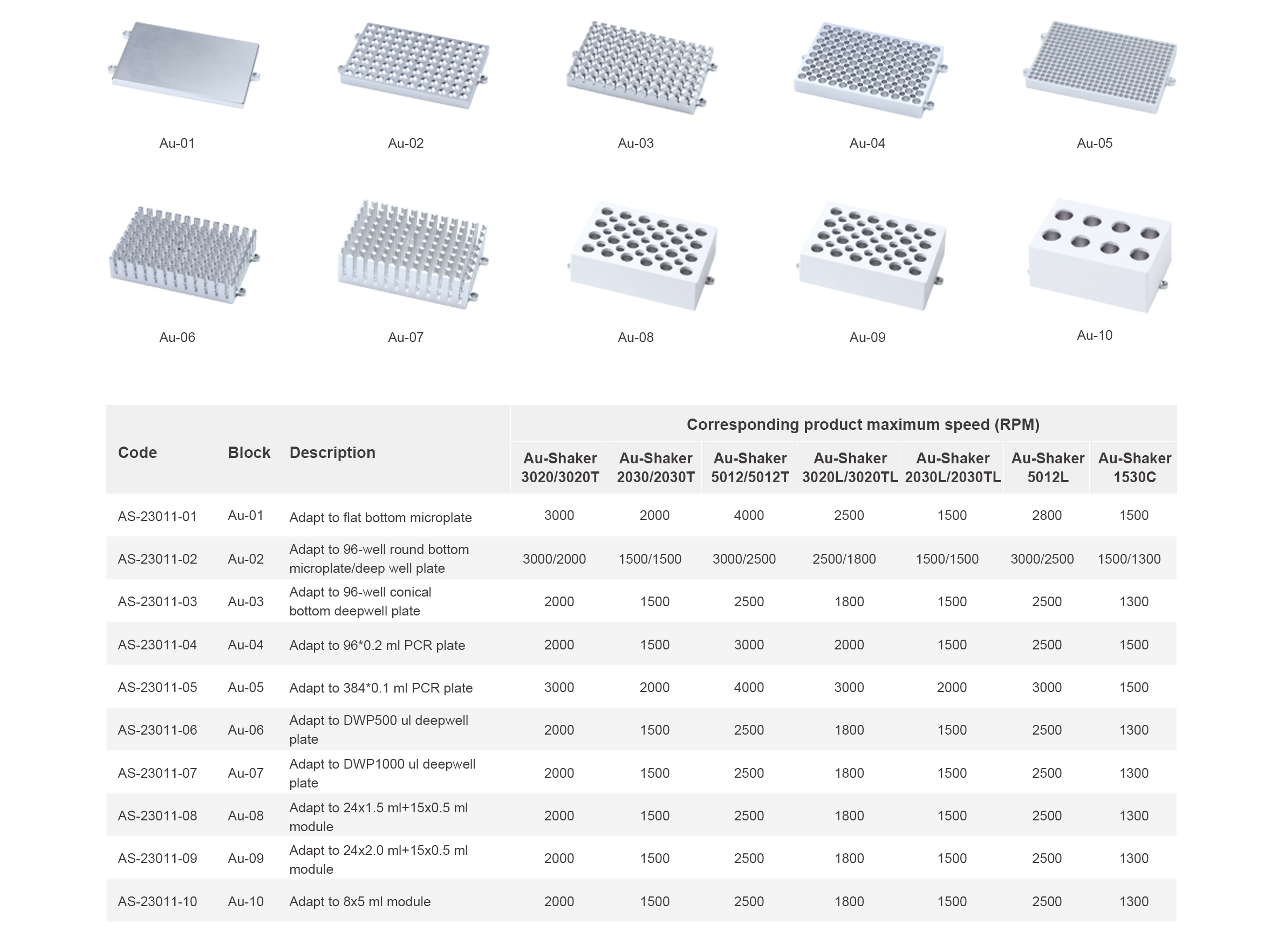

    Accessories consumables
  • ALLSHENG ALLSHENG
    Order information

•Anti-vibration technology, 2D motion control

•The high-precision zero positioning function ensures the safe pipetting

•The microplate automatic edge locking and clamping function is convenient for the manipulator to hold the microplate

•Mixing orbit is 2 mm, max speed is 3000 rpm

  ·Au-Shaker 3020TL is suitable for 96&384 microplate, 0.5-2.5 ml deepwell plate, PCR plate, etc.

•Temp. range: RT+5 °C~105 °C, good temperature uniformity

•Has its own display screen, which is easy to read programmed or measured parameters and can be used alone

•Can be fixedly installed on workstation, and the use is more stable

•Modules can be customized according to different applications

  • Model
    Au-Shaker 3020TL
  • Speed/rpm
    200-3000
  • Mixing orbit/mm
    2.0
  • Speed accuracy
    ±25 rpm
  • Acceleration time
    1~10 sec
  • Temperature control range
    RT. +5 °C~105 °C
  • Setting accuracy
    0.1 °C
  • Volatility
    ≤0.5 °C
  • Temp. uniformity
    ≤1 °C @55 °C
  • Heat-up time
    RT. ~95 °C ≤10 min
  • Time setting
    99 h59 min or 99 min59 s
  • Module locking method
    Edge locking
  • Zero positioning function
    Zero automatic positioning function
  • Zero positioning time
    1~10 sec
  • Zero positioning accuracy
    ±0.1 mm
  • Automatic locking function
    Automatic locking function is convenient for manipulators to grasp
  • Locking positioning accuracy
    ±0.1 mm
  • Workstation use
    Au series supports workstation use, DB9 port, CAN communication or stand-alone use; Be series can only be used alone, without CAN communication
  • Input power
    24V DC,120 W
  • Signal line
    Au series shaker, 2 m cable, DB9 port, controlled by workstation
  • Size/mm
    142×105×94


  • Code
    Description
  • AS-23150-00
    Au-Shaker 3020TL automatic locking thermo shaker incubator for workstation (heating), 24V DC 120 W, with CAN communication
