Mini-ES2
  • Mini-ES2

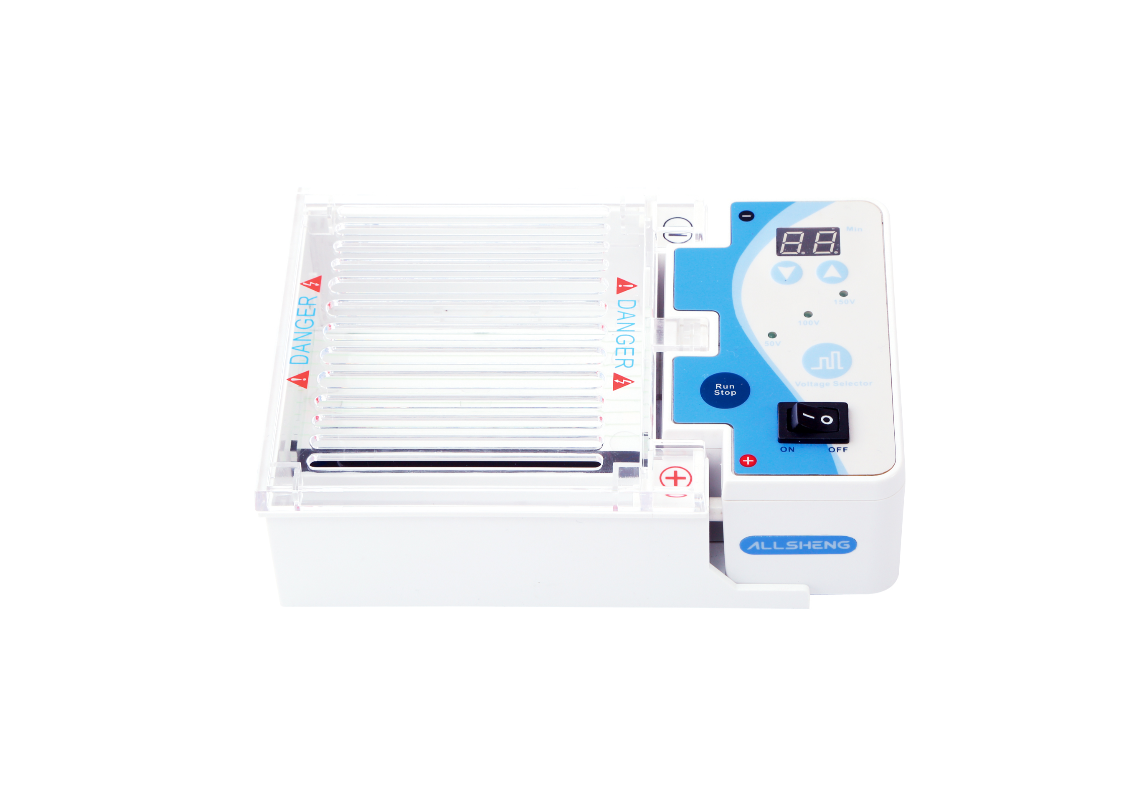

Mini-Electrophoresis System — Mini-ES2

Horizontal electrophoresis is mainly used for nucleic acid separation and detection, and is one of the most commonly used experimental methods in molecular biology research. Mini-ES2 mini electrophoresis is widely used in the field of biochemistry, suitable for teaching, scientific research, food, medical and other industries.

Inquiry More
  • ALLSHENG ALLSHENG

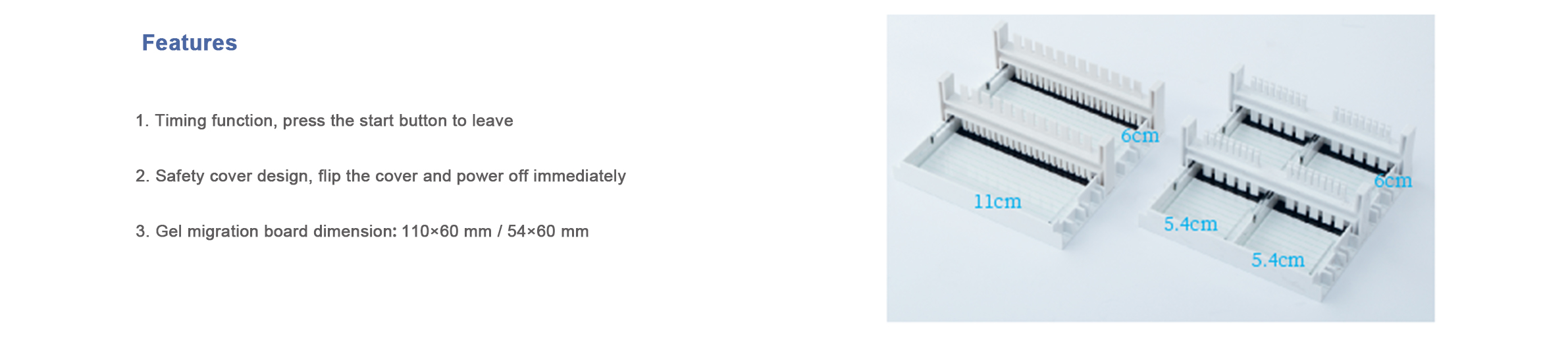

    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG
    Order information


  • Input power
    AC100~110 V, 50~60 Hz / AC220~240 V, 50~60 Hz
  • Output power
    DC35 V / DC50 V / DC100 V
  • Bath dimension (W×D×H) mm
    110×121×43 mm
  • Volume of bath
    230 mL
  • Construction of Bath
    PC+ABS with high temperature resistance
  • Timer range
    1 min~99 min
  • Max. power
    40 W
  • Dimension (whole machine) (W×D×H) mm
    190×130×60 mm
  • Tooth wide (width x thickness x number)
    3 mm×1 mm×22 / 5.6 mm×1 mm×12 / 3 mm×1 mm×18 / 5.6 mm×1 mm×10
  • Gel dimension (W×D) mm
    126×126 mm-1 pcs
  • Gel migration board (W×D) mm
    110×60 mm-2 pcs / 54×60 mm-4 pcs
  • Code
    Description
  • AS-14020-00
    Mini-ES2 mini-electrophoresis system, AC200~240 V, 50~60 Hz
