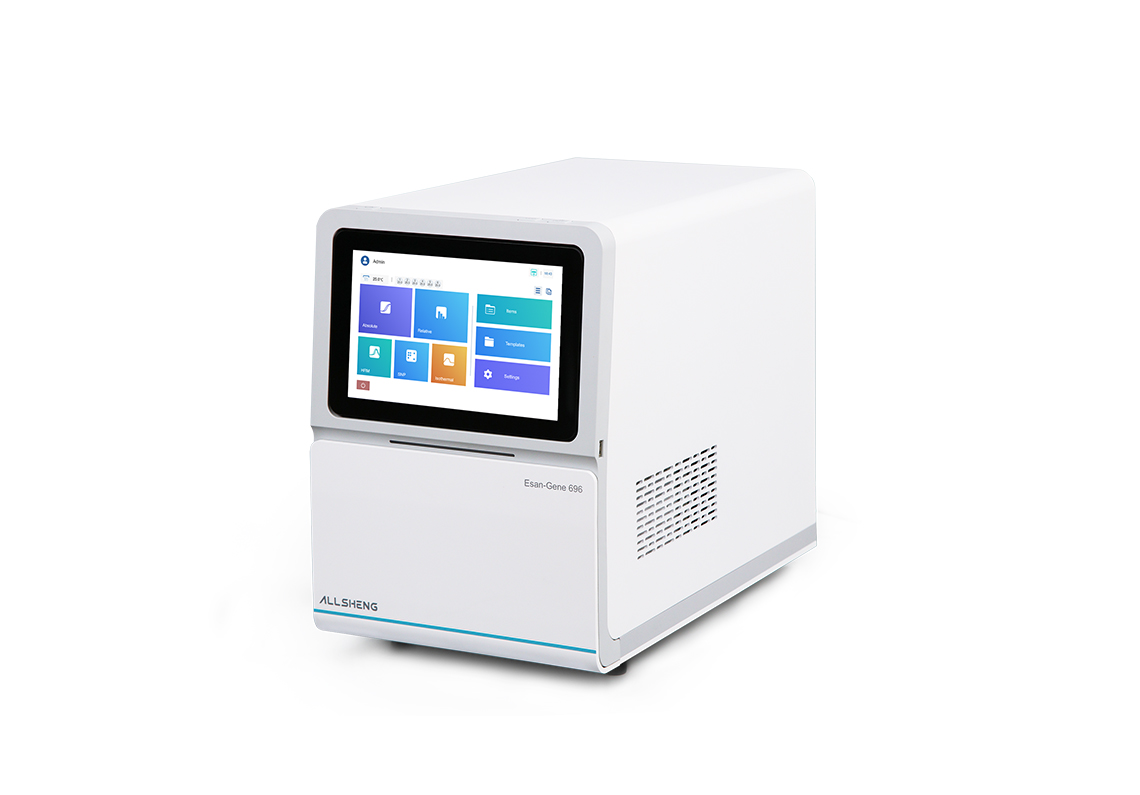

Real-time PCR System — Esan-Gene 696/696A

Esan-Gene 696/696A real-time PCR system adopts mature thermoelectric refrigeration technology, brand-new light source and light path design. The unique constant-current power and multi-zone independent temperature control method ensure more rapid, correct and stable fluorescence quantitative analysis of the product, while maintaining its excellent performance in low energy consumption. The product is modularized with various configurations to choose from. Meanwhile, it has been added with functions including independent temperature control, low-temperature storage of sample at 4 °C, and automatic dehumidification.
It's mainly applied in gene expression, genotyping (detection), cloning, mutation, methylation analysis, sequencing, medicine, forensic medicine and applied science.

Inquiry More

Esan-Gene 496696-03英文网站详情.png

Model

Esan-Gene 696/696A
Applicable centrifuge tube (Esan-Gene 496 / 696)

0.2 mL 96-well plate, single tube, 8-strip tube
Applicable centrifuge tube (Esan-Gene 496A / 696A)

0.1 mL 96-well plate, single tube, 8-strip tube
Sample system size

10~100 μL
Channel number

6-channel
Channel parameter

F1: FAM, SYBR Green I, etc. F2: HEX, JOE, VIC, etc. F3: ROX, TEXAS-RED F4: Cy5, Quasar-670 F5: Cy5.5 F6: Can be customized, default is ATTO 425
Linear range

10^0~10^10 Copies/μL
Minimum detection range

1 Copy
Excitation light source

High power white LED
Detecting element

High-performance CMOS
Ct repeatability

CV ≤1 %
Sample linearity (Ct)

|r| ≥0.999
Temp. range

4~99.9 °C
Temp. control mode

Block control (Block) / analog tube control (Tube)
Average heating rate

4.5 °C/s
Average cooling rate

2.5 °C/s
Temp. uniformity

±0.2 °C @95 °C
Temp. accuracy

±0.15 °C
Temp. control precision

0.1 °C
Melting temp.

Minimum differentiation 0.1 °C
Gradient mode

6 gradient temperature control
Gradient temp. range

1~40 °C
Thermo lid temp.

30~110 °C
Display screen

10.1-inch touch screen
Dimension (W*D*H)

298 mm×530 mm×430 mm
Input power

100~240 VAC 50~60 Hz
External port

USB (Type A)×3, LAN ×1
Wireless function

Expandable wireless transmission function, support LIS function
Data export format

TXT, Excel, CSV, PDF

Code

Product name
AS-30060-00

Esan-Gene 696 real-time PCR system, suitable for 0.2 mL centrifuge tube
AS-30080-00

Esan-Gene 696A real-time PCR system, suitable for 0.1 mL centrifuge tube
