Model

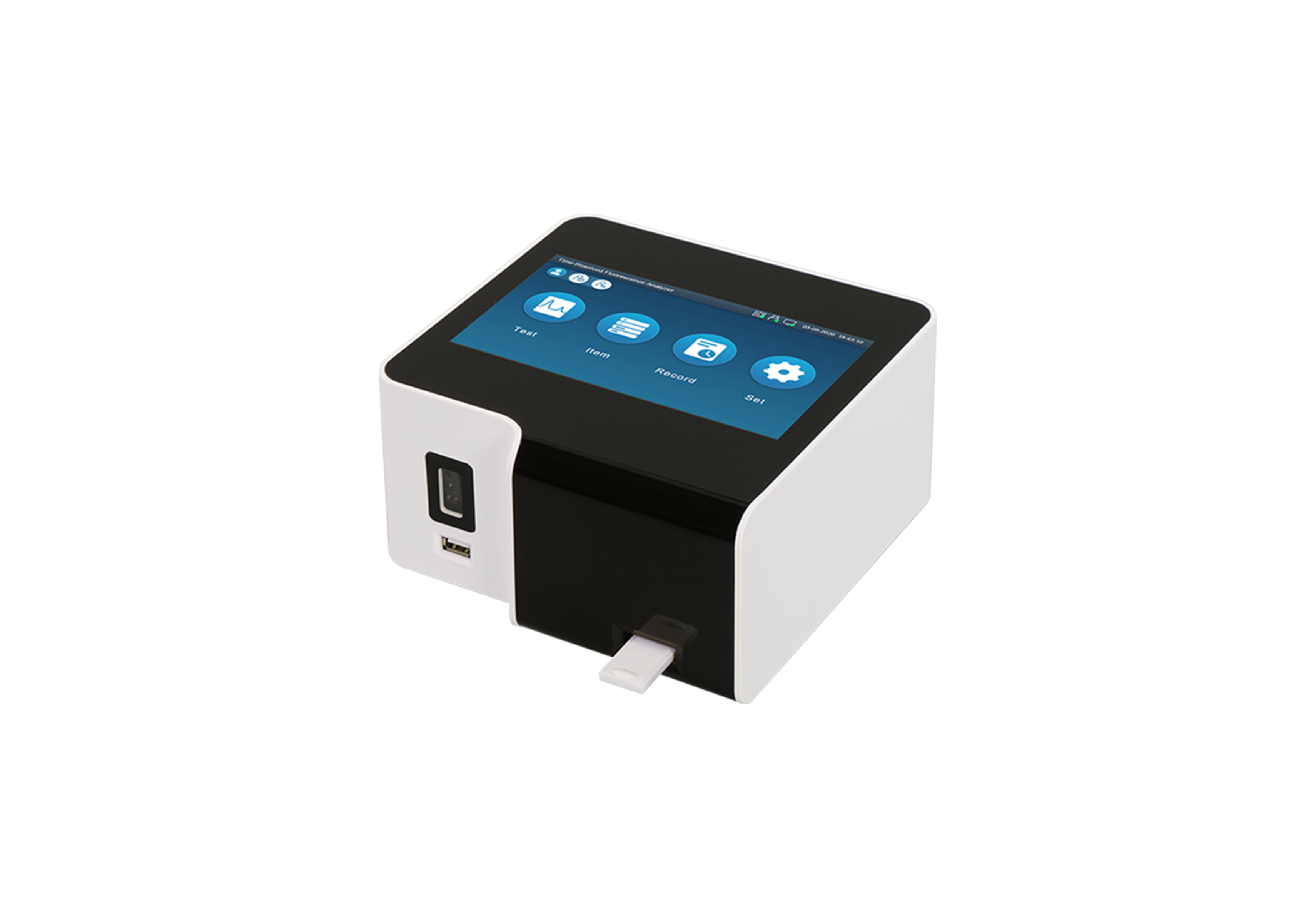

TSR-300
-
Wavelength
525±30 nm (based on the requirement of customer)
-
Detector type
Photodiode
-
Test item
Suitable for immunochromatographic test cards or test strips; suitable for immunochromatographic test strips of different widths, the test width is 3~6mm, and the minimum distance between test lines is 3mm
-
Parameter of test item
According to the requirement of test strips
-
Detection result
Semi-quantitative and quantitative test results; Invalid test results can be excluded; data results, original scan curves can be saved, and concentration results and concentration units can be printed
-
Test speed
<10s/card or strip
-
Repeatability
T/C ratio:>0.2 CV≤1%; T/C ratio:≤0.2 CV≤2%
-
Stability
T/C ratio:>0.2CV ≤3%; T/C ratio:≤0.2 CV≤5%
-
Data analysis
Support qualitative, quantitative and semi-quantitative analysis; support a variety of fitting (including linear, logarithmic transformation, polynomial and other fitting methods)
-
Display
7-inch high-resolution touch screen
-
Connection
A-USB*2, b-USB, optional: network port
-
Number of T-line
5 lines
-
Printer
Built-in mini thermal printer
-
Save type
NandFlash chip
-
Power adapter
Adapter: DC12~24V, 2A, with ground
-
Power
≤30W
-
Dimension (WxDxH) mm
185mm×186mm×97mm
-
Weight
N.W. 2.2 kg, G.W. 4 kg
-
Software operation
Linux+QT
