Automated Nucleic Acid Extraction and PCR System — Ecos-Gene

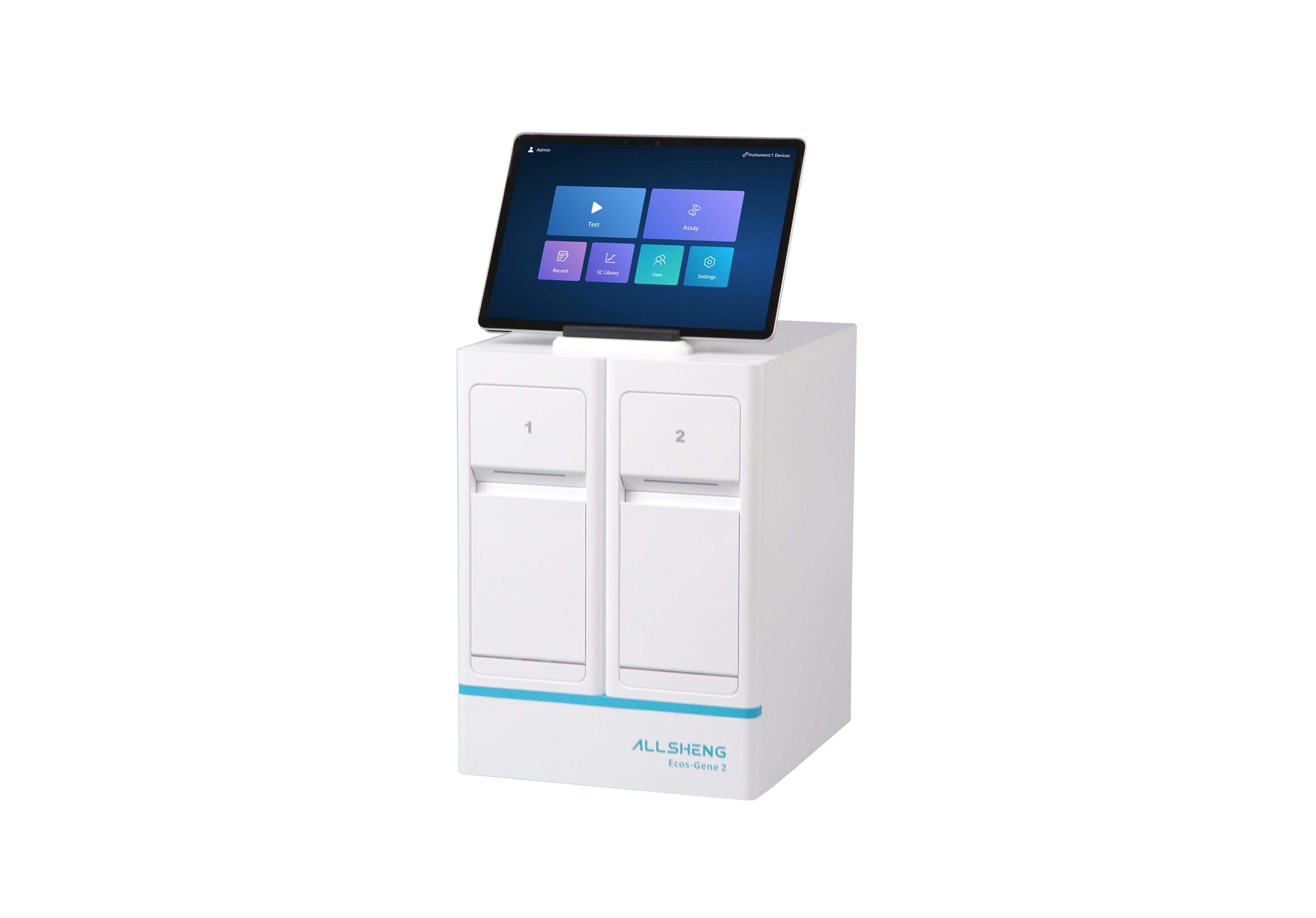

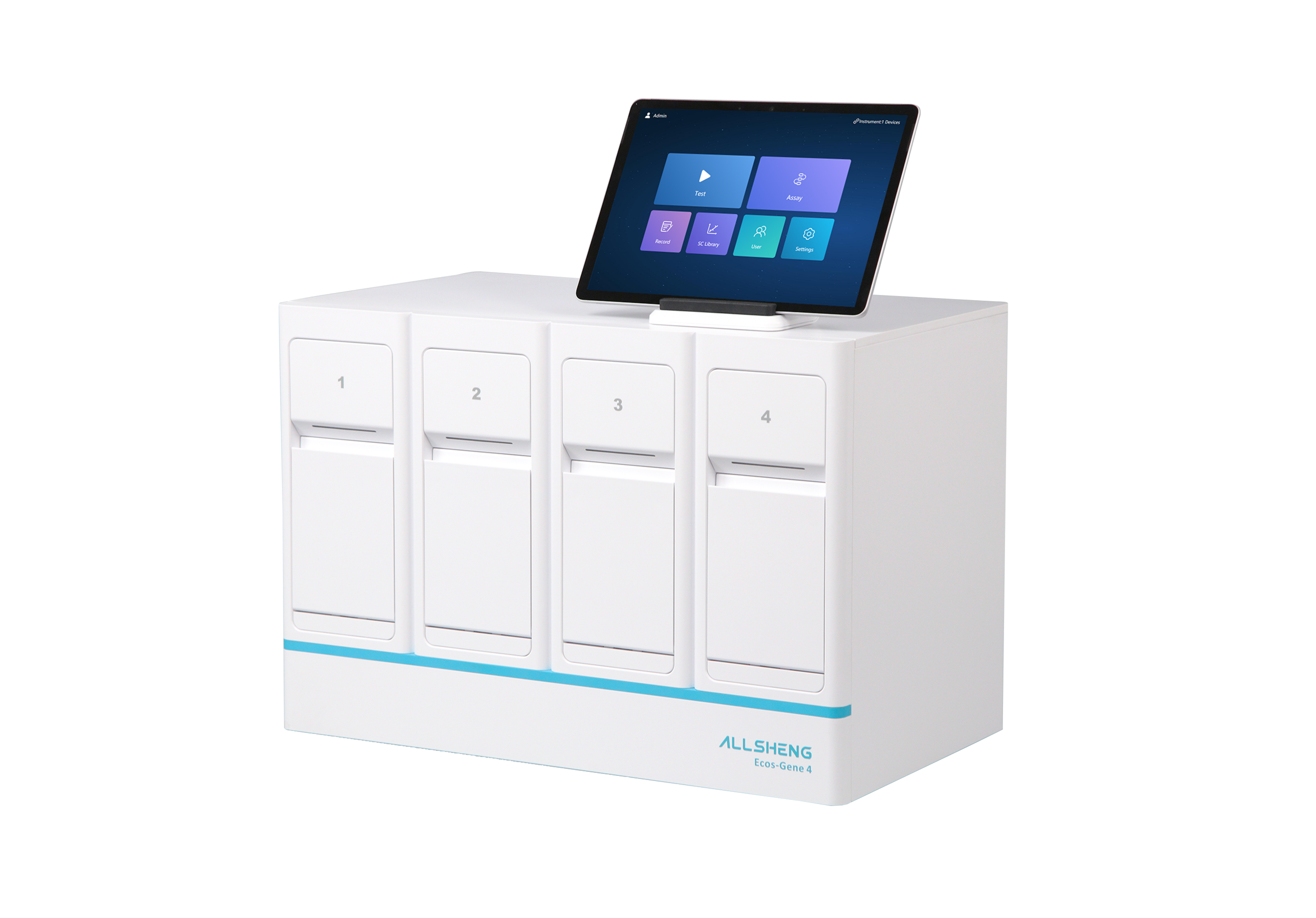

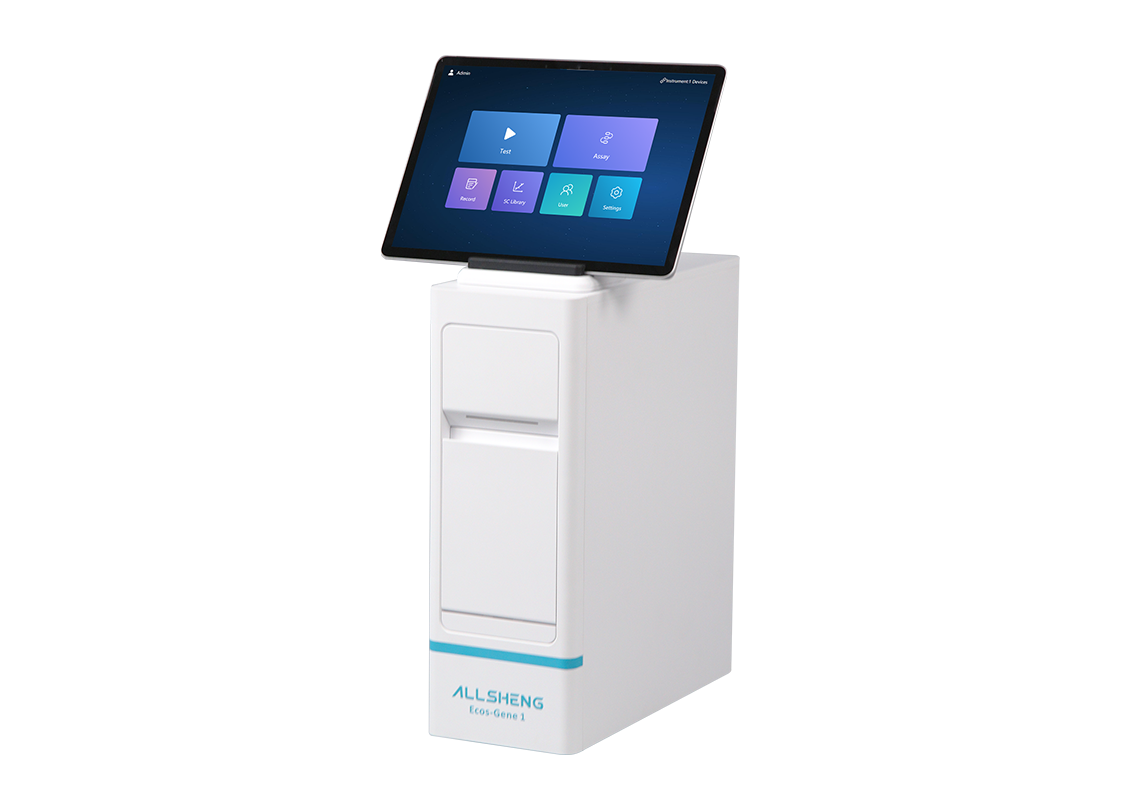

Ecos-Gene series automated nucleic acid extraction and PCR system includes three models: Ecos-Gene 1, Ecos-Gene 2 and Ecos-Gene 4, which can handle 1, 2 and 4 samples at the same time. Various models can be freely combined, and up to 16 samples can be extracted and tested at the same time.
The instrument includes 4 fluorescence detection channels, which can achieve multiple detection projects of one sample at the same time, and strict self-checking mechanism ensures the accuracy of the results. In addition, instrument innovatively adds a quantitative detection function, which can freely select the output qualitative or quantitative detection results according to actual needs.
The instrument is small and flexible with 10.5-inch touch screen. Equipped with intuitive interface and stable operation software, it's an ideal choice for on-site fast detection!

Inquiry More


Model

Ecos-Gene 1 / Ecos-Gene 2 / Ecos-Gene 4
Throughput

1 / 2 / 4
Consumable well number

4 reagent chambers, supporting pre-packaged liquid reagents 1 sample chamber with sealing cover 1 detection well, supporting PCR amplification and fluorescence detection
Sample chamber capacity

Maximum capacity is 3 mL, the working volume is about 2.5 mL
Magnetic method

Bottom magnetic absorption
Extraction temperature: performance heating method

Lysis well and elution well can be heated
Extraction temperature: performance heating range

RT. ~ 120 °C
Extraction temperature: performance temperature accuracy

±0.5 °C
Extraction performance: extraction time

According to the reagent scheme, generally 25 ~ 30 min for each sample
Extraction performance: extraction consistency

CV≤5 %
PCR amplification: average heating rate

Block from 50 °C ~ 95 °C: ≥6 °C/s
PCR amplification: maximum heating rate

Block from 50 °C ~ 95 °C: ≥10 °C/s
PCR amplification: average cooling rate

Block from 95 °C ~ 50 °C: ≥4.5 °C/s
PCR amplification: maximum cooling rate

Block from 95 °C ~ 50 °C: ≥8 °C/s
PCR amplification: temperature accuracy

≤±0.2 °C
PCR amplification: block temperature control accuracy

≤±0.2 °C 55 °C
Detection block: fluorescence detection channel

4 (470-510 nm, 530-565 nm, 585-620 nm, 630-665 nm)
Applicable fluorescent dyes

FAM / HEX / ROX / CY5
Detection time

According to the reagent scheme, generally 35 ~ 50 min for each sample
Sterilization

Each sample channel is equipped with an independent UV sterilization lamp
Software operation

Windows system software, supporting personalized function customization
Report output

Support connecting external printer and printing test reports
External interface

1×RS232 port; 1×B-USB port; 1×LAN port
Information management

Support external code scanner, which can input sample / reagent information Expandable LIS system connection Expandable cloud database connection
Dimension (W×D×H) mm

124×292×427 / 248×292×427 / 496×292×427
