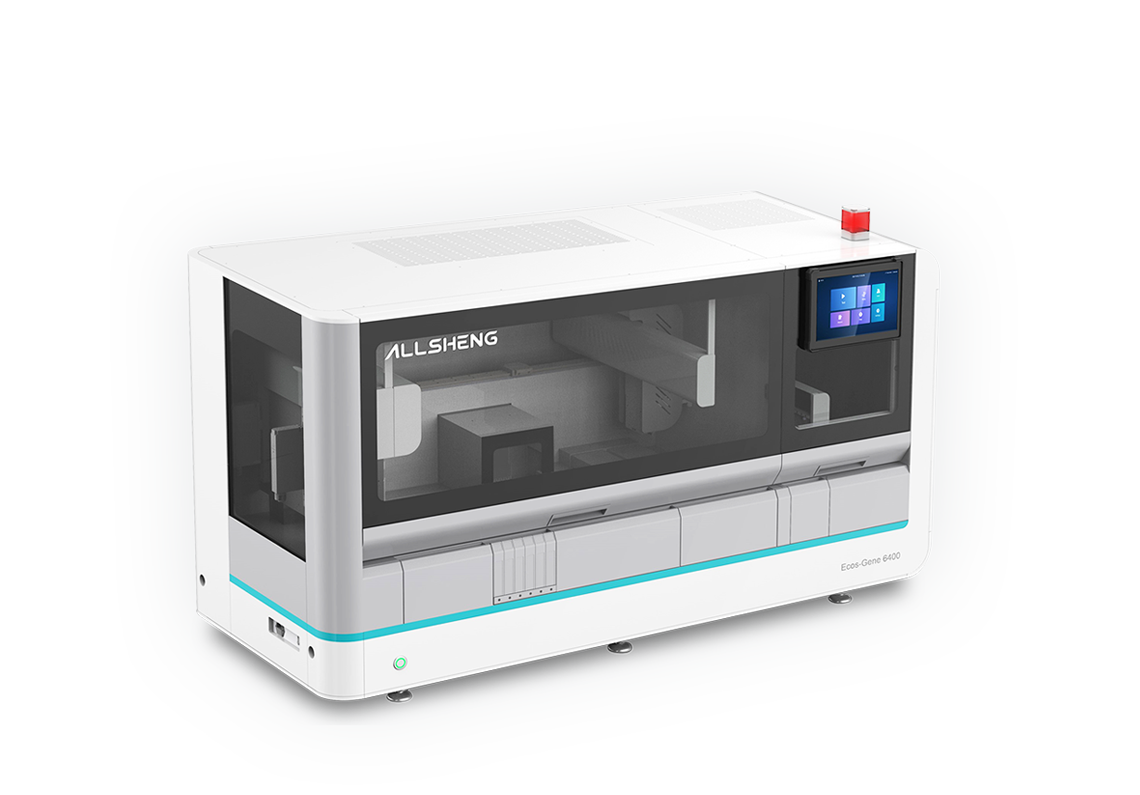

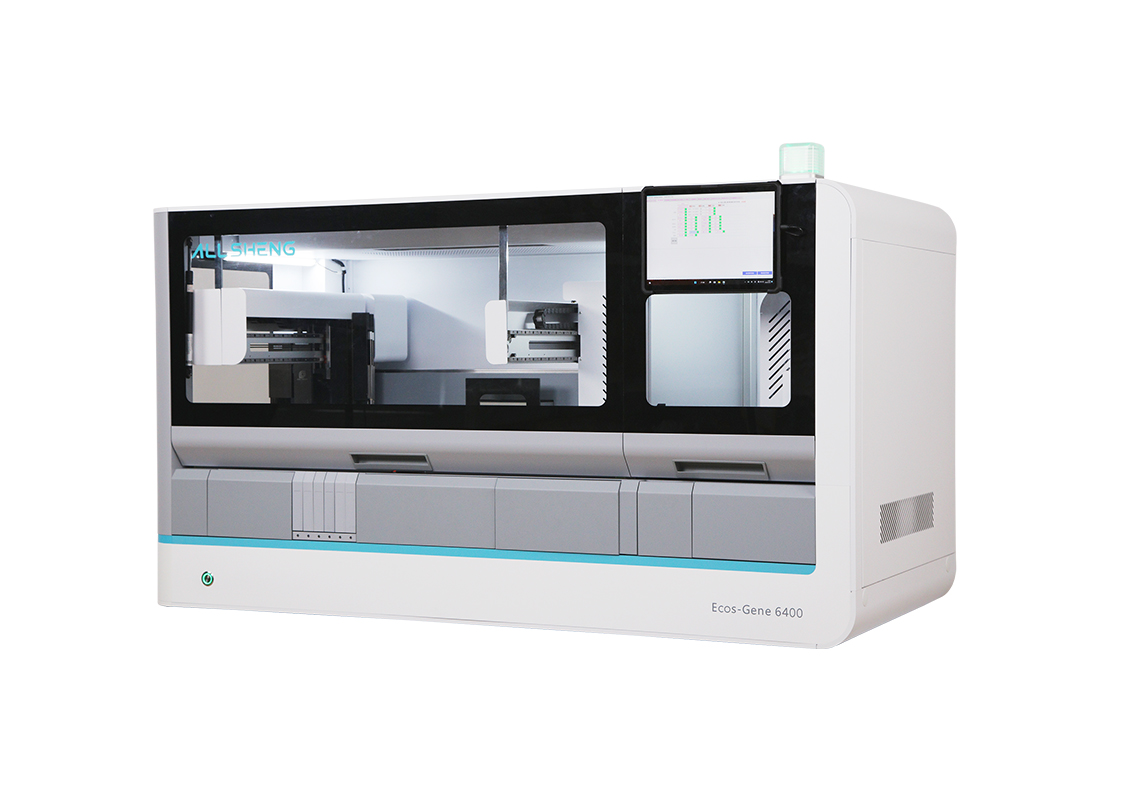

Automated Nucleic Acid Extraction and PCR System — Ecos-Gene 6400

Ecos-Gene 6400 automated nucleic acid extraction and PCR system integrates all functional divisions of PCR detection laboratory. It is a one-stop workstation that integrates the functions of information input, reagent dispensing, sample preparation, nucleic acid extraction based on magnetic bead method, system construction, cover centrifuge, qPCR detection, result analysis, and etc. The whole process from sample loading to report output does not require manual intervention. It can realize sample in and result out and provide you with a new solution for molecular diagnosis.

Inquiry More

PDF Download

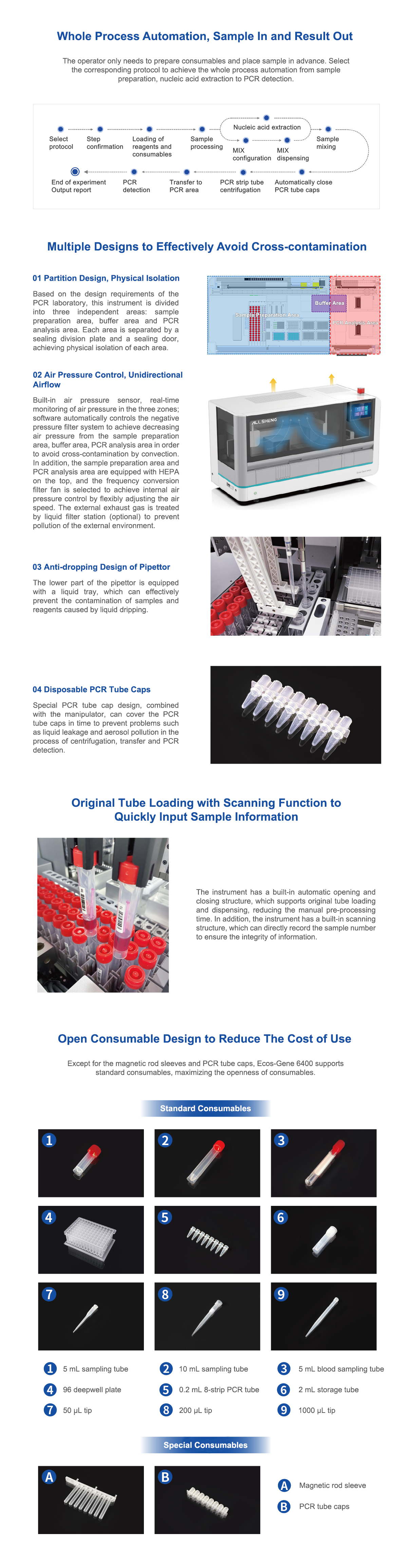

官网详情页-Ecos-Gene 6400.jpg

Model

Ecos-Gene 6400
Throughput

1~64
Sample tube

Support the original tube loading of sampling tube / blood sampling tube
Extraction temperature performance

Heating range 37 °C~120 °C
Extraction temperature performance

Temperature accuracy ±0.5 °C
Extraction performance

Extraction time: according to the reagent solution, generally 25~30 min / time
Extraction performance

Extraction uniformity CV≤5%
PCR amplification

Average heating rate: block 50 °C~95 °C: ≥5 °C/s
PCR amplification

Maximum heating rate: block 50 °C~95 °C: ≥10 °C/s
PCR amplification

Average cooling rate: block 95 °C~50 °C: ≥5 °C/s
PCR amplification

Maximum cooling rate: block 95 °C~50 °C: ≥8 °C/s
PCR amplification

Temperature accuracy ≤±0.2 °C
PCR amplification

Block temperature control accuracy ≤±0.2 °C 55 °C
PCR thermo lid

Temperature range RT. +5 °C~105 °C
PCR thermo lid

Temperature control accuracy ±0.5 °C
Detection block

PCR reaction system 15~100 μL
Detection block

Fluorescence detection channel: 5 channel
Detection block

Applicable fluorescent dyes: FAM / HEX / ROX / CY5 / CY5.5, etc.
Detection block

PCR kinetic range 1~10^10 Copies/μL
Detection block

Detection time: according to the reagent solution, generally 35~50 min / time
UV sterilization

One UV sterilization lamp is set in the sample preparation area, buffer area and analysis area respectively, which can be controlled independently
HEPA

An independent HEPA component is set in the sample preparation area and analysis area respectively
Software operation

Windows system software, supporting personalized function customization
Instrument port

1×B-USB port and 1×Ethernet port
Information management

Support external code scanner, which can input sample / reagent information; expandable LIS system connection; expandable cloud database connection

Code

Description
AS29010-00

Ecos-Gene 6400 automated nucleic acid extraction and PCR system
AS29011-01

Magnetic rod sleeve
AS29011-02

PCR tube caps
AS29011-03

96 deepwell plate
AS-TT-200-N

200 μL, Allsheng tip, transparent, boxed
AS-TT-200-NL

200 μL, Allsheng tip, transparent, boxed, low adsorption
AS-TT-200-NS

200 μL, Allsheng tip, transparent, boxed, sterile
AS-TT-200-NSL

200 μL, Allsheng tip, transparent, boxed, sterile, low adsorption
AS-TTF-200-NS

200 μL, Allsheng tip, transparent, boxed, sterile, filter element
AS-TTF-200-NSL

200 μL, Allsheng tip, transparent, boxed, sterile, filter element, low adsorption
AS-TT-1000-N

1000 μL, Allsheng tip, transparent, boxed
AS-TT-1000-NL

1000 μL, Allsheng tip, transparent, boxed, low adsorption
AS-TT-1000-NS

1000 μL, Allsheng tip, transparent, boxed, sterile
AS-TT-1000-NSL

1000 μL, Allsheng tip, transparent, boxed, sterile, low adsorption
AS-TTF-1000-NS

1000 μL, Allsheng tip, transparent, boxed, sterile, filter element
AS-TTF-1000-NSL

1000 μL, Allsheng tip, transparent, boxed, sterile, filter element, low adsorption
