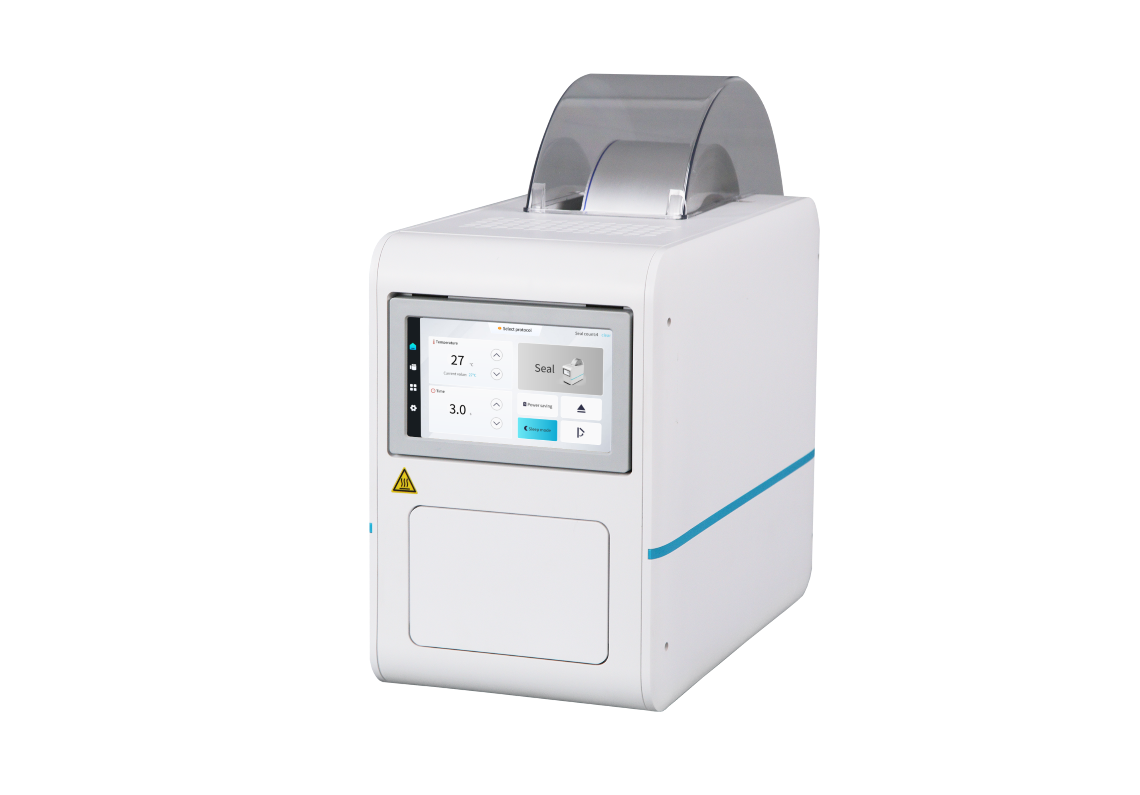

Automated Plate Heat Sealer — SealBio-1

SealBio-1 automated sealer is a device for rapid and continuous sealing of microplates. It can be adapted to ANSI, SBS standard 12-well, 24-well, 48-well, 96-well and 384-well plates with height range of 3~62 mm, including all kinds of PCR plates, ELISA plates, deepwell plates, cell culture plates, etc., as well as the sealing film of 5 mL and 10 mL cartridges used for Allsheng Auto-Pure 20B and 24D. It supports the use of 78 mm puncturable roll film, aluminum foil roll film and strong heat sealing roll film. Suitable for pre-filled of biochemical reagents, sealing film before PCR assays, long-term storage of samples, and other experimental applications that require sealing of reagents.

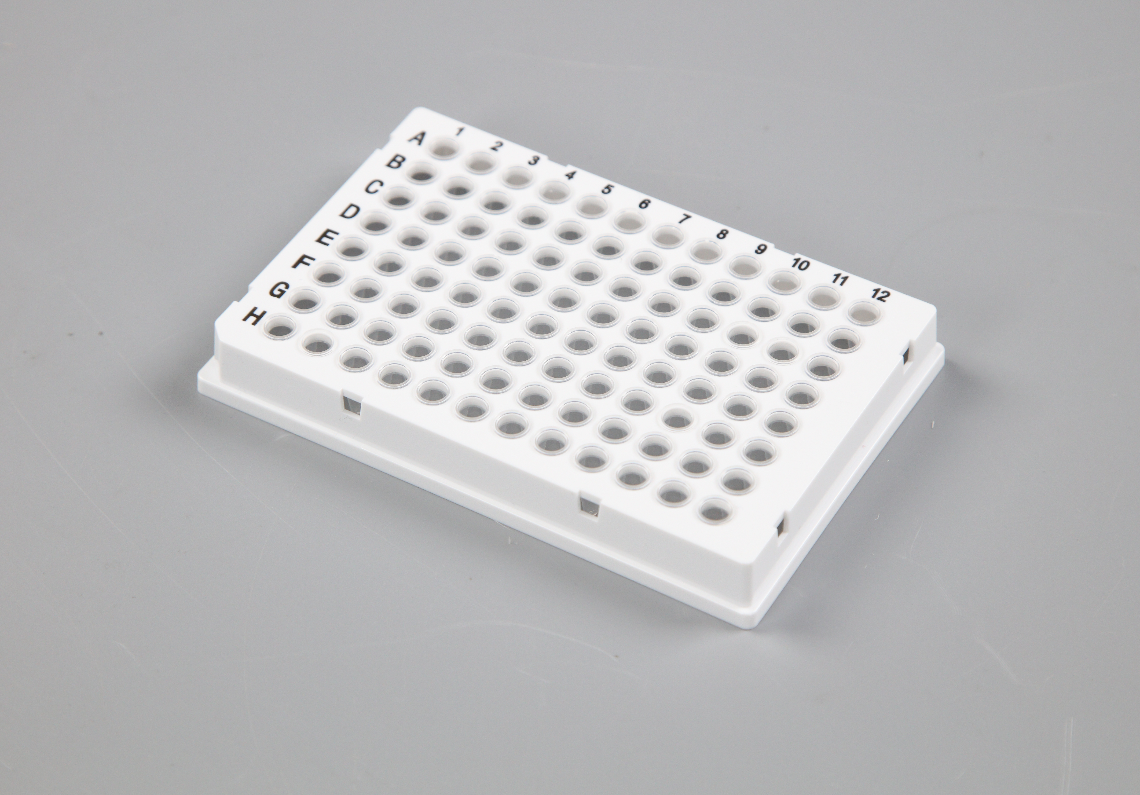

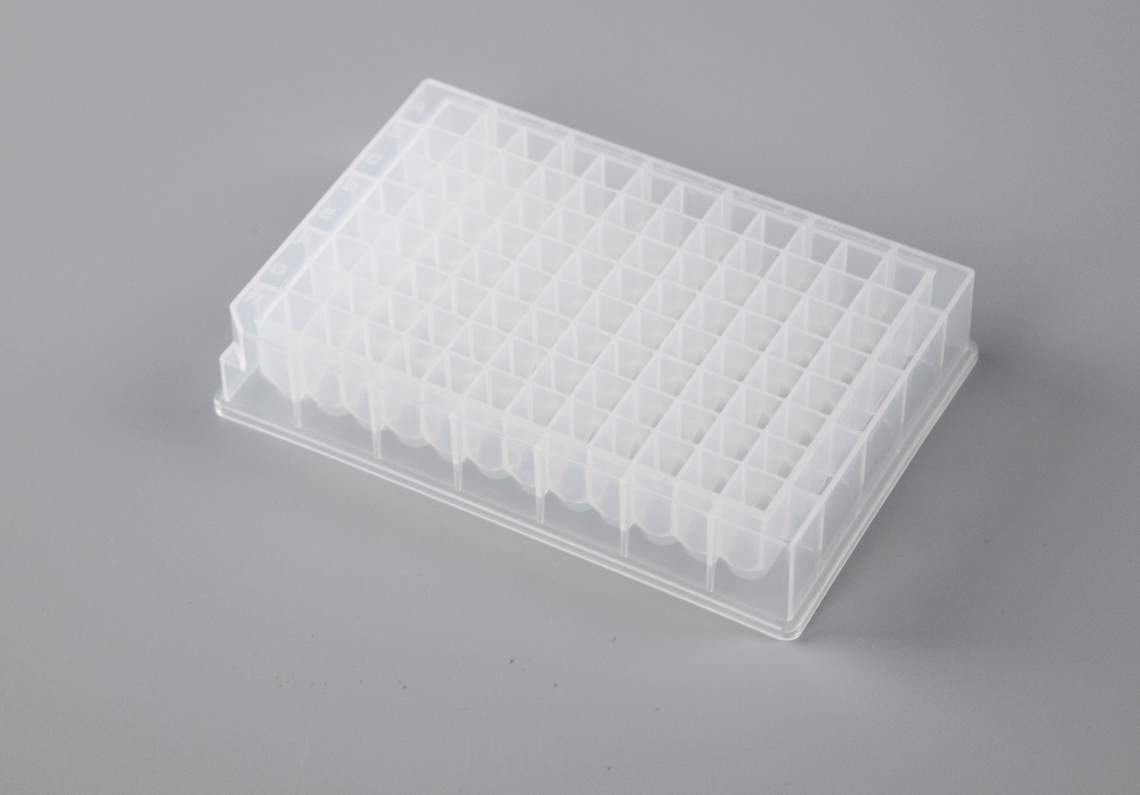

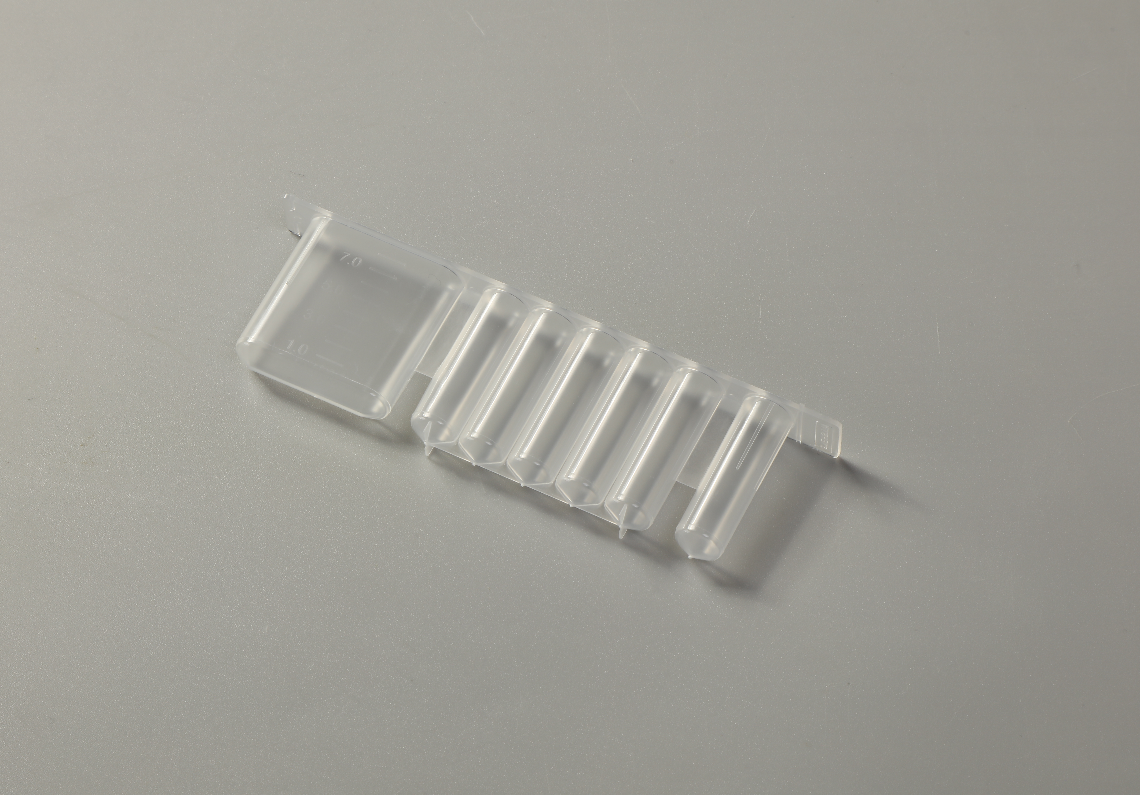

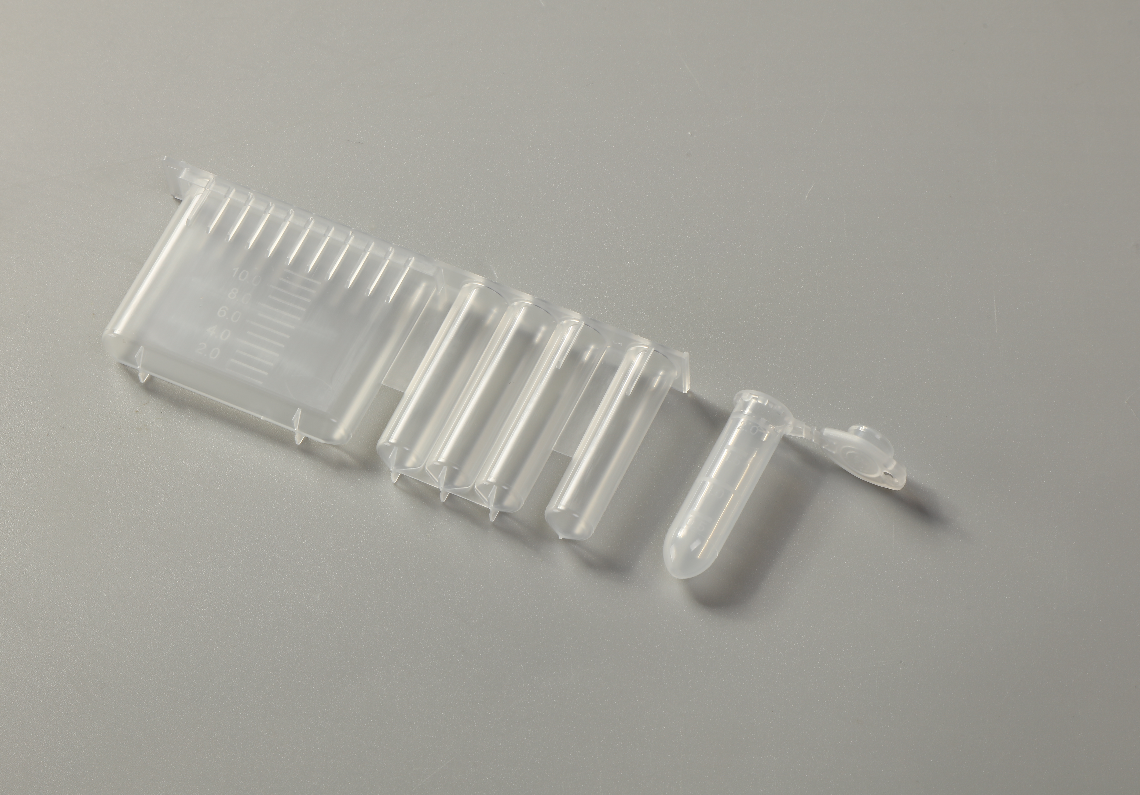

Suitable consumables: deepwell plates, microplates, PCR plates, Auto-Pure 20B, 24D suitable cartridges, etc.


Inquiry More
  • ALLSHENG ALLSHENG

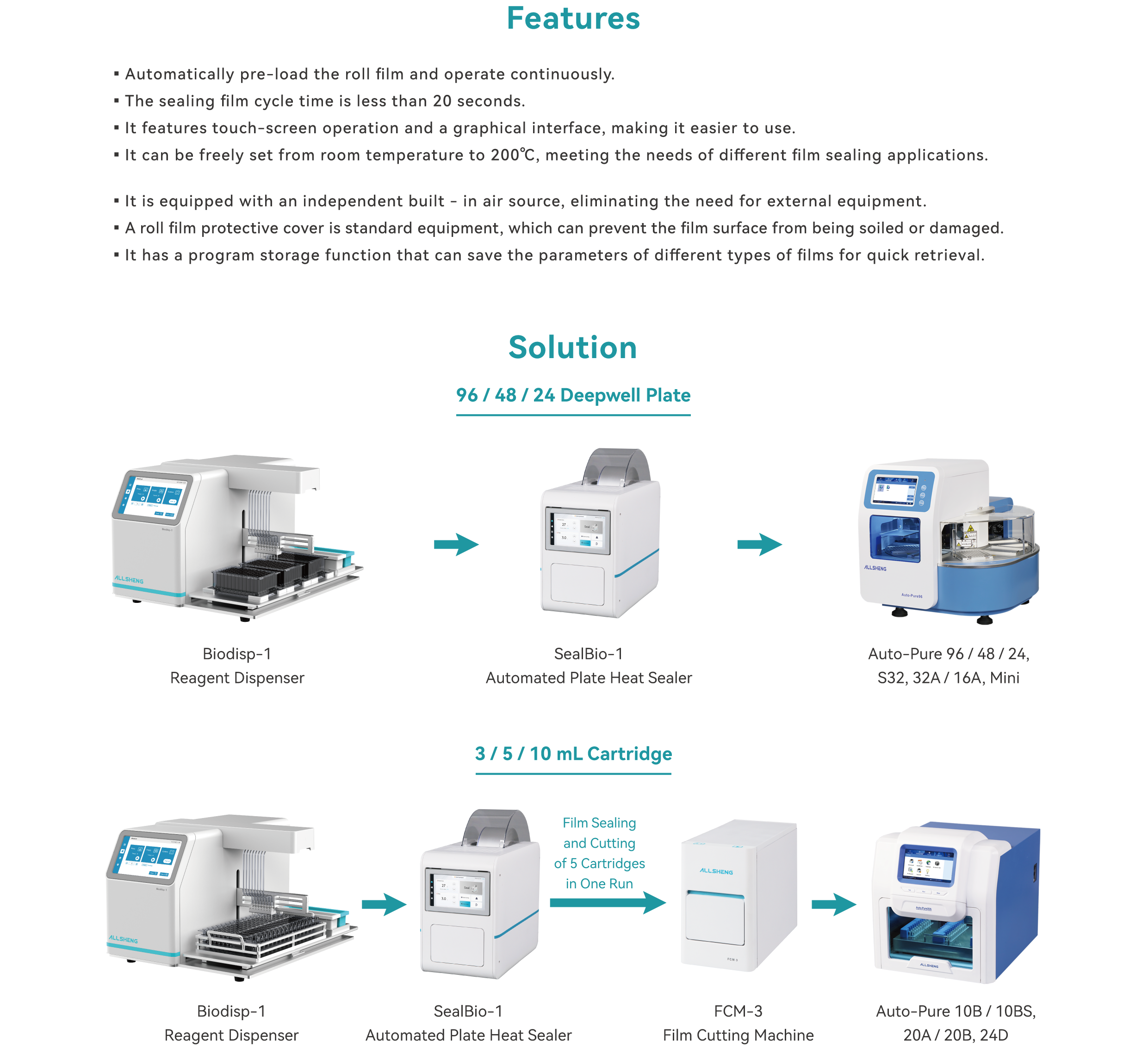

    Features
  • ALLSHENG ALLSHENG
    Technical parameter



  • Product name
    SealBio-1 automated plate heat sealer
  • Supported plates
    ANSI / SBS standard plate, height range 3~62 mm
  • Support roll film-film type
    Puncturable film / aluminum foil film / strong heat sealing film
  • Support roll film-film width
    78 mm
  • Support roll film-loading method
    Automatic preloading of roll film
  • Film sealing temperature-temperature range
    RT.~200 °C
  • Film sealing temperature-temperature control accuracy
    ±1 °C
  • Film sealing temperature-accommodative amplitude
    1 °C
  • Pre-heating time
    5 min
  • Cycle time
    <20 seconds / time
  • Adjustable film sealing time-time range
    0.5~9.9 seconds
  • Adjustable film sealing time-accommodative amplitude
    0.1 seconds
  • Air source method
    Built-in air source
  • Port
    1×USB-B port and 1×Ethernet port
  • Power supply
    AC 110 V / 220 V, 50 / 60 Hz
  • Maximum power
    300 W
  • Software operation
    7-inch touch screen software (resolution 1024*600) / edit sealing scheme / prestored sealing scheme
  • Safety
    Standby function (low power mode) / detection of plate / detection of roll film
