GeneCE-100
  • GeneCE-100

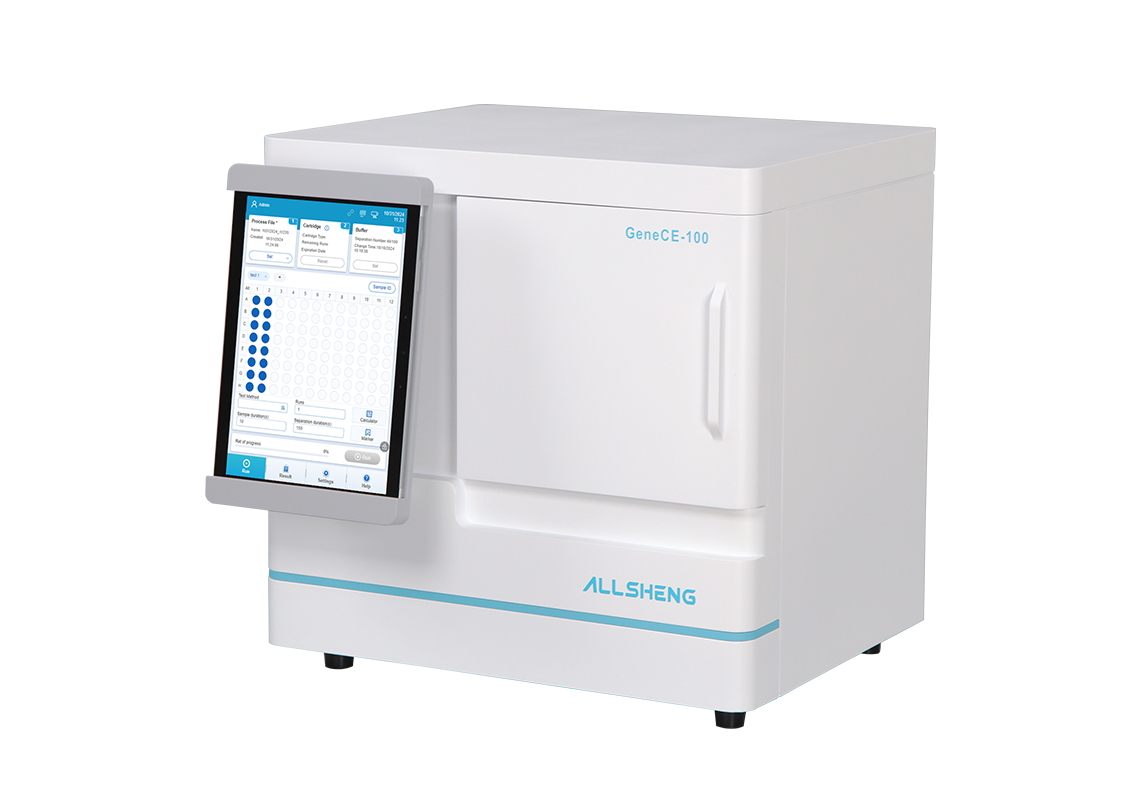

Bio-Fragment Analyzing system — GeneCE-100

GeneCE-100 offers nucleic acid quality control for a range of applications, including DNA QC, NGS libraries, cell-free DNA (cfDNA), PCR fragments and RNA QC. lt provides consistent high-precision analysis by using the same single-channel cartridge. And it provides flexible sample capacity from 1 to 96 samples.

Inquiry More
  • ALLSHENG ALLSHENG
    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG
    Order information


  • Product name
    Bio-Fragment Analyzing system
  • Model
    GeneCE-100
  • Detection method
    Fluorescence
  • System light source
    LED
  • Detector
    High-sensitivity PMT
  • Throughput
    1~96
  • Detection limit
    1 pg/µL (optimized condition)
  • Resolution
    1~4 bp
  • Analysis time
    3~5 min/sample
  • Sample consumption
    <0.2 µL
  • Fragment size CV%
    ≤2%
  • Fragment concentration CV%
    ≤4%
  • Instrument type
    Single channel
  • Operating system
    Windows 11 and higher
  • Display method
    10-inch high-resolution touch screen
  • Power supply
    110~240 V/AC, 50/60 Hz
  • Weight
    26 kg
  • Dimension
    160×445×448 mm
  • Code
    Description
  • AS-31010-00
    Bio-Fragment Analyzing system
