Rob-Flex
  • Rob-Flex

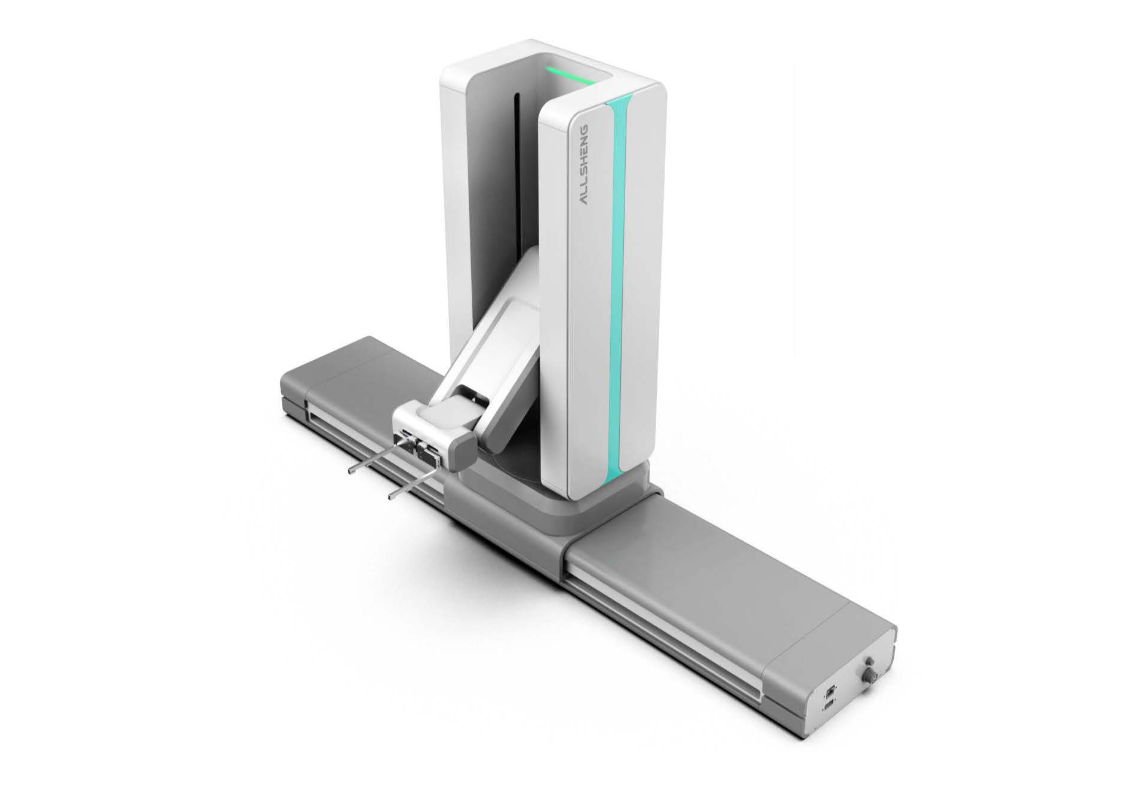

Microplate Handler — Rob-Flex

Rob-Flex microplate handler can be used for the integration of various laboratory instruments, achieving automatic transfer of consumables, reagents, samples, etc. between instruments, replacing manual experimental operations, and further improving the level of laboratory automation.

At present, the common automated integration systems on the market are mainly applied in scenarios such as ELISA experimental automation, fully automated nucleic acid detection, fully automated gene sequencing and pre-processing, and synthetic biology applications.

Inquiry More
ALLSHENG PDF Download
  • ALLSHENG ALLSHENG
    Features
  • ALLSHENG ALLSHENG
    Technical parameter

▪ Can achieve automatic transfer of SBS standard labware

▪ Easy integration and user-friendly handling

▪ User oriented, from experts developed solutions

▪ 360° workspace and reliable


  • Model
    Rob-Flex
  • Maximum Load
    500 g
  • Z-axis stroke
    450 mm
  • Folding arm length
    230 mm
  • S-axis rotation angle
    -110°~110°
  • X-axis stroke
    800 mm, 1200 mm, 1600 mm and 2000 mm
  • R-axis rotation angle
    -180°~180°
  • Repeated positioning accuracy
    ±0.05 mm
  • Electric gripper opening and closing stroke
    50 mm (gripper distance 80 mm~130 mm)
  • Electric gripper repeated positioning accuracy
    ±0.02 mm
  • Anti-collision function
    Support
  • Electric gripper grab feedback, drop feedback
    Support
  • Scan code function
    Support
  • Software operation
    PC software
  • Interface
    Ethernet port and emergency stop button interface
  • Power supply
    AC 100~240 V, 50 / 60 Hz
