Biodisp-1
  • Biodisp-1

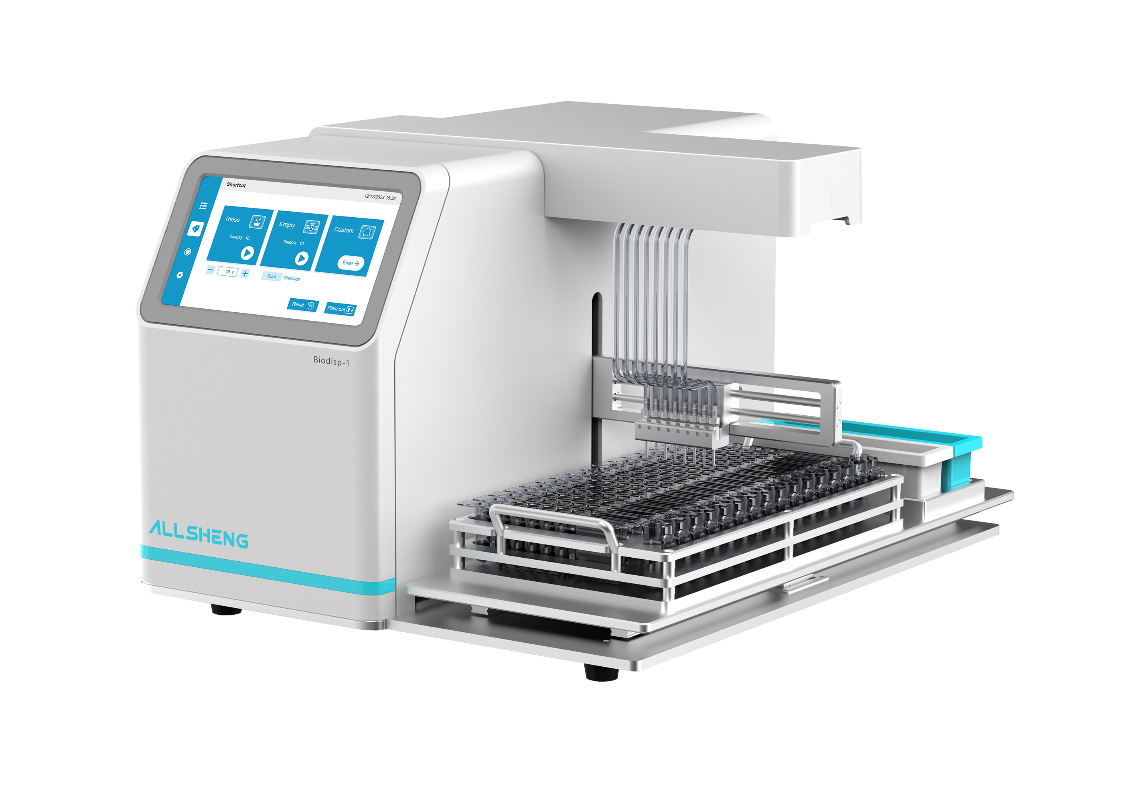

Reagent Dispenser — Biodisp-1

Biodisp-1 reagent dispenser mainly used to dispense reagents for various standard SBS plates (6 / 12 / 24 / 48 / 96) and cartridges / deepwell plates of Allsheng Leap-Pure series nucleic acid purification system, Auto-Pure series nucleic acid purification system, and also suitable for cartridge holder blocks of Allsheng automated plate heat sealer and Allsheng film cutting machine.

Inquiry More
  • ALLSHENG ALLSHENG

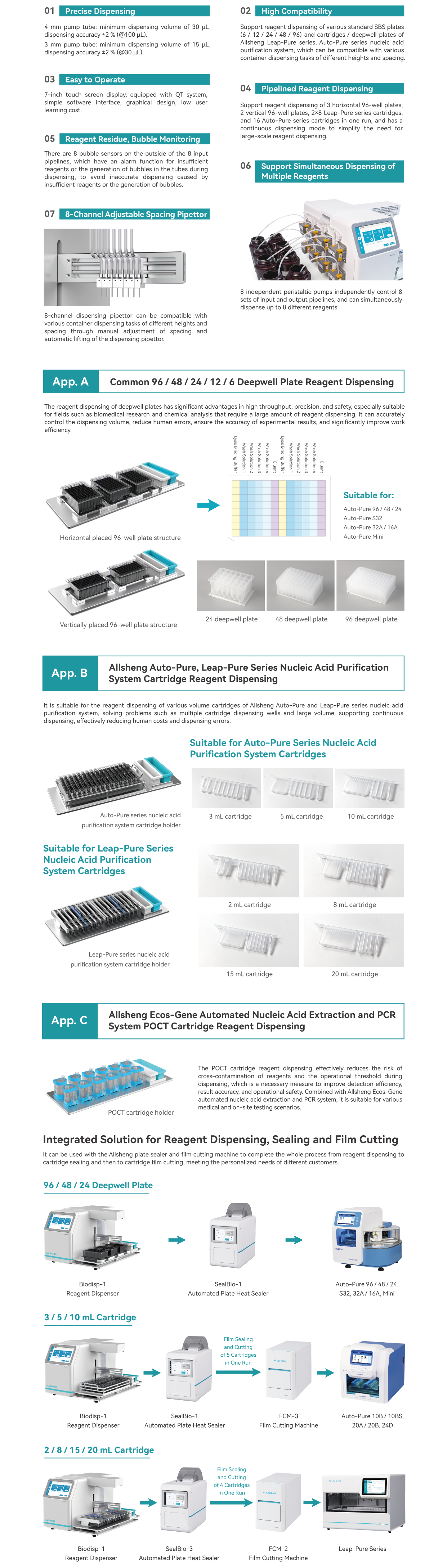

    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG
    Order information



  • Model
    Biodisp-1
  • Dispensing principle
    Peristaltic pump dispensing
  • Dispensing channel
    Independent 8-channel
  • Motion accuracy
    ±0.2 mm
  • Minimum dispensing volume
    4 mm pump tube: 30 μL; 3 mm pump tube: 15 μL
  • Dispensing accuracy
    4 mm pump tube: ±2 % @100 μL; 3 mm pump tube: ±2 % @30 μL
  • Dispensing precision
    4 mm pump tube: ≤15 % @100 μL; 3 mm pump tube: ≤15 % @30 μL
  • Dispensing speed
    4 mm pump tube: 3 μL/s-2000 μL/s; 3 mm pump tube: 1 μL/s-1000 μL/s
  • Dispensing monitoring
    Reagent residue monitoring and alarm
  • Consumables
    Nucleic acid extraction cartridges, various SBS well plates, supporting customization
  • Consumable height
    Compatible with a height range of 5-65 mm
  • Port
    USB-B port, Ethernet port
  • Operating software
    7-inch touch screen software, QT software
  • Code
    Description
  • AS17240-00
    Biodisp-1 reagent dispenser
