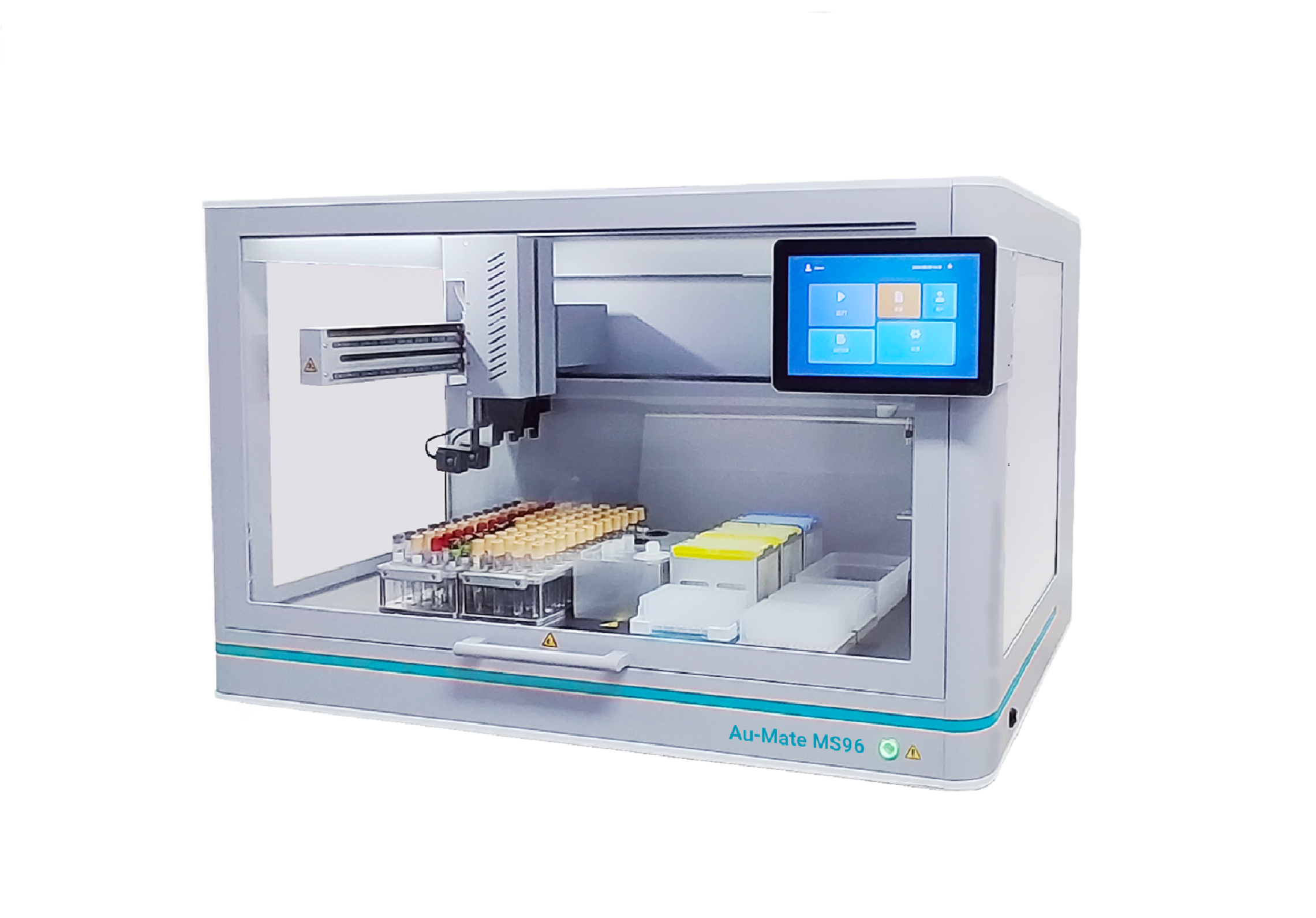

Au-Mate MS96
  • Au-Mate MS96
Automated Mass Spectrometry Preparation System — Au-Mate MS96

Au-Mate MS96 automated mass spectrometry preparation system integrates the operations of original tube loading, rotary scanning, automatic cap opening and closing, sample transfer, reagent dispensing, heating and incubation, etc., freeing the complex manual operations while achieving standardized mass spectrometry sample preparation.

Inquiry More
  • ALLSHENG ALLSHENG

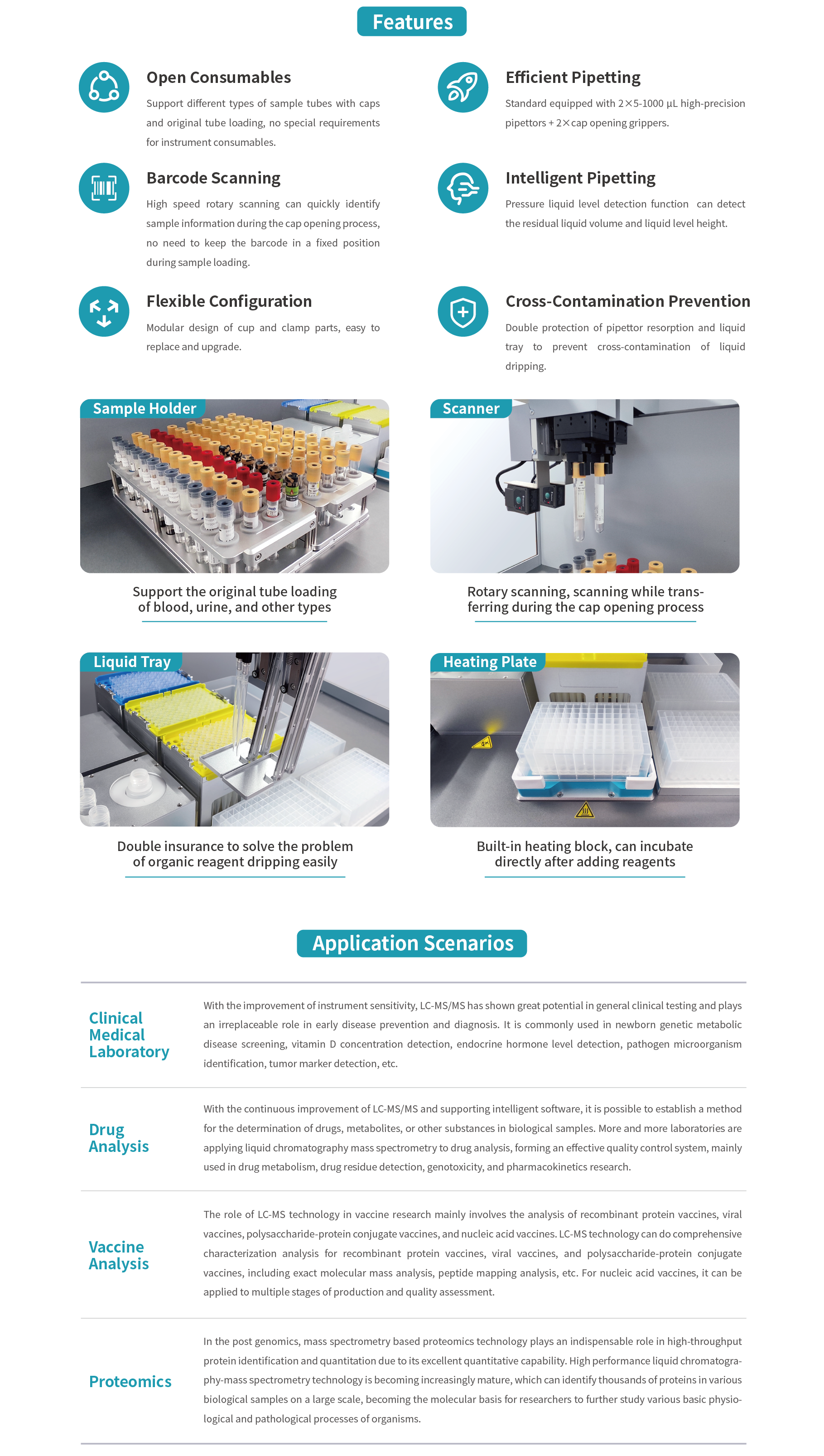

    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG
    Order information
Auto-Mate MS96-02英文详情页.png
  • Model
    Au-Mate MS96
  • Throughput
    1-96
  • Sample tube type
    Customized urine collection tube
  • Reagent dispensing
    Support pre-mixing and dispensing of reagents
  • Sample dispensing
    Support sample transfer, sample pipetting between plates
  • Gripper
    2×cap opening grippers
  • Processing speed
    25 min / 96 samples
  • Contamination prevention
    Double protection of pipettor resorption and liquid tray to prevent cross-contamination of liquid dripping
  • Operating software
    Android system, tablet PC touch operation software
  • Instrument port
    USB port
  • Communication
    CAN communication
  • Information management
    Support automatic sample information input, customizable barcode rules
  • Power input
    100-240 V, 50 / 60 Hz, rated power 300 W
  • Pipettor
  • Specification
    2×1000 μL pipettors
  • Detection method
    Pressure liquid level detection
  • Pipetting range
    5-1000 μL
  • Pipetting precision (CV)
    5 μL: ≤2.5% 20 μL: ≤2% 100 μL: ≤1.25% 500 μL: ≤0.4% 1000 μL: ≤0.4%
  • Pipetting accuracy (A)
    5 μL: ±5% 20 μL: ±3% 100 μL: ±2% 500 μL: ±1% 1000 μL: ±1%
  • Mixing Block
  • Suitable
    Suitable for 15 mL reagent bottles, three gears of mixing speed can be set
  • Heating Block
  • Temp. control range
    RT. +5 °C~105 °C
  • Temp. accuracy
    ≤±0.5 °C
  • Temp. uniformity
    2 °C @65 °C
  • Code
    Description
  • AS-21010-00
    Au-Mate MS96 automated mass spectrometry preparation system
