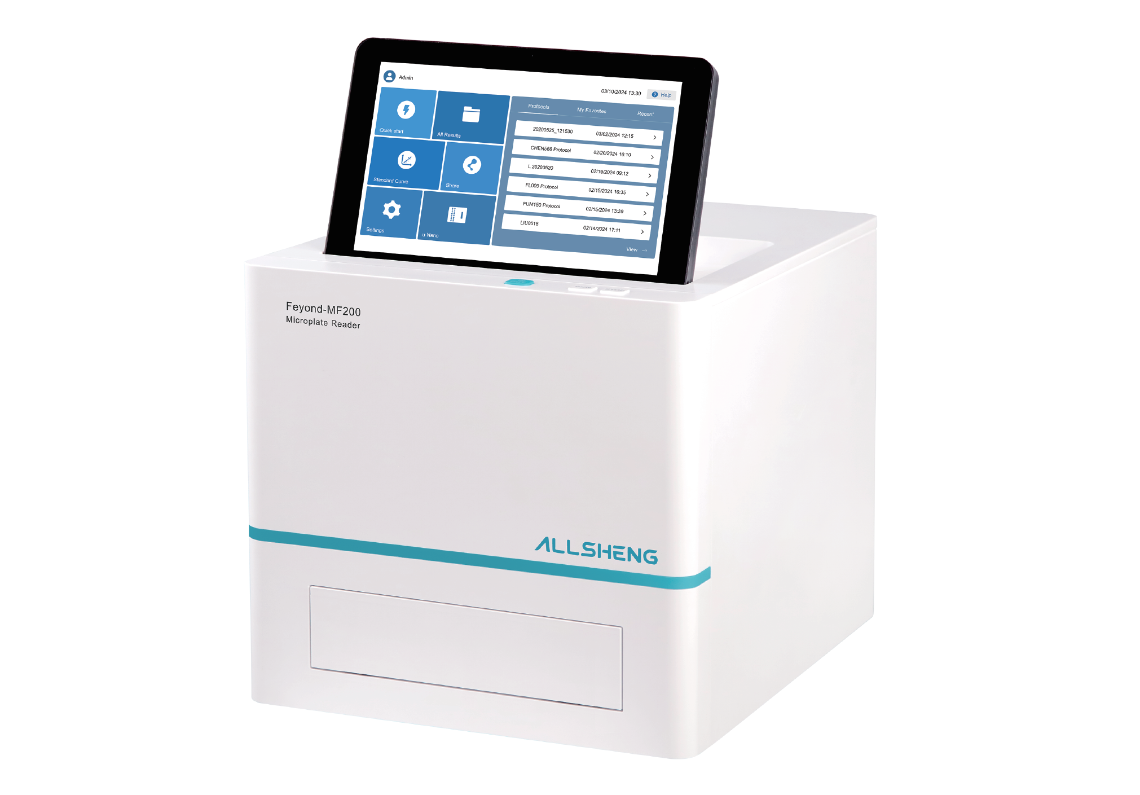

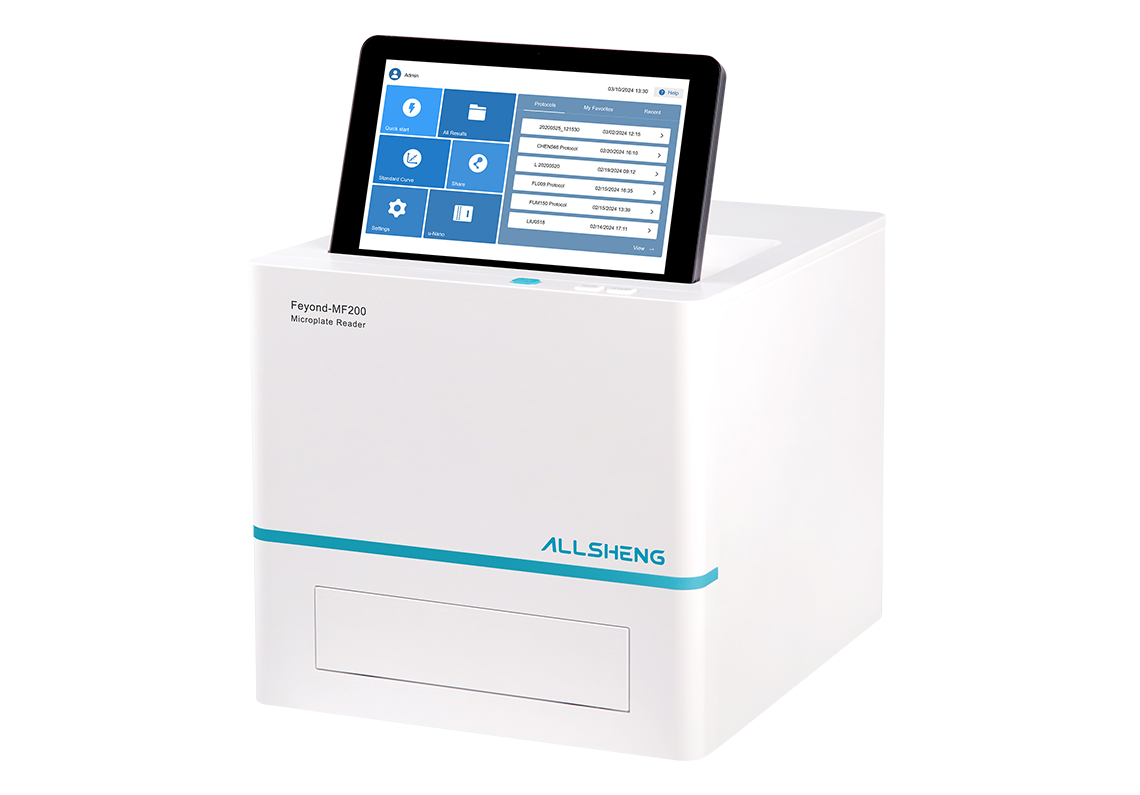

Microplate Reader — Feyond-MF200

The Feyond-MF200, as a distinctive dual-function microplate detection platform, adopts a unique design of dual optical elements. It features two detection modes: full-wavelength absorbance (UV/Vis/NIR) and fluorescence intensity (FI).
The absorbance detection mode covers a wide wavelength range from ultraviolet to visible light, enabling precise measurement of the degree to which the sample absorbs light at different wavelengths.
The fluorescence detection mode, on the other hand, makes use of the characteristic that fluorescent substances emit fluorescence under the excitation of light at a specific wavelength. It has high sensitivity and specificity, and is suitable for detecting trace amounts of biomolecules, intracellular signal transduction, analysis of enzyme activity, etc., playing an important role in fields such as drug screening and cell biology research.

Inquiry More

Model

Feyond-MF200/Feyond-MF200A
Absorbance
Support Plate Rack

6 - 384 well plates, microplates
Light source

Xenon lamp
Detector

PD×2
Wavelength accuracy

2 nm
Wavelength repeatability

0.2 nm
(SD)Half width (FWHM)

≤2.5 nm
Wavelength range

190-1000 nm, 1 nm step
Measure range

0-4 OD
Resolution

0.0001 OD
Accuracy

96-precision mode： ±(1.0%+0.003) @ (0.0-2.0] ±2.0% @ (2.0-3.0]
Repeatability

CV < 1.0% fast (0.0 - 3.0] CV < 0.5% accurate (0.0 - 3.0]
Stray light

0.1% @220 nm
Linear

R^2 ≥0.999 @ [0.0 - 3.0]
Reading time

96-well plate: fast <15 s
Fluorescence
Reading mode

Top reading
Excitation light source

Xenon lamp
Detector

PMT
Filter EX/EM

3 groups, 8 groups are allowed to be installed at one time
Detection limit

2 pM (optimization condition)
Dynamic range

≥6 logs
Basic Parameter
Vibration Mode

Linear, circular, double circular
Incubation Temperature

RT+4 °C ~ 45 °C
Temperature Accuracy

±0.5 °C @37 °C
Temperature Uniformity

1 °C @37 °C
Feyond-MF200
Display

10-inch LCD screen
Operation mode

Touch screen
Operating system

Android
Data capacity

10GB
Network transmission

Upload to a PC server via FTP
Analysis software

Readerlt-III PC (optional accessory)
Instrument interface

2 USB Type-A ports, 1 USB Type-B port, 1 Ethernet port, and 1 RS232 interface.
Size (W×D×H)

320×435×305 mm
Power supply

AC 100~240V, 2A, 50~60Hz
Weight

≤25 kg
Feyond-MF200A
Display

It has no screen and can be connected to a PC.
Operation mode

Computer operation
Operating system

Windows
Data capacity

/
Network transmission

/
Analysis software

Readerlt-III PC (optional accessory)
Instrument interface

1 USB Type-B port and RS232 interface
Size (W×D×H)

320×435×305 mm
Power supply

AC 100~240V, 2A, 50~60Hz
Weight

≤25 kg

Code

Product description
AS-19110-00

Feyond-MF200 Microplate Reader
AS-19120-00

Feyond-MF200A Microplate Reader
AS-19111-01

Readerlt-III PC software
AS-19011-02

u-Nano Ultra-micro Detection Plate
AS-19011-03

ABS optical performance validation board
AS-19011-04

MSS-2 automatic injector
