GeneCE-Mini
  • GeneCE-Mini

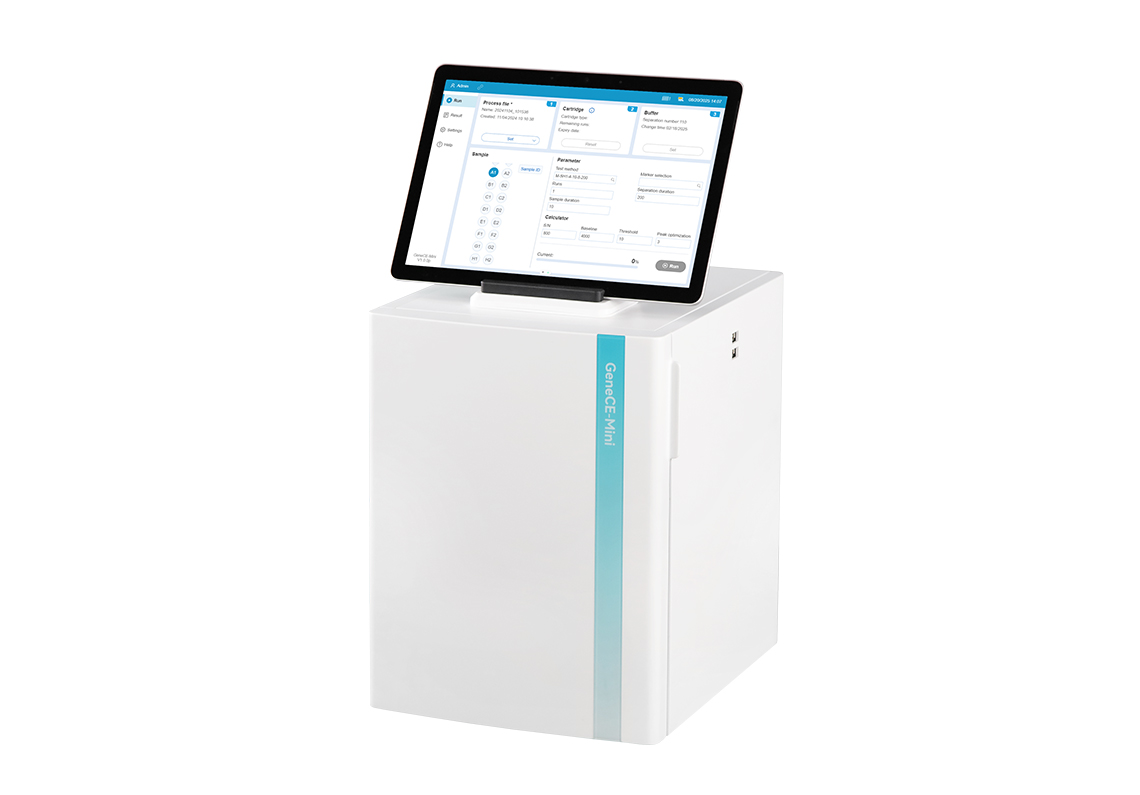

Biofragment Analysis System — GeneCE-Mini

GeneCE-Mini portable biofragment analysis system can run 1-16 samples simultaneously. It is small in size, light in weight, and easy to carry. It is suitable for molecular biology experiments, teaching laboratories, small clinics (with rapid detection reagents), rapid detection centers, etc.

GeneCE-Mini: Standard 10-inch tablet

GeneCE-MiniA: No touch screen, direct connection to ordinary PC

Inquiry More
  • ALLSHENG ALLSHENG
    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG
    Order information


  • Model
    GeneCE-Mini
  • Detection mode
    Fluorescent
  • Light source
    LED
  • Control mode
    PC / Tablet
  • Power
    110-240 V/AC, 50/60 Hz
  • Weight
    9.2 kg
  • Dimension
    237×290×468 mm
  • Channel
    Single channel
  • System
    Windows 10 and above
  • Number of samples / test
    1-16
  • LOD
    0.2 pg/µL (optimization conditions)
  • Resolution
    1-4 bp
  • Analysis time
    3-5 min/sample
  • Sample consumption
    <0.2 µL
  • Fragment size CV%
    ≤2%
  • Fragment concentration CV%
    ≤4%
  • Code
    Description
  • AS-31050-00
    GeneCE-Mini biofragment analysis system
  • AS-31060-00
    GeneCE-MiniA biofragment analysis system, no touch screen
