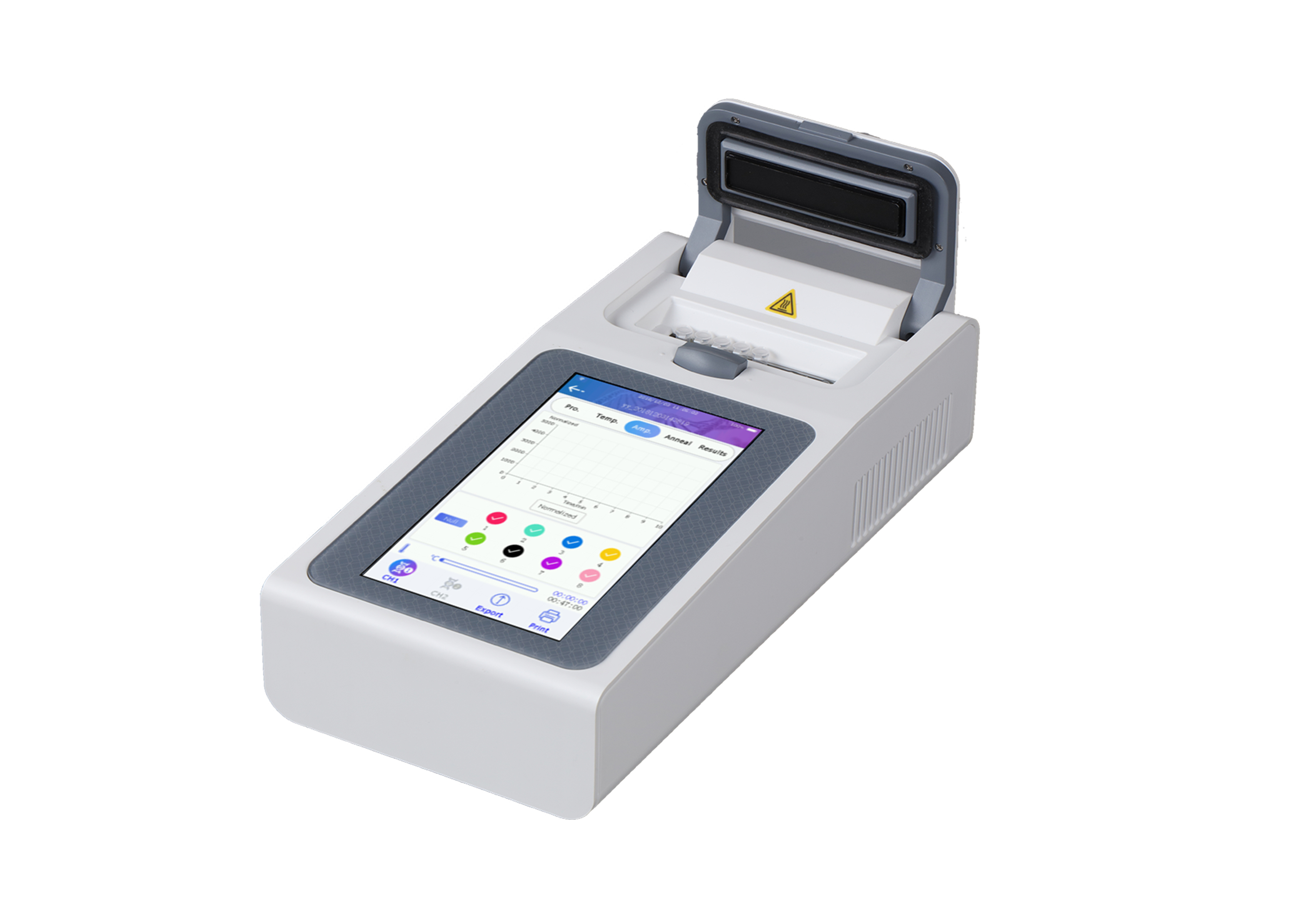

Product|Hangzhou Allsheng Instruments

•More reliable results

Side light detection system which makes minimum detection of 20ul reaction volume possible

Accurate temperature control, temperature difference between wells less than 0.15℃, the temperature control accuracy can reach to 0.1℃

Real-time monitoring of fluorescence signal which avoiding subjective error caused by manual interpretation

•Easy operation

The negative and positive results are directly interpreted without any other calculations

With 7 inch touchscreen, stand-alone operations like settings, detection, interpretation and save are available, no need connecting computer

User-friendly software with fluorescence detection to match with different requirements of kits

•Provides multiple data export methods

Use USB, WIFI connection, transfer the experimental data and results to your computer, or save the data directly to the cloud through WIFI (need to be developed according to customer needs)

•View results on your computer, organize and share data

Once the data is exported, you can use the PC software to view the data in various formats and organize the experimental data

•Easy-to-use "data printer" option

You can print results directly from the instrument via the USB printer interface. You can also use PC software to print and export the results from the computer

•Convenient for outdoors portability

Small size with rechargeable batteries makes detection real-time anywhere

Portable test box which is easy equip with other instruments to improve the efficiency of the experiment

•Software systems are smarter

The software on the instrument side is simple and clear, and beginners can easily master it

Android mobile APP software can control the operation of monitoring instruments

It can be operated by an external computer to meet various customer needs

Mobile APP real-time data transmission, real-time monitoring system

Data statistics function to record experimental parameters and data, which is convenient for traceability and search

Real-time monitoring, automatic identification of negative and positive, melting curve and other functions

Model

Gene-8C
Sample type

0.2 flat/dome single tube & 8*0.2 strip tube
Reaction system

10-150 μL (Recommended 20-30 μL)
Dye

FAM/SYBR GreenⅠ, SYTO-16, etc.
Temp. Range (℃)

Ambient -99 ℃
Max heating speed (℃)

2 ℃/s
Max coolinig speed (℃)

2 ℃/s
Temp. uniformity (℃)

±0.15 ℃
Temp. control accuracy (℃)/precision (℃)

±0.1 ℃ / 0.1 ℃
Thermo lid function

Yes
Channel

Single
Excitation wavelength

Ex 470 nm / LED
Detection wavelength

Em 535 nm / PD
Excitation light source/detection mode

LED/real-time fluorescent signal detection
Result display

1. Positive/Negative 2. Peak time 3. Anneal Tm value
Interpretation method

1. Interpretated by amplification plot 2. Interpretated by instrument automatically
Display

7 inch touch screen
Software

Embedded software, mobile APP, PC software (Android system)
Input power

100～240 V，50～60 Hz
Storage battery

Chargeable battery (optional)
Dimension (W×D×H) mm

145×305×100 mm
Weight (without battery)

2.3 kg

Code

Description
AS-20010-00

Gene-8C isothermal fluorescence PCR
AS-20020-00

Gene-8C2 isothermal fluorescence PCR
