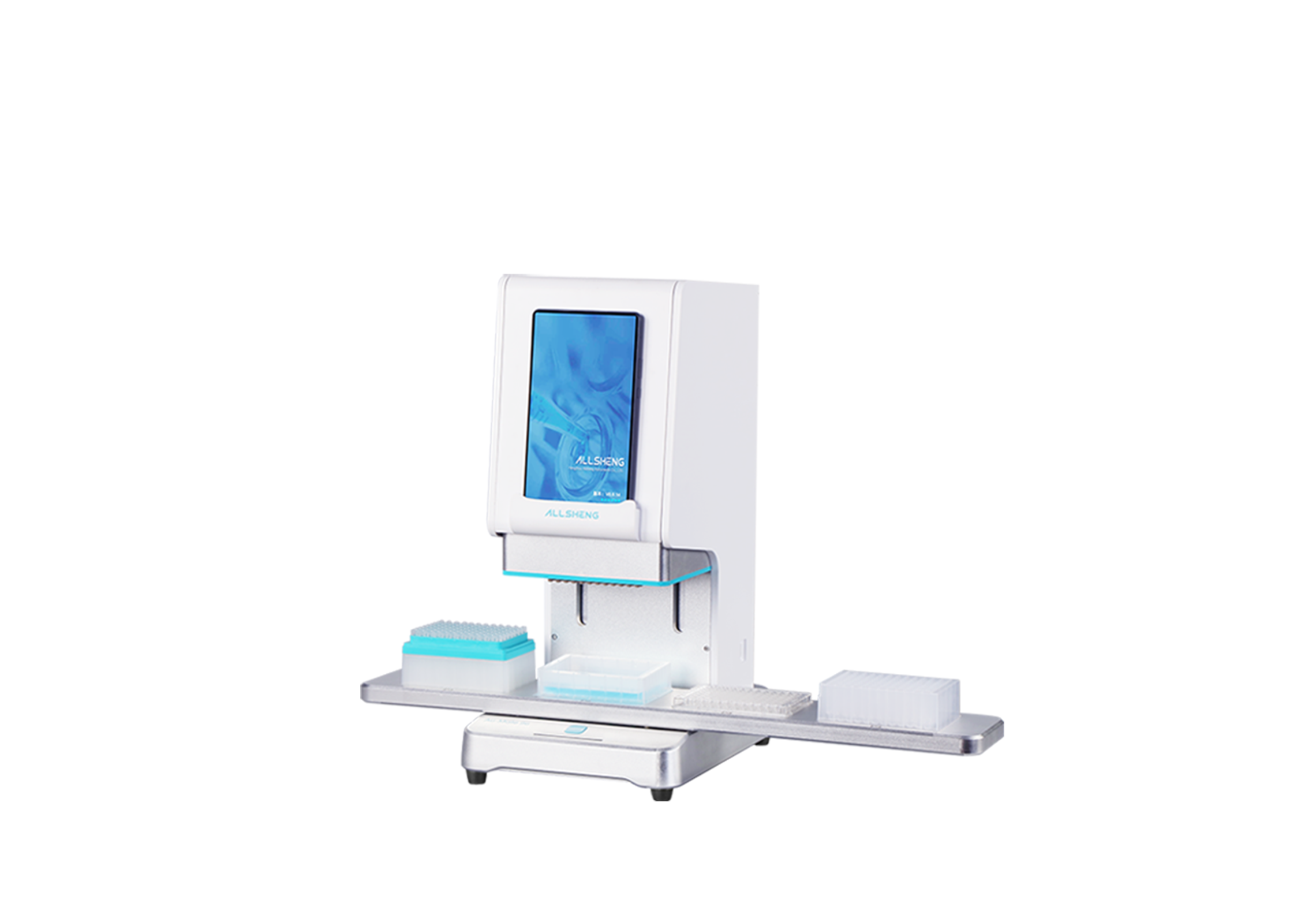

Liquid Handling Workstation — Au-Mate 96 A2/A4

For complex experimental procedures and precise pipetting operations, Au-Mate 96 series liquid handling workstation can bring you unlimited imagination. Through the external tablet computer, you can easily set up, save and operate the experimental process. Through the software control, the difference between aspirating and dispensing is truly eliminated, which improves the repeatability of pipetting.
The simple and easy-to-operate software system controls the process of loading and unloading pipetting heads, aspirating and dispensing liquid, so as to complete complex multi-step experiments. A large amount of repetitive work can be completed in a short time, thereby reducing most of the manual pipetting burden, and significantly improving the sample processing speed and repeatability.

Inquiry More

PDF Download

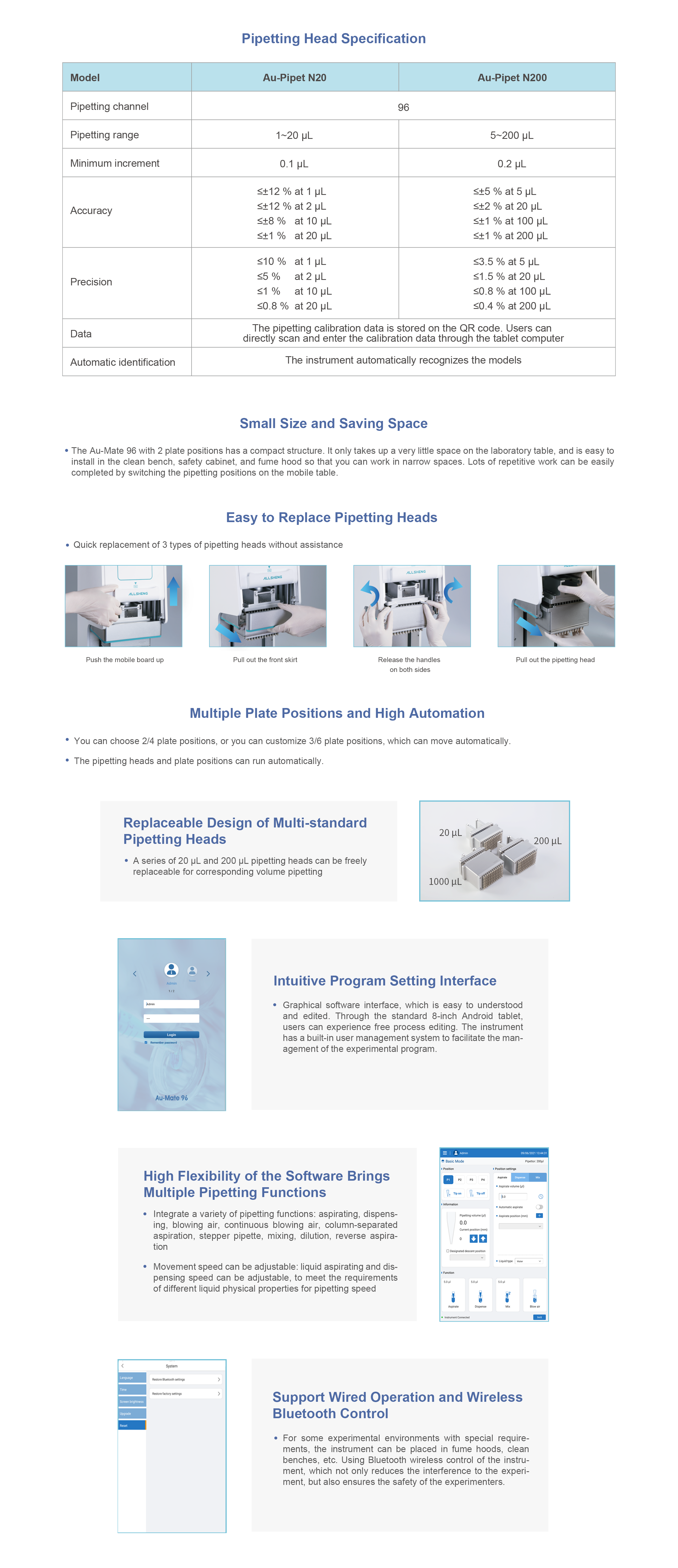

Au-Mate 96 A2A4详情页20230818.png

Model

Au-Mate 96A2
Plate number

2
Adapted pipetting head

Adapt to Au-Pipet N20 & N200 heads
Software control mode

Basic mode
Channel

8/96 channel
Technical principle

Air displacement
Available well plate

SBS standard 24/96/384 deep and shallow well plates
Consumables

Matching Allsheng Tip
System

Standard 8-inch Android tablet, software adaptive to mainstream size tablet
Communication method

CAN communication
Power supply

100~240 V, 50~60 Hz
Power

100 W
Wireless control

The instrument has a built-in Bluetooth block, which can be connected wirelessly
N.W. (kg)

26
Size (W×D×H) mm

475×343×535
Model

Au-Mate 96A4
Plate number

4
Adapted pipetting head

Adapt to Au-Pipet N20 & N200 heads
Software control mode

Basic & advanced mode
Channel

8/96 channel
Technical principle

Air displacement
Available well plate

SBS standard 24/96/384 deep and shallow well plates
Consumables

Matching Allsheng Tip
System

Standard 8-inch Android tablet, software adaptive to mainstream size tablet
Communication method

CAN communication
Power supply

100~240 V, 50~60 Hz
Power

100 W
Wireless control

The instrument has a built-in Bluetooth block, which can be connected wirelessly
N.W. (kg)

30
Size (W×D×H) mm

690×343×535

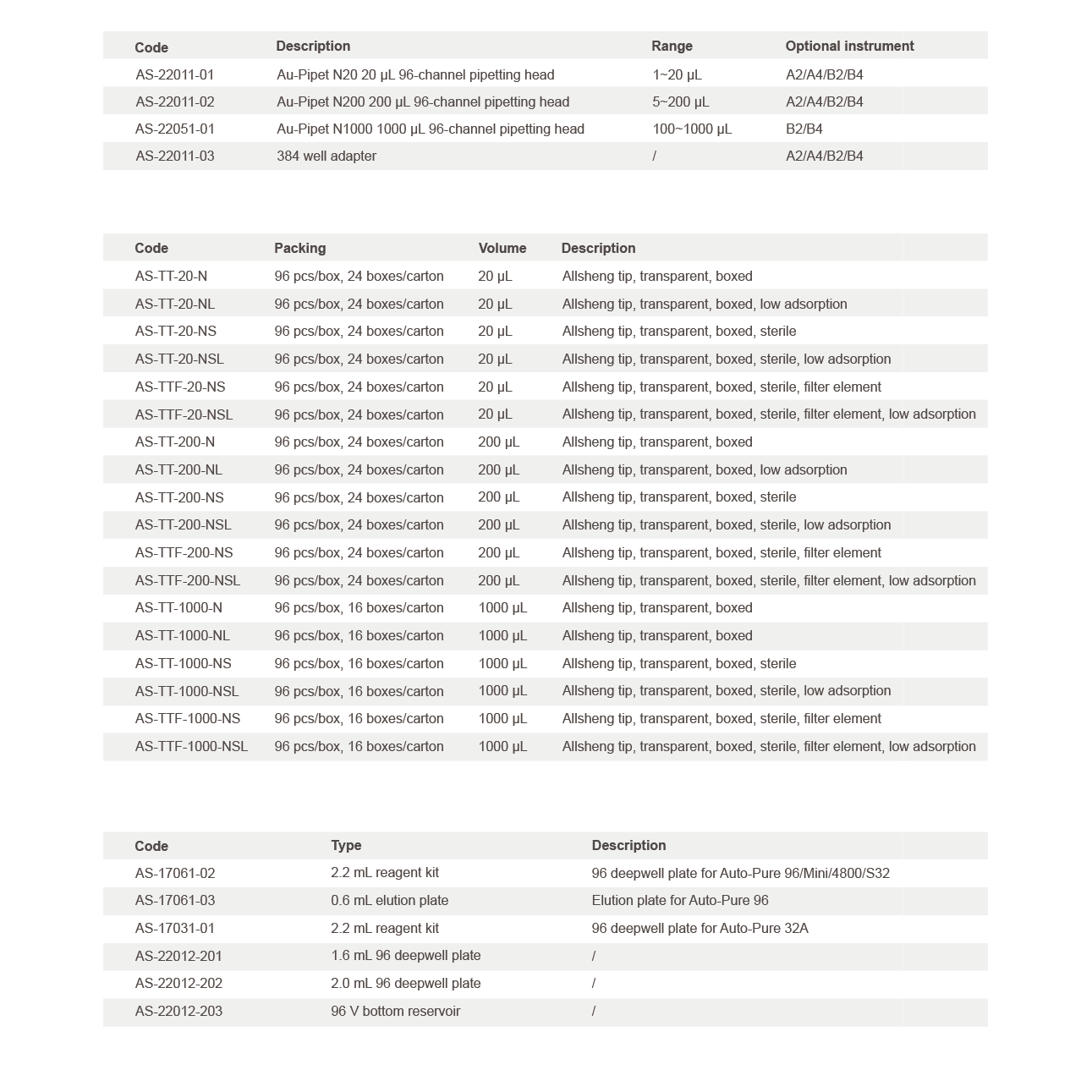

Au-Mate 96配件耗材20230818.png

Code

Description
AS-22010-00

Au-Mate 96A2 liquid handling workstation, 2 types of pipetting heads available, 100-24 VAC, 100 W
AS-22030-00

Au-Mate 96A4 liquid handling workstation, 2 types of pipetting heads available, 100-24 VAC, 100 W
