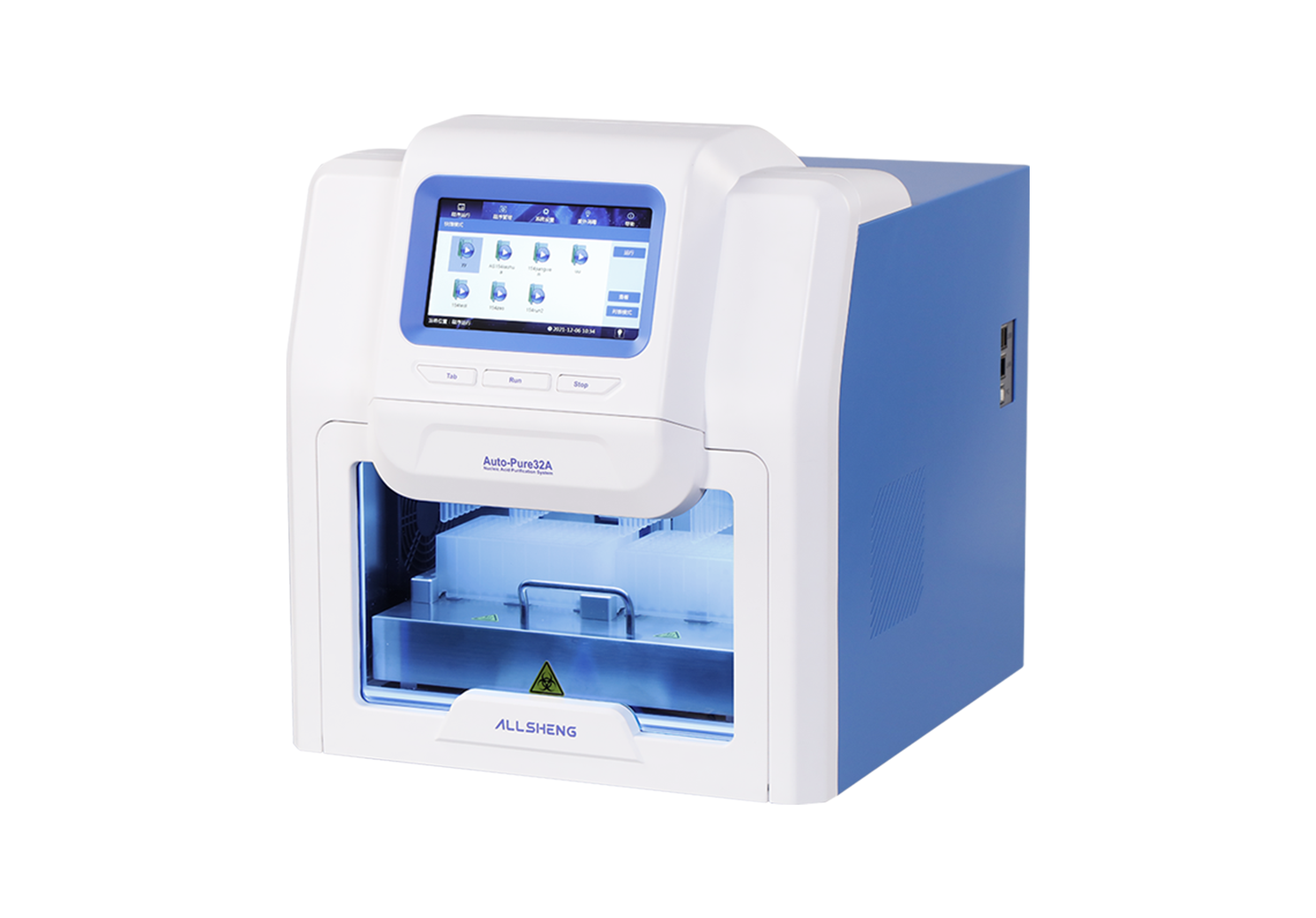

Nucleic Acid Purification System — Auto-Pure 32A

Auto-Pure 32A nucleic acid purification system is a device for extracting and purifying nucleic acid by using magnetic bead method. It has the advantages of high automation, fast extraction, stable results, and easy operation. Using the 96 deepwell plate kit, 1-32 samples can be purified in one run. With different types of magnetic bead nucleic acid reagent sets, it can quickly extract DNA and RNA from animal and plant tissues, blood, body fluids, criminal specimens and other samples. It is widely used in scientific research, disease control system, food safety, forensics, clinical monitoring and other fields.

Inquiry More


•Stand-alone operation, 7-inch color touch screen display, easy to use

•Customize the temperature and program according to the requirements

•Short operation time, 15-30 min/time, can extract up to 32 samples in one run

•High yield of nucleic acid, low loss of magnetic beads, and good reproducibility of results

•UV sterilization function to avoid cross-contamination

•Open system, suitable for various magnetic bead extraction reagents

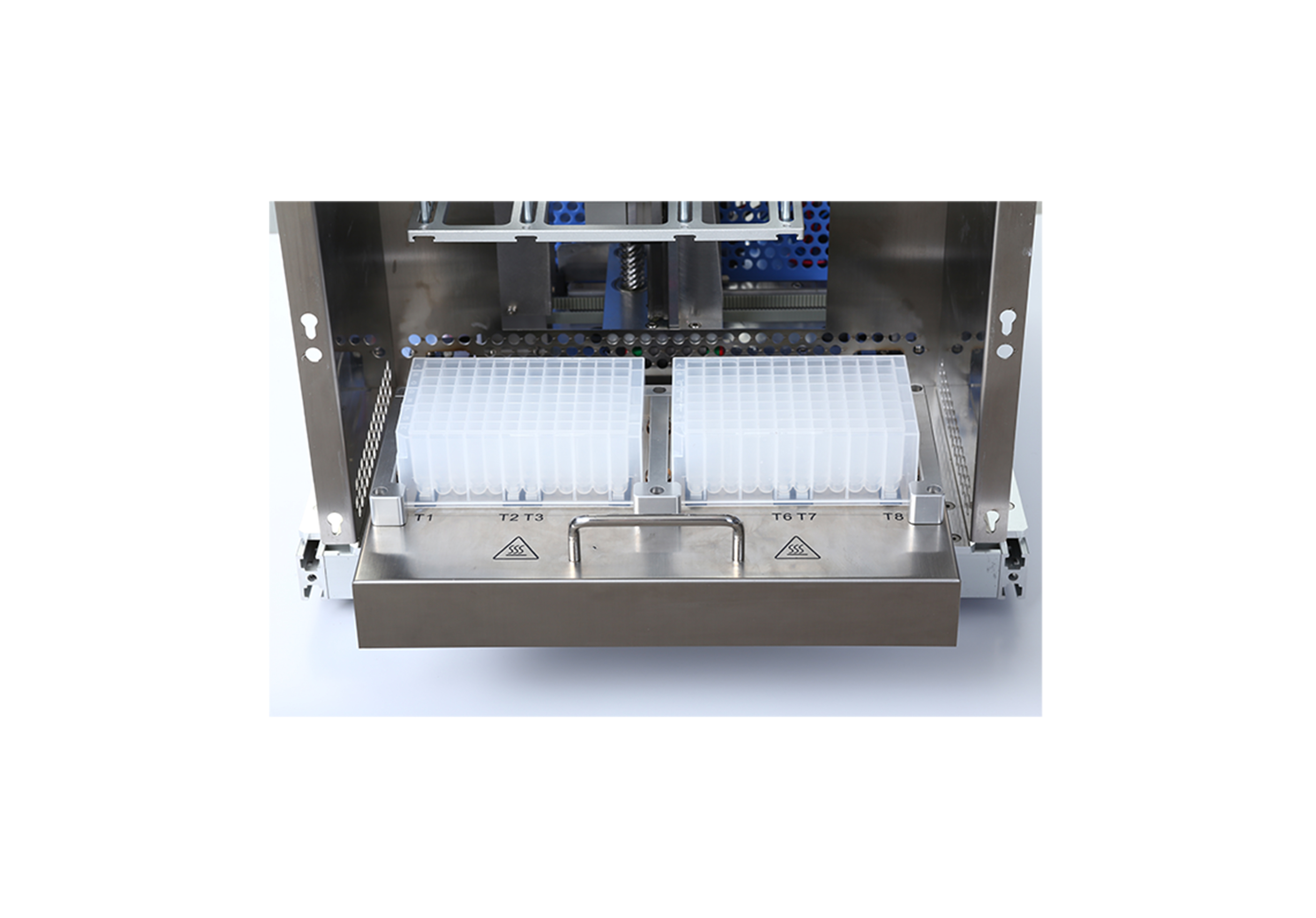

•Drawer design to prevent possible injuries

•APP software will be configured to monitor the system in real time through mobile devices

Model

Auto-Pure 32A
Throughput

1~32
Process volume

50~1000 µL
Consumable

96 Deepwell plate+magnetic rod comb
Principle/working mode

Magnetic bead method, magnetic rod method / up and down mixing
Software security design

Operating system encryption function can effectively prevent malicious tampering of parameters and programs
Anti-pollution design

6 fan convection design, effectively prevent aerosol pollution
Purification accuracy

100 copy sample positive rate>95%
Stability

CV<5%
Collection efficiency

>95%
Heating for lysis tube

Ambient temperature~120 °C
Heating for elution tube

Ambient temperature~120 °C
Operation

7-inch touch screen, 3 shortcut keys, external mouse
Internal program

Preset 8 programs, max store 100 programs
Protocol management

Create, edit, delete, protocol mode
Extension interface

4 standard USB port, Ethernet port, wifi, built-in SD card
Lighting

Yes
Pollution control

UV light
Exhaust

Fan
Power supply

450 W
Dimension

400×470×450 mm
Weight

28 kg

Code

Description
AS-17030-00

Auto-Pure 32A nucleic acid purification system
AS-17031-01

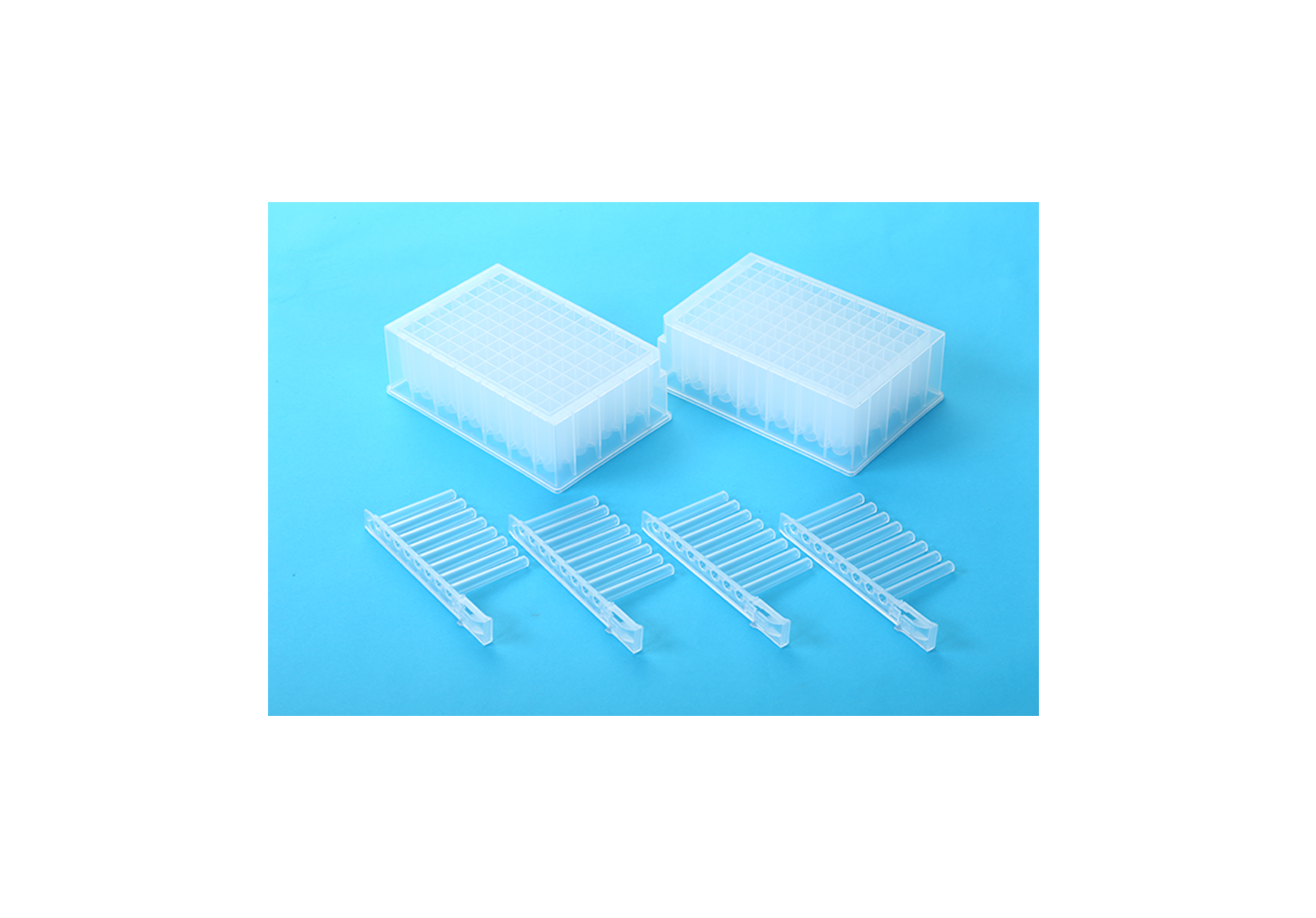

96-Deepwell plate for Auto-Pure 32A
AS-17031-02

Magnetic rod comb for Auto-Pure 32A
