Auto-Pure 20A
  • Auto-Pure 20A
  • Auto-Pure 20A
  • Auto-Pure 20A

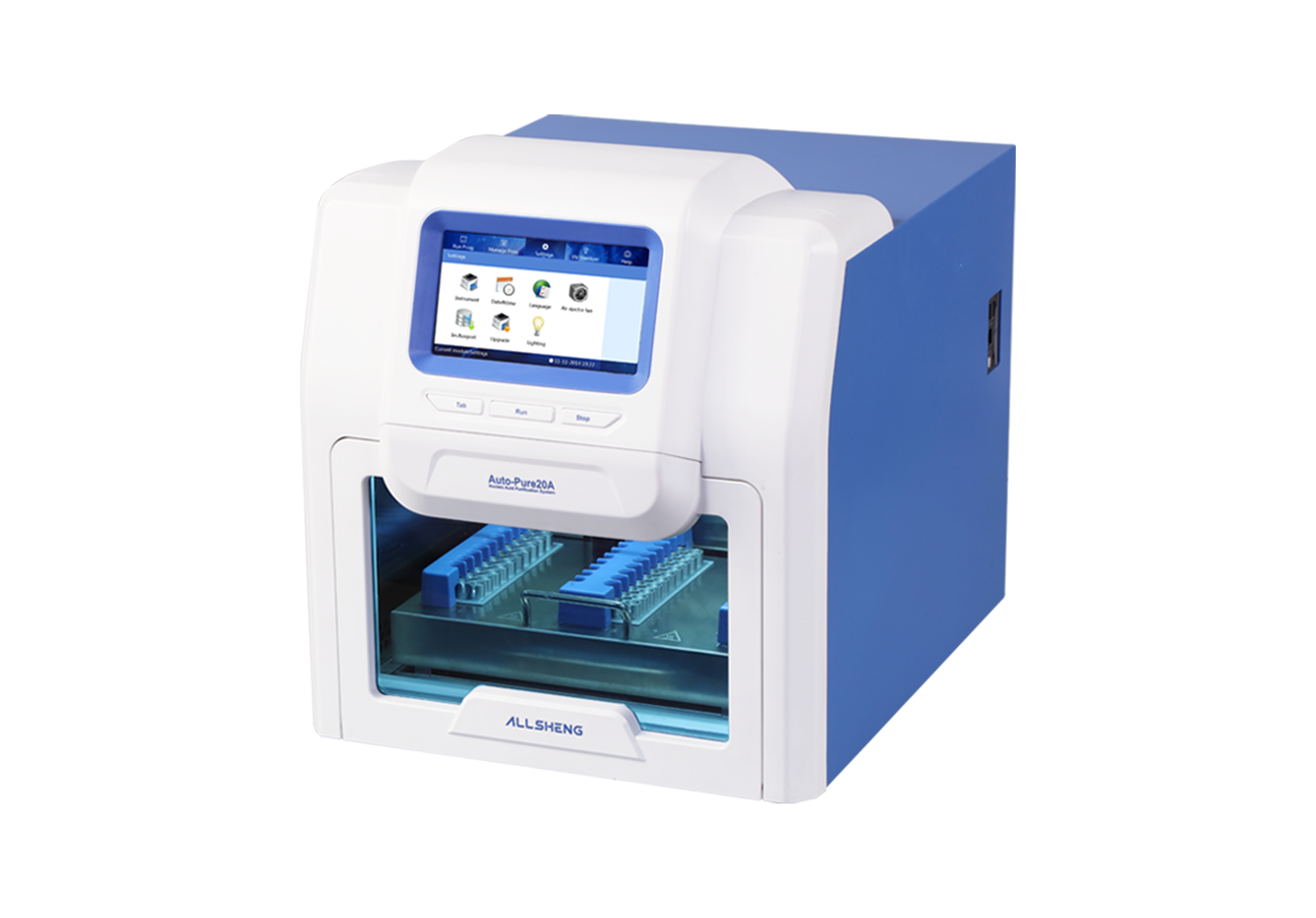

Nucleic Acid Purification System — Auto-Pure 20A

Auto-Pure 20A nucleic acid purification system is a device for extracting and purifying nucleic acid by using magnetic bead method. It has the advantages of high automation, fast extraction, stable results, and easy operation. Using a patented designed kit, 1-20 samples can be purified in one run. With different types of magnetic bead nucleic acid reagent sets, it can quickly extract DNA and RNA from animal and plant tissues, blood, body fluids, criminal specimens and other samples. It is widely used in scientific research, disease control system, food safety, forensics, clinical monitoring and other fields.

Inquiry More
  • ALLSHENG ALLSHENG
    Features
  • ALLSHENG ALLSHENG
    Technical parameter
  • ALLSHENG ALLSHENG
    Order information


•Stand-alone operation, 7-inch color touch screen display, easy to use

•Customize the temperature and program according to the requirements

•Short operation time, 15-30 min/time, can extract up to 20 samples in one run

•High yield of nucleic acid, low loss of magnetic beads, and good reproducibility of results

•UV sterilization function to avoid cross-contamination

•Open system, suitable for various magnetic bead extraction reagents

•Drawer design to prevent possible injuries

•APP software will be configured to monitor the system in real time through mobile devices

  • Model
    Auto-Pure 20A
  • Throughput
    1~20
  • Process volume
    50~3000 μl
  • Collection efficiency
    >95 %
  • Magnetic rod number
    20
  • Purification accuracy
    100 copy sample positive rate>95 %
  • Stability
    CV<5 %
  • Consumable
    3 ml cartridge + magnetic rod comb
  • Heating for lysis tube
    Ambient temperature~120 °C
  • Heating for elution tube
    Ambient temperature~120 °C
  • Operation
    7-inch touch screen, 3 shortcut keys, external mouse
  • Storage capacity
    Preset 8 programs, max store 100 programs
  • Protocol management
    Create, edit, delete, protocol mode
  • Extension interface
    4 standard USB port, Ethernet port, wifi, built-in SD card
  • Lighting
    Yes
  • Pollution control
    UV light
  • Exhaust
    Fan
  • Power supply
    450 W
  • Dimension
    400×520×450 mm
  • Weight
    30 kg
  • Code
    Description
  • AS-17040-00
    Auto-Pure 20A nucleic acid purification system
  • AS-17041-01
    Cartridge for Auto-Pure 20A-3 mL
  • AS-17041-02
    Megnetic rod comb for Auto-Pure 20A/20B
  • AS-17100-00
    FCM-1 film cutting machine
  • AS-15020-00
    SealBio-2 plate sealer
  • AS-15021-03
    SBA-3 weighted sealing platen
  • AS-15021-04
    Adapter for Auto-Pure 20 series cartridge
  • AS-15021-11
    Seal-150 peelable clear seal
  • AS-15021-12
    Seal-200 peelable seal for storage
  • AS-15021-13
    Seal-300 pierce Aluminum heating sealing film
