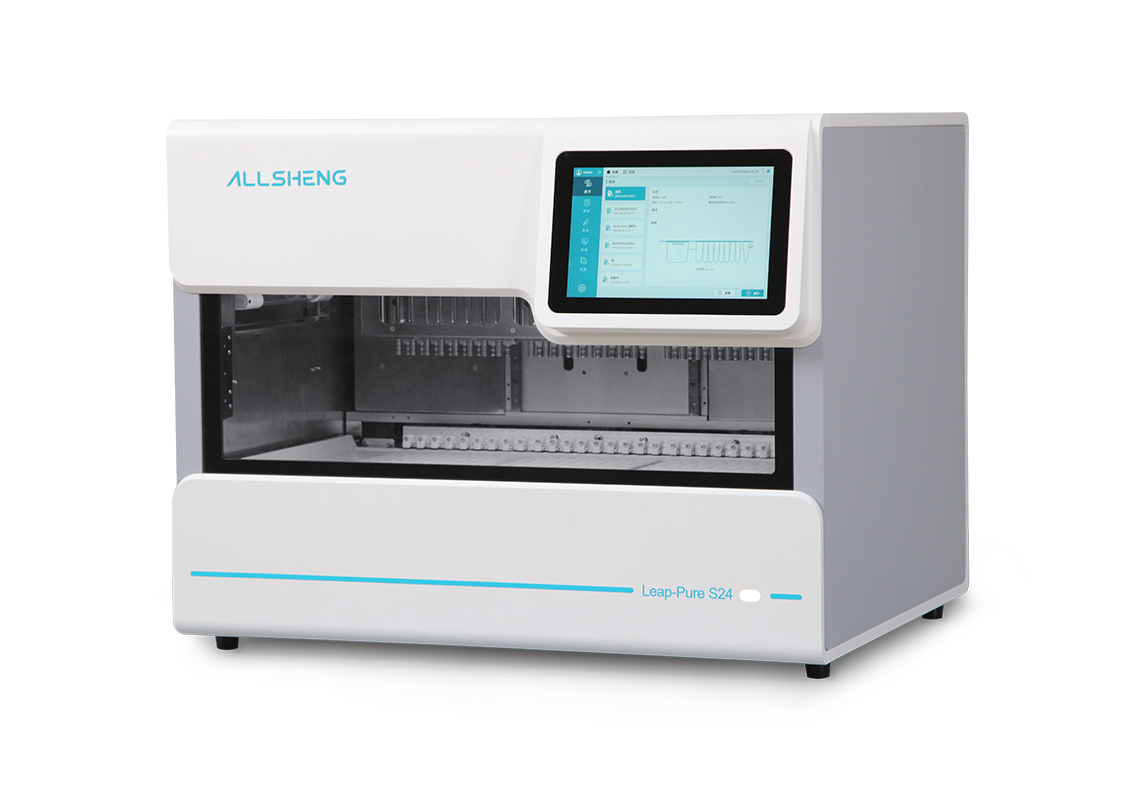

Nucleic Acid Purification System — Leap-Pure S24/H24

Leap-Pure S24 / H24 is a nucleic acid purification system based on magnetic bead method and pipetting method. In addition to the extraction of general samples such as blood, animal and plant tissues, the matching special consumables can also be used for the whole process automatic extraction of FFPE block, and the FFPE block can be directly put into the designated well position. The instrument can transfer samples through the pipettor, blow to achieve full mixing of samples, and the external magnet will adsorb the magnetic beads on the inner wall of the pipettor to realize the transfer of magnetic beads. The processing capacity is 1~24 at a time and the consumables are designed in strips. The minimum processing volume of elution well is 20 μL (FFPE block / 1 mL cfDNA).
Leap-Pure S24 has a maximum extraction sample reaction system of 15 mL, which can be adapted to 2 mL, 8mL and 15 mL cartridge. Leap-Pure H24, only suitable for 20 mL cartridge, with the processing capacity of 1-24 at a time, does not support other types of extraction.

Inquiry More

Leap-Pure S24 H24.jpg

Model

Leap-Pure S24 / H24
Working principle

Magnetic bead method, magnetic rod type, pipetting type / tip blowing and aspirating mixing
Sample

FFPE, whole blood, plasma, stool, sputum, etc
Consumables

Leap-Pure S24: 2 mL / 8 mL / 15 mL cartridge Leap-Pure H24: 20 mL cartridge
Throughput

1~24
Sample processing system

Leap-Pure S24: 1 mL~15 mL Leap-Pure H24: 1 mL~20 mL
Elution volume

20~200 μL [the minimum processing volume of 20 μL (FFPE block / 1 mL cfDNA)]
Pipetting range

20~1000 μL
Pipetting precision

20 μL ≤5 % 100 μL ≤1.5 % 500 μL ≤1 % 1000 μL ≤1 %
Pipetting accuracy

20 μL: ±8 % 100 μL: ±2 % 500 μL: ±1 % 1000 μL: ±1 %
Stability

CV ≤5 %
Temp. control range

Lysis well: RT. ~120 °C Elution well: RT. ~120 °C
Heating and cooling speed

Heating rate of lysis well: RT. 120 °C ≤6 min
Heating and cooling speed

Heating rate of elution well: RT. ~120 °C ≤5 min
Temp. accuracy

±1 °C at 100 °C
Temp. uniformity

≤3 °C at 100 °C
Temp. stability

≤±0.5 °C at 100 °C
Software operation

windows system software
Account management

User authorization management, programs and instruments can be customized
Instrument port

USB port, LAN port
Information management

Support external code scanner
Pollution control

Built-in HPEA, UV sterilization
Power supply

AC 220 V, 50 Hz, rated power 1000 W
Dimension (W×D×H)

740 mm×640 mm×590 mm
Weight (kg)

85 kg
