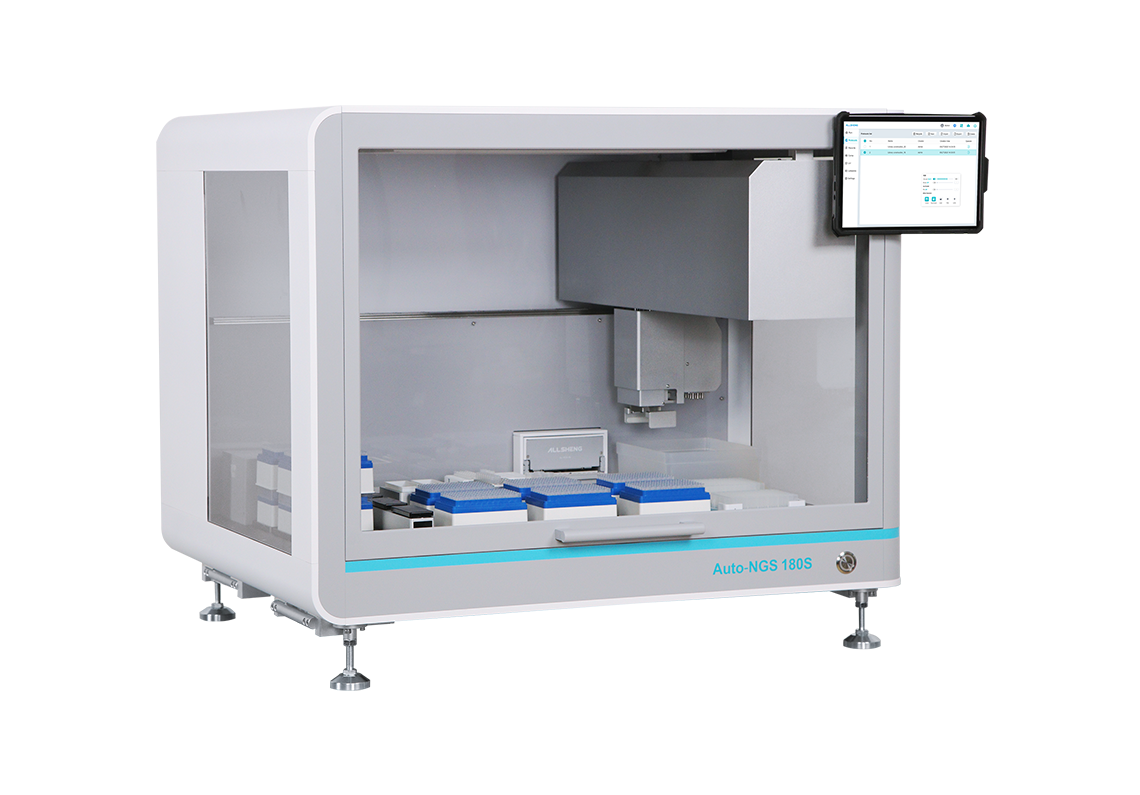

Automated NGS Library Preparation Workstation — Auto-NGS 180S

A full-featured and compact automated NGS library preparation workstation can meet the needs of library preparation, quantitation, multiple targeting and hybrid capture only one time. The instrument is equipped with a 24-well fluorometer and PCR amplification block, truly achieving convenient operation of sample-to-library, without manual intervention throughout the whole process.
The design of 18 standard plates of the instrument, combined with grippers and plate stacking function, can meet the relatively simple library preparation requirements of 96 samples, as well as the fully automated library preparation and hybrid capture requirements of 16 sample simplification types.

Inquiry More


Model

Auto-NGS 180S
Throughput

1~48
Tiles number

18
Pipettor

200 μL; 24-channel (can be used as a single channel)
Pipettor

Minimum detection volume: 20 μL
Pipetting range

1~200 μL
Pipetting precision (CV)

1μL≤8%；2μL≤5%；5μL≤4%；20μL≤1%；100μL≤1%；200μL≤1%
Pipetting accuracy (A)

1μL≤±10%；2μL≤±8%；5μL≤±4%；20μL≤±2%；100μL≤±1%；200μL≤±1%
Temperature control block

Including 3 temperature control blocks
Temperature control block

Temperature control range: 4~105 °C
Temperature control block

Temperature control accuracy: ≤1 °C
Temperature control block

Temperature control uniformity: ≤1 °C @55 °C
Thermal cycling block

Temperature control range: thermo lid: 30 °C~120 °C; block: 4 °C~99 °C
Thermal cycling block

Uniformity: ≤0.7 °C
Thermal cycling block

Accuracy: ≤±0.3 °C
Fluorescence detection throughput

24
Fluorescence detection range

0.4 ng~100 ng
Heating mixing block

Yes
Magnetic bead shaking block

Yes
Magnetic plate

96-well annular magnetic plate
Gripper

Yes
Consumable stacking mode

Consumable stack
UV sterilization

Equipped with UV sterilization lamp, HEPA device
Instrument port

USB port
Information management

External scanner for entering sample / reagent information
Information management

Expandable LIS system connection
Information management

Expandable cloud database connection
Operating environment

Temperature requirement: 20±5 °C Relative humidity: ≤80 %
Power supply

100~240 V, 50 / 60 Hz, rated power 1200 W

Code

Description
A5-27060-00

Auto-NGS 180S automated NGS library preparation workstation
