SealBio-3
  • SealBio-3
  • SealBio-3
  • SealBio-3
  • SealBio-3

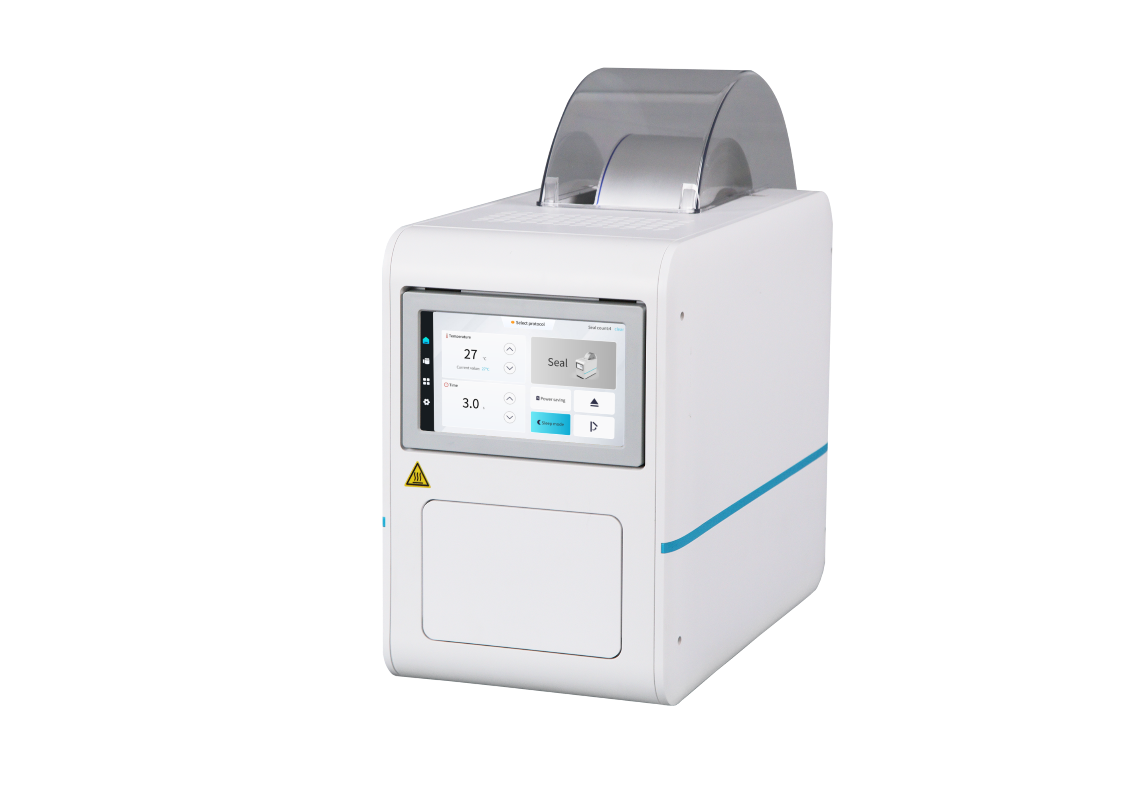

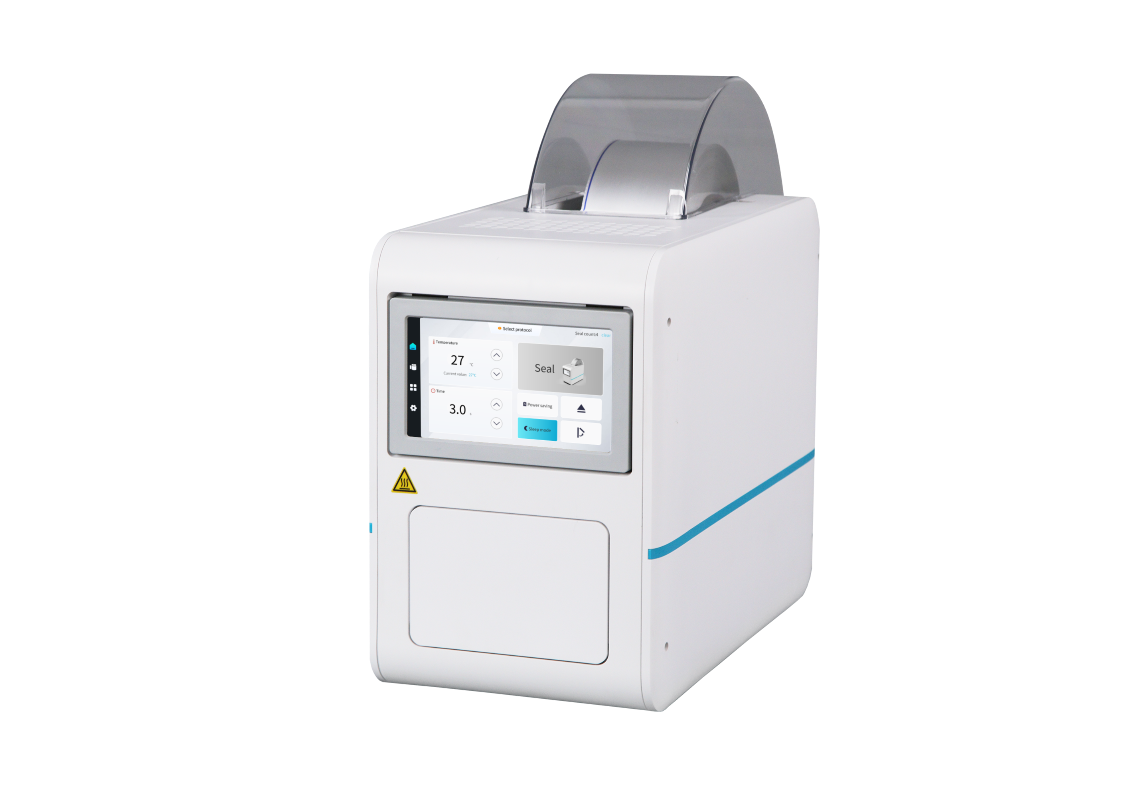

Automated Plate Heat Sealer — SealBio-3

SealBio-3 is only suitable for Allsheng Leap-Pure series nucleic acid purification system 2 mL, 8 mL, 15 mL, 20 mL cartridge sealing. It supports the use of 78 mm puncturable roll film, aluminum foil roll film and strong heat sealing roll film.

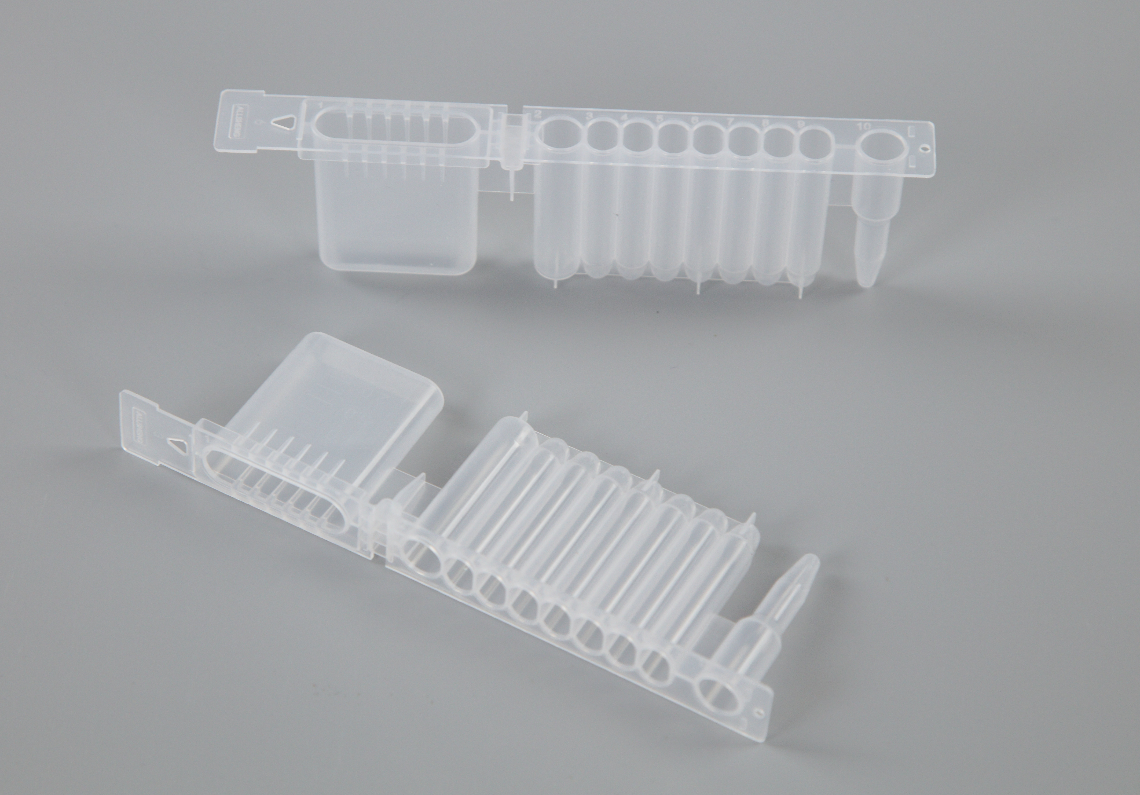

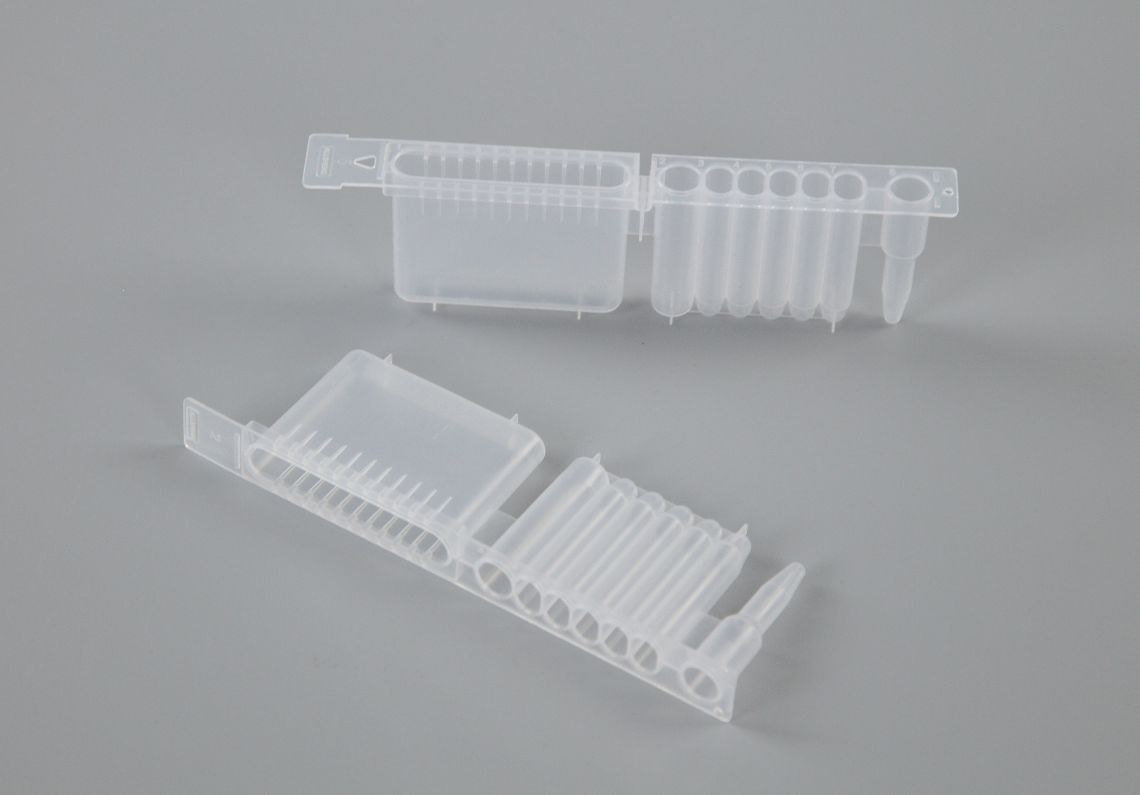

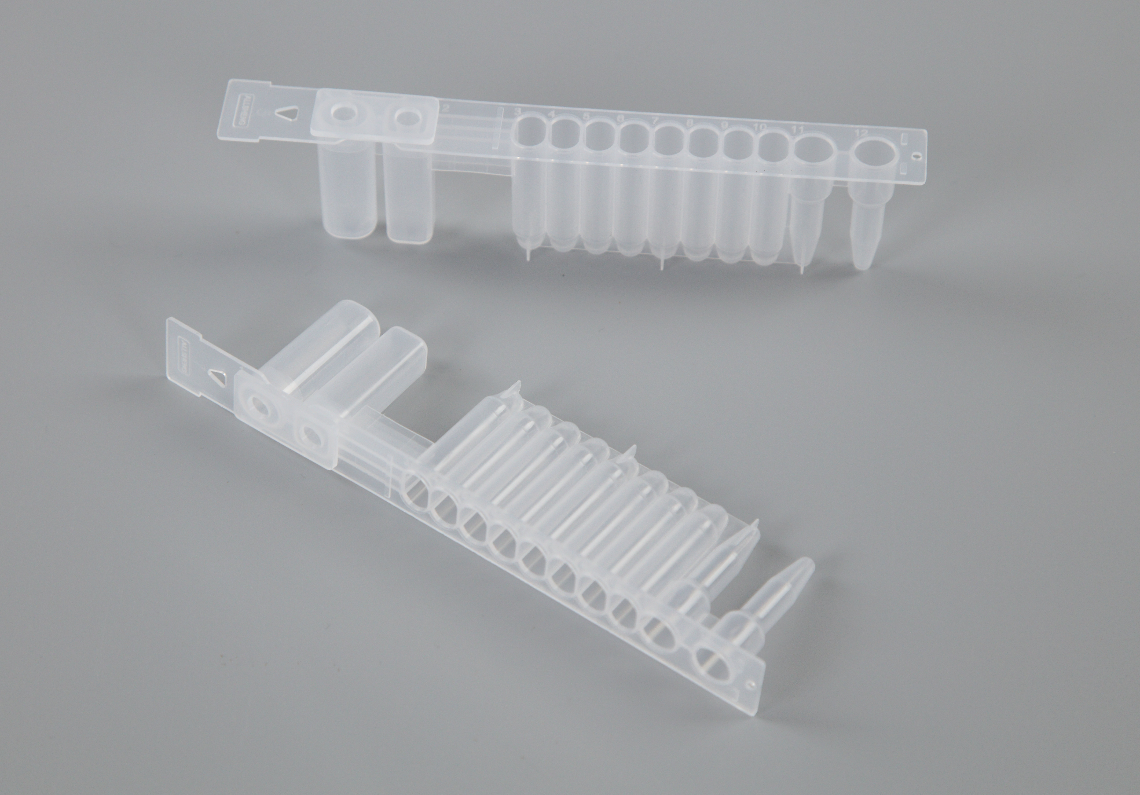

Suitable consumables: Leap-Pure series 2 mL, 8 mL, 15 mL, 20 mL cartridges.


Inquiry More
  • ALLSHENG ALLSHENG

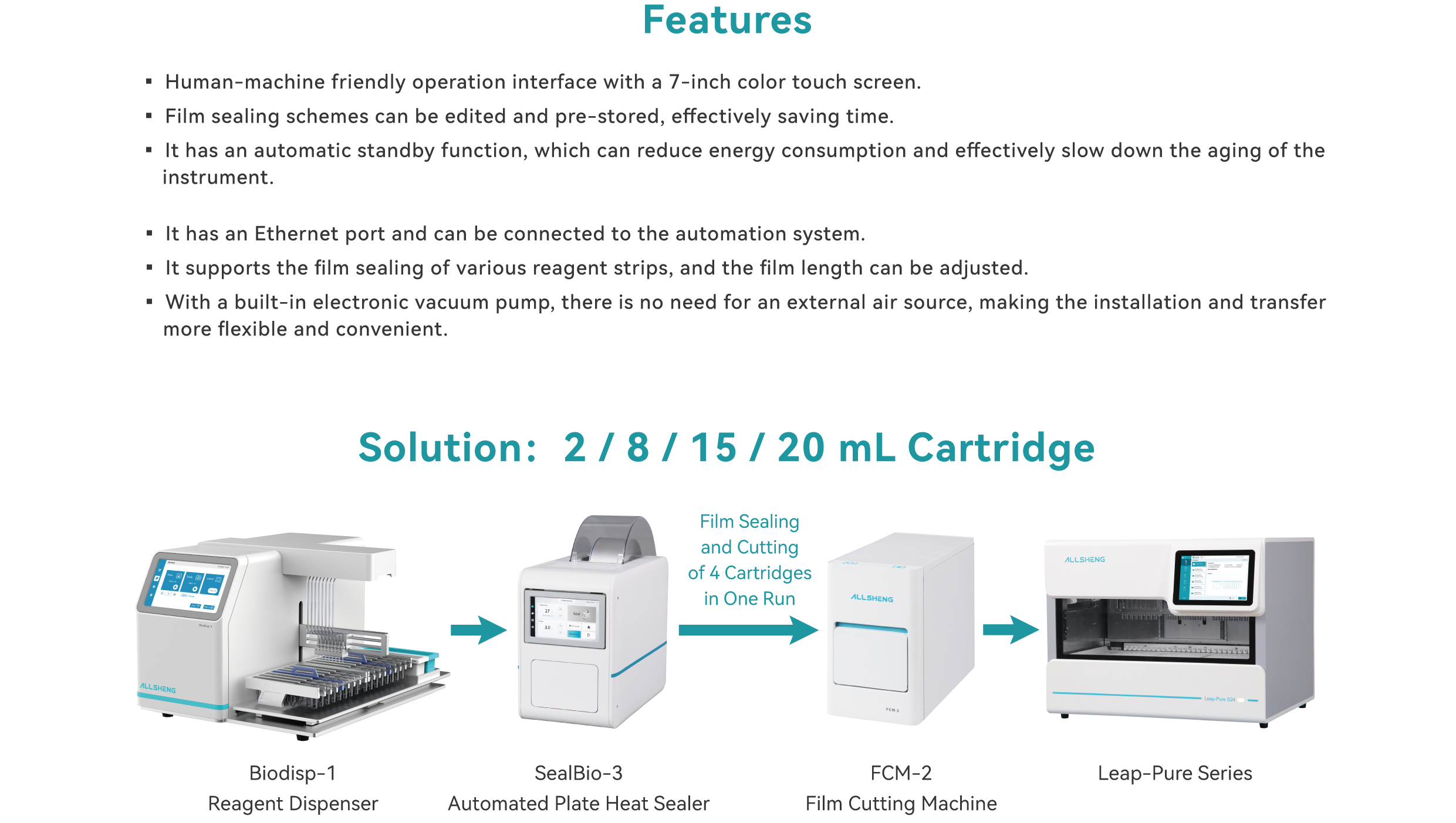

    Features
  • ALLSHENG ALLSHENG
    Technical parameter


  • Model
    SealBio-3
  • Product name
    Automated plate heat sealer
  • Support consumables
    AS6.201.0000370, 2 mL cartridge; AS6.201.0000360, 8 mL cartridge; AS6.201.0000350, 15 mL cartridge; AS6.201.WX00310, 20 mL cartridge
  • Support roll film-Film type
    Puncturable film
  • Support roll film-Film width
    78 mm
  • Film sealing temperature-Temperature range
    RT. ~200 °C
  • Film sealing temperature-Temperature control accuracy
    ±1 °C
  • Film sealing temperature-Accommodative amplitude
    1 °C
  • Pre-heating time
    ≤5 min
  • Cycle time
    <20 s / time
  • Adjustable film sealing time-Time range
    0.5~9.9 s
  • Adjustable film sealing time-Accommodative amplitude
    0.1 s
  • Air source method
    Built-in air source
  • Port
    1×USB-B port and 1×Ethernet port
  • Power supply
    AC100~240 V, 50 / 60 Hz
  • Maximum power
    450 W
  • Software operation
    7-inch touch screen software (resolution 1024*600) / edit sealing scheme / prestored sealing scheme
  • Safety
    Standby function (low power mode) / detection of plate / detection of roll film
