Model

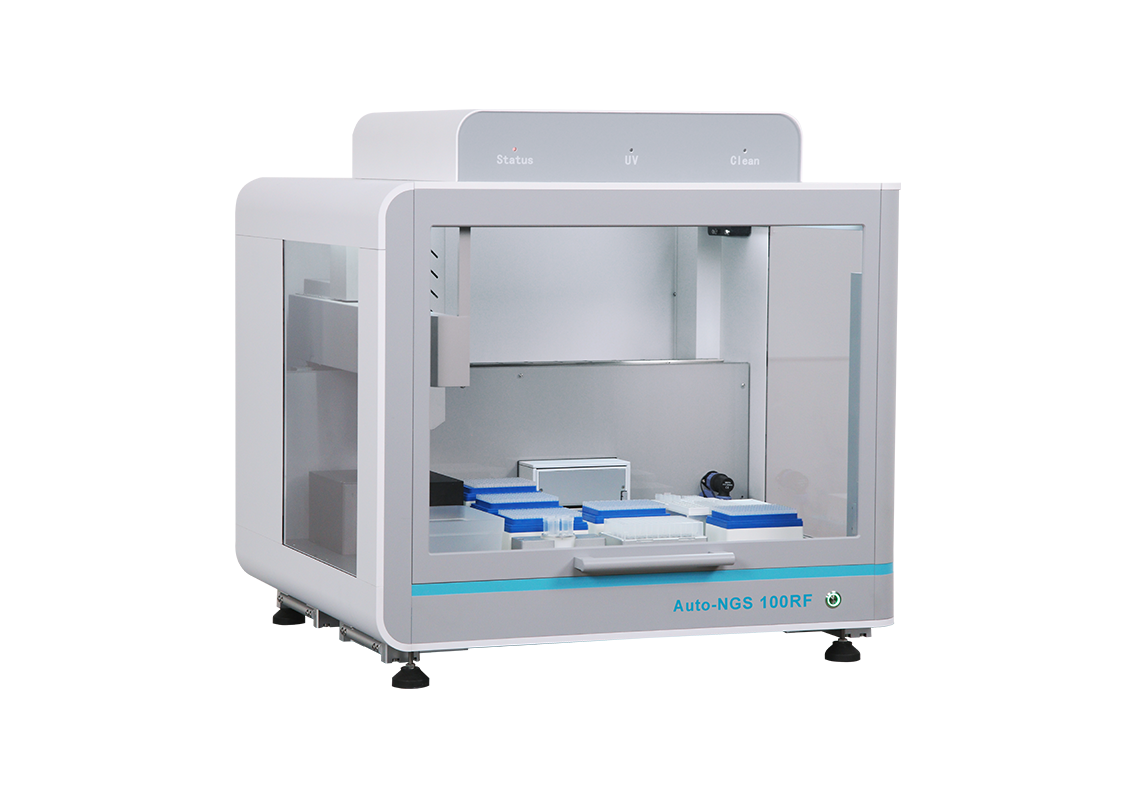

Auto-NGS 100RF
-
Throughput
1~24
-
Tiles number
12
-
Pipettor
200 μL; 8-channel (can be used as a single channel)
-
Pipettor
Minimum detection volume: 20 μL
-
Pipetting range
1~200 μL
-
Pipetting precision (CV)
1 μL: ≤5 % 20 μL: ≤2 % 100 μL: ≤1 % 200 μL: ≤1 %
-
Pipetting accuracy (A)
1 μL: ±8 % 20 μL: ±2 % 100 μL: ±1 % 200 μL: ±1 %
-
Temperature control block
Including 1 temperature control block
-
Temperature control block
Temperature control range: 4~105 °C
-
Temperature control block
Temperature control accuracy: ≤1 °C
-
Temperature control block
Temperature control uniformity: ≤1 °C @55 °C
-
Thermal cycling block
Temperature control range: thermo lid: 30 °C~120 °C; block: 4 °C~99 °C
-
Thermal cycling block
Uniformity: ≤0.7 °C
-
Thermal cycling block
Accuracy: ≤±0.3 °C
-
Fluorescence detection throughput
8
-
Fluorescence detection range
0.4 ng~100 ng
-
Magnetic bead shaking block
Yes
-
Magnetic plate
Lift type 96-well annular magnetic plate
-
UV sterilization
Equipped with UV sterilization lamp, HEPA device
-
Instrument port
USB port
-
Information management
External scanner for entering sample / reagent information
-
Information management
Expandable LIS system connection
-
Information management
Expandable cloud database connection
-
Operating environment
Temperature requirement: 20±5 °C Relative humidity: ≤80 %
-
Power supply
100~240 V, 50 / 60 Hz, rated power 1200 W
