Automated Cell Counter
Leap-Count 100

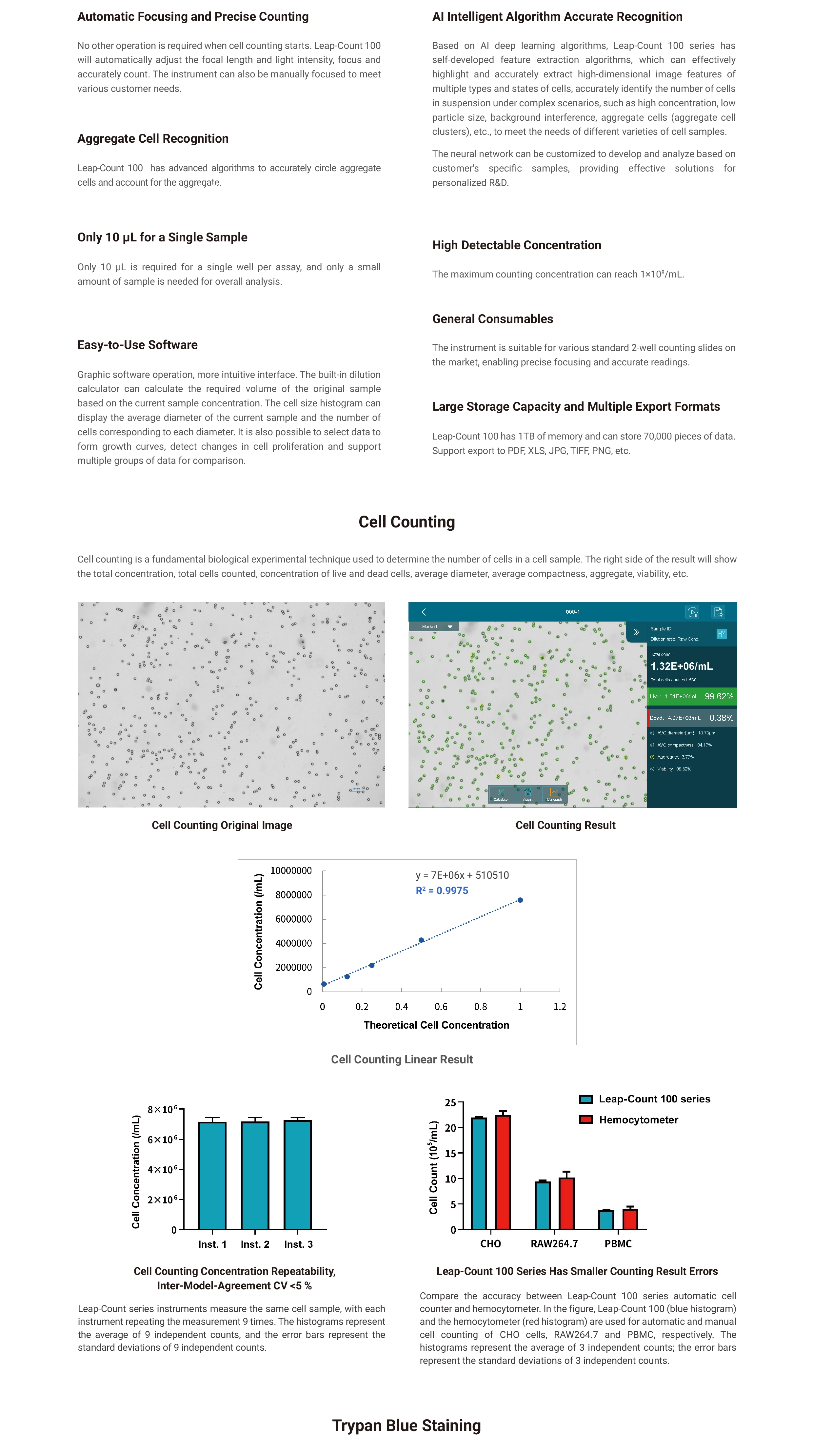

Leap-Count 100 cell counter relies on advanced optical imaging technology and intelligent image recognition technology to provide comprehensive cell related information such as cell concentration, viability, average diameter, average compactness, aggregate, etc. All data results are automatically stored and can be exported in multiple formats to meet various experimental needs.
Leap-Count 100 is an integrated device, no need to connect to a computer. It is equipped with a 10.1-inch display with adjustable angles, producing high-quality cell images at resolutions up to 1920×1200.
-
Built-in 1T storage -
Small size -
Detection time: 8s/sample
Features
| Model | Leap-Count 100 |
| Measuring diameter range | 3-60 μm |
| Concentration range | 1x104-1x108/mL |
| Sample detection volume | 1 |
| Analysis time | ≤8 s |
| Detect optimal cell concentration range | 1×105 -1×107 /mL |
| Cell viability detection range | 0-100 % |
| Detection accuracy | CV<5 % |
| Required sample volume | 10 μL |
| Objective magnification | 3x |
| Imaging element | 6 megapixel CMOS camera |
| Working temperature | 10-40 °C |
| Working humidity | <80 % |
| Consumables | Cell counting slide, 0.4 % trypan blue |
| Built-in storage | 512 G |
| Screen | 10.1-inch, 1920x1200 resolution |
| Data export format | PDF, XLS, TIFF, PNG, JPG |
| Operating system | Windows 10 |
| Instrument port | 2xUSB3.2 gen2; 1xEthernet port |
| Dimension (W×D×H) | 260×268×246 (flat) 260×268×376 (upright) mm |
| Power supply | 100-240 V 50 / 60 Hz 12 V 4 A 48 W |
| Weight | 6.5kg |
| Code | Product description |
| AS-32020-00 | Leap-Count 100 cell counter (bright field-with touch screen) |
| AS-32011-01 | Cell counting slide 50 piece/box, 2 well/piece |
| AS-32011-02 | Trypan blue stain solution (0.4%) 1 mL/tube |
| AS-32011-03 | Trypan blue stain solution (0.4%) 10 mL/bottle |
| AS-32011-04 | Cell Counting Standard Slide 1 piece/package |
