Automation & Liquid Handling Workstation
Au-Mate 2000 General

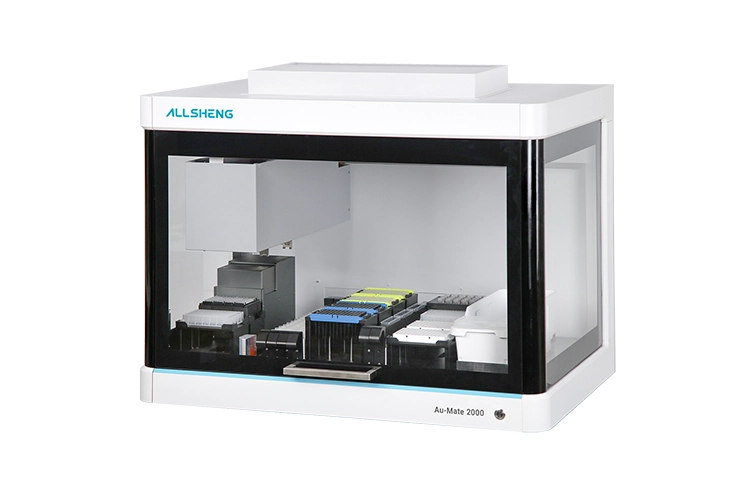

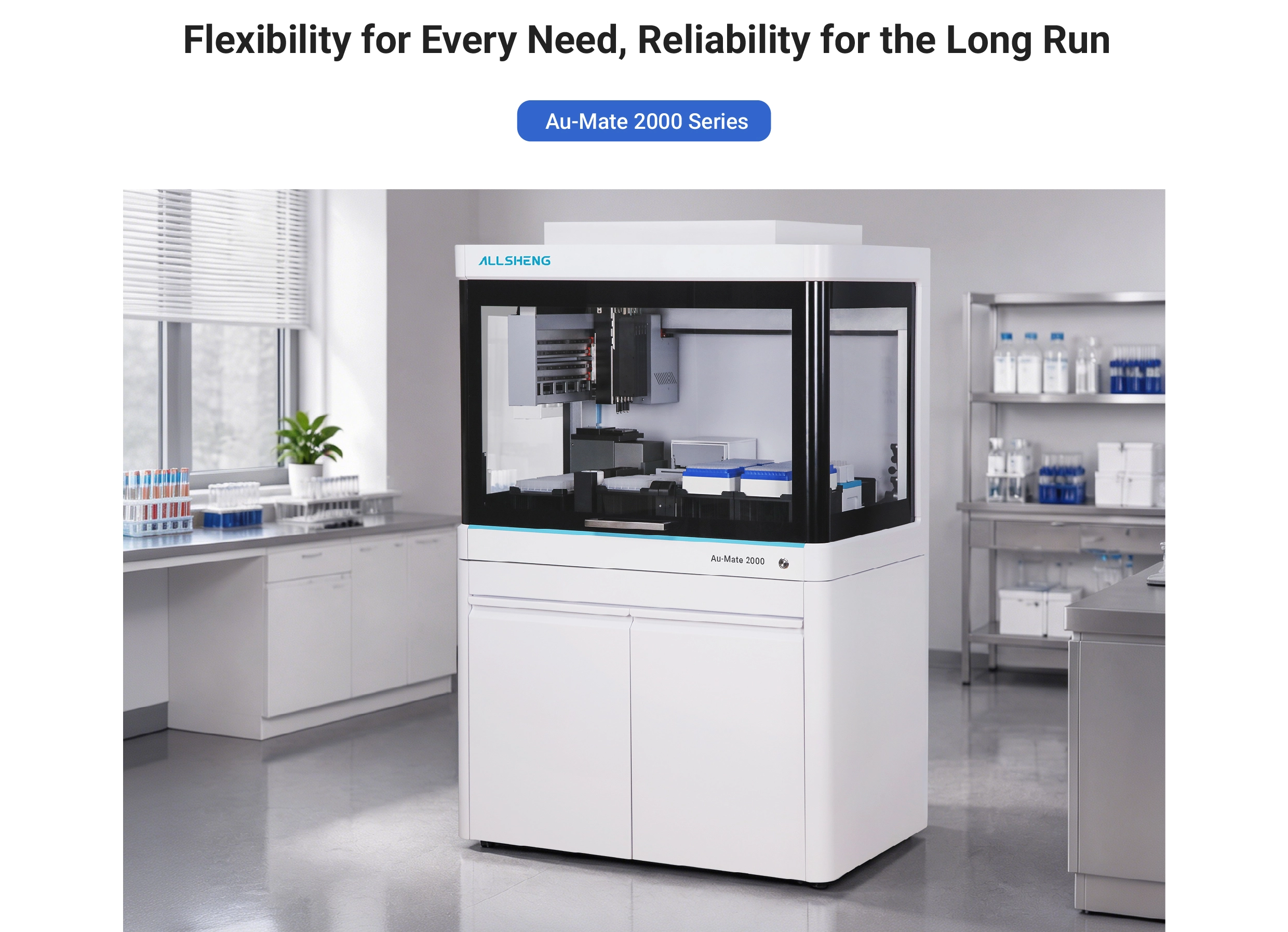

Au-Mate 2000 series liquid handling workstation is Allsheng latest pipetting platform featuring a “grid-style work surface + flexible configuration” design. Its compact layout and flexible configuration options meet a wide range of pipetting needs. With 20×SBS-standard plate positions and 4-channel independent 1~1000 µL pipettor or 4-channel independent 10~5000 µL pipettor, it is suitable for medium-throughput pipetting applications in laboratories. Optional configurations, including 8 or 24-channel 1~1000 µL pipettor and a gripper, can significantly improve pipetting efficiency. Designed to meet the evolving demand for greater intelligence, higher integration, and a more compact footprint, it offers high precision, flexibility, and stability.
-
Flexible Instrument Configurations -
Versatile Modules -
Flexible Application Expansion

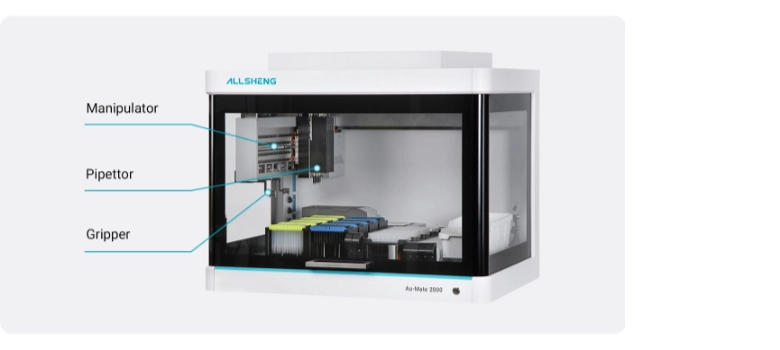

Flexibility Starts with Hardware
· A wide range of modules that can be freely configured to meet experimental needs

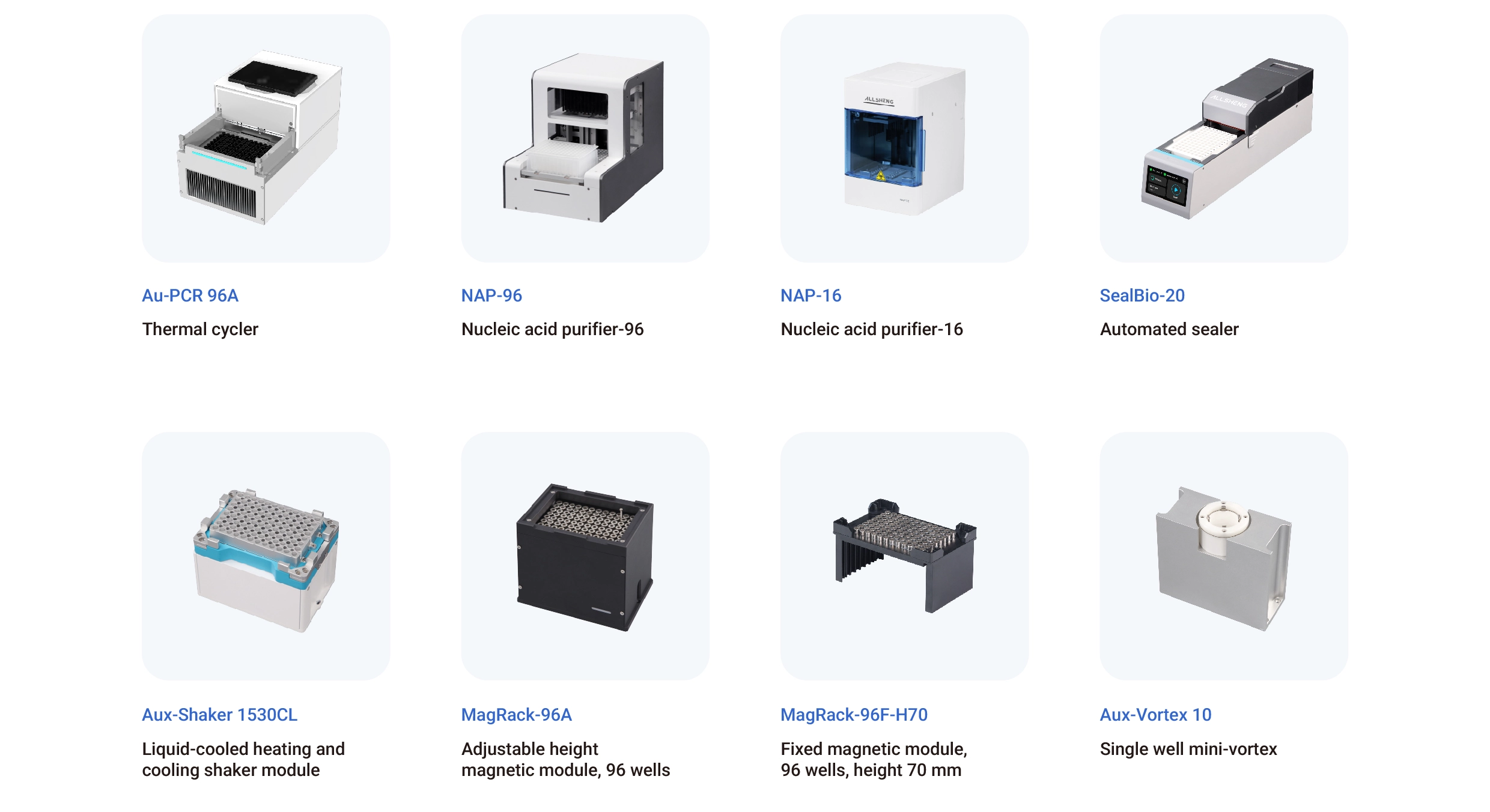

Can be equipped with a wide range of modules, including cooling, heating, shaker, thermal cycler, adjustable height magnetic module, fluorometer, nucleic acid purifier, and automated sealer.

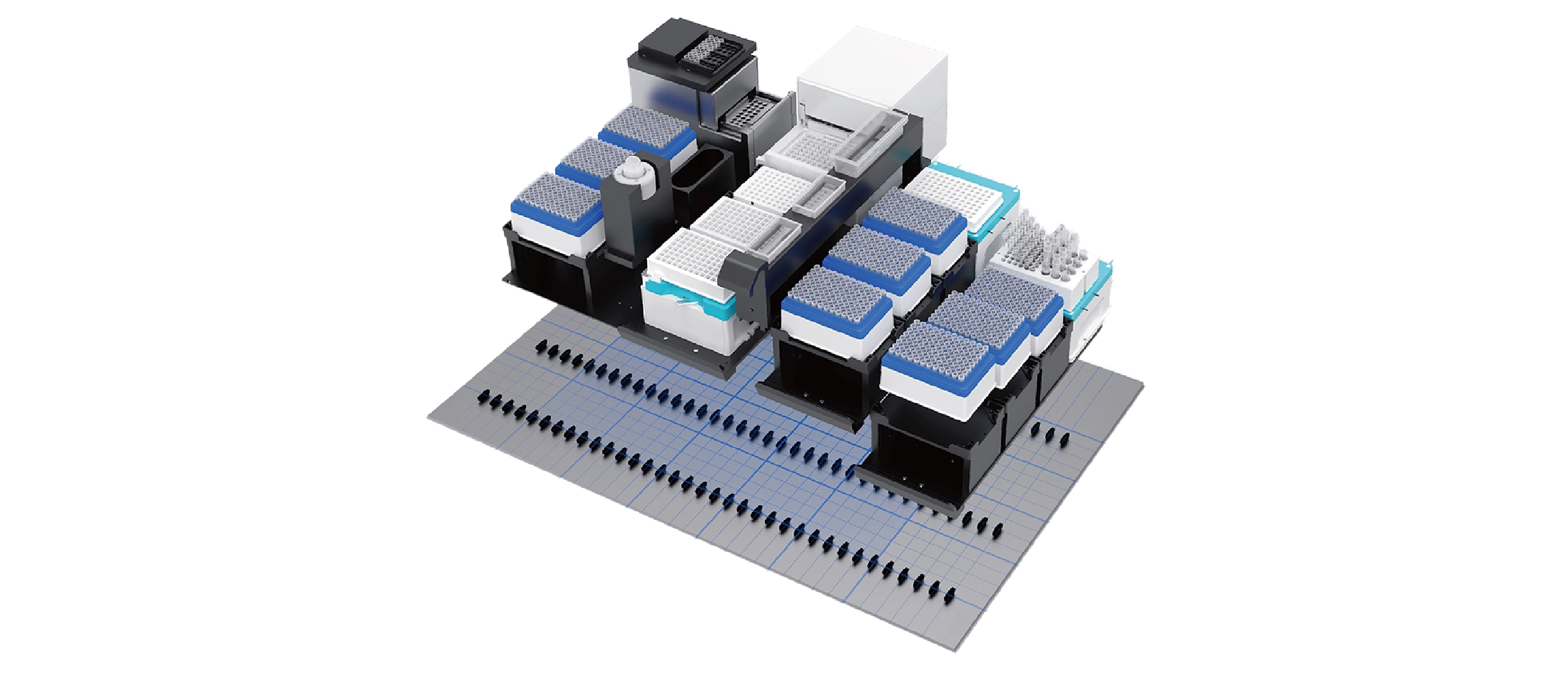

· Grid-style work surface for customized automation workflows
Multi-Application Solutions for Your Evolving Needs
The Essential Qualities of a Liquid Handling Workstation
-

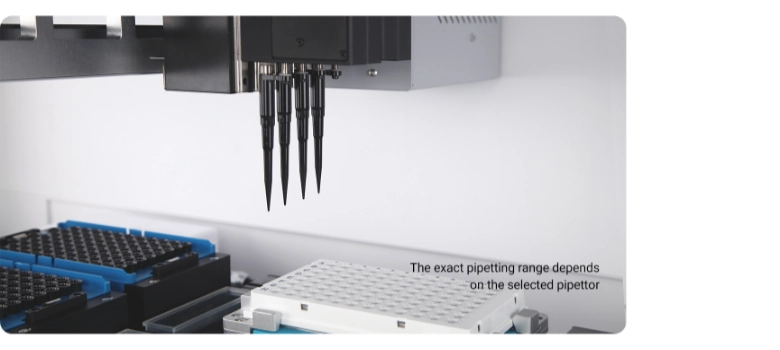

Precise PipettingMultiple pipettor options available, with a pipetting range of 1~5000 μL.The manipulator repeatability: X, Y, Z ≤ 0.1 mm.
-

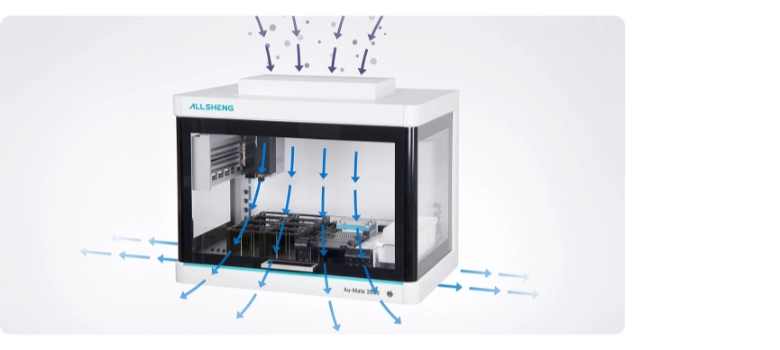

Contamination PreventionPipettor anti-drip detection, combined with HEPA and UV lamp, effectively prevents contamination inside the chamber.
-

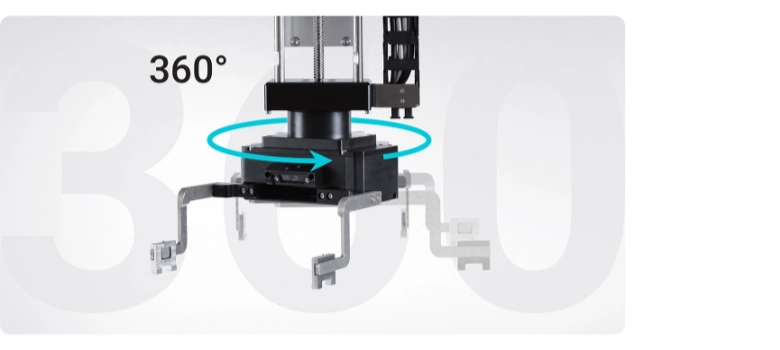

Intelligent MonitoringThe RG-100 360° manipulator integrates a code scanner to identify, track, and record consumable information via QR codes.The optional camera can intelligently count consumables and determine whether the required start conditions have been met. It can also monitor the entire experimental process.
-
Reliable & DurableGripper gripping accuracy / torque: >200,000 cycles without degradationPipettor service life: >1 million cyclesManipulator accuracy and stability: >200,000 cycles without degradation
Smart Connectivity, Ready for the Future
-

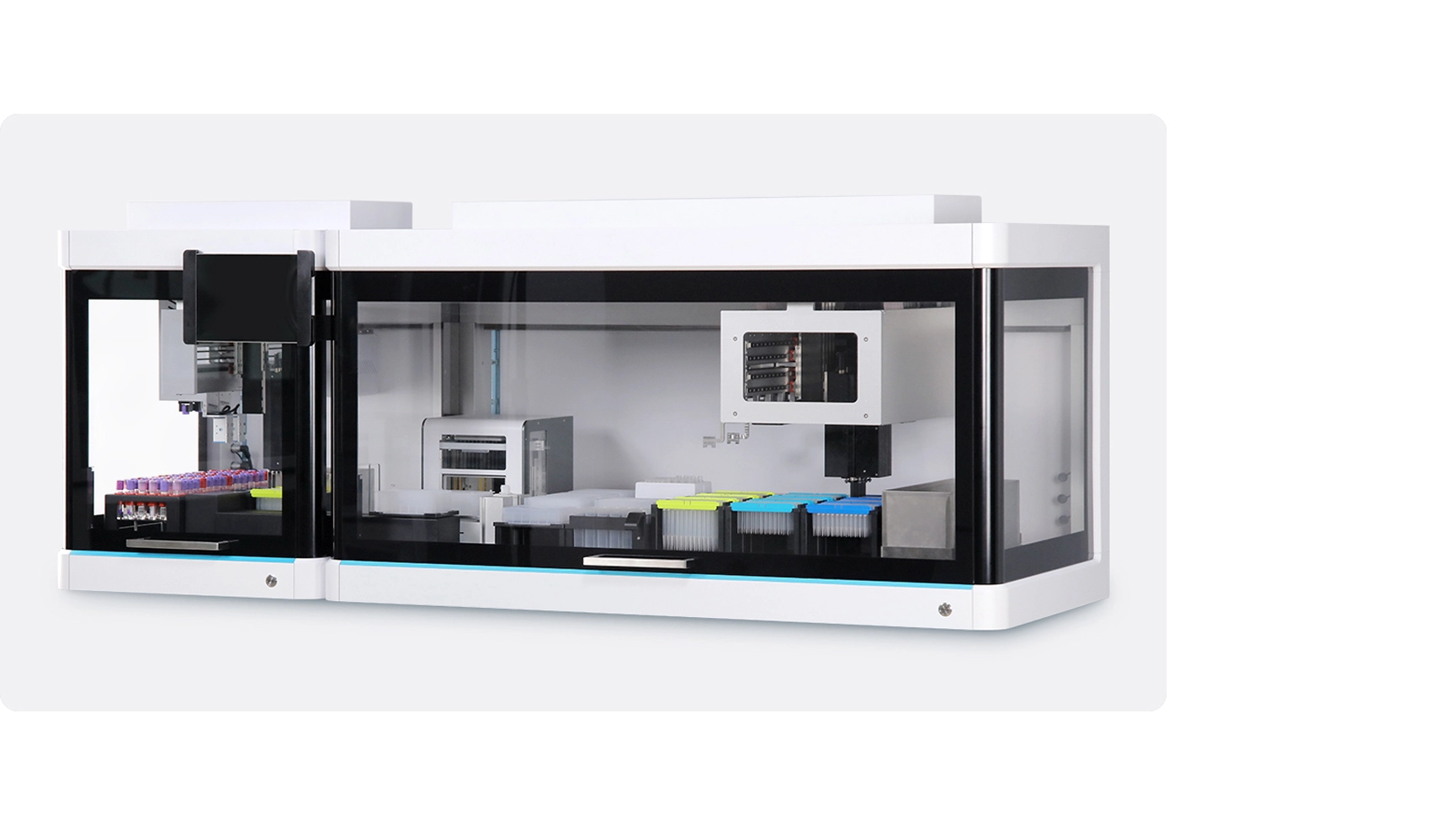

Complex tasks, connected across product seriesSelected models in the Au-Mate series can be freely combined to meet more complex liquid handling requirements.
-

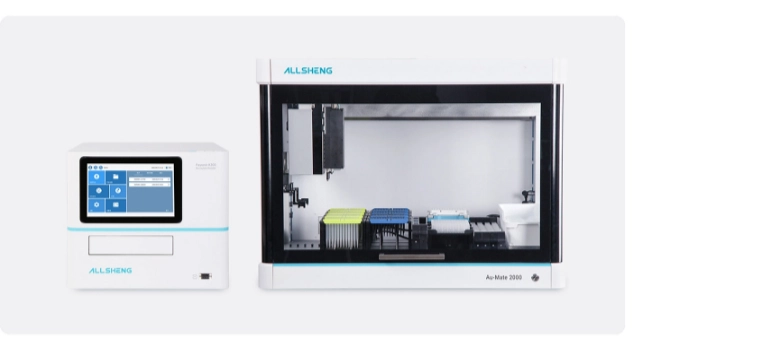

Detection needs, connected across product categoriesThe Au-Mate platform can automate workflows by integrating equipment such as microplate readers, PCR instruments, and fluorescence cell imaging systems.
Liquid Handling Workstation
Nucleic Acid Purification System
Automated NGS Library Preparation Workstation
Automated Plasmid Extraction Workstation
Proteomics Sample Preparation Workstation
Automated Sample Transfer Processing System
-
-
-

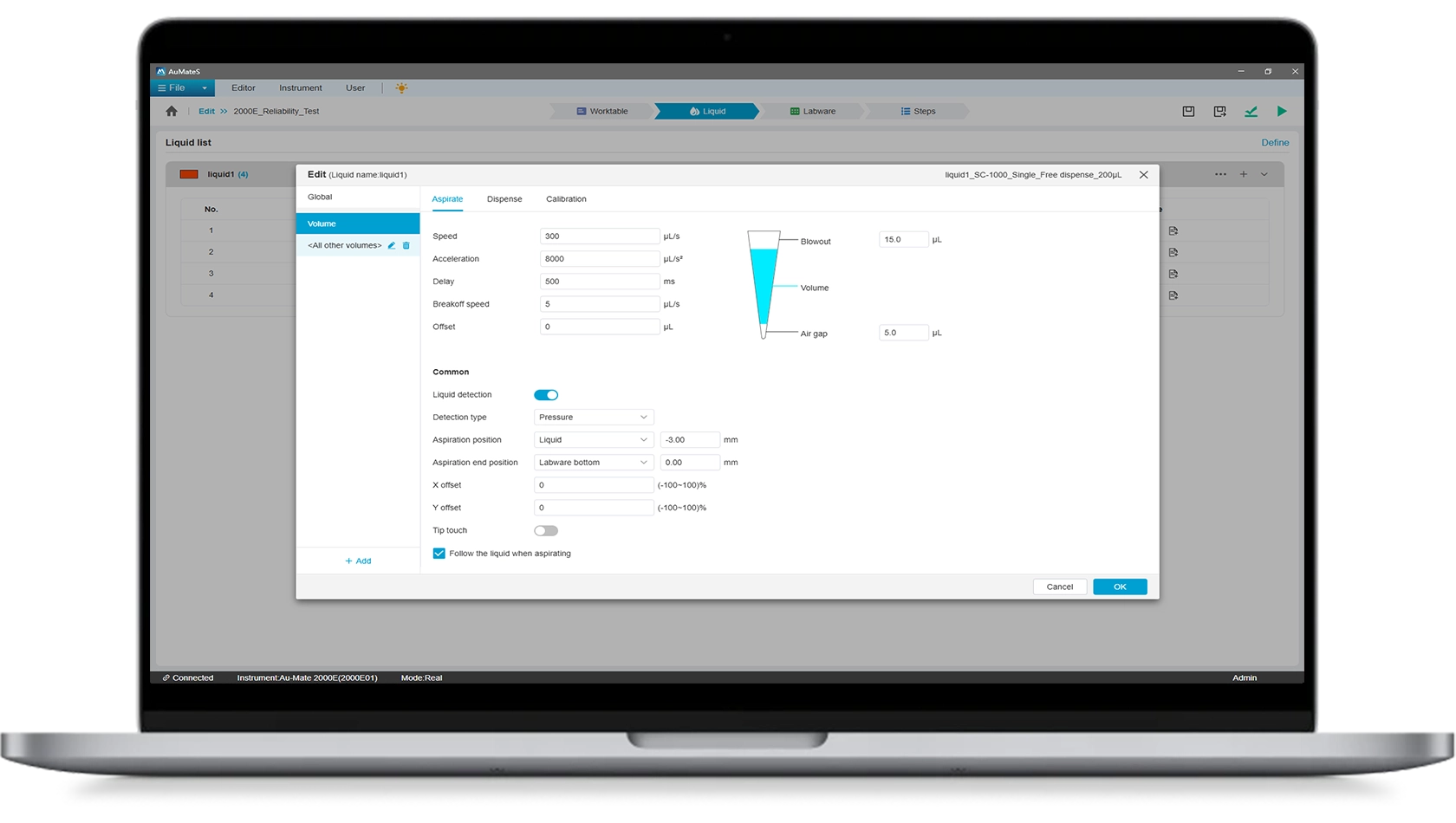

1Open, Flexible, And EditablePlatforms, consumables, and liquid parameters can all be freely edited. Parameters for consumables and different liquid types can be customized.
-

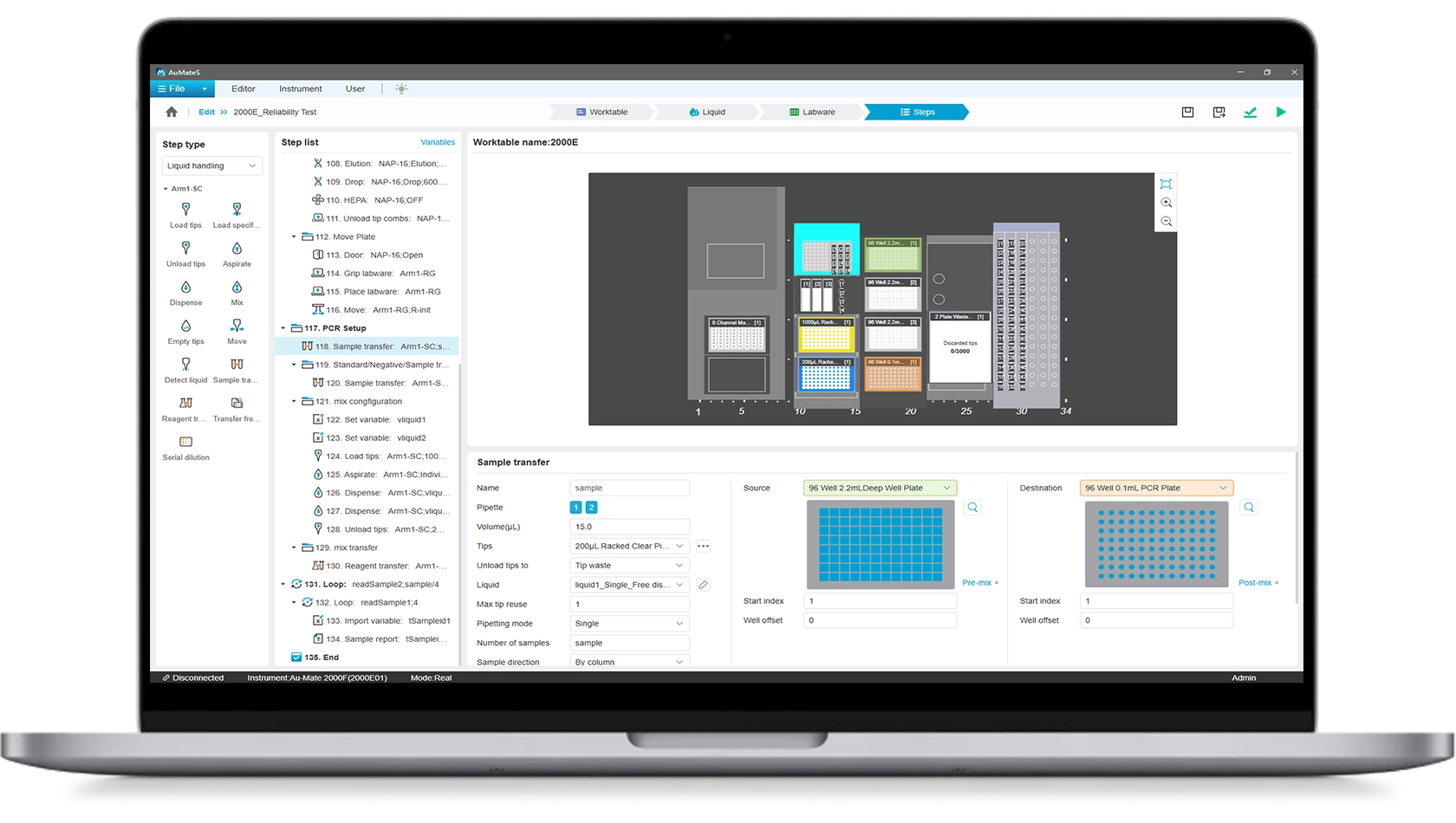

2Integrated Common Commands for Quick AccessPreconfigured command library including sample dispensing, reagent dispensing, and normalization, to lower the barrier to entry and improve efficiency.
-

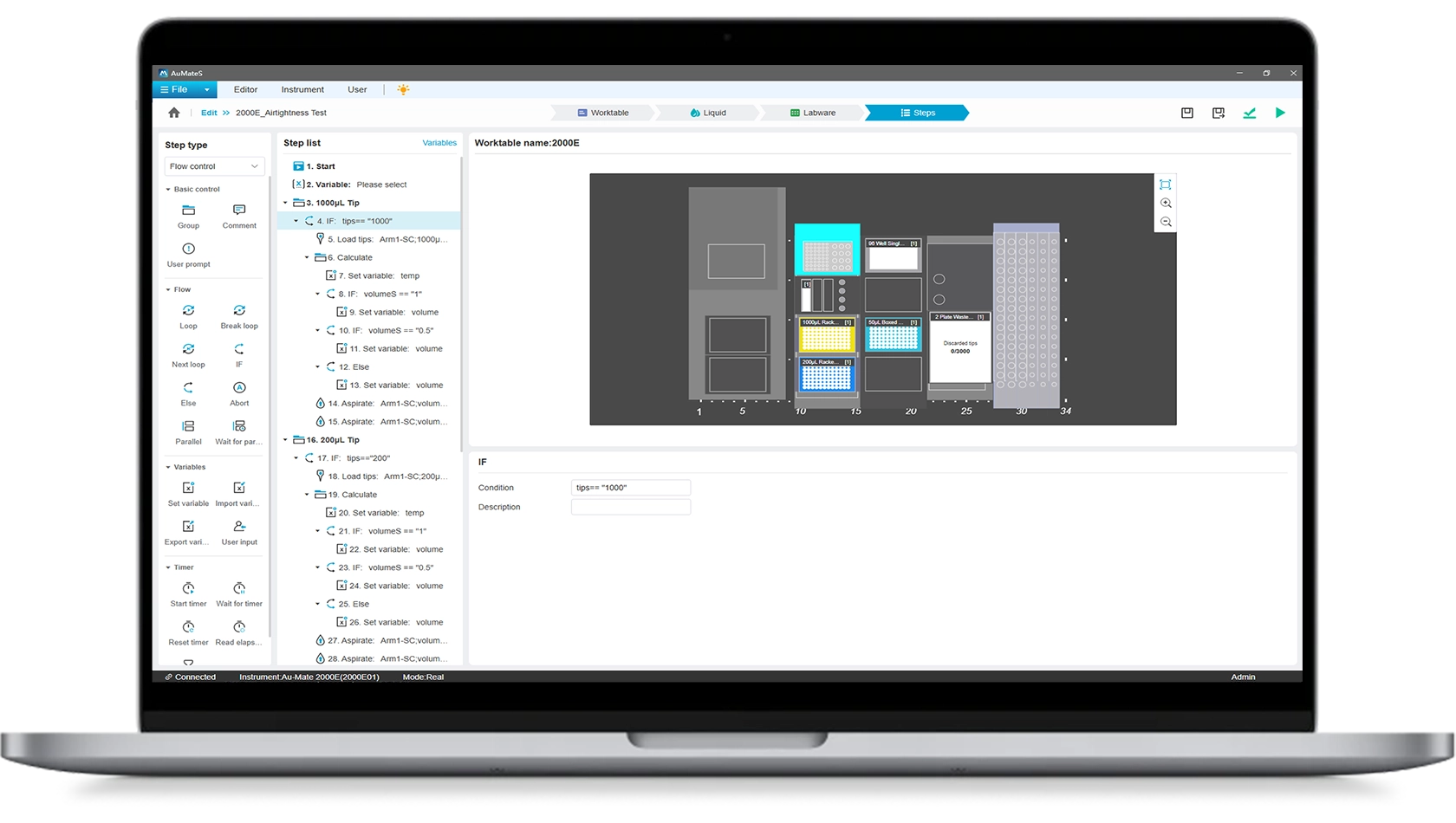

3Simplified Execution of Complex WorkflowsThe “conditional judgment and branching” logic has been simplified, enabling users to implement conditional execution with low-code tools, lowering the barrier to entry for automation workflows.
-

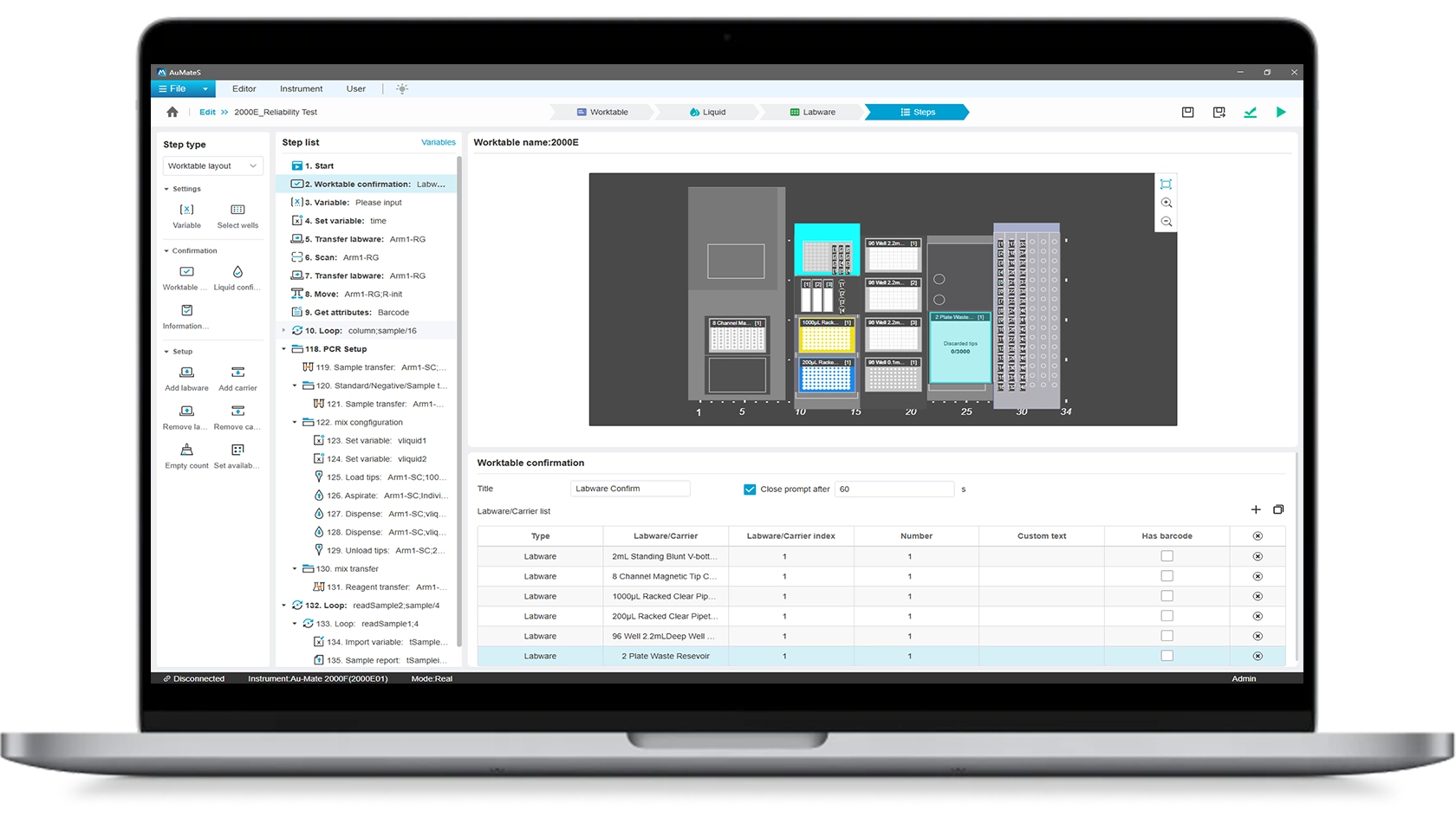

4Editable Guided Steps for SOP StandardizationThe guided workflow function supports the insertion of multiple variables, custom images and other prompts, guiding operators through the confirmation of platforms, consumables, and liquids to ensure efficient and reproducible experiments.
-
| Model | Au-Mate 2000 automation & liquid handling workstation |
| Tiles number | 20 standard tiles |
| Number of manipulators | 1~2, depending on the manipulator model configuration |
| Repeatability of manipulators | X, Y, Z: ≤0.10 mm |
| Maximum motion speed on X and Y axes | 1000 mm/s |
| Pipetting manipulator | Optional fixed 96-channel pipetting manipulator, fixed 8 / 24-channel pipetting manipulator, or independent 2 / 4-channel pipetting manipulator |
| Pipetting range | 1~5000 μL |
| Gripper manipulator | Optional pipettor and gripper combined manipulator, cap opening gripper manipulator |
| Gripper intelligent detection | Torque detection, empty grip detection, drop detection |
| Repeatability of gripper end-positioning | ±0.1 mm |
| Gripper | Optional 360° rotating gripper or fixed non-rotating gripper; both with an integrated code scanner |
| Module | Optional 48 / 96 thermal cycler, heating / cooling module, heating shaker module, magnetic module, automated sealer, fluorometer, nucleic acid purifier, etc. |
| Expansion module | Select an optional communication and power expansion module based on the power requirements of the module |
| Operating system | Windows 10 and above |
| Dimension (W×D×H) | 980 mm×680 mm×755 mm |
| Input power | AC100~240 V, 50 / 60 Hz, select appropriate power and communication modules based on the power requirements of the selected modules |
| Status indicator | Blue light: standby / pause red light: alarm green light: running |
| Instrument port | 1×USB-A port, supporting up to 10 module ports |
| Filter module | ≥99.995% @0.3 μm |
| UV intensity | UV intensity across the platform is ≥40 μw/cm² (≥100 μw/cm² at the center) |
| Code | Product description |
| AS-26210-00 | Au-Mate 2000A liquid handling workstation |

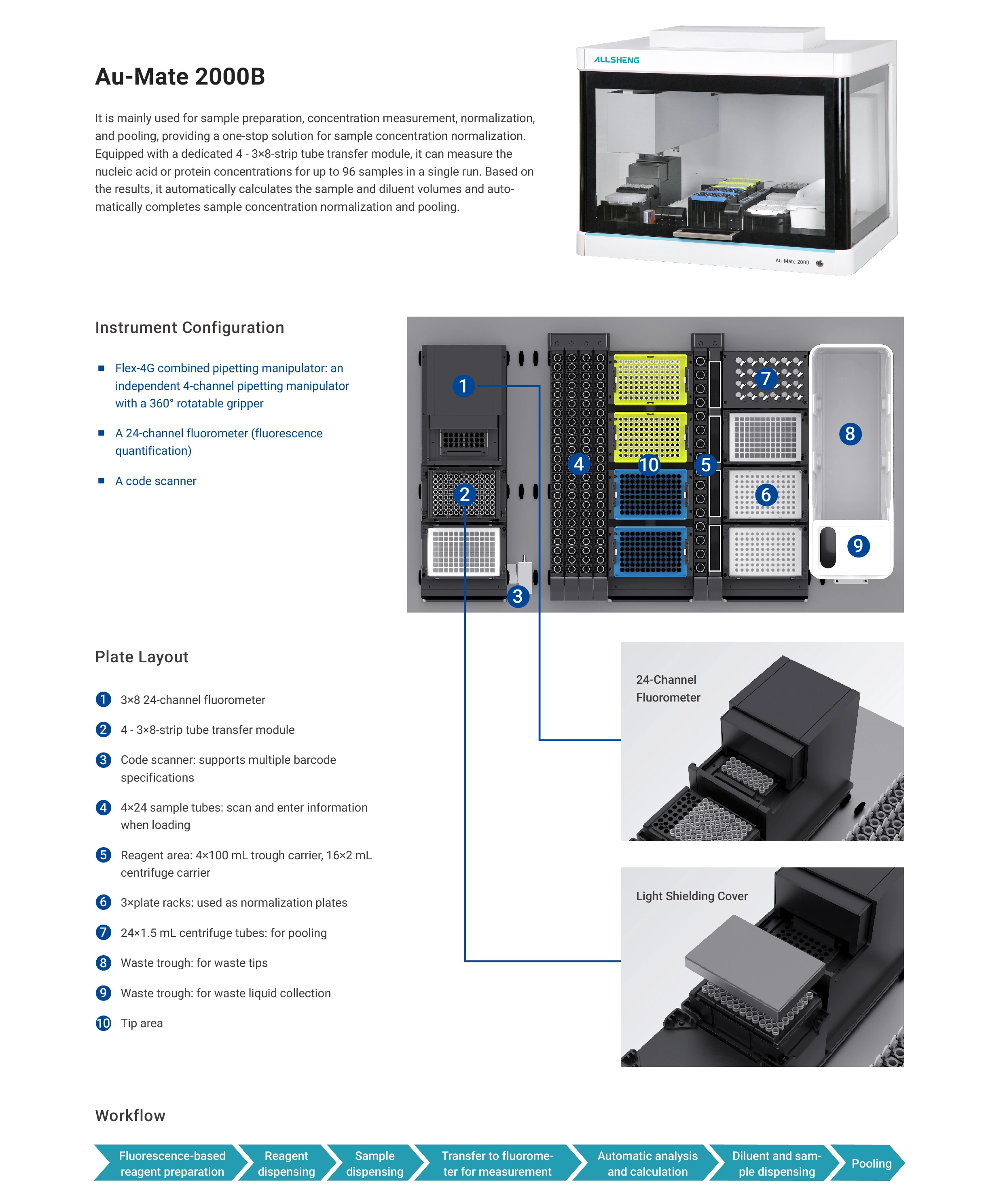

| AS-26220-00 | Au-Mate 2000B liquid handling workstation |

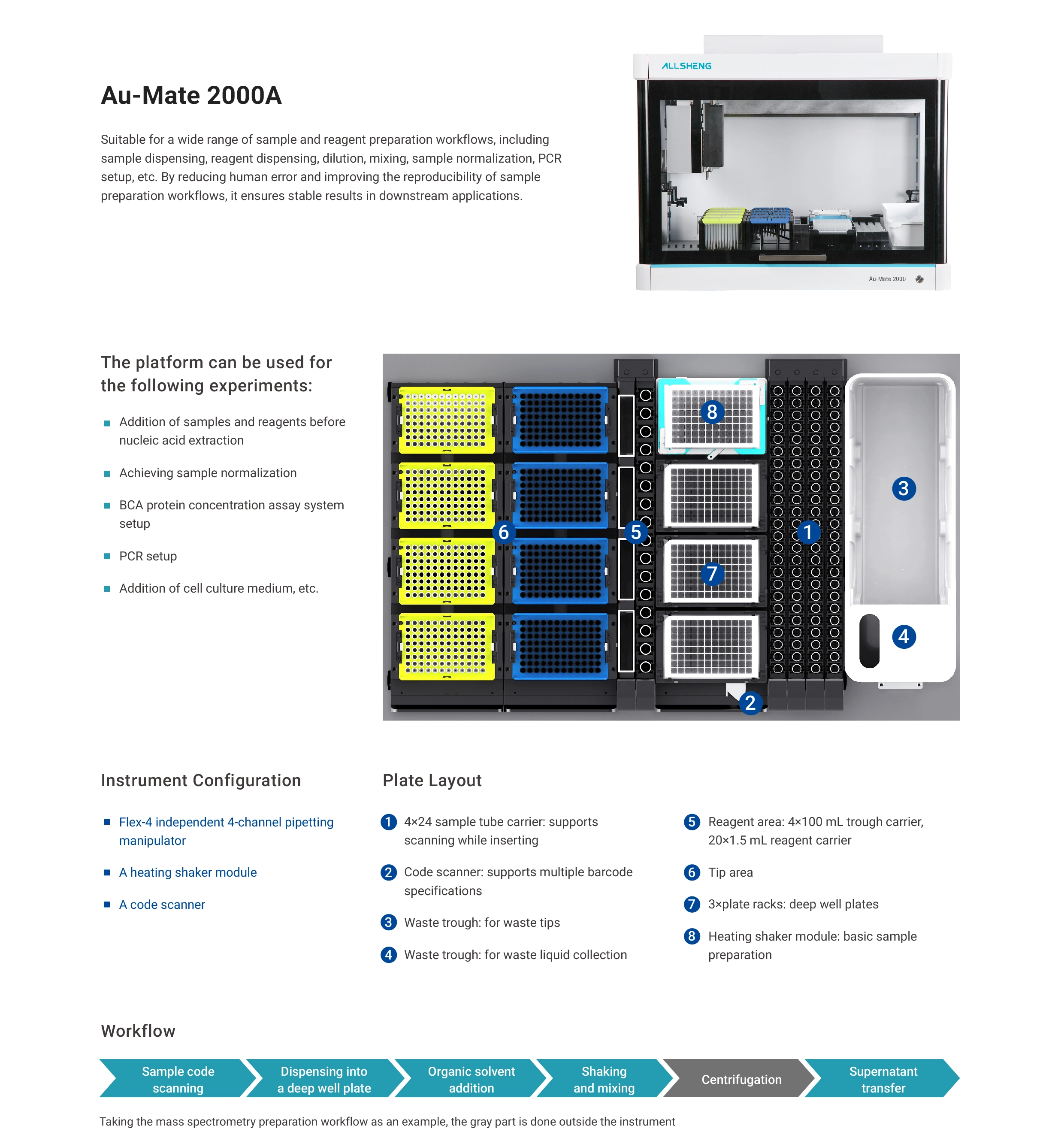

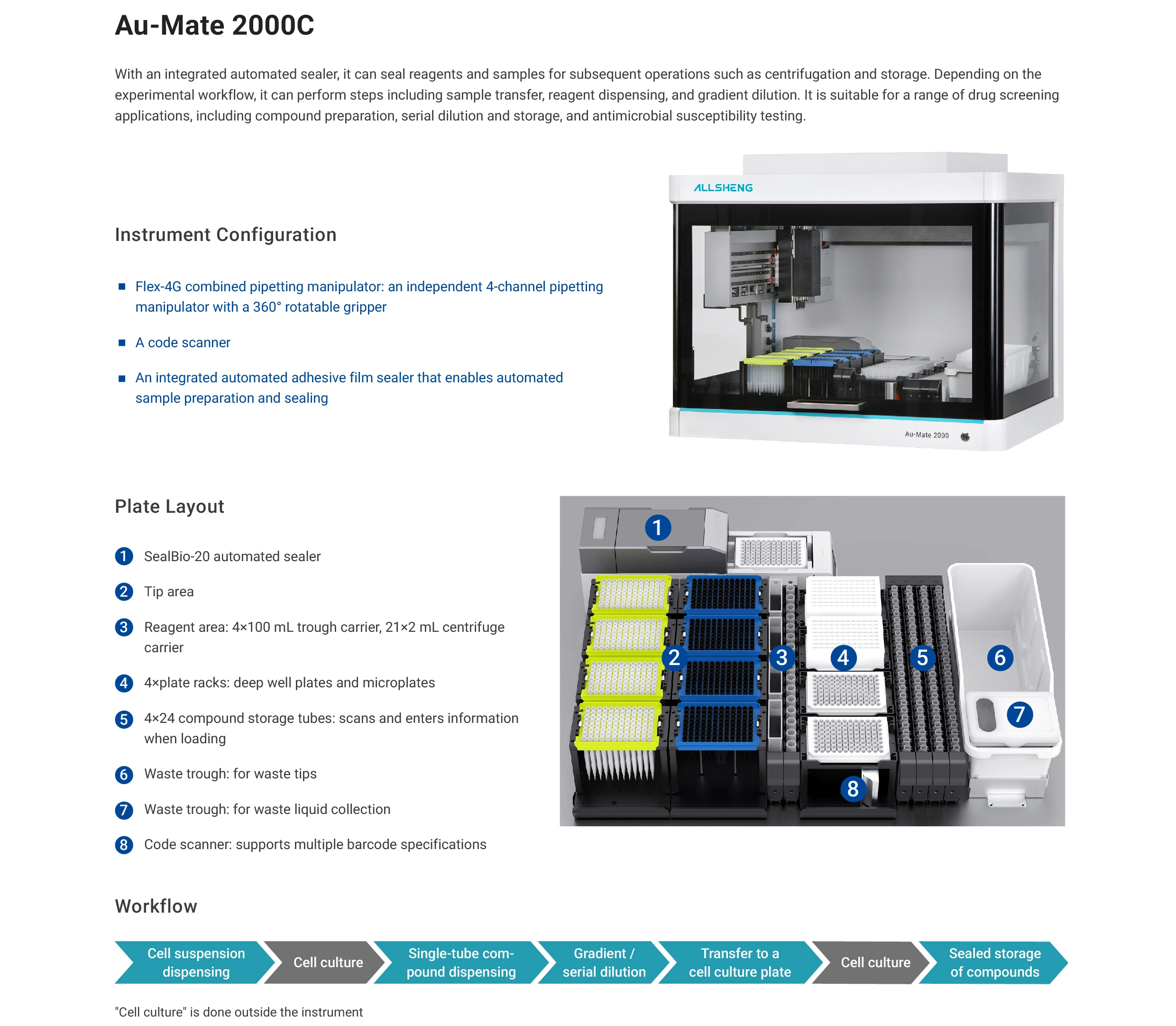

| AS-26230-00 | Au-Mate 2000C liquid handling workstation |

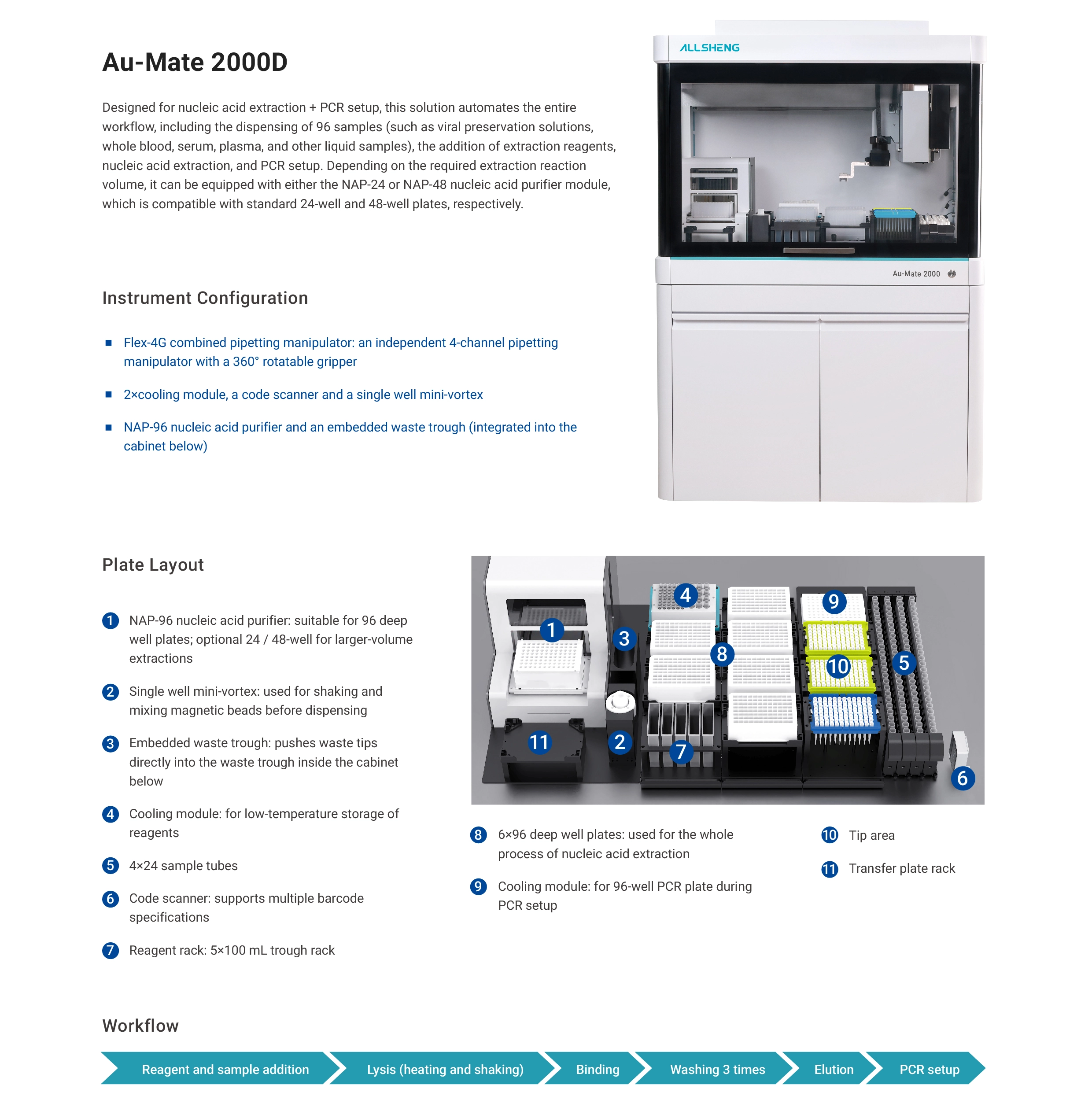

| AS-26240-00 | Au-Mate 2000D nucleic acid purification system |

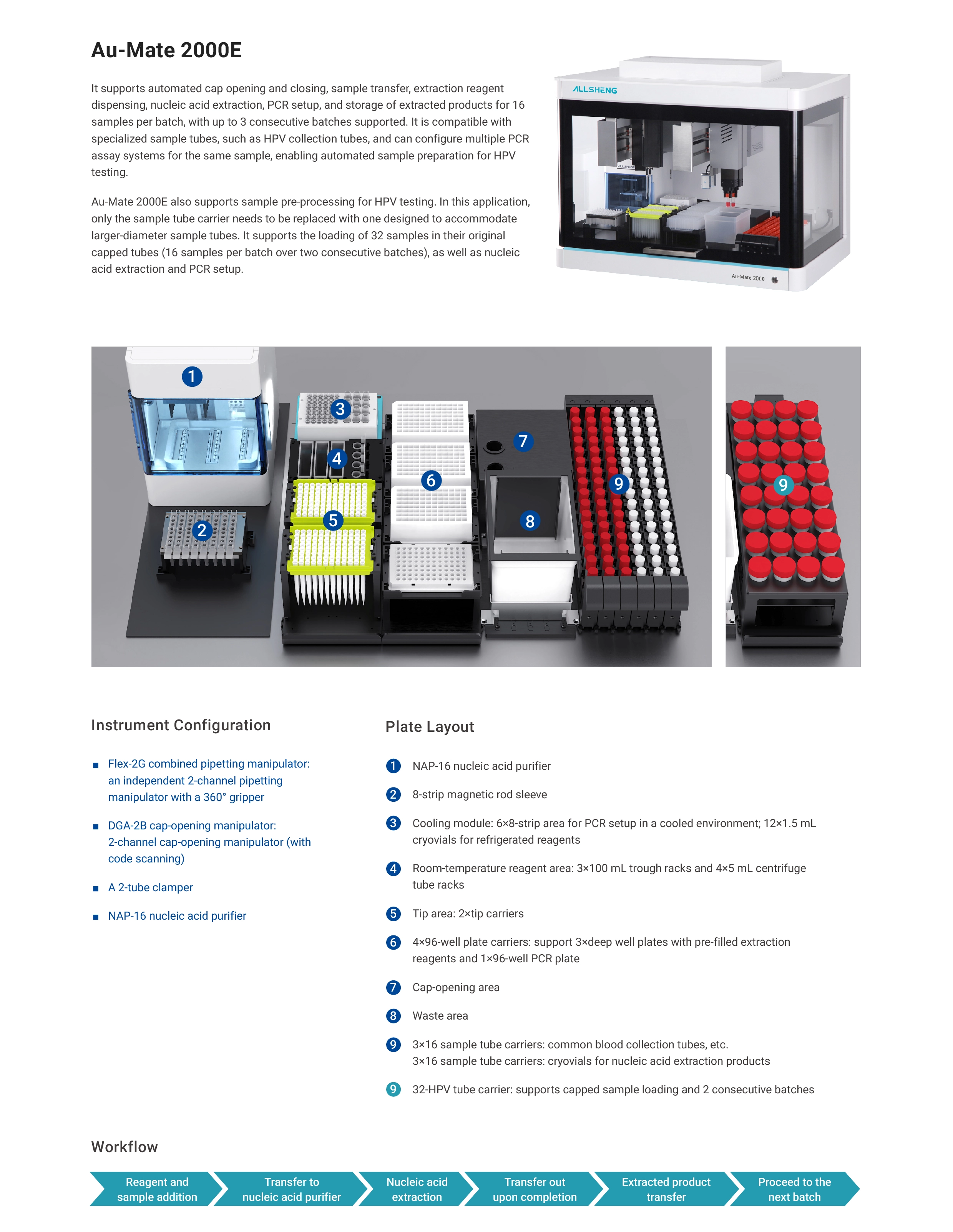

| AS-26250-00 | Au-Mate 2000E nucleic acid purification system |

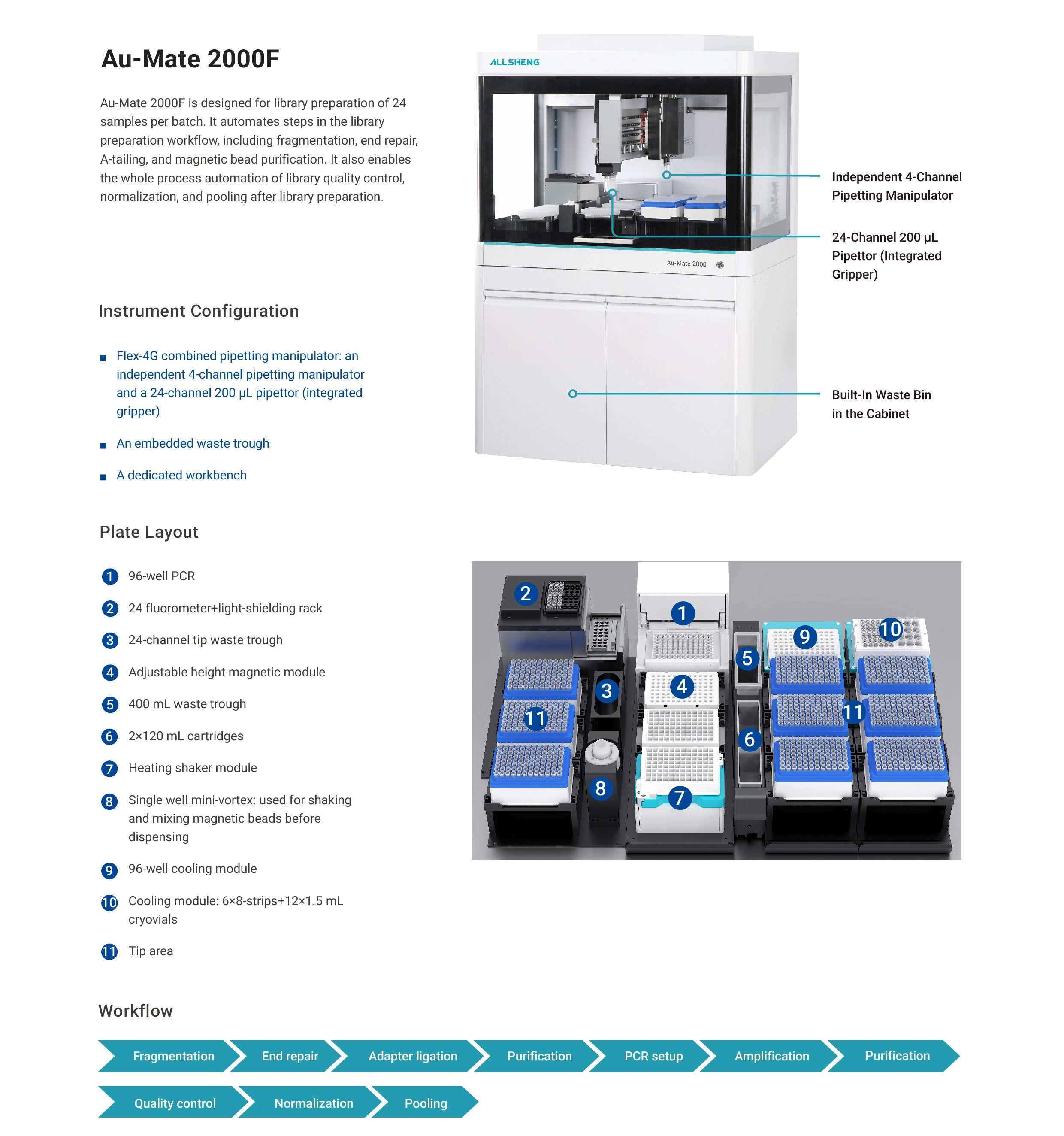

| AS-26260-00 | Au-Mate 2000F automated NGS library preparation workstation |

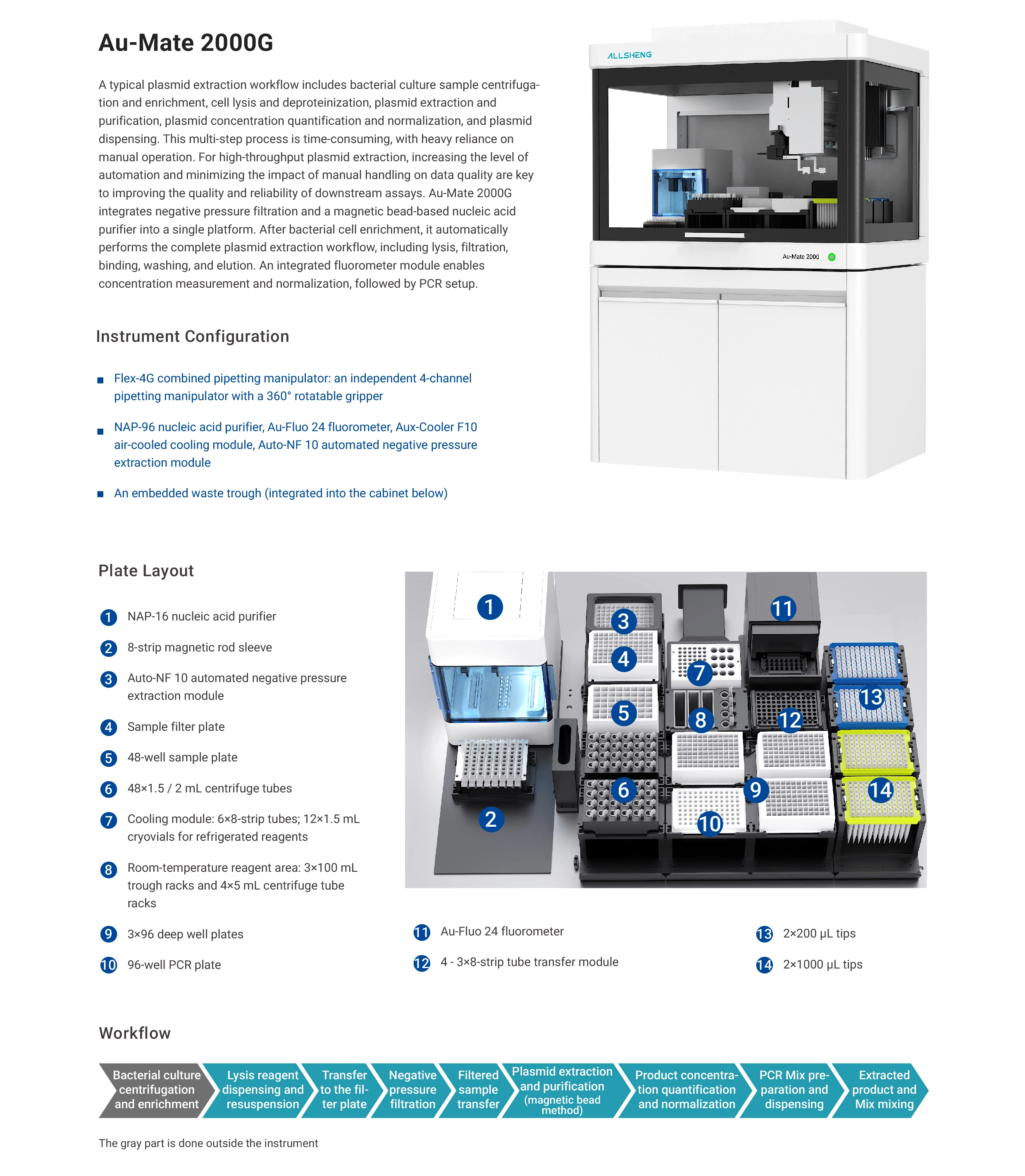

| AS-26270-00 | Au-Mate 2000G automated plasmid extraction workstation |

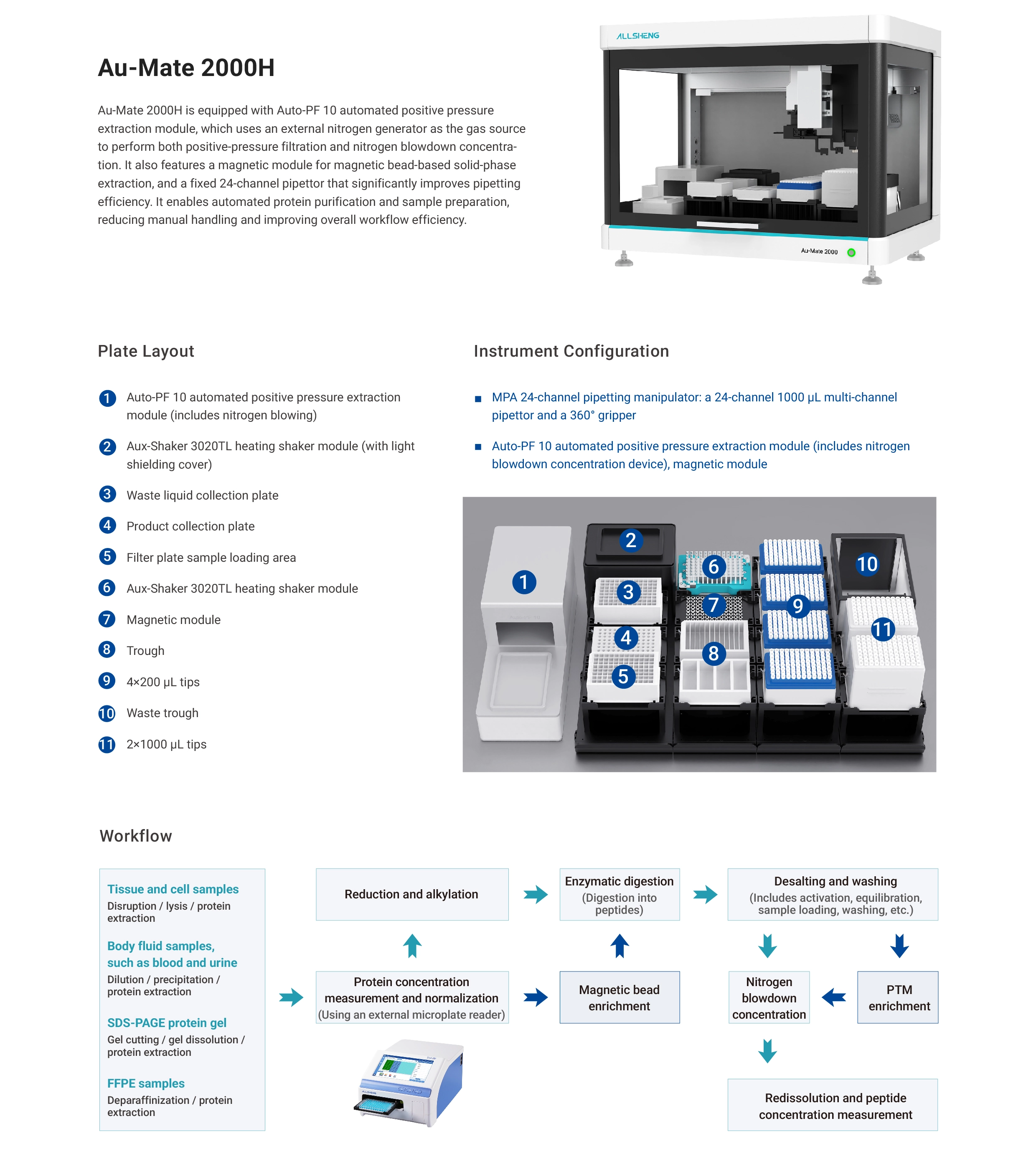

| AS-26280-00 | Au-Mate 2000H proteomics sample preparation workstation |

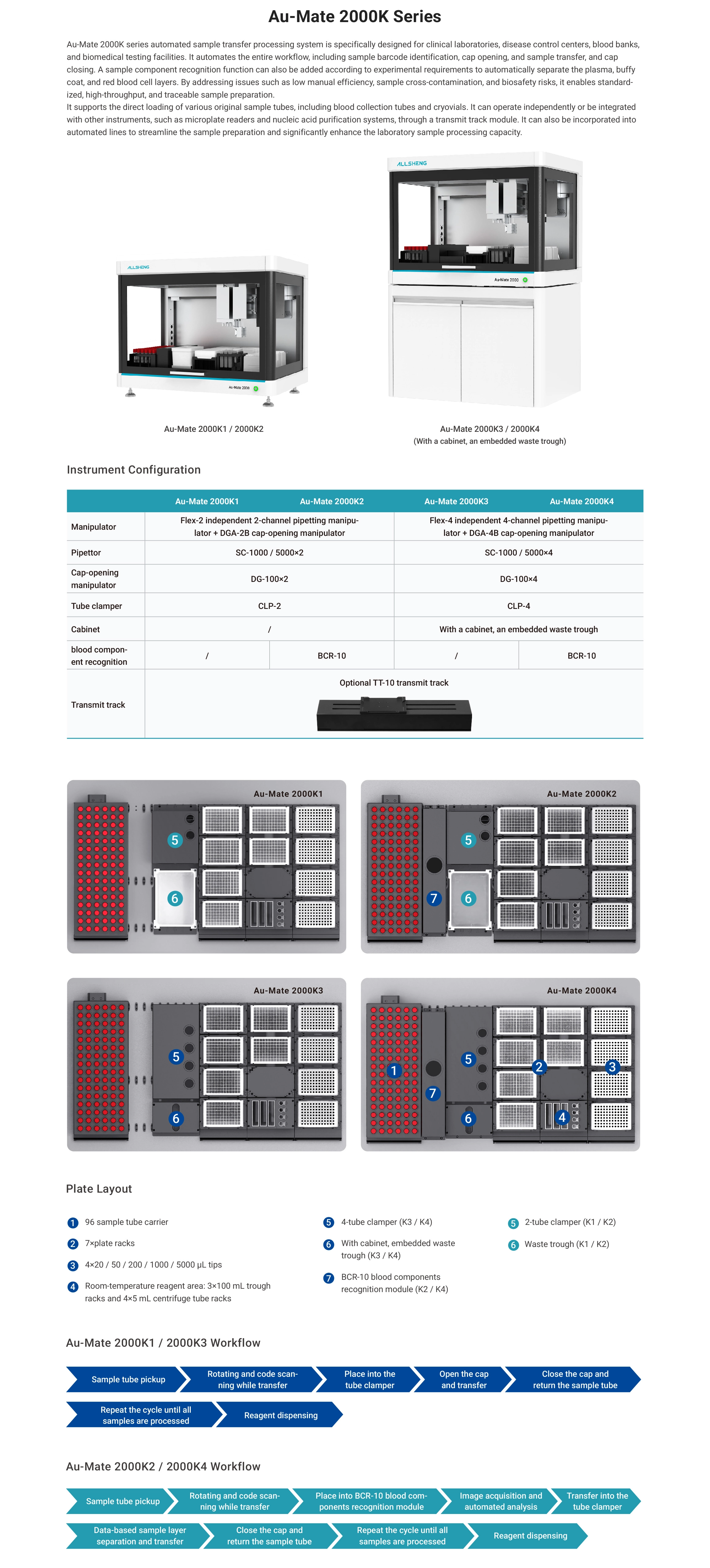

| AS-26290-00 | Au-Mate 2000K1 automated sample transfer processing system |
AS-26300-00 | Au-Mate 2000K2 automated sample transfer processing system |
AS-26310-00 | Au-Mate 2000K3 automated sample transfer processing system |
| AS-26320-00 | Au-Mate 2000K4 automated sample transfer processing system |
