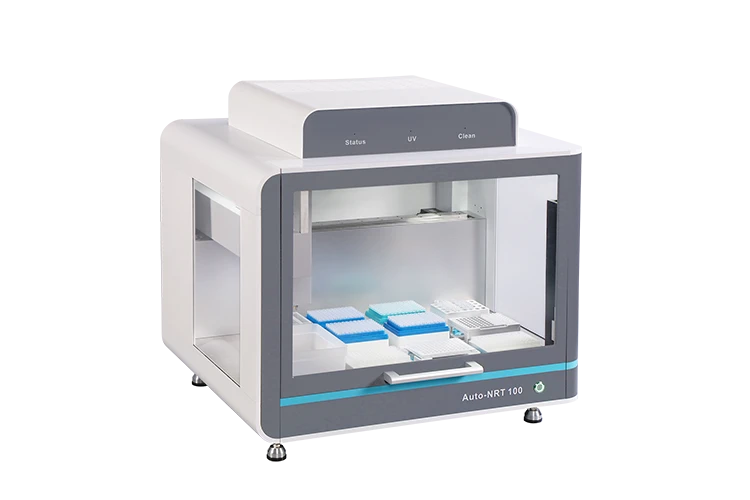

Automated PCR Setup System
Auto-NRT 100
Auto-NRT 100 is a pipetting workstation specially designed for automated PCR set-up, which can meet the set-up requirements of various types of PCR such as PCR and qPCR.
9 standard plate position design, can complete 4 PCR detection items or 384 PCR set-up per run. It supports reagent transfer of various centrifuge tubes and 96 / 384-well PCR plates.
Auto-NRT 100 is fast and reliable, effectively reducing various results deviations caused by manual pipetting steps, and ensuring the reproducible results required by the experiment. It can help you achieve simple, fast and accurate PCR set-up.
-
Specially designed for automated PCR set-up -
Can complete 4 PCR detection items or 384 PCR set-up per run

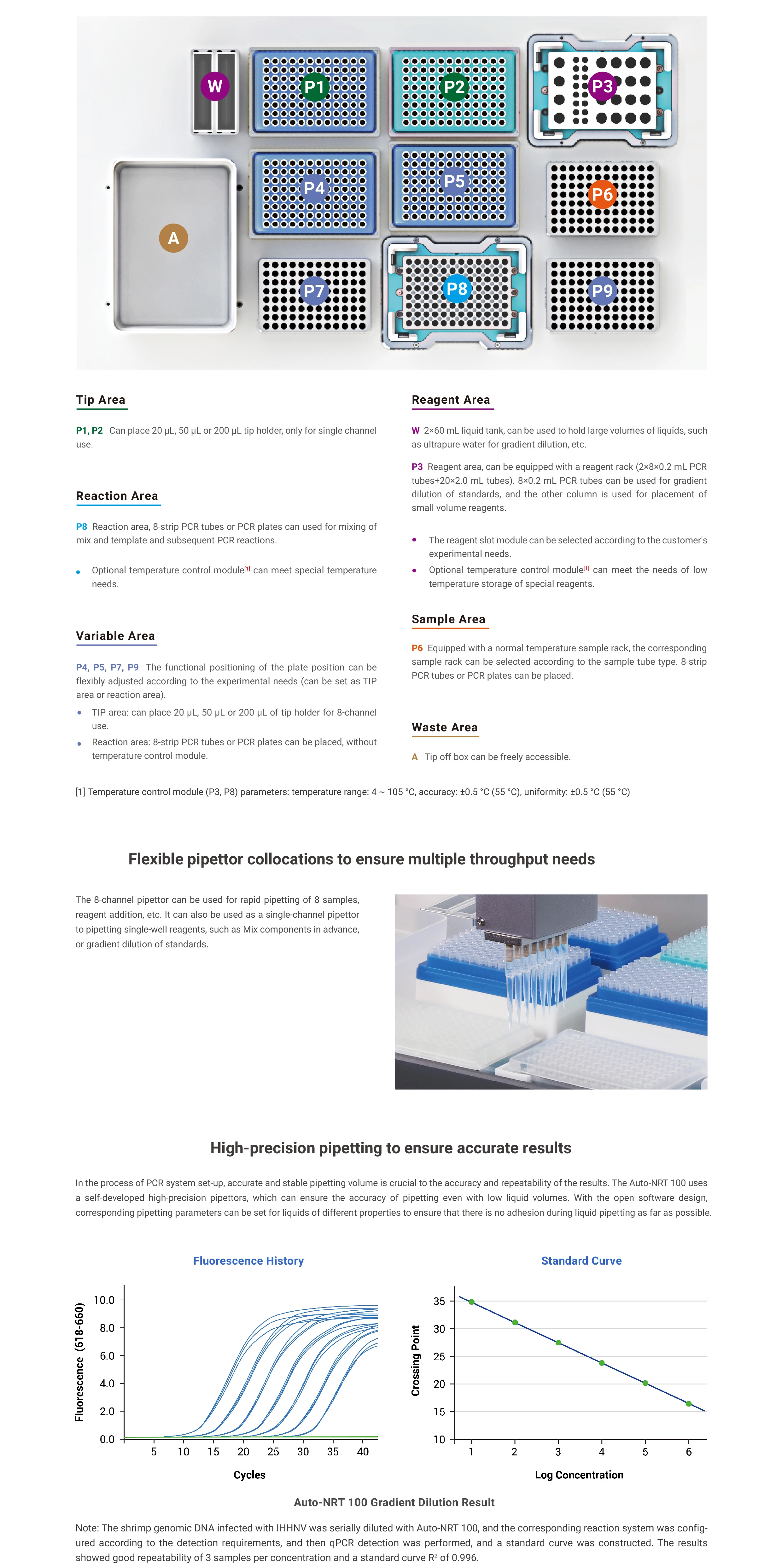

Features
| Model | Auto-NRT 100 |
| Throughput | 1~384 |
| Plate number | 9 standard plates+(TIP off box+waste liquid area) |
| Available well plate | SBS standard 24 / 96 / 384 deep and shallow well plates |
| Pipettor | 8-channel fixed spacing pipettor, can be used as a single channel |
| Pipetting principle | Air displacement pipetting technology |
| Pipetting range | 2~200 μL |
| Accuracy (A) | 2 μL∶ ±6 %; 20 μL∶ ±2 %; 100 μL∶ ±1 %; 200 μL∶ ±1 % |
| Precision (CV) | 2 μL∶ ≤6 %; 20 μL∶ ≤2 %; 100 μL∶ ≤1 %; 200 μL∶ ≤1 % |
| UV sterilization | Equipped with UV sterilization lamp, HEPA filter device |
| Consumable | Matching Allsheng TIP |
| Temp. control block | Equipped with 2 temperature control blocks Temperature control range: 4~105 °C Temperature accuracy: 0.5 °C, @55 °C Temperature uniformity: 0.5 °C, @55 °C |
| UV sterilization | Equipped with UV sterilization lamp, high-efficiency purification filter device |
| Instrument port | USB port, CAN communication |
| IoT | Expandable |
| Size (W×D×H) | 740×630×670 mm |
| Ambient condition | Temperature requirement: 10~40 °C; relative humidity: ≤ 80 % |
| Power input | 100-240 V, 50/60 Hz, rated power 550 W |
| Code | Product description |
| AS-26010-00 | Auto-NRT 100 automated PCR setup system, 100~240 VAC, 550 W |
| AS-27021-01 | TIP off box (recommended to store less than 700) |
| AS-27021-02 | Standard tray (can place SBS standard consumables without special requirements, such as Allsheng TIPs) |
| AS-27021-03 | Heightened tray (can place SBS standard consumables that need to be heightened , such as Allsheng TIPs) |
| AS-27021-04 | PCR tube holder (place 8-strip PCR centrifuge tube, non-skirted 96-well PCR plate) |
| AS-27021-05 | Reagent rack (places 60 mL reservoir and 12×2 mL / 1.5 mL centrifuge tubes) |
| AS-24030-00 | Au-Cooler dry baths for workstation (heating/cooling), 24 VDC, 160 W, with CAN |
