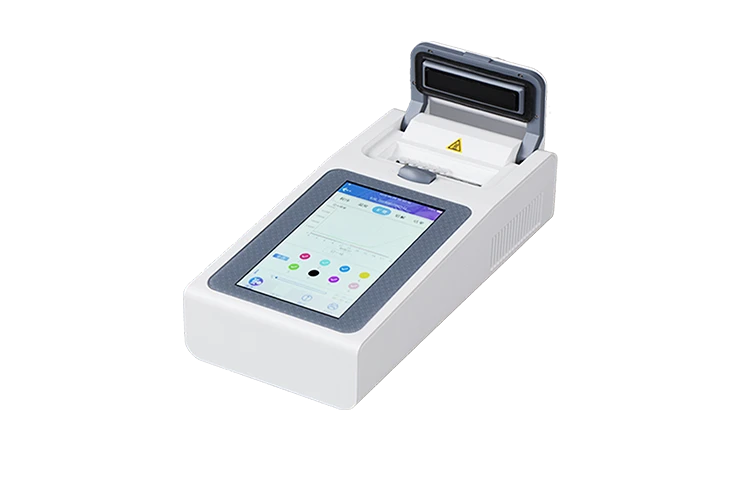

Gene-8C2
-
Outdoor use, convenient and portable -
Reliable results with temperature control accuracy of 0.1 °C -
Simple operation, direct interpretation of positive or negative results
Features
-
More Reliable Results
The side optical path detection system can detect at least 10 μL reaction system.
Precise temperature control, the temperature difference between wells is less than 0.15 °C, and the temperature control accuracy reaches 0.1 °C.
Real time monitoring of fluorescent signals to avoid subjective errors caused by manual interpretation.
Easier Operation
The positive and negative results of the experiment can be directly interpreted without other calculations.
With a 7-inch touch screen, a single machine can complete the setting, detection, interpretation and saving.
Humanized software function, dual channel design to adapt to different reagent testing needs.
Provide Multiple Data Export Methods
Use USB and WIFI connection to transfer the experi-mental data and results to your computer, or save the data directly to the cloud through WIFI (it needs to be developed according to customer needs).
View the Results on the Computer, Sort out and Share Data
Once the data is exported, you can use PC software to view data in various formats and sort out experimental data.
Easy to Use "Data Printer" Option
You can directly print the results from the instrument through the USB printer interface. You can also use PC software to print and export the results from the computer.
Outdoor Use, Convenient and Portable
Small size, equipped with rechargeable batteries, make the detection real-time and practical. Portable experimental box, equipped with other necessary instruments, to improve experimental efficiency.
More Intelligent Software System
The instrument software is simple and clear, which can be easily mastered by new users.
Android APP software, which can control the operation of monitoring instruments.
It can be operated by an external computer to meet various customer needs.
With mobile APP real-time data transmission, it is a real real-time detection system.
Data statistics function, recording experimental parameters and data, convenient for tracing and searching.
Real-time detection, automatic identification of negative and positive, melting curve and other functions.
| Model | Gene-8C2 |
| Sample size | 0.2 mL‒8-well (8-strip tube available) |
| Sample volume | 15-150 μL (20-30 μL recommended) |
| Applicable dye | FAM, SYBR Green 1, HEX |
| Temperature range (°C) | 15 °C-99 °C |
| Heating speed (°C) | 2 °C/s |
| Cooling speed (°C) | 2 °C/s |
| Temperature uniformity (℃) | ±0.15 °C; @39 °C |
| Temperature control accuracy (℃) / precision (℃) | ±0.2 °C / 0.1 °C |
| Thermo lid function | Yes |
| Channel | Two |
| Excitation wavelength | Ex 470 nm / LED; Ex 525 nm / LED |
| Detection wavelength | Em 535 nm / PD; Em 605 nm / PD |
| Excitation light source/detection mode | LED / real-time fluorescent signal detection |
| Result display | 1. Negative / positive; 2. peak time; 3. melting Tm value |
| Interpretation method | 1. Construct amplification curve judgment; 2. The instrument automatically analyzes and determines positive or negative |
| Touch screen | 7 inch touch screen |
| Control software | Instrument software, PC software, supporting app (Android system) |
| Input power | 100～240 V, 50～60 Hz |
| Lithium battery | With charging battery (optional) |
| Dimension (W×D×H) mm | 145×305×100 mm |
| Weight (without battery) | 2.5 kg |
| Code | Product description |
| AS-20020-00 | Gene-8C2 isothermal fluorescence PCR |
| Fluorescence quantitative PCR reagents | |
| RS-QP01001 | qPCR probe master mix (probe method) |
| RS-QP01002 | U+qPCR probe master mix (probe method) |
| RS-QP01003 | WSSV fluorescence quantitative PCR kit (probe method) |
| RS-QP01004 | IHHNV fluorescence quantitative PCR kit (probe method) |
| RS-QP01005 | EHP fluorescence quantitative PCR kit (probe method) |
| RS-QP01006 | One step qRT-PCR probe master mix (probe method) |
| RS-QP01007 | U+One step qRT-PCR probe master mix (probe method) |
| RS-QP01008 | TSV fluorescence quantitative PCR kit (probe method) |
| Isothermal amplification PCR reagents | |
| RS-IP04001 | Isothermal amplification PCR master mix |
| RS-IP04002 | Isothermal amplification PCR master mix (RNA template) |
| Aquatic virus series | |
| RS-IP02001 | WSSV isothermal amplification PCR master mix kit |
| RS-IP02002 | IHHNV isothermal amplification PCR master mix kit |
| RS-IP02003 | EHP isothermal amplification PCR master mix kit |
| RS-IP02004 | TSV isothermal amplification PCR master mix kit |
| RS-IP02005 | SHIV isothermal amplification PCR master mix kit |
| Animal source doping series | |
| RS-IP03001 | Porcine gene isothermal amplification PCR kit |
| RS-IP03002 | Chicken gene isothermal amplification PCR master mix kit |
| RS-IP03003 | Duck gene isothermal amplification PCR master mix kit |
| RS-IP03004 | Bovine gene isothermal amplification PCR master mix kit |
| RS-IP03005 | Sheep gene isothermal amplification PCR master mix kit |
| Cell-free recombinant protein expression kit | |
| RS-IP01001 | Non-dialysis Escherichia coli cell-free recombinant protein expression kit |
| RS-IP01002 | Analytical Escherichia coli cell-free recombinant protein expression kit |
