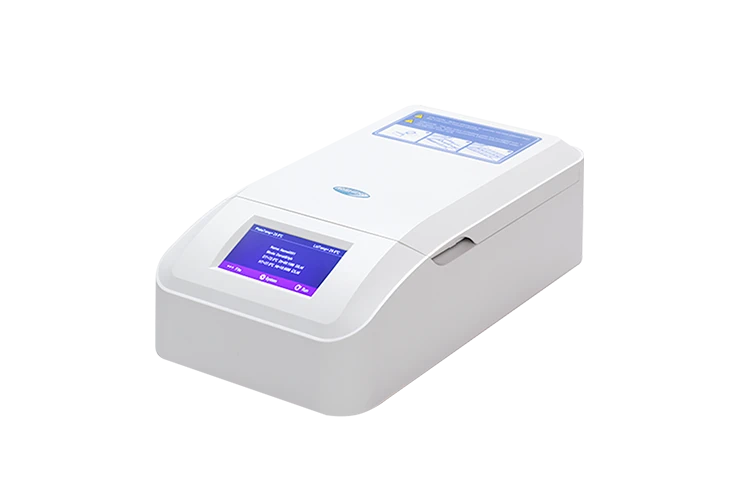

Hybridization System
TDH-500
In situ hybridization and FISH experiments critically rely on DNA denaturation as a pivotal step for experimental success. TDH-500 hybridization system automatically completes denaturation and hybridization processes according to user settings. With precise temperature control, optimal humidity conditions, low operational costs, and significant time savings, it provides reliable assurance for molecular-level research.
TDH-500 can process 12 slides per run. The fully sealed lid design and automated humidification method ensure ideal temperature and humidity conditions. The system guarantees high temperature uniformity, maintaining a temperature accuracy of no more than ±1 °C across all slides. Slides can be easily removed or inserted by hand. The touch screen allows for quick and simple editing of user-defined protocols and four operating modes: denaturation / hybridization, hybri-dization fixed temperature, In-situ PCR, custom.
-
Touch screen operation -
Can place 12 slides simultaneously -
Denaturation / hybridization, hybri-dization fixed temperature, In-situ PCR
Features
-
Touch screen easy to read, program and use.
It can run In-situ PCR experiments.
Possibility to export cycles data via USB memory.
Four operation modes: denaturation / hybridization, hybri-dization fixed temperature, In-situ PCR, custom.
Can be used as a fixed temperature slide warmer.
Rapid temperature warm-up and accuracy of ±1 °C.
Superior temperature uniformity accross all slide positions.
Perfect humidity control system.
| Model | TDH-500 |
| Temperature control range | RT.+5 °C~99.9 °C |
| Temperature accuracy | ≤±1 °C |
| Temperature uniformity | ≤±2 °C |
| Temperature display accuracy | ±0.1 °C |
| Timer | 1 min~99 h59 min or 1 sec~99 min59 sec |
| Heating time (37 °C to 95 °C) | ≤4 min |
| Cooling time (95 °C to 45 °C) | ≤8 min |
| Operation mode | Denaturation / hybridization, hybridization fixed temperature, custom and In-situ PCR |
| Capacity | 12 slides |
| Power | 460 W |
| Weight | 6.2 kg |
| Dimension (D×W×H) mm | 225×420×143 mm |
| Code | Product description |
| AS-05010-00 | TDH-500 hybridization system, AC 120 V, 3 A or AC 220 V, 2 A, 50 / 60 Hz |
