Microplate Reader
FlexB-200

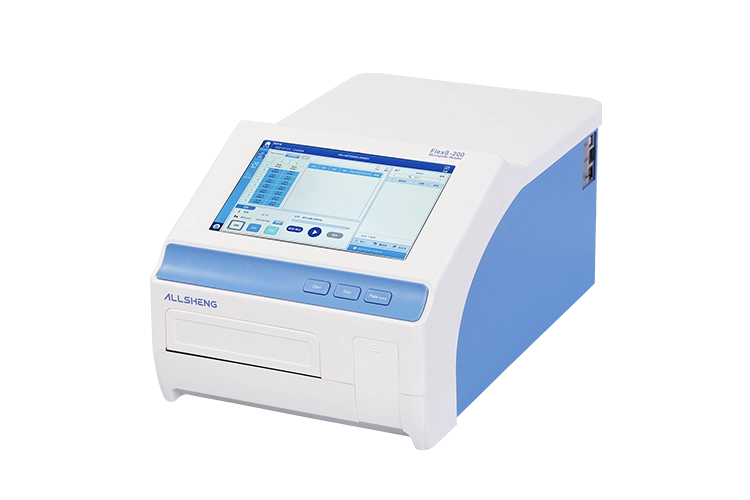

FlexB-200 microplate reader is a high-quality microplate reader based on a monochromator with a wavelength range of 200~1000 nm. It can be used for spectral scanning, endpoint method and kinetic detection. Suitable for 96-well plates and 384-well plates with and without lids. FlexB-200 can be shaken and cultured in microplates, and the culture temperature is up to 45 °C.
It can be operated independently through the built-in software of the instrument, and also can be operated by the Readerlt-II software.
-
Absorbance monochromator design -
Standard 10-inch touch screen -
Registration certificate for medical device
Features
-

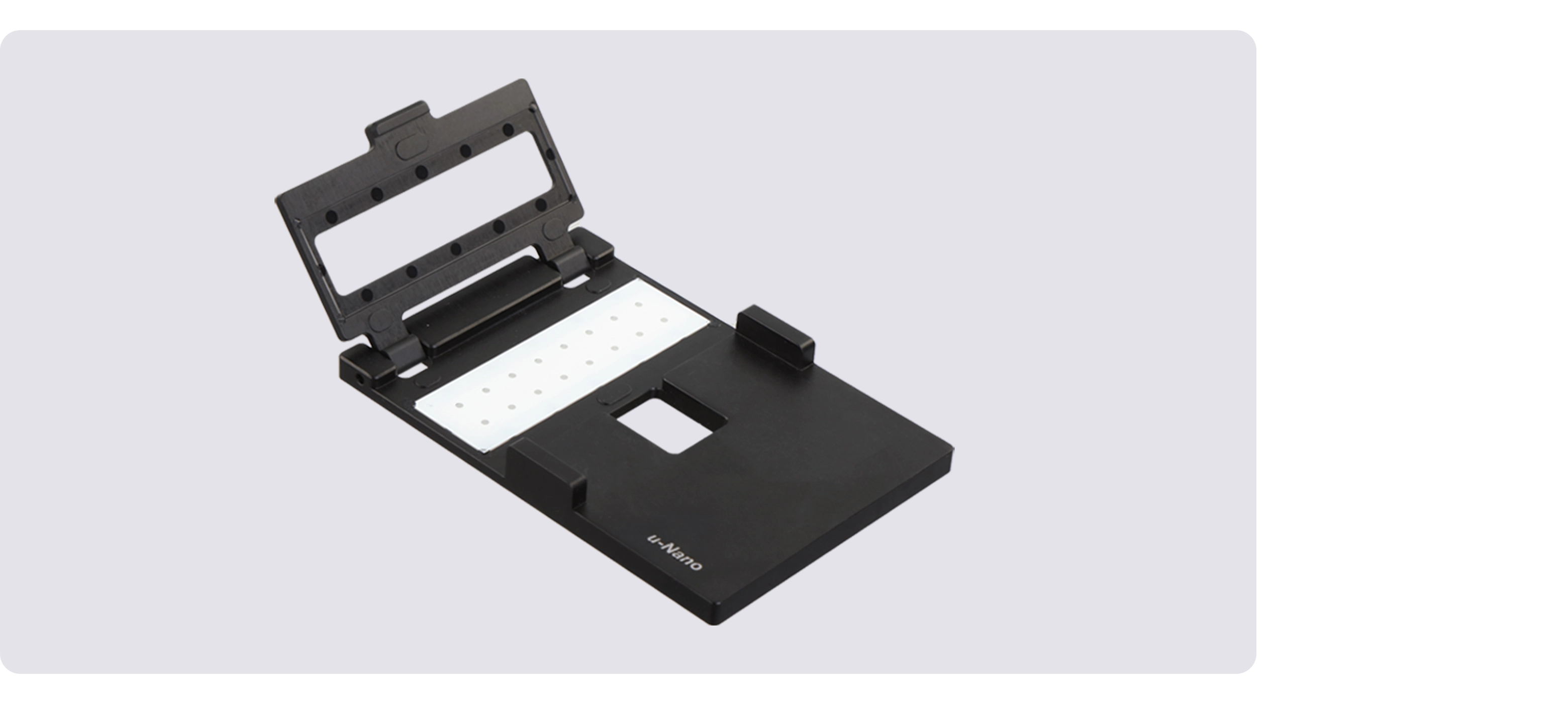

u-Nano16 Ultra-Micro PlateQuickly complete high-throughput quantification of micro nucleic acid and proteins without samples dilution.Independent lower computer software, can quickly read the sample concentration and purity report.1~16 samples can be detected at the same time, only 2~4 μL sample volume is needed.During continuous testing, you only need to wipe off the last batch of samples with dust-free paper.
-

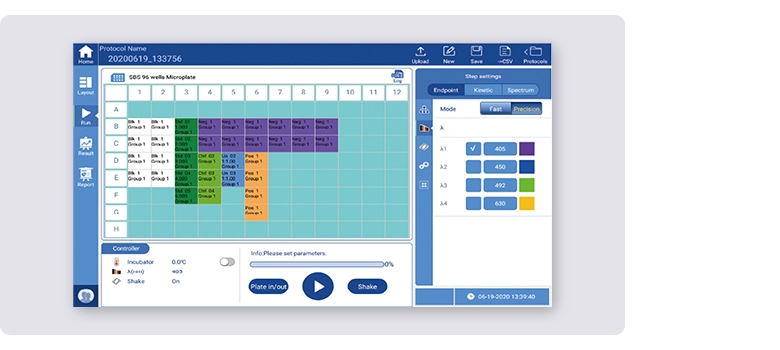

Instrument Interface Can Be Used Independently for Rapid DetectionFlexB-200 built-in software is designed for independent use of the instrument. With a 10-inch high-resolution touch screen and a graphical user interface, the editing of programs and template presets are very simple.In addition, support for USB data export is fast, convenient and easy to operate.
-
Through PC Software, Advanced Detection Mode and Powerful Data Analysis Can Be SetReaderlt-ll software designed with graphical operation interface has a simulation demonstration function. Data export is convenient and fast, and detailed result reports can be generated through built-in tools. The built-in software and Readerlt-ll of the FlexB-200 instrument are both Chinese / English interfaces. Graphical user interface is convenient for customers to use.
| Model | FlexB-200 (Class II Medical Device) |
| Display | 10 inch high-resolution capacitive touch screen |
| Light source | Xenon flash lamp / number of flashes>109 |
| Wavelength range | 200~1000 nm |
| Wavelength accuracy | 2 nm |
| Wavelength repeatability | 0.2 nm |
| Optical system | Monochromator, 1 nm step |
| Reading range | 0~4.0 OD |
| Bandwidth | <2.5 nm |
| Detection system | 2 silicon photodetectors, one for measurement, one for reference |
| Linear @450 nm | R≥0.999, [0.0 - 3.0 Abs] |
| Absorbance accuracy @450 nm | ±0.005 [0 - 0.2 Abs] ±0.008 (0.2 - 0.5 Abs] ±0.013 (0.5 - 1.0 Abs] ±0.018 (1.0 -1.5 Abs] ±0.023 (1.5 -2.0 Ab] ±2.0% (2.0 - 2.5 Abs] |
| Absorbance precision @450 nm | CV < 0.5% accurate mode; CV < 1.0% fast mode |
| Measuring speed | 96-well plate: fast mode <8 seconds, accurate mode <28 seconds (end point method) |
| Shaking | Linear, 3 speeds adjustable |
| Temperature range | RT.+4 ℃~45 ℃ |
| Temperature accuracy & uniformity | ±0.5 °C @ 37 °C, 1 °C @ 37 °C |
| User interface | Built-in software, independent use |
| Analysis software | Readerlt-II software |
| Operation display | Touch screen input, Android system, 10-inch LCD display full board information, can be connected with keyboard and mouse |
| Internal storage | 16 G storage, can store more than 20,000 data files |
| Port | 2×USB A port |
| Robotic arm compatible | Temporarily incompatible, customization |
| Power supply | DC24V, 6.25A |
| Dimension (W×D×H) mm | 300×500×260 mm |
| Weight | 15.5 kg |
| Code | Product description |
| AS-19030-00 | FlexB-200 microplate reader |
| AS-19011-01 | ReaderIt-ll PC analysis software |
| AS-19011-02 | u-Nano16 ultra-micro plate |
| AS-19011-03 | ABS optical performance validation board |
Related Products
Selection Guide
Model | |||||
Detection mode | Absorbance | Absorbance | Absorbance | Absorbance | Absorbance |
Plate | 96 | 96 | 96 / 384 | 96 / 384 | 96 / 384 |
Wavelength range | 340~750 nm | 340~750 nm | 200~1000 nm | 200~1000 nm | 200~1000 nm |
Wavelength selection | Filter | Filter | Monochromator | Monochromator | Monochromator |
Incubation temperature | - | RT.+4 °C~50 °C | RT.+4 °C~50 °C | RT.+4 °C~50 °C | RT.+4 °C~50 °C |
Cuvette | - | - | - | - | ✓ |
Registration certificate for medical device | ✓ | - | - | ✓ | - |
Operation software | Single-chip microcomputer | Single-chip microcomputer | Android | Android | Android |
