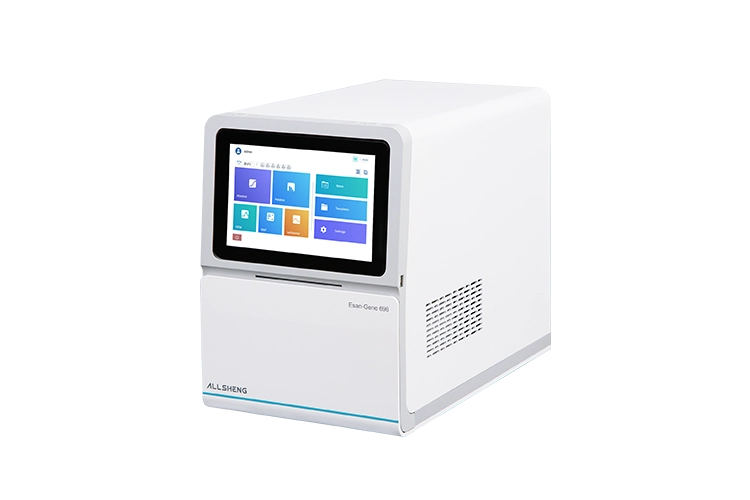

Real-Time PCR System
Esan-Gene 496
Esan-Gene 496 / 496A real-time PCR system adopts mature thermoelectric refrigeration technology, brand-new light source and light path design. The unique constant-current power and multi-zone independent temperature control method ensure more rapid, correct and stable fluorescence quantitative analysis of the product, while maintaining its excellent performance in low energy consumption. The product is modularized with various configurations to choose from. Meanwhile, it has been added with functions including independent temperature control, low-temperature storage of sample at 4 °C, and automatic dehumidification.
Esan-Gene 496 is suitable for 0.2 mL centrifuge tubes, 496A is suitable for 0.1 mL centrifuge tubes. It's mainly applied in gene expression, genotyping (detection), cloning, mutation, methylation analysis, sequencing, medicine, forensic medicine and applied science.
-
4 fluorescence channels -
6 gradient temperature control -
Min. detection range: 1 copy
Features
| Model | Esan-Gene 496 |
| Applicable centrifuge tube | 0.2 mL 96-well plate, single tube, 8-strip tube |
| Sample system size | 10~100 μL |
| Channel number | 4-channel |
| Channel parameter | F1: FAM, SYBR Green I, etc F2: HEX, JOE, VIC, etc. F3: ROX, TEXAS-RED F4: Cy5, Quasar-670 |
| Linear range | 100~1010 Copies/μL |
| Minimum detection range | 1 Copy |
Excitation light source | High power white LED |
| Detecting element | High-performance CMOS |
| Ct repeatability | CV ≤1 % |
| Sample linearity (Ct) | |r| ≥0.999 |
| Temperature range | 4~99.9 °C |
| Temperature control mode | Block control / tube control |
| Average heating rate | 3.5 °C/s |
| Average cooling rate | 2.5 °C/s |
| Temperature uniformity | ±0.2 °C @95 °C |
| Temperature accuracy | ±0.15 °C |
| Temperature control precision | 0.1 °C |
| Melting temperature | Minimum differentiation 0.1 °C |
| Gradient mode | 6 gradient temperature control |
| Gradient temperature range | 1~40 °C |
| Thermo lid temperature | 30~110 °C |
| Display screen | 10.1-inch touch screen |
| Dimension (W*D*H) | 298 mm×530 mm×430 mm |
| Input power | 100~240 VAC 50~60 Hz |
| External port | USB (Type A)×3, LAN ×1 |
| Wireless function | Expandable wireless transmission function, support LIS function |
| Data export format | Excel, PDF |
| Code | Product description |
| AS-30050-00 | Esan-Gene 496 real-time PCR system, suitable for 0.2 mL centrifuge tube |
