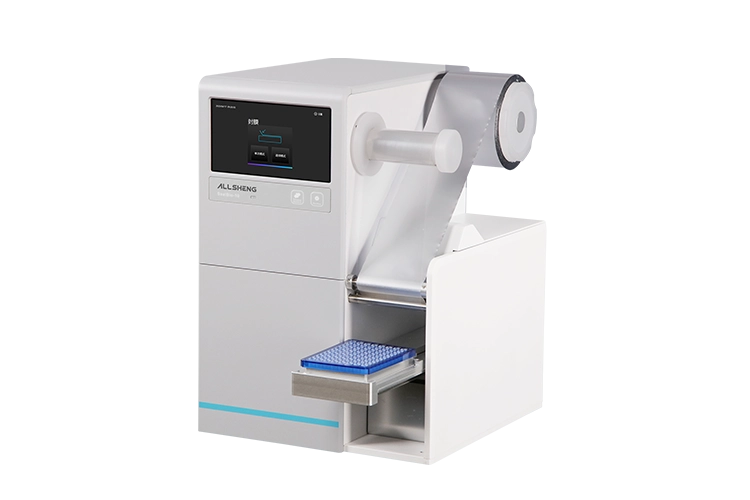

Automated Sealer
SealBio-10
The SealBio-10 automated sealer is designed for pressure sensitive seal. It supports both pressure sensitive seal and adhesive seal, and is compatible with plates in the height range of 14~68 mm, including common used PCR plates, deepwell plates, and ELISA plates. It can be integrated into automated production lines, simplifying plate sealing in automated experimental workflows. When used as a standalone instrument, it can operate inside a biosafety cabinet to ensure sterile preservation of reagents and samples. The sealing process does not require a heat source, making it suitable for sealing and storing heat-sensitive materials.
-

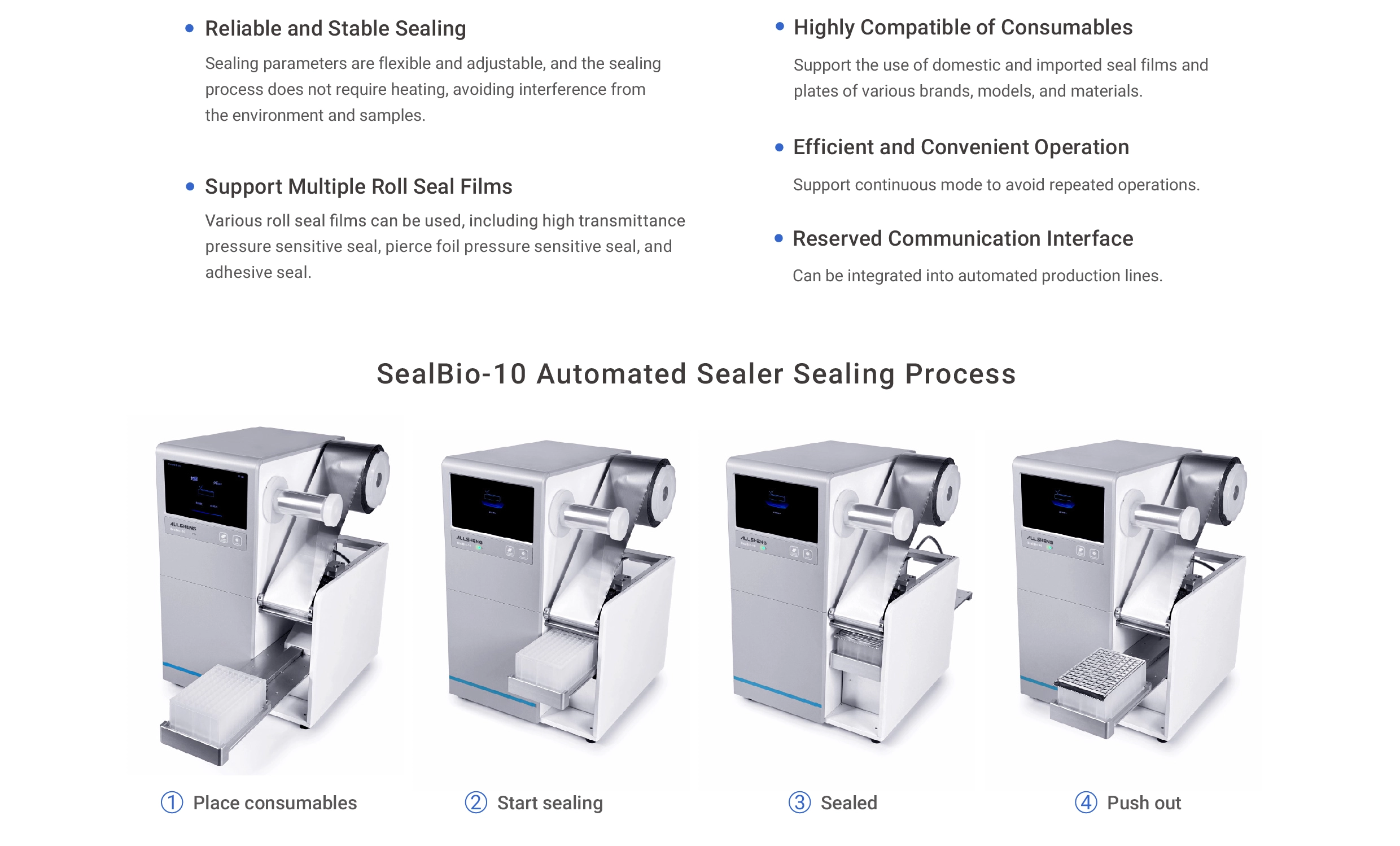

Highly compatible of consumables -
Efficient and convenient operation -
Reliable and stable sealing
Features
| Model | SealBio-10 |
| Sealing method | Roller type |
| Sealing time | <15s/time |
| Sealing success rate | 100% |
| Sealing requirement | 8 mm < the removing side should be reserved |
| Suitable seal film | Adhesive pressure sensitive seal |
| Suitable consumables | ANSI / SBS standard full-skirted plates, height range 14~58 mm, including PCR plates, deepwell plates, and ELISA plates |
| External port | 1×single-layer USB-A port, 1×USB-B port, and 1×Ethernet port |
| Communication method | TCP / IP communication, supporting automated integration |
| Operating Software | PC software |
| Power supply | AC100~240 V, 50/60 Hz |
| Power | 100 W |
| Dimension | 296×521×441 (W×D×H) |
| Code | Product description |
| AS-15050-00 | SealBio-10 automated sealer |
