Automated Sealer

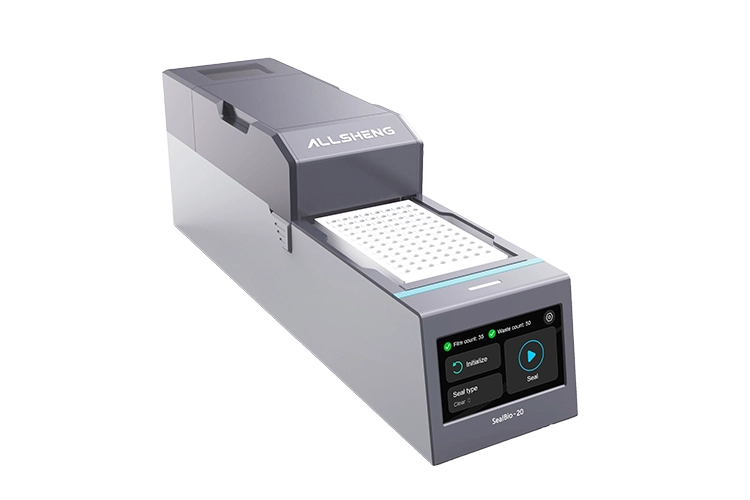

SealBio-20
SealBio-20 plate sealer can use adhesive seal to seal ANSI and SLAS standard microplates. The sealing film container holds 50 pieces of new film, and the waste container holds 50 pieces of bottom film.
It is suitable for microplates with 8~45 mm in height, such as deepwell plates, microplates, and PCR plates, and has high compatibility and versatility.
-

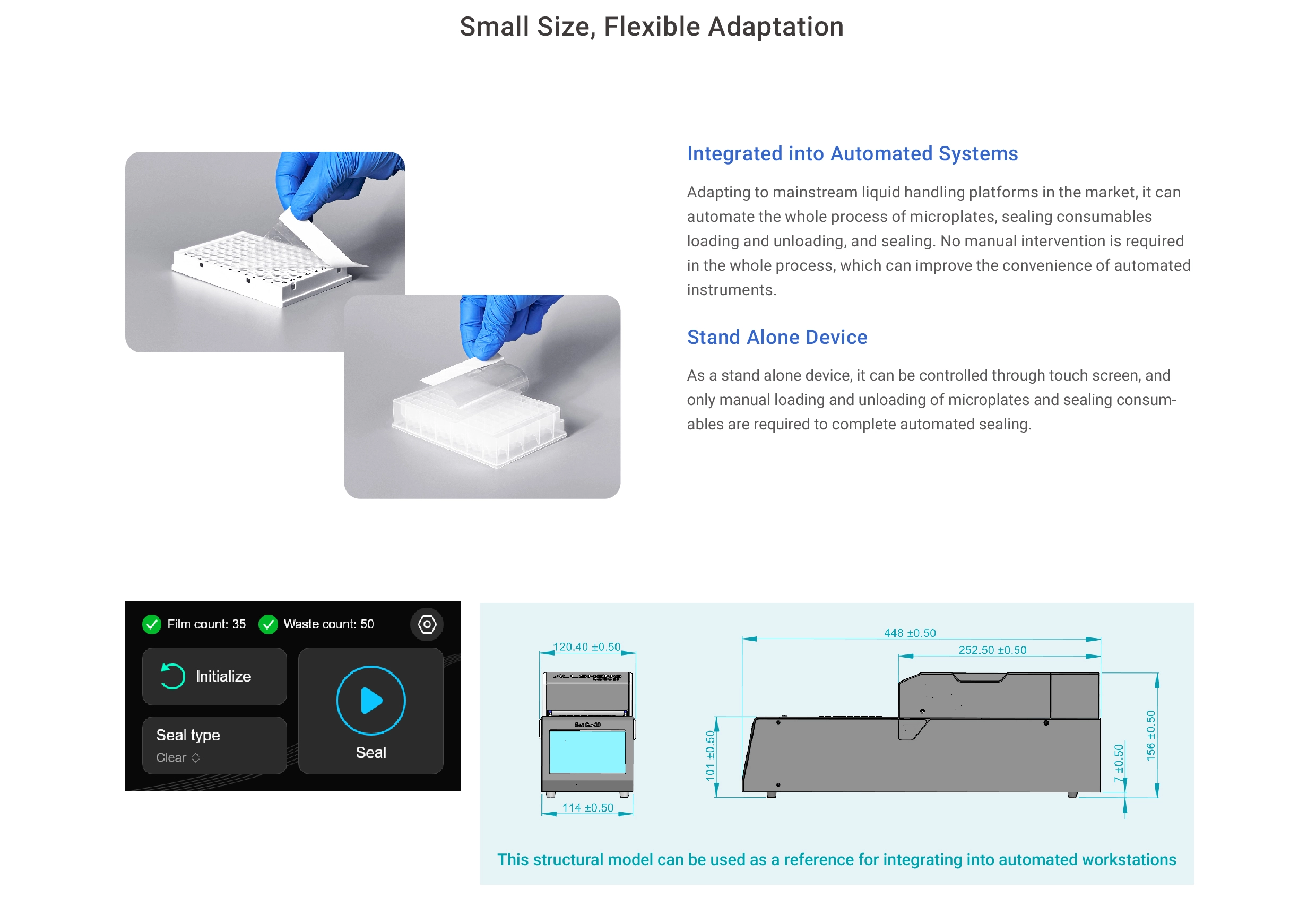

Small size, flexible adaptation -
Integrated into automated systems -
Stand alone device
Features
| Model | SealBio-20 |
| Sealing method | Roller type |
| Sealing time | <30s/time |
| Suitable film (sheet) | Adhesive clear plate seal |
| Film storage quantity | 50 |
| Waste storage | 50 |
| Suitable consumables | Suitable for ANSI / SLAS standard microplates with 8-45 mm in height |
| Film sealing requirements | A film length of ≥12 mm should be reserved on the removing side for film clamping |
| Film size specification | 128 ≤ total length ≤144 mm, width ≤90 mm |
| Communication port | M12 aviation plug, 6 pin |
| Communication method | CAN communication |
| Operating software | Built-in operating system or PC software |
| Input voltage | DC24 V 1.5 A |
| Maximum power | 34 W |
| Weight | 6.0 kg |
| Dimension | 114×450×149 (W×D×H) |
| Code | Product description |
| AS-15060-00 | SealBio-20 automated sealer |
