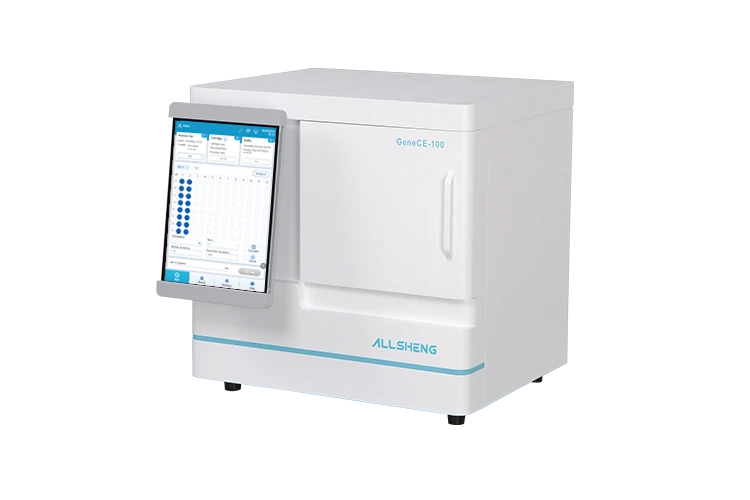

Biofragment Analysis System

GeneCE-100

GeneCE-100 is designed for quantitative and qualitative analysis of DNA and RNA samples, the automated electrophoresis system can run 1~104 samples simultaneously. The operation of instrument are simple, no manual gel preparation required, and can achieve fully automatic sample detection. Widely used in experiments such as NGS library QC, cfDNA QC, PCR product detection, total RNA and fragmented RNA sample QC.

INQUIRY

Sample number: 1~104
Cartridge usage times: 240
Standard equipped with a 10-inch touch screen, and with built-in data analysis software

Technical Specifications

Ordering Information

Overview

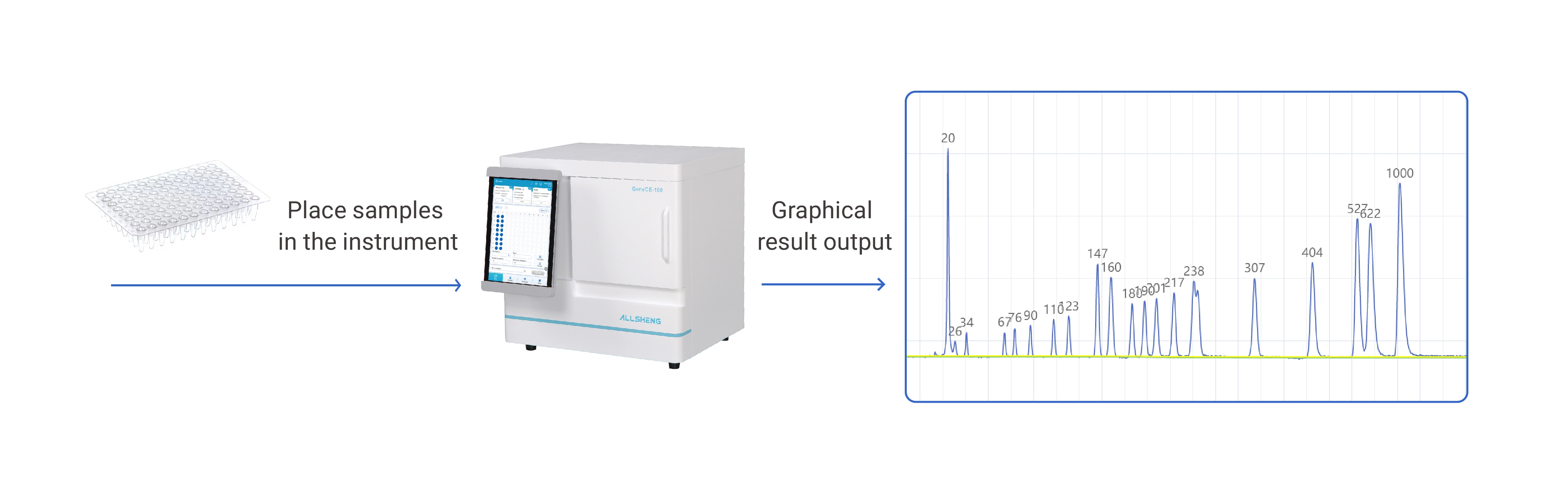

Automated electrophoresis system, no need for manual gel preparation

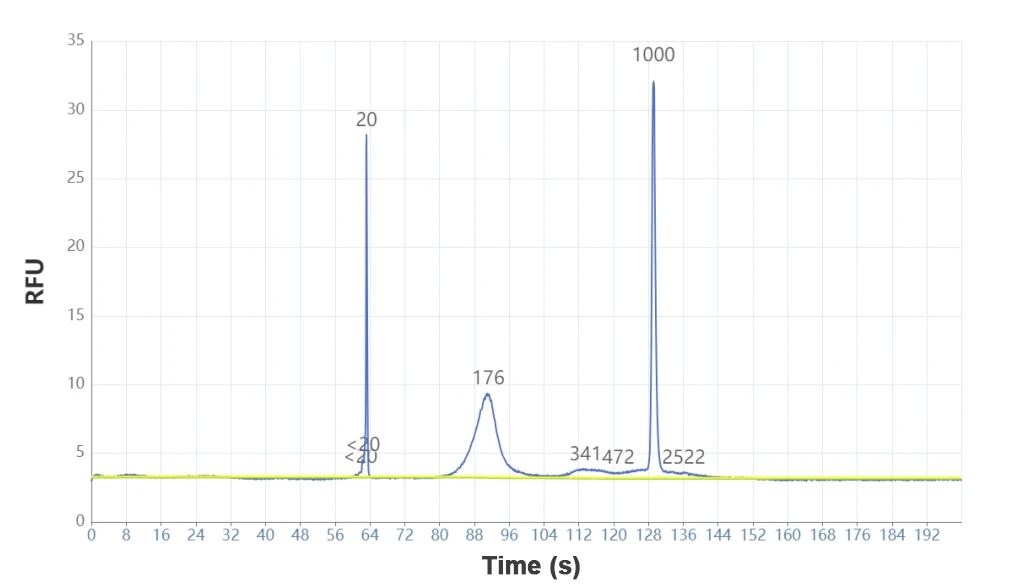

High Repeatability

Repeat the test of the marker sample 50 times, and the marker band can still maintain excellent fragment accuracy.

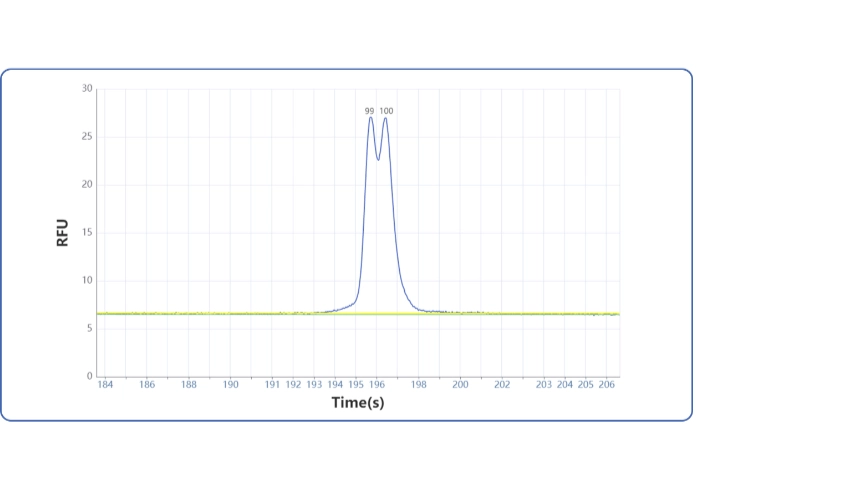

High Resolution

DNA samples with differences as low as 1 bp can be distinguished.

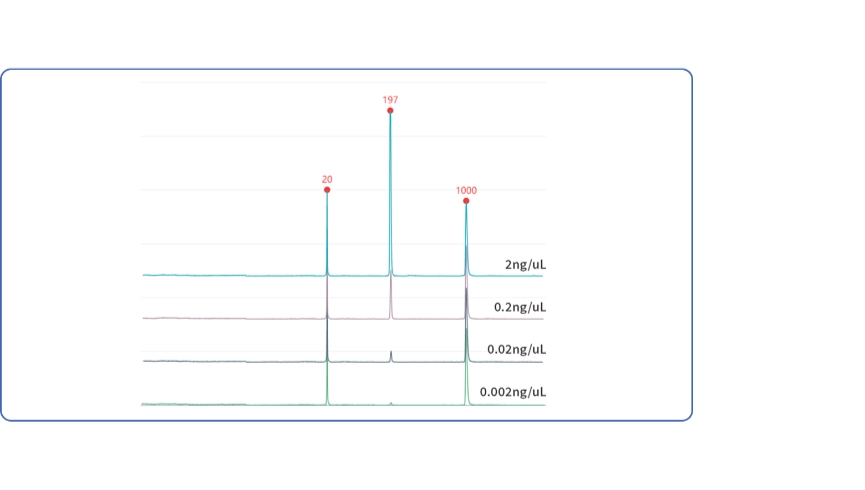

High Sensitivity

The detection range from nanogram to picogram is available.

Key Configuration

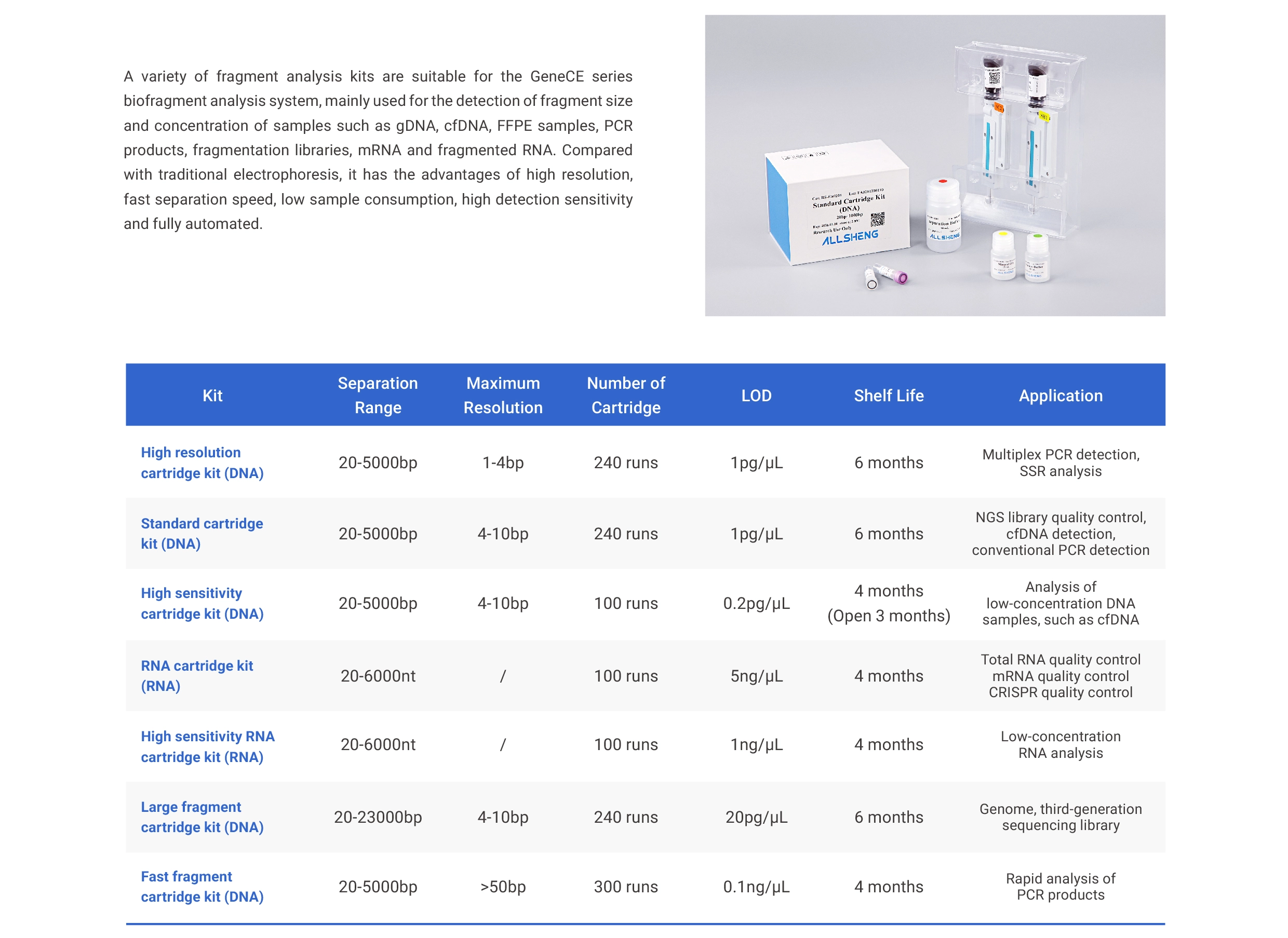

Fragment Analysis Kit

Software Features

GeneCE can be used to perform operations such as well layout, parameter setting and data analysis through a 10-inch high-resolution touch screen. The interface is intuitive and easy to understand, the operation is simple and convenient, and the sample analysis progress can be completed efficiently.

1

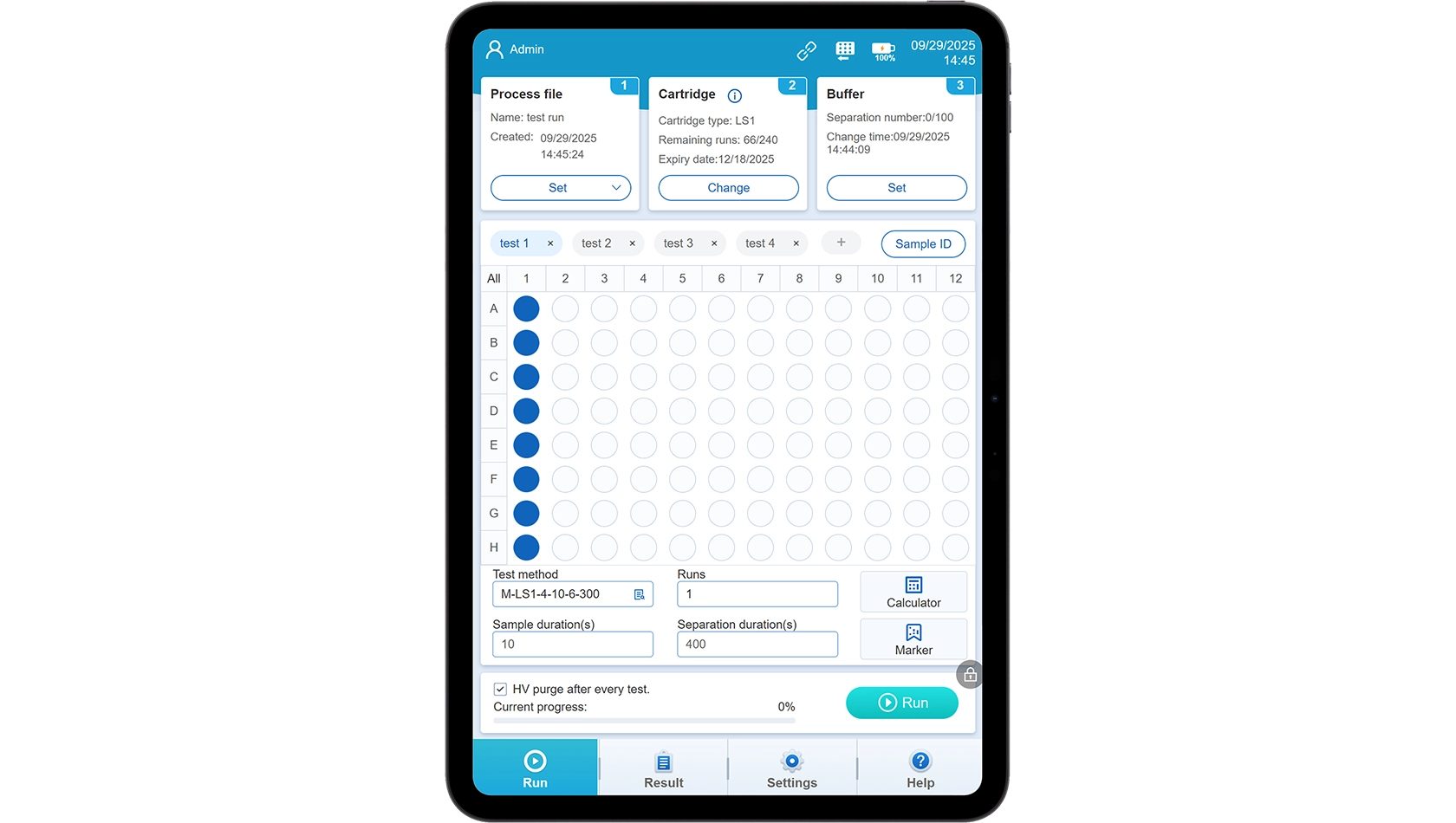

Well Layout

Well layout, parameter settings
2

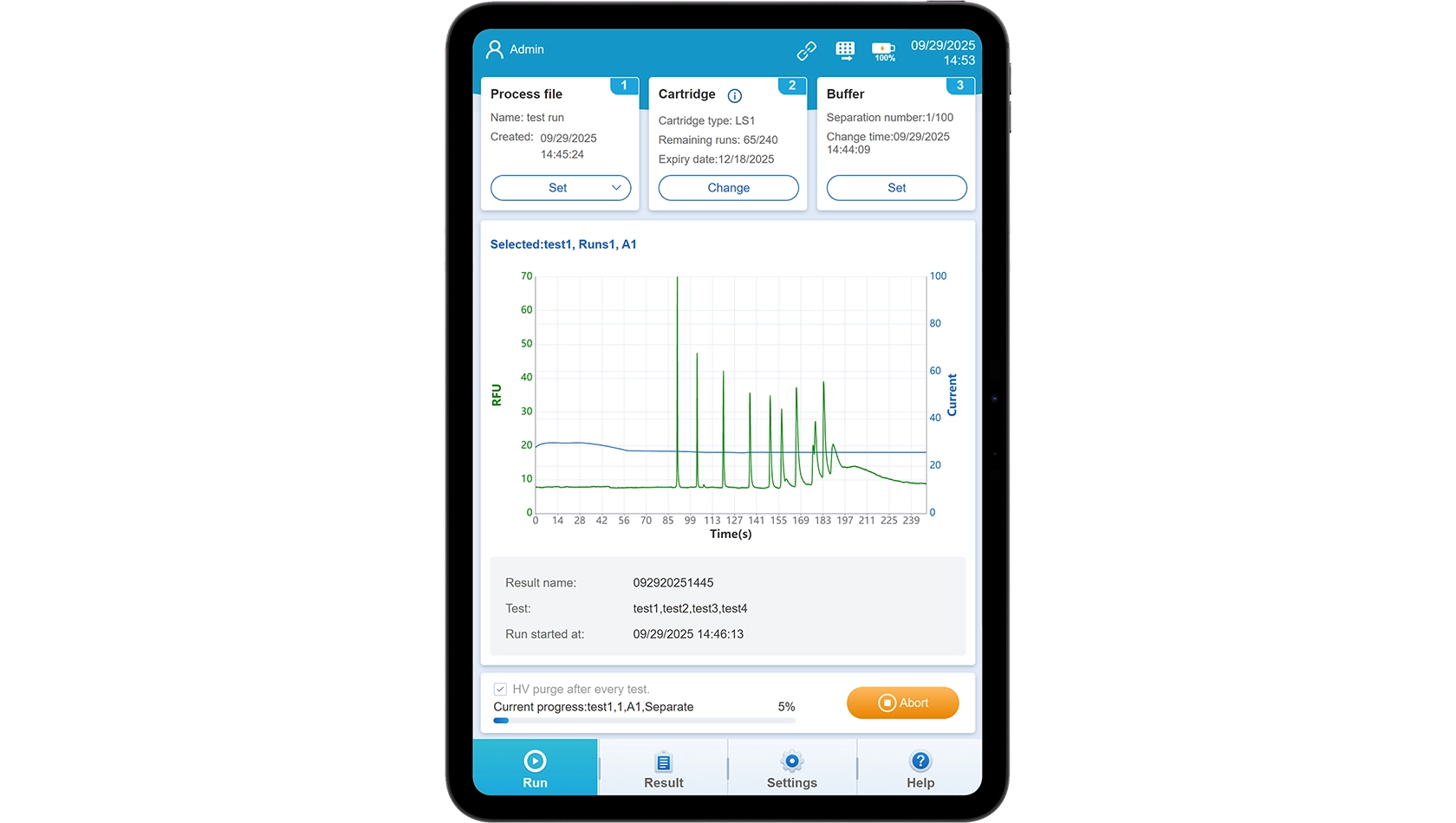

Operation Process

Real-time feedback on sample analysis progress
3

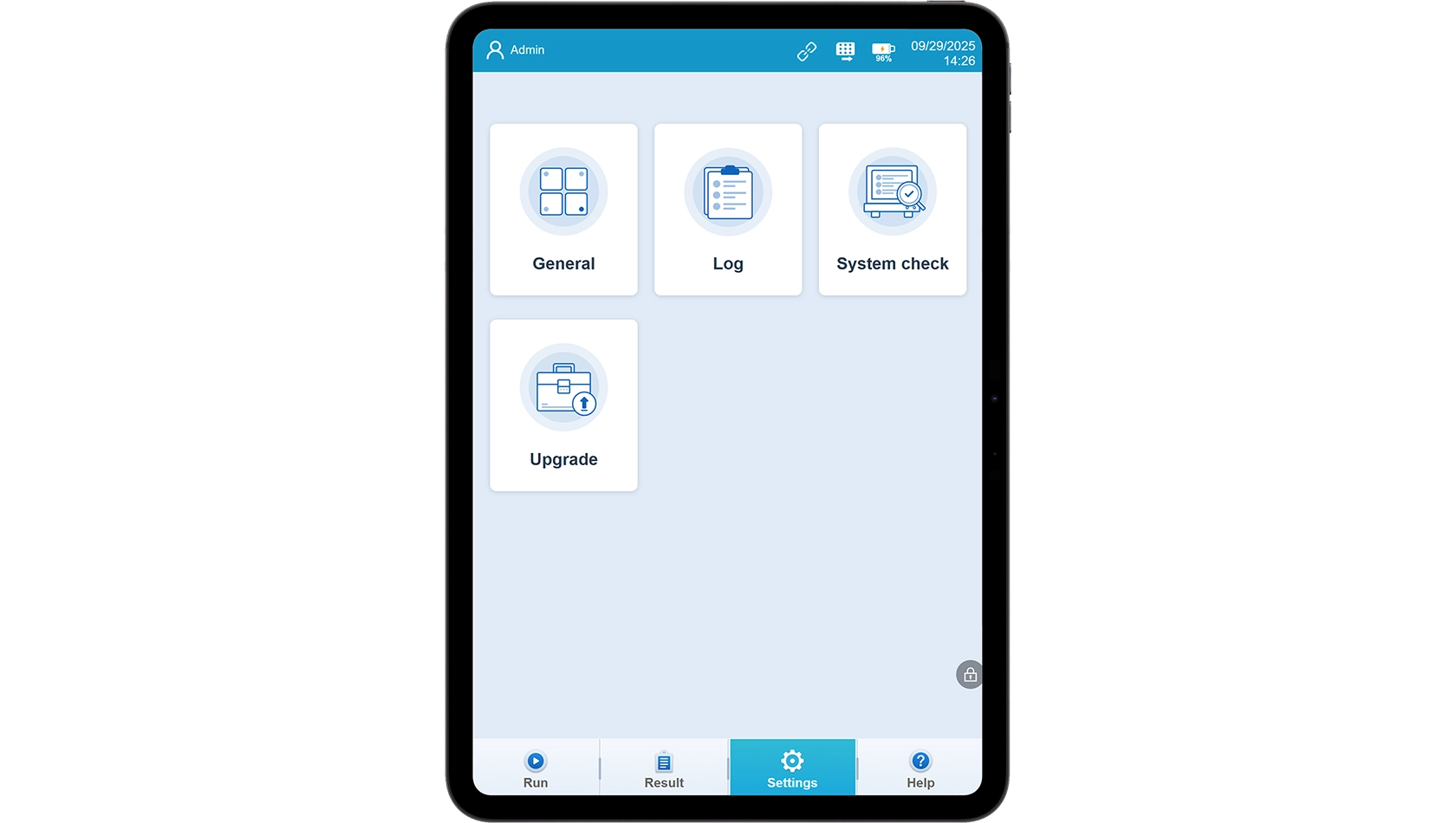

Settings Interface

Support user authority classification, clear authority

01 Application Direction

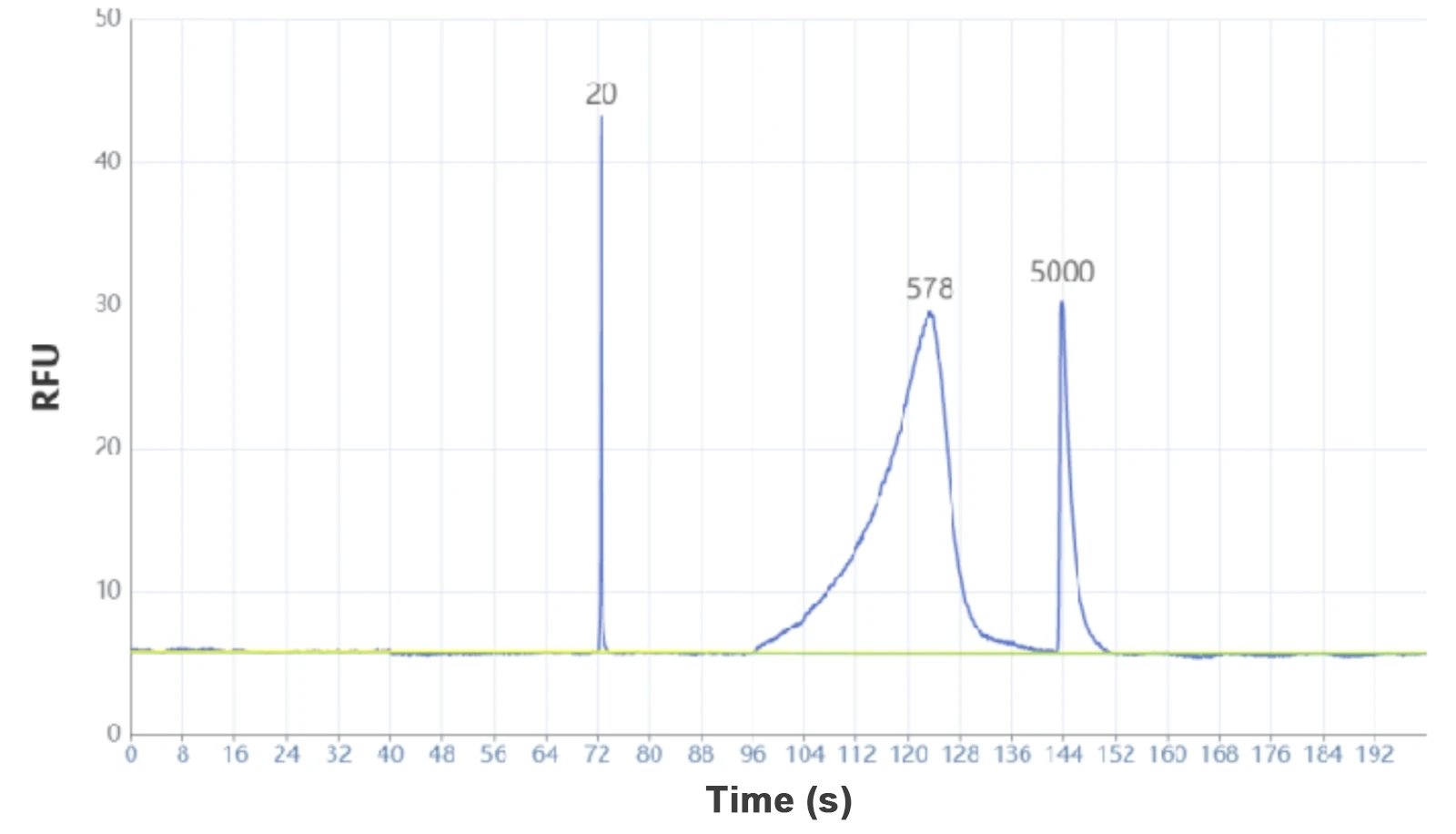

Library Quality Control

By precisely analyzing the fragment distribution and size of NGS libraries, it ensures library quality meets sequencing requirements, thereby enhancing the reliability of sequencing data and improving experimental efficiency.

cfDNA Quality Control

Perform quality control on cfDNA samples to assess contamination by high molecular weight genomic DNA. Evaluate cfDNA degradation levels by analyzing fragment peak shapes to ensure reliability for downstream applications.

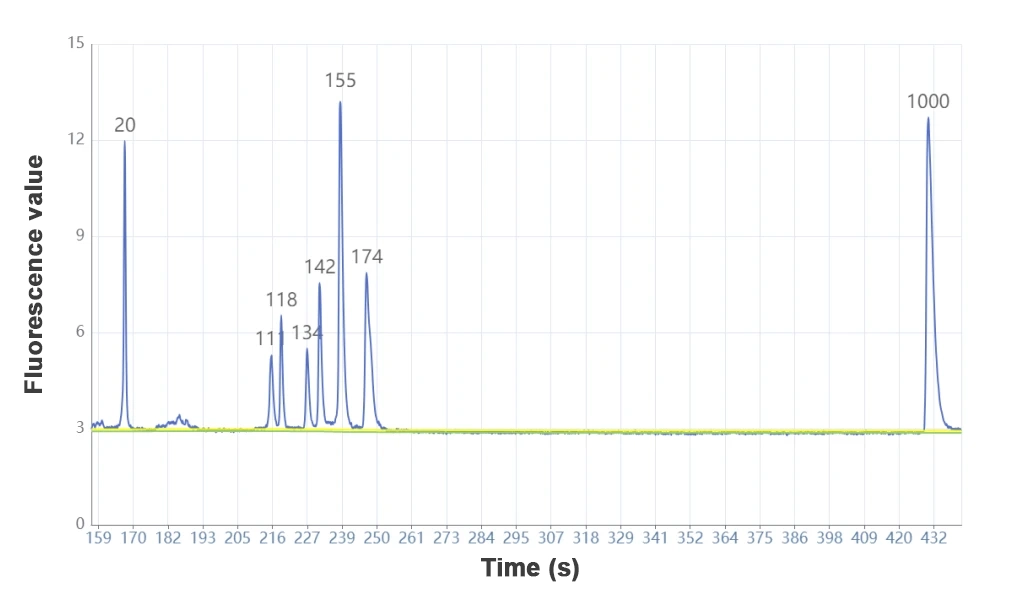

PCR Product Analysis

High resolution (DNA) cartridge kit (SH1) significantly enhances resolution for multi-target detection, suitable for applications including SNP, SSR, multiplex PCR, and bacterial / viral screening and identification.

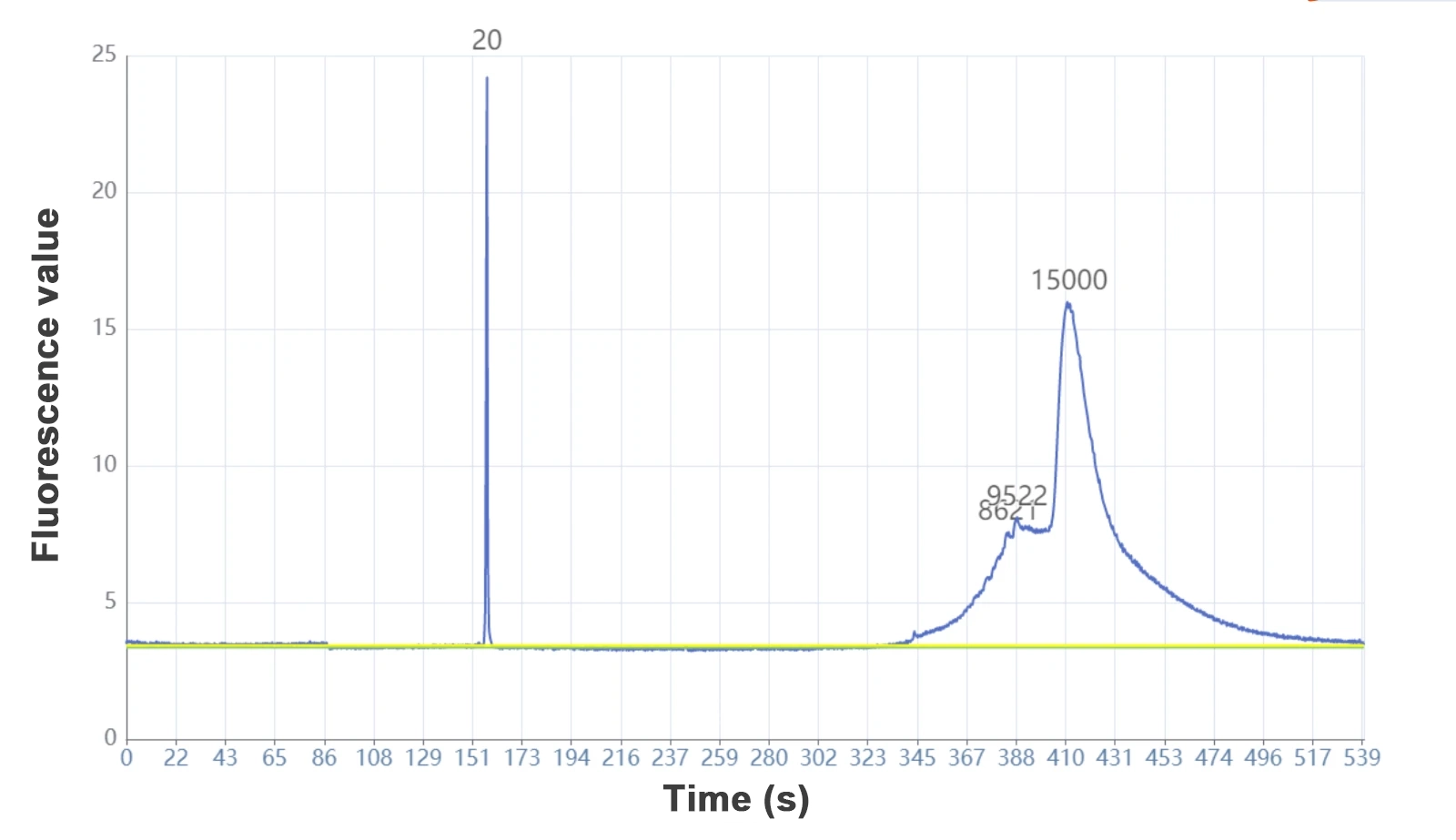

gDNA Quality Control

Perform initial sample quality control on gDNA samples, assess the degree of sample degradation, and ensure the integrity of the starting samples.

Product name	Biofragment analysis system
Model	GeneCE-100
Detection method	Fluorescence
Light source	LED
Display	10 inch high resolution touch screen
Chanel	Single channel
System	Windows 11 and above
Number of samples/test	1~104
LOD	0.2 pg/μL (optimization conditions)
Resolution	1~4 bp
Analysis time	3~5 min/sample
Sample consumption	<0.2 μL
Fragment size CV%	≤2 %
Fragment concentration CV%	≤4 %
Power supply	110~240 V/AC, 50/60 Hz
Weight	26 kg
Dimension	460×445×448 mm

Code	Product description
AS-31010-00	GeneCE-100
AS-31020-00	GeneCE-200
AS-31030-00	GeneCE-300
AS-31040-00	GeneCE-300B
AS-31011-01	High resolution cartridge kit (DNA)
AS-31011-02	Standard cartridge kit (DNA)
AS-31011-03	High sensitivity cartridge kit (DNA)
AS-31011-04	RNA cartridge kit (RNA)
AS-31011-05	High sensitivity RNA cartridge kit (RNA)
AS-31011-06	Large fragment cartridge kit (DNA)
AS-31011-07	Fast fragment cartridge kit (DNA)
AS-31011-08	Protein cartridge kit (protein)
AS-31011-97	8-strips + caps
AS-31011-98	0.5 mL straw
AS-31011-99	Liquid reservoir
RS-SB01	Separation buffer (DNA)
RS-SB02	Separation buffer (RNA)
RS-DB01	Dilution buffer (DNA)
RS-DB02	Dilution buffer (RNA)
RS-MO01	Mineral oil
RS-AM0101	20-1000 bp Alignment Marker (DNA)
RS-AM0102	20-5000 bp Alignment Marker (DNA)
RS-AM0103	20-15000 bp Alignment Marker (DNA)
RS-AM0201	Low Maker (RNA)
RS-SM0101	20-1000 bp Size Marker (DNA)
RS-SM0102	20-5000 bp Size Marker (DNA)
RS-SM0103	20-15000 bp Size Marker (DNA)
RS-SM0104	23Kb Size Marker (DNA)
RS-SM0201	RNA 6000ntsize Marker
