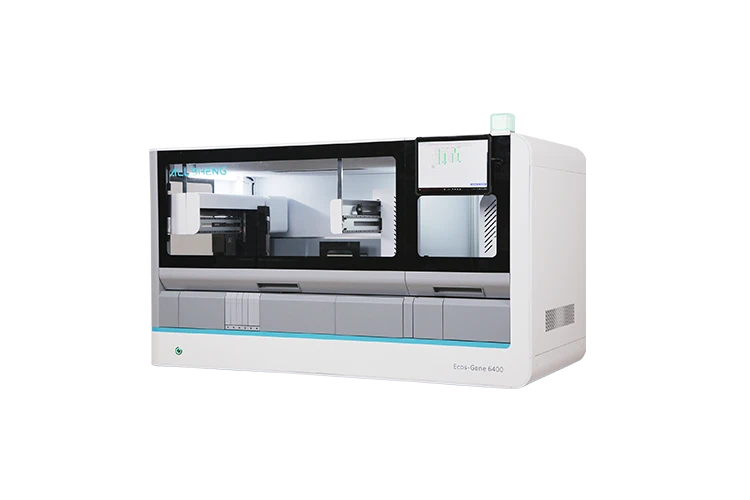

Automated Nucleic Acid Extraction and PCR System
Ecos-Gene 6400
Ecos-Gene 6400 automated nucleic acid extraction and PCR system integrates all functional divisions of PCR detection laboratory. It is a one-stop workstation that integrates the functions of information input, reagent dispensing, sample preparation, nucleic acid extraction based on magnetic bead method, system construction, cover centrifuge, qPCR detection, result analysis, and etc. The whole process from sample loading to report output does not require manual intervention. It can realize sample-to-result and provide you with a new solution for molecular diagnosis.
-
Whole process automation, sample-to-result -

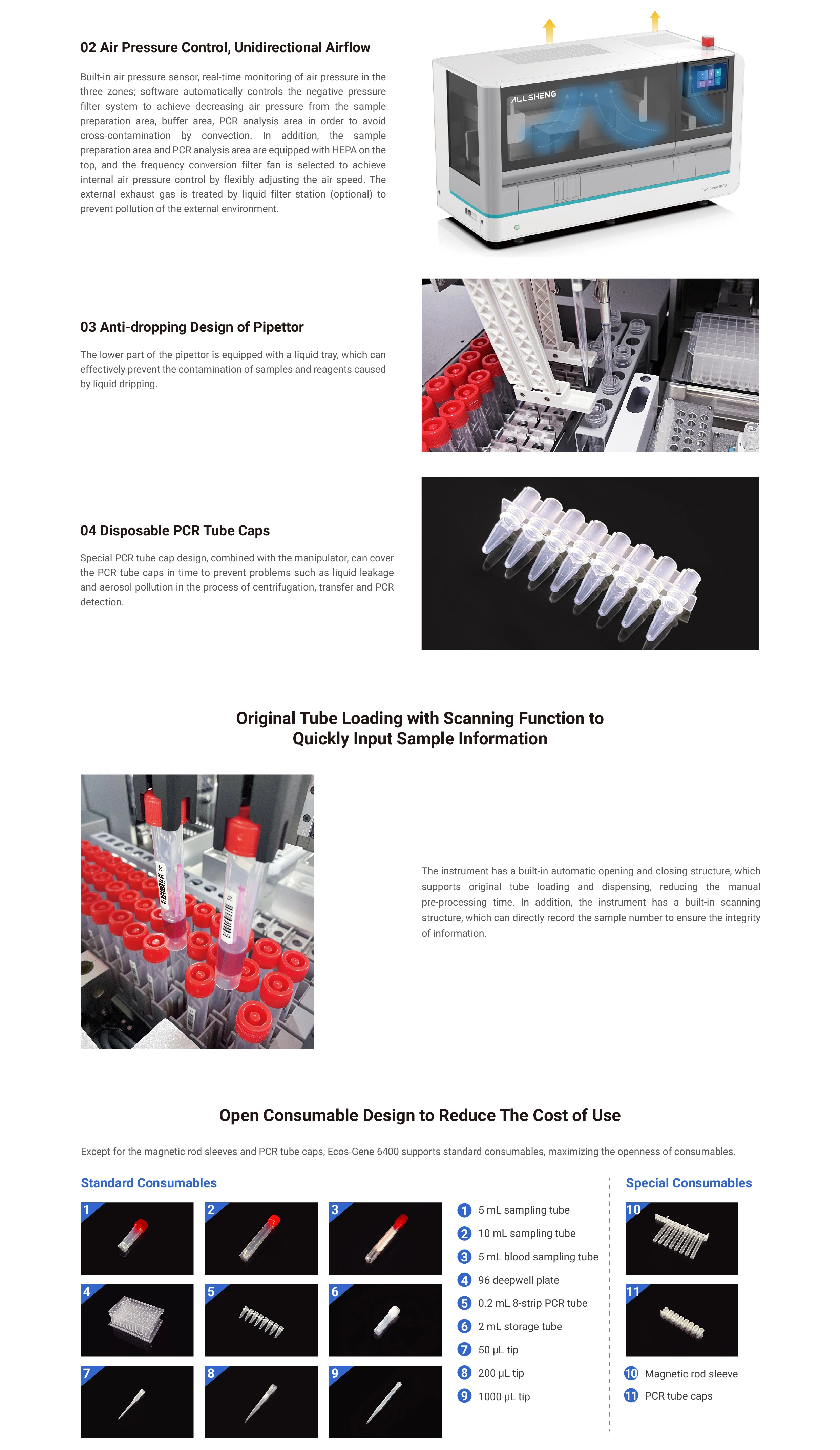

Original tube loading with scanning function to quickly input sample information -
Open consumable design to reduce the cost of use
Overview

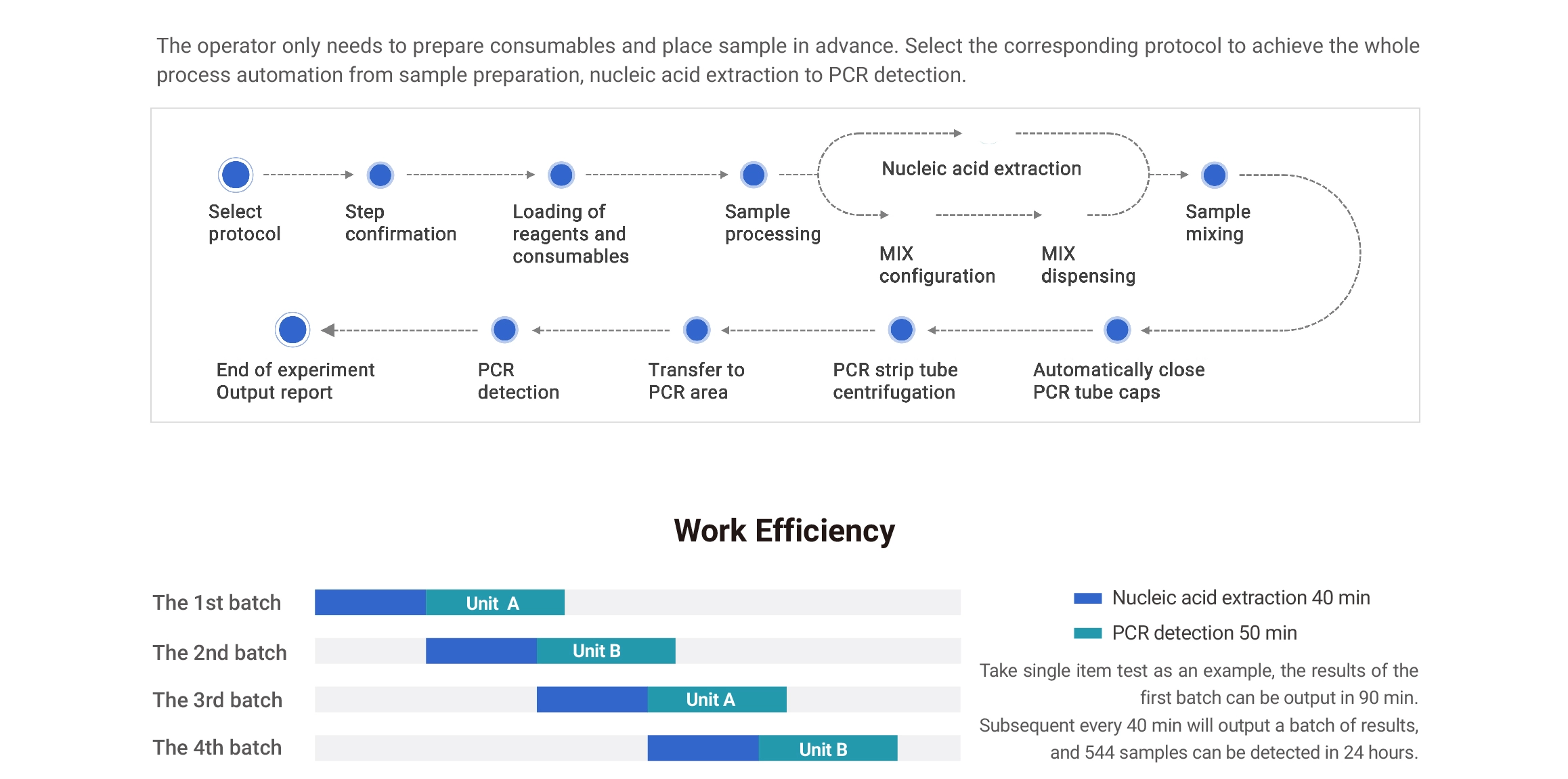

Whole Process Automation, Sample In and Result Out
Key Configuration

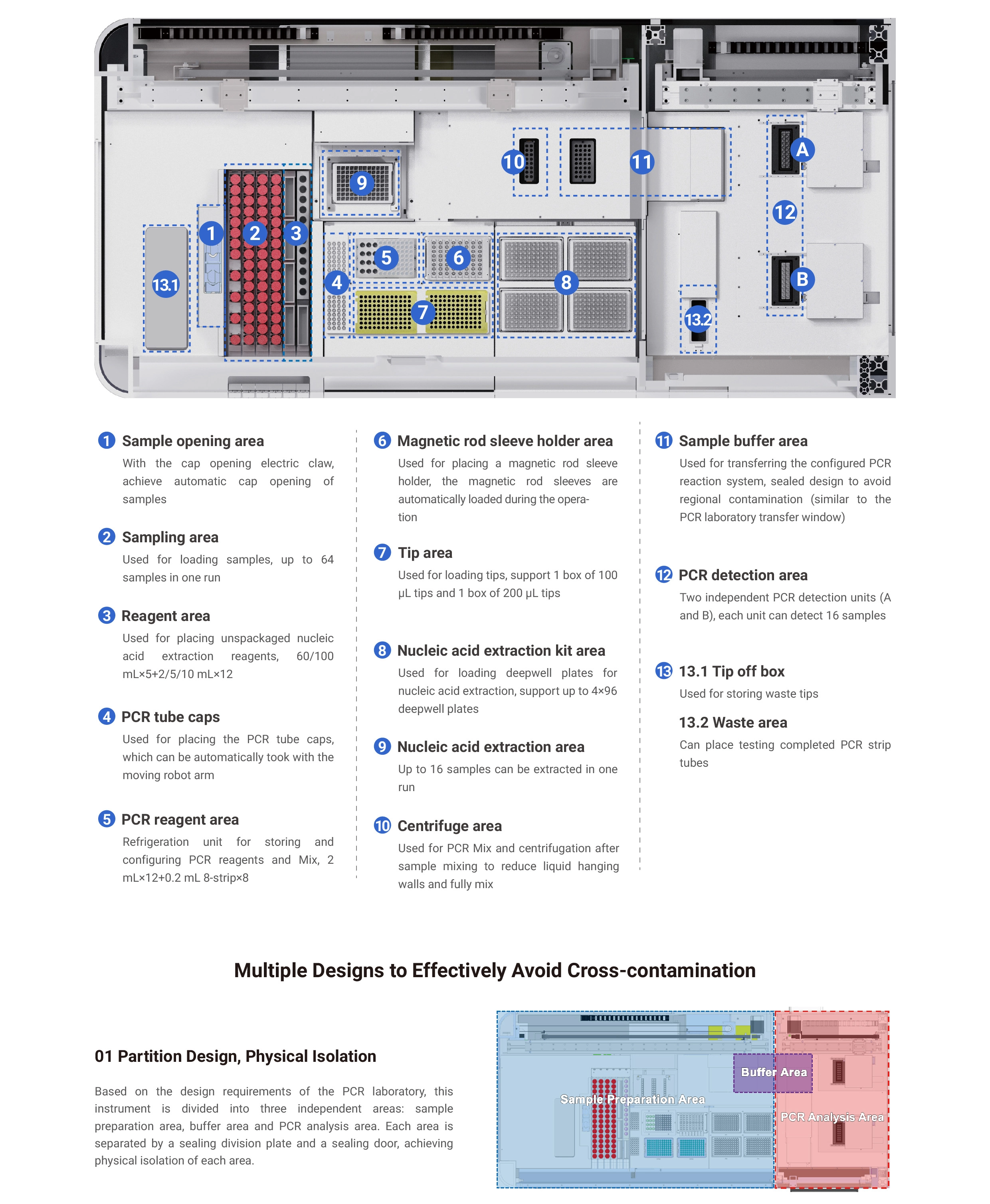

Plate Layout
| Model | Ecos-Gene 6400 |
| Throughput | 1~64 |
| Sample tube | Support the original tube loading of sampling tube / blood sampling tube |
| Extraction temperature performance | Heating range 37 °C~120 °C |
| Extraction temperature performance | Temperature accuracy ±0.5 °C |
| Extraction performance | Extraction time: according to the reagent solution, generally 25~30 min / time |
| Extraction performance | Extraction uniformity CV≤5% |
| PCR amplification | Average heating rate: block 50 °C~95 °C: ≥5 °C/s |
| PCR amplification | Maximum heating rate: block 50 °C~95 °C: ≥10 °C/s |
| PCR amplification | Average cooling rate: block 95 °C~50 °C: ≥5 °C/s |
| PCR amplification | Maximum cooling rate: block 95 °C~50 °C: ≥8 °C/s |
| PCR amplification | Temperature accuracy ≤±0.2 °C |
| PCR amplification | Block temperature control accuracy ≤±0.2 °C 55 °C |
| PCR thermo lid | Temperature range RT. +5 °C~105 °C |
| PCR thermo lid | Temperature control accuracy ±0.5 °C |
| Detection block | PCR reaction system 15~100 μL |
| Detection block | Fluorescence detection channel: 5 channel |
| Detection block | Applicable fluorescent dyes: FAM / HEX / ROX / CY5 / CY5.5, etc. |
| Detection block | PCR kinetic range 1~1010 Copies/μL |
| Detection block | Detection time: according to the reagent solution, generally 35~50 min / time |
| UV sterilization | One UV sterilization lamp is set in the sample preparation area, buffer area and analysis area respectively, which can be controlled independently |
| HEPA | An independent HEPA component is set in the sample preparation area and analysis area respectively |
| Software operation | Windows system software, supporting personalized function customization |
| Instrument port | 1×B-USB port and 1×Ethernet port |
| Information management | Support external code scanner, which can input sample / reagent information; expandable LIS system connection; expandable cloud database connection |
| Code | Product description |
| AS-29010-00 | Ecos-Gene 6400 automated nucleic acid extraction and PCR system |
| AS-29011-01 | Magnetic rod sleeve |
| AS-29011-02 | PCR tube caps |
| AS-29011-03 | 96 deepwell plate |
| AS-TT-200-N | 200 μL, Allsheng tip, transparent, boxed |
| AS-TT-200-NL | 200 μL, Allsheng tip, transparent, boxed, low adsorption |
| AS-TT-200-NS | 200 μL, Allsheng tip, transparent, boxed, sterile |
| AS-TT-200-NSL | 200 μL, Allsheng tip, transparent, boxed, sterile, low adsorption |
| AS-TTF-200-NS | 200 μL, Allsheng tip, transparent, boxed, sterile, filter element |
| AS-TTF-200-NSL | 200 μL, Allsheng tip, transparent, boxed, sterile, filter element, low adsorption |
| AS-TT-1000-N | 1000 μL, Allsheng tip, transparent, boxed |
| AS-TT-1000-NL | 1000 μL, Allsheng tip, transparent, boxed, low adsorption |
| AS-TT-1000-NS | 1000 μL, Allsheng tip, transparent, boxed, sterile |
| AS-TT-1000-NSL | 1000 μL, Allsheng tip, transparent, boxed, sterile, low adsorption |
| AS-TTF-1000-NS | 1000 μL, Allsheng tip, transparent, boxed, sterile, filter element |
| AS-TTF-1000-NSL | 1000 μL, Allsheng tip, transparent, boxed, sterile, filter element, low adsorption |
Product Information
