Leap-Pure Series

Allsheng Leap-Pure series nucleic acid purification system is designed for large-volume cfDNA extraction and FFPE block automatic extraction. It adopts the combination of magnetic rod method and pipetting method to solve a series of problems such as difficult to mix large-volume samples, incomplete magnetic absorption, and difficult to stratify and extract FFPE block automatically. The processing capacity is 1~24 at a time and the consumables are designed in strips, so that the number of samples can be freely selected according to the actual needs. The reaction system can be up to 20 mL, and the minimum processing volume of elution well is 20 μL (FFPE block / 1 mL cfDNA).

Overview

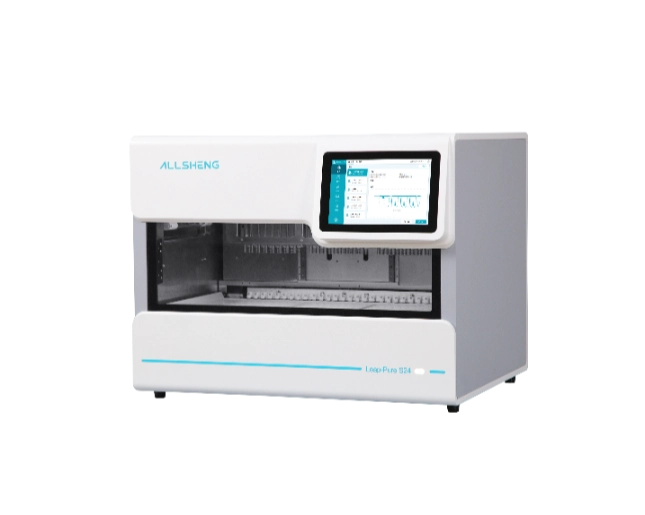

Leap-Pure S24

FFPE Nucleic Acid Extraction, Throughput 1~24

Leap-Pure H24

Throughput 1~24, Processing System 1~20 mL

Leap-Pure R16

PCR Set-Up, FFPE Nucleic Acid Extraction

Leap-Pure S24

FFPE Nucleic Acid Extraction, Throughput 1~24

Leap-Pure H24

Throughput 1~24, Processing System 1~20 mL

Leap-Pure R16

PCR Set-Up, FFPE Nucleic Acid Extraction

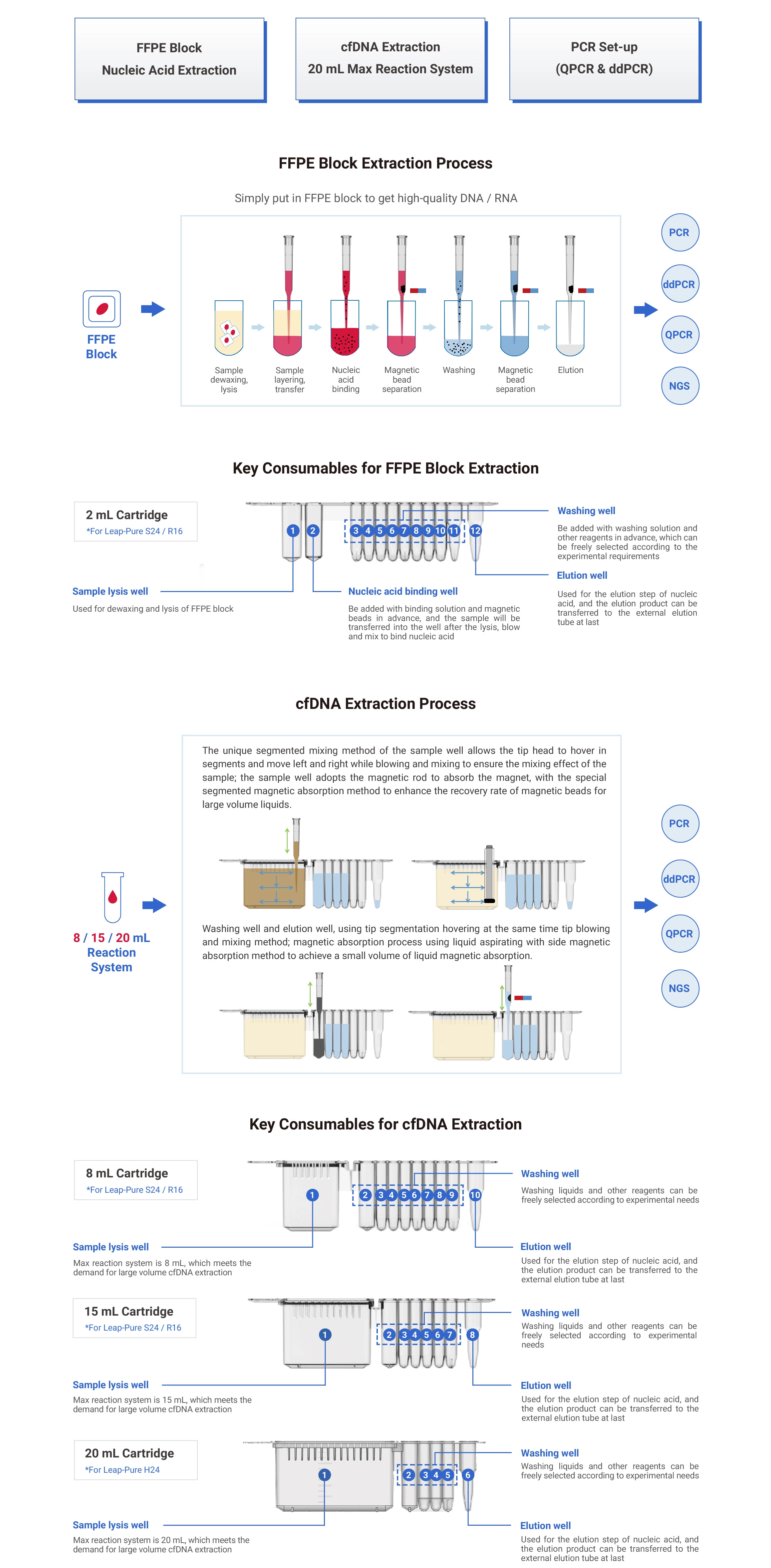

Technology

Accessories

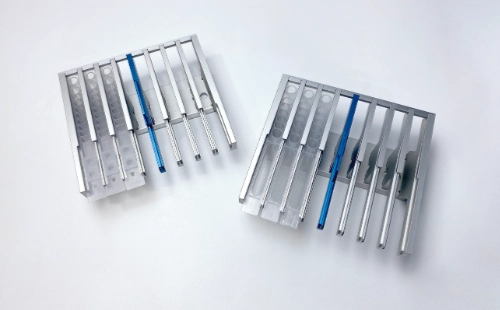

Cartridge's Holder

Different consumables correspond to corresponding cartridges, which include 2 mL cartridges (made of metal / plastic), 8 mL, 15 mL and 20 mL cartridges (made of metal / plastic), making it convenient for researchers to add samples / reagents and saving time for placing consumables.

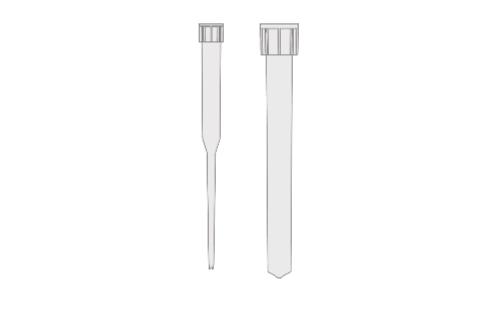

1 mL Special Tip + Tip Holder

Special tips for pipetting, mixing and magnetic absorption.

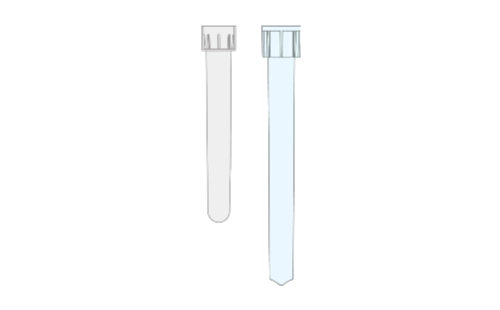

Magnetic Rod Comb + Comb Holder

Used for the magnetic absorption process of large volume sample wells, with the magnetic rods to achieve large volume magnetic absorption without residue.

Selection Guide

Model	Leap-Pure S24	Leap-Pure H24	Leap-Pure R16
Throughput	1~24	1~24	1~16
Sample processing system	1~15 mL	1~20 mL	1~15 mL
FFPE block nucleic acid extraction	•		•
PCR set-up			•
cfDNA extraction consumable	2 mL / 8 mL / 15 mL cartridge	20 mL cartridge	2 mL / 8 mL / 15 mL cartridge
