Automated NGS Library Preparation Workstation

Auto-NGS 100RF

Auto-NGS 100RF has added a fluorometer to meet the quality control requirements during the library preparation process, truly realizing the automated process of sample-to-library. Auto-NGS 100RF features a compact well-plate layout and versatile functions, serving as the perferred platform for low-to-medium throughput library preparation.

INQUIRY

Low-to-medium throughput platform, supporting the whole process automated basic library preparation
Open platform, suitable for most of the library preparation cartridges on the market
Smart and visual software, clear logic and easy to use

Technical Specifications

Ordering Information

Overview

Key Configuration

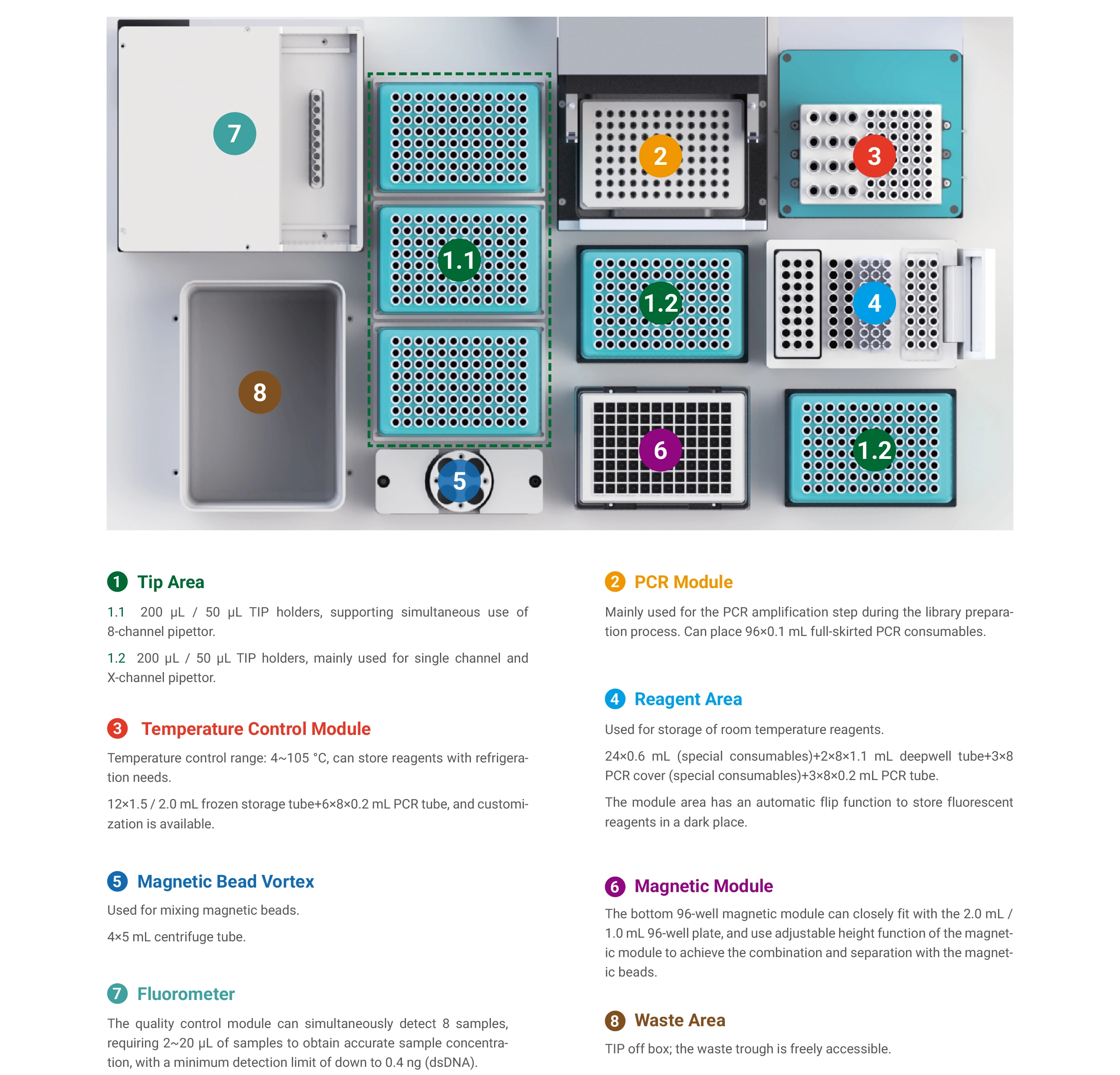

Plate Layout

8-Channel Pipettor

Pipetting range 1~200 μL, 8-channel fixed spacing pipettor can be used as 8 channels, single channel or any channel, reducing pipettng time.

Fluorometer

The fluorometer block, independently developed and designed by Allsheng, meets concentration measurement requirements during library preparation. With software, it can realize automated normalization, pooling, etc.

8-well design, can test 8 samples simultaneously.

Lowest detection limit down to 0.02 ng/μL (dsDNA).

Accurate quantitation and high accuracy with only 2~20 μL samples.

PCR Module

Module temperature control range: 4 °C ~ 99 °C, the temperature range of the thermo lid is 30 °C~120 °C

Temperature precision: ≤0.2 °C @55 °C, temperature accuracy ≤±0.3 °C @55 °C

Temperature uniformity: ≤0.7 °C (@55 °C, 72 °C)

Temperature Control Module

Can be freely set at 4~105 °C. It's the standard temperature control module. According to the usages, module adapters can be customized to meet different consumables requirements.

Temperature accuracy: ≤1 °C

Temperature uniformity: ≤1 °C, @55 °C

1

Simple Reagent Input

Free selection of well positions, and support for pre-filled reagents
2

Clear Software Logic

The protocol running framework is completed through drag and drop operations
3

Graphical Step Editing

Easy to get started, with built-in multiple liquid parameters matching precise pipetting requirements
4

Detailed Operation Guidance

Follow the software prompts to place consumables in order to run the protocol

Model	Auto-NGS 100R	Auto-NGS 100RF	Auto-NGS 180S	Auto-NGS 200
Throughput	24	24	48	96
Pipettor	8-channel	8-channel	24-channel	24-channel
Pipetting range	1-200 μL	1-200 μL	1-200 μL	1-200 μL
Shaking block	/	/	√	√
Quality control block	/	√	√	√
PCR block	√	√	√	√
Dimension (W×D×H)	799×767×775 mm	800×774×775 mm	980×793×830 mm	1420×790×800 mm

Note: 24 refers to the instrument's maximum throughput

Model	Auto-NGS 100RF
Throughput	1~24
Tiles number	12
Pipettor	Channel number: 8-channel (can be used as a single channel)
Pipettor	Pipetting range: 1~200 μL
Pipettor	Pipetting precision (CV): 1 μL: ≤5 % 20 μL: ≤2 % 100 μL: ≤1 % 200 μL: ≤1 %
Pipettor	Pipetting accuracy (A): 1 μL: ±8 % 20 μL: ±2 % 100 μL: ±1 % 200 μL: ±1 %
Temperature control module	Module number: 1
Temperature control module	Temperature control range: 4~105 °C
Temperature control module	Accuracy: ≤1 °C
Temperature control module	Uniformity: ≤1 °C @55 °C
Thermal cycler	Temperature control range: thermo lid: 30 °C~120 °C; block: 4 °C~99 °C
Thermal cycler	Uniformity: ≤0.5 °C
Thermal cycler	Accuracy: ≤±0.3 °C
Fluorescence detection throughput	8
Fluorescence detection range	0.4 ng~100 ng
Magnetic bead vortex	Yes
Magnetic frame	Adjustable height 96-well annular magnetic frame
UV sterilization	Equipped with UV sterilization lamp, HEPA device
Instrument port	USB port
Information management	External scanner for entering sample / reagent information Expandable LIS system connection Expandable cloud database connection
Operating environment	Temperature requirement: 20±5 °C Relative humidity: ≤80%
Power supply	100~240 V, 50 / 60 Hz, rated power 1200 W
Dimension (W×D×H) mm	800×730×775 mm
Weight	130 kg
