Automated NGS Library Preparation Workstation

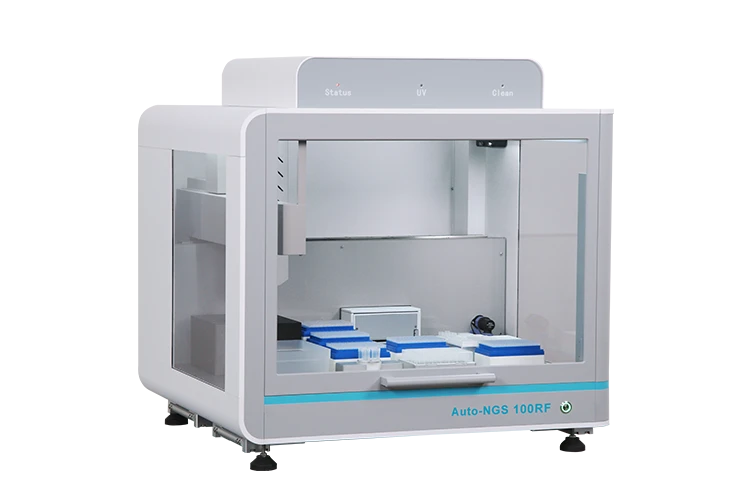

Auto-NGS 100RF

Based on Auto-NGS 100R, Auto-NGS 100RF has added a fluorometer to meet the quality control requirements during the library preparation process, truly realizing the automated process of sample-to-library. Auto-NGS 100RF plate has a more compact structure and diverse functions, making it the preferred platform for medium to low throughput library preparation.

INQUIRY

Low-to-mid throughput platform, supporting the whole process automated basic library preparation
Open platform, suitable for most of the library preparation cartridges on the market
Smart and visual software, clear logic and easy to use

Technical Specifications

Ordering Information

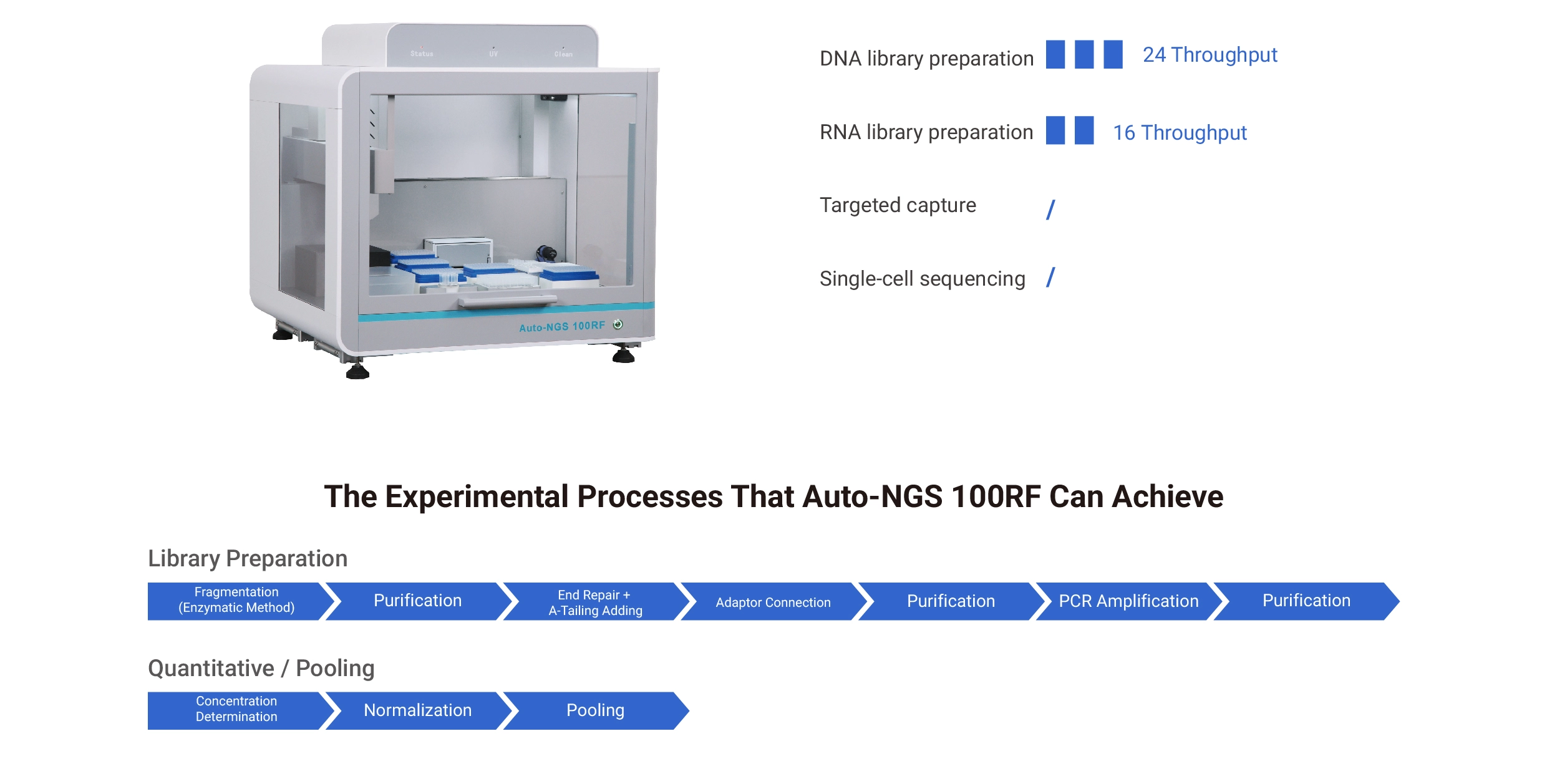

Overview

Key Configuration

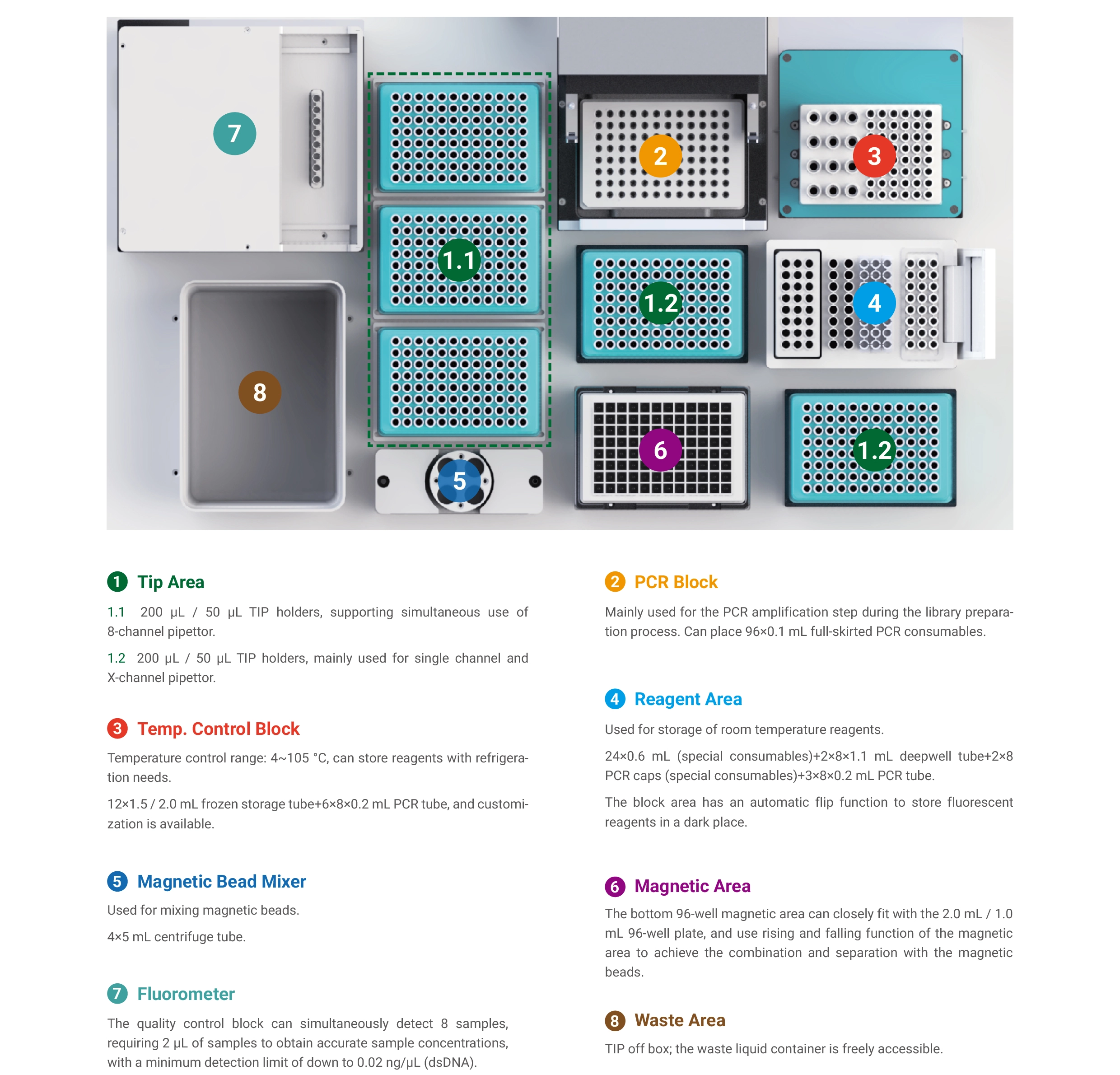

Plate Layout

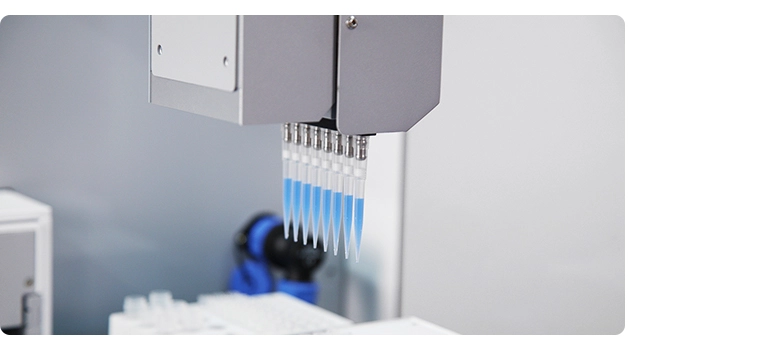

8-Channel Pipettor

Pipetting range 1~200 μL, 8-channel fixed spacing pipettor can be used as 8 channels, single channel or any channel, reducing pipettng time.

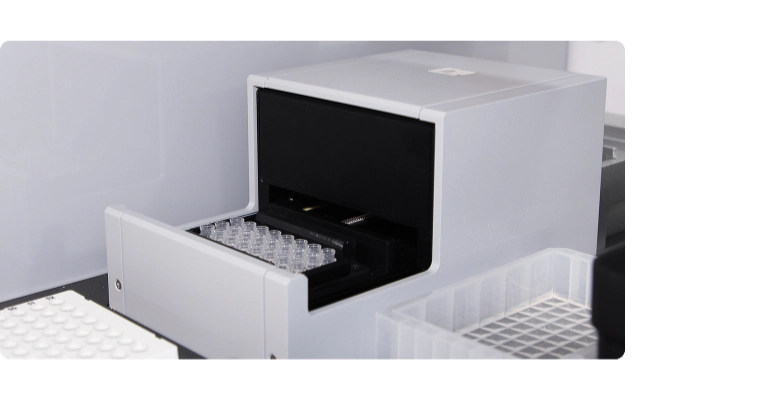

Fluorometer

The fluorometer block, independently developed and designed by Allsheng, meets concentration measurement requirements during library preparation. With software, it can realize automated normalization, pooling, etc.

8-well design, can test 8 samples simultaneously.

Lowest detection limit down to 0.4 ng (dsDNA).

Accurate quantitation and high accuracy with only 2-20 μL samples.

PCR Amplification Block

Block temperature control range: 4 °C ~ 99 °C, the temperature range of the thermo lid is 30 °C~120 °C

Temperature precision: ≤0.2 °C @55 °C, temperature accuracy ≤±0.3 °C @55 °C

Temperature uniformity: ≤0.7 °C (@55 °C, 72 °C)

Temperature Control Block

Can be freely set at 4~105 °C. It's the standard temperature control block of NGS series. According to the usages, bock adapters can be customized to meet different consumables requirements.

Temperature accuracy: ≤1 °C

Temperature uniformity: ≤1 °C, @55 °C

1

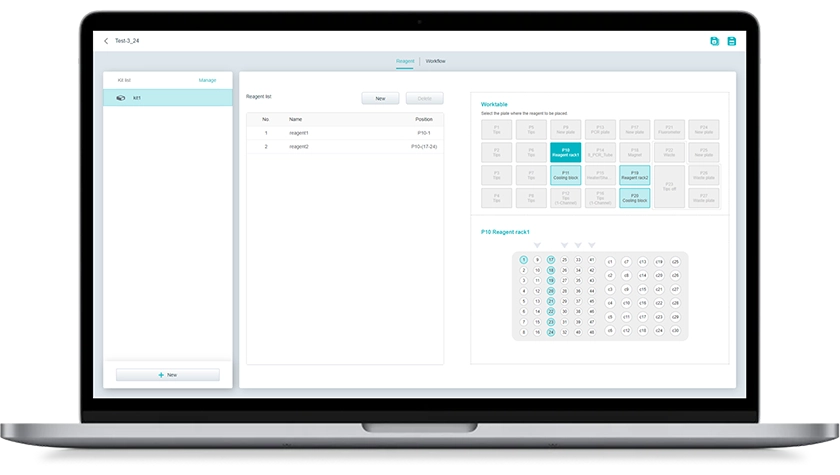

Simple Reagent Input

Free selection of well positions, and support for pre-packaged reagents
2

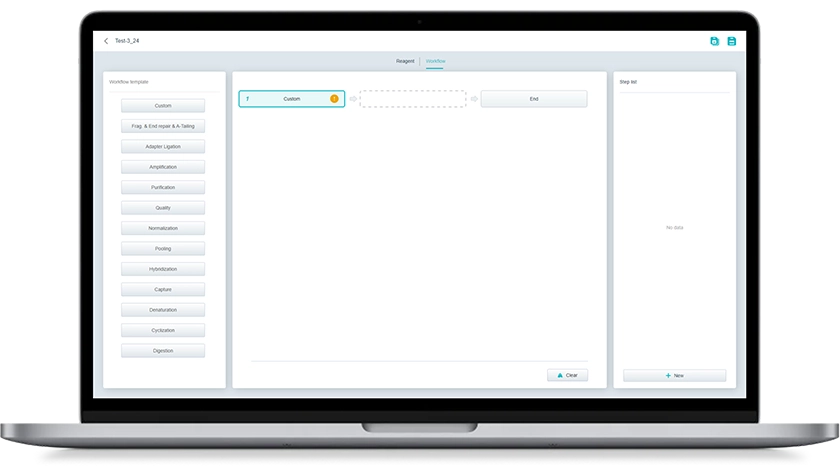

Clear Software Logic

The cartridge running framework is completed through drag and drop operations
3

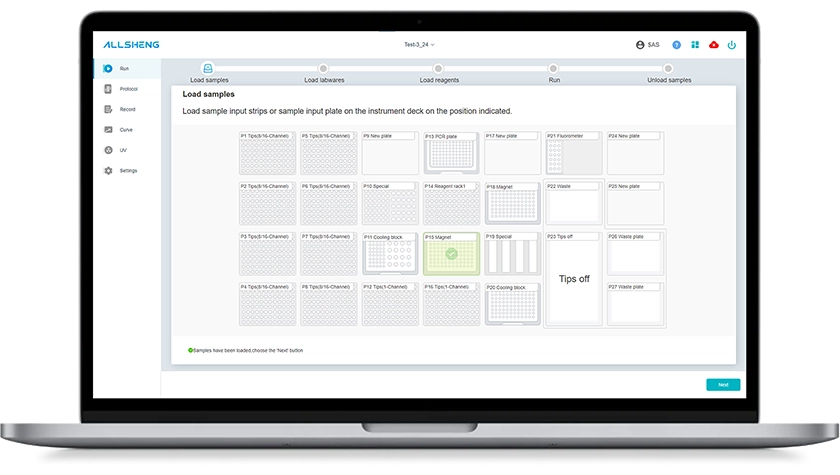

Detailed Operation Guidance

Follow the software prompts to place consumables in order to run the program
4

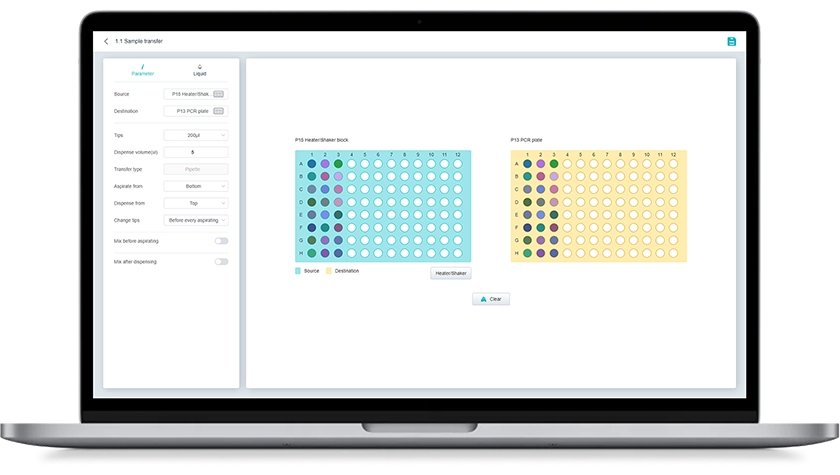

Graphical Step Editing

Easy to get started, with built-in multiple liquid parameters matching precise pipetting requirements

Model	Auto-NGS 100R	Auto-NGS 100RF	Auto-NGS 180S	Auto-NGS 200
Throughput	24	24	48	96
Pipettor	8-channel	8-channel	24-channel	24-channel
Pipetting range	1-200 μL	1-200 μL	1-200 μL	1-200 μL
Shaking block	/	/	√	√
Quality control block	/	√	√	√
PCR block	√	√	√	√
Dimension (W×D×H)	799×767×775 mm	800×774×775 mm	980×793×830 mm	1420×790×800 mm

Note: 24 refers to the instrument's maximum throughput

Model	Auto-NGS 100RF
Throughput	1~24
Tiles number	12
Pipettor	200 μL; 8-channel (can be used as a single channel)
Pipettor	Minimum detection volume: 20 μL
Pipetting range	1~200 μL
Pipetting precision (CV)	1 μL: ≤5 % 20 μL: ≤2 % 100 μL: ≤1 % 200 μL: ≤1 %
Pipetting accuracy (A)	1 μL: ±8 % 20 μL: ±2 % 100 μL: ±1 % 200 μL: ±1 %
Temperature control block	Including 1 temperature control block
Temperature control block	Temperature control range: 4~105 °C
Temperature control block	Temperature control accuracy: ≤1 °C
Temperature control block	Temperature control uniformity: ≤1 °C @55 °C
Thermal cycling block	Temperature control range: thermo lid: 30 °C~120 °C; block: 4 °C~99 °C
Thermal cycling block	Uniformity: ≤0.7 °C
Thermal cycling block	Accuracy: ≤±0.3 °C
Fluorescence detection throughput	8
Fluorescence detection range	0.4 ng~100 ng
Magnetic bead shaking block	Yes
Magnetic plate	Lift type 96-well annular magnetic plate
UV sterilization	Equipped with UV sterilization lamp, HEPA device
Instrument port	USB port
Information management	External scanner for entering sample / reagent information
Information management	Expandable LIS system connection
Information management	Expandable cloud database connection
Operating environment	Temperature requirement: 20±5 °C Relative humidity: ≤80 %
Power supply	100~240 V, 50 / 60 Hz, rated power 1200 W
