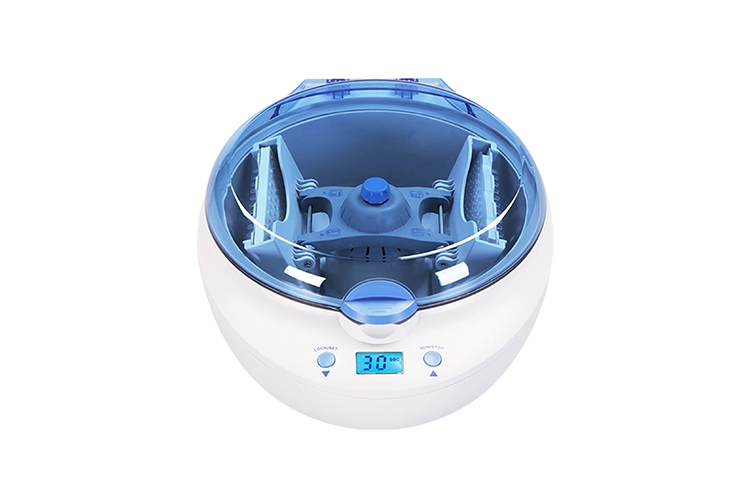

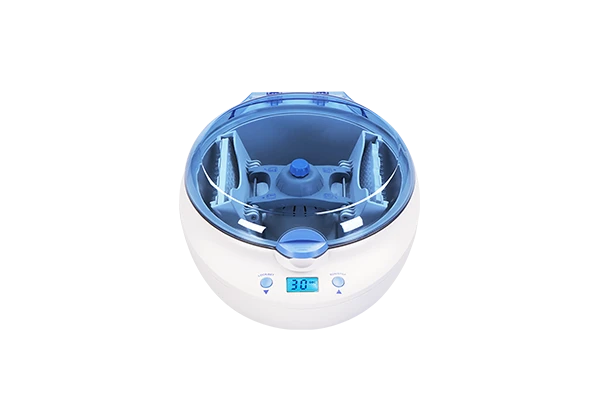

Microplate Centrifuge
MPC-P25

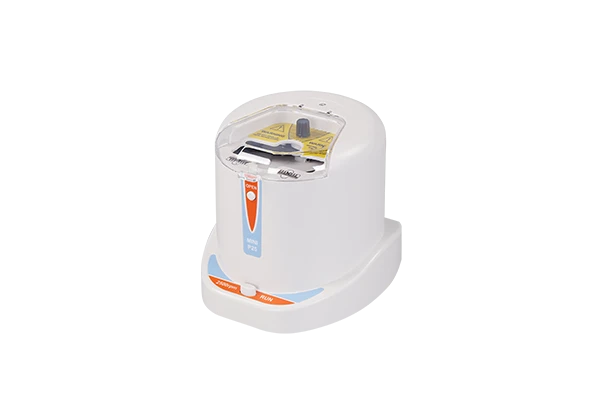

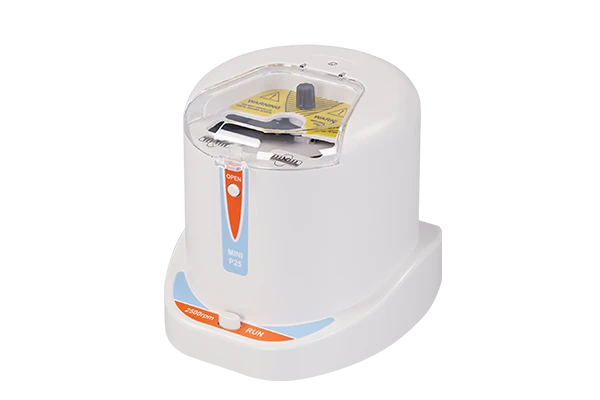

MPC-P25 microplate centrifuge adopts a unique horizontal rotor design. The microplates or centrifuge tubes are placed symmetrically on the inclined rotor frame. The rotor frame is thrown from the inclined position to the horizontal position by centrifugal force, so as to ensure rapid release of hanging wall droplets. MPC-P25 adopts a streamlined design, with small size, beautiful appearance and low running noise. It is an upgraded version of Mini-P25 microplate centrifuge produced by our company, and it is also an ideal companion for PCR experiments.
-
Unique design for the horizontal rotor centrifuge, to ensure rapid release of hanging wall droplets -
Short-spin and timing of two operations make the tests more convenient
Features
-
Unique design for the horizontal rotor centrifuge.
It can accept below formats:
--96-well, 384-well PCR standard plates with skirted, non-skirted
--96-well Elisa plates
--8×0.2 mL PCR strip tubes
---0.2 mL PCR tubes
Short-spin and timing of two operations make the tests more convenient.
Streamline design with more compact shape and transparent PC lid.
Braking time from max.speed: less than 30 sec.
| Model | MPC-P25 |
| Capacity | 2×PCR plates / Elisa plate / 24×PCR strip tubes / 192×0.2 mL PCR tubes |
| Maximum speed | 2,200 rpm |
| Maximum RCF | 480xg |
| Time setting | 0~10 min |
| Dimension (W×D×H) mm | 290×360×140 mm |
| Weight | 3.6 kg |
| Power supply | AC220 V / AC120 V, 50 / 60Hz |
| Code | Product description |
| AS-08090-00 | MPC-P25 mini-plate centrifuge |
| AS-08091-01 | Adaptor for PCR plates, skirted, semi-skirted and non-skirted |
| AS-08091-02 | Adaptor for 8×0.2 mL PCR strip tubes or 0.2 mL PCR tubes |
